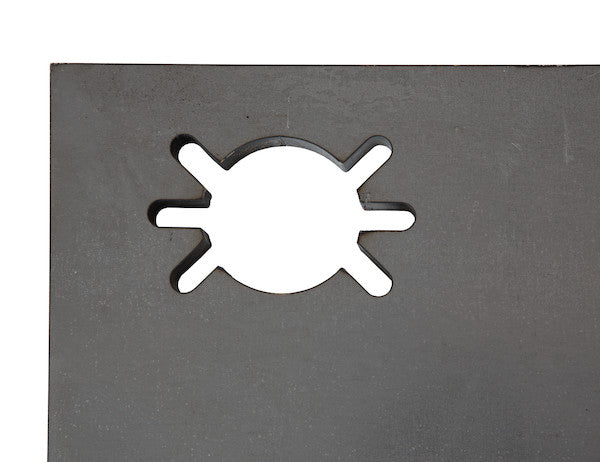

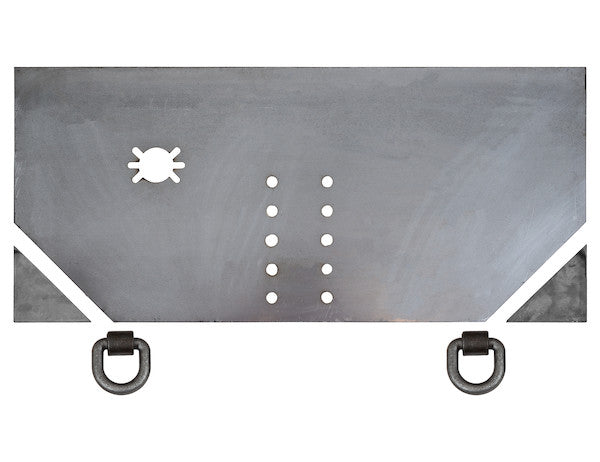

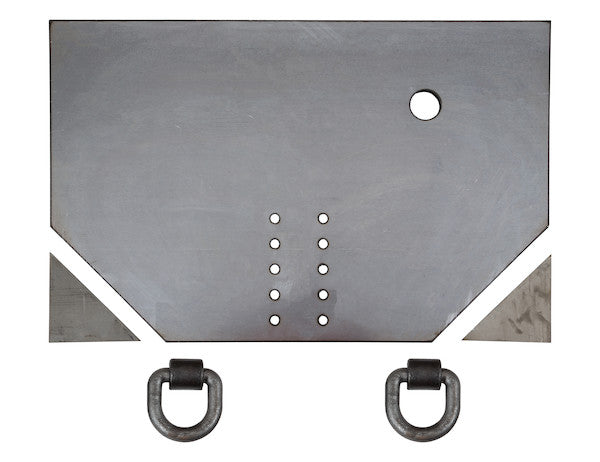

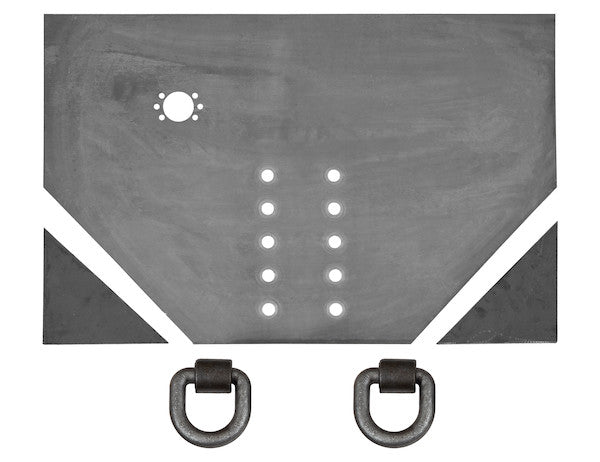

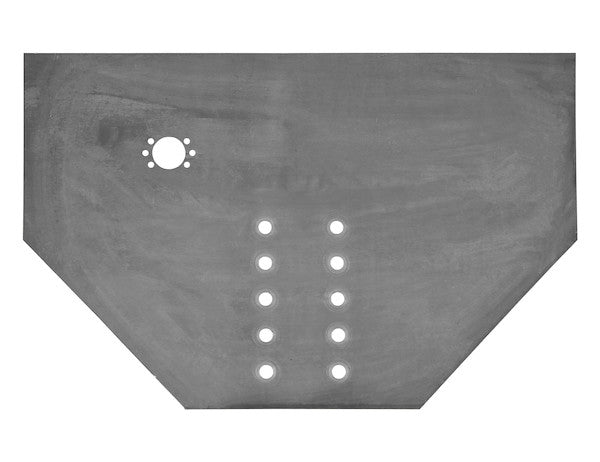

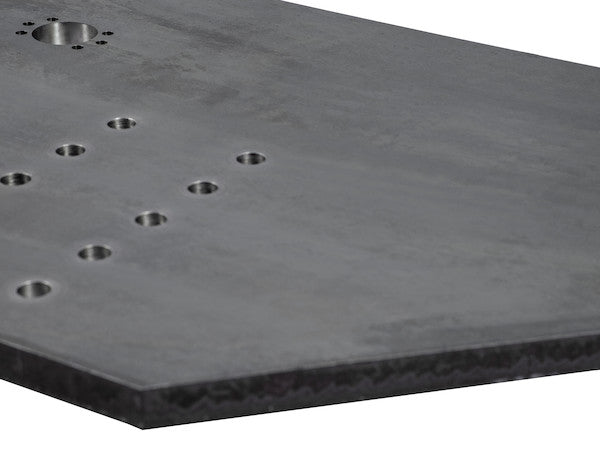

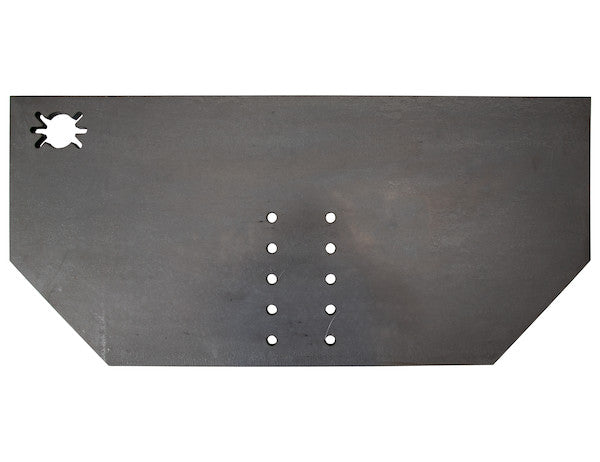

The Fabricators Hitch Plate from Buyers Products lets you build your hitch plate to meet your specific vehicle and needs. Available in thicknesses of 1/2 in., 5/8 in., 3/4 in., or 1 in., the hitch plate features multiple pintle hook mounting positions and a pre-punched hole for electrical connectors. The hitch plate is welded to the frame. Included are two D-rings and weld-on gussets for custom placement. Hole Diameter: .56??? for 1809027A, 1809040, 1809042, 1809043 .812??? for 1809029 Vertical Hole Spacing: 1.75??? for 1809027A, 1809040, 1809042, 1809043 2.25??? for 1809029 Horizontal Hole Spacing: 3.38??? for 1809027A, 1809040, 1809042, 1809043, 4.5??? for 1809029
Specifications
| Application Specific (Y/N) | No |
|---|---|
| Application Summary | Dump Truck |
| Finish | Plain |
| Height (in.) | 22.50 |
| Hitch Plate or Bumper | Fabricator's Kit |
| M.G.T.W. (lbs.) | Not Rated |
| M.V.L. (lbs.) | - |
| Material | Carbon Steel |
| Receiver Size (in.) | - |
| Thickness (in.) | 1.00 |
| Width (in.) | 34.50 |
The Fabricator's Hitch Plate, specifically the 1 x 34-1/2 x 22-1/2 Inch model, represents a foundational component engineered for the custom integration of heavy-duty towing and mounting solutions onto commercial and industrial vehicles. Manufactured by Buyers Products, a recognized leader in vehicle outfitting components, this hitch plate is designed to empower professional fabricators to create bespoke towing systems perfectly tailored to unique operational demands and vehicle specifications. Unlike off-the-shelf, application-specific hitches, this Fabricator's Kit offers unparalleled flexibility, serving as a robust base for complex and demanding applications where standard solutions may fall short.
At its core, this hitch plate is a testament to uncompromised structural integrity and material science. Constructed from premium carbon steel with a substantial 1-inch thickness, it provides exceptional resistance to the extreme shear, tensile, and torsional forces inherent in heavy-duty towing. The use of carbon steel ensures optimal weldability, a critical factor for fabricators aiming for permanent, high-strength structural integration with a vehicle's frame. This material choice, coupled with the generous dimensions of 34-1/2 inches in width and 22-1/2 inches in height, offers an extensive surface area and structural depth necessary for distributing heavy loads efficiently, mitigating stress concentrations, and enhancing the overall longevity of the fabricated assembly. The "Plain" finish signifies that the steel is provided in its raw, untreated state, ideal for welding and subsequent custom finishing treatments such as painting or powder coating, which the fabricator can apply to match the vehicle's aesthetic or provide specific corrosion resistance requirements.
One of the primary engineering advantages of the Fabricator's Hitch Plate lies in its meticulously designed pintle hook mounting versatility. The plate is pre-engineered with multiple hole patterns to accommodate a wide array of pintle hooks, reflecting the diverse coupling requirements across various industries. Specifically, it features hole diameters of 0.56 inches and 0.812 inches, catering to different bolt sizes and load classes of pintle hooks. The vertical hole spacing options of 1.75 inches and 2.25 inches, alongside horizontal spacing options of 3.38 inches and 4.5 inches, align with common industry standards for pintle hook mounting, ensuring compatibility with a broad spectrum of towing apparatuses. This modularity allows fabricators to select and integrate the most appropriate pintle hook for specific trailer types and gross combined weight ratings, without the need for extensive drilling or modification of the base plate, thereby streamlining the fabrication process and ensuring precise, secure attachment points.
Beyond its robust structural attributes, the Fabricator's Hitch Plate incorporates practical features for comprehensive trailer integration. A pre-punched hole for electrical connectors is strategically included, simplifying the installation of trailer wiring harnesses. This thoughtful design element eliminates the need for fabricators to cut or drill additional openings in hardened steel, which can be time-consuming and compromise material integrity. By providing a designated, clean port for electrical connections, it ensures a secure and protected pathway for trailer lighting, braking, and auxiliary power systems. This integrated feature promotes a cleaner, more professional installation, enhances reliability by minimizing exposure of wiring to environmental elements, and ultimately contributes to safer towing operations by ensuring consistent electrical communication between the vehicle and the trailer.
The method of attachment—welding directly to the vehicle's frame—is a cornerstone of this product's design philosophy for maximum performance. Unlike bolt-on systems that rely on mechanical fasteners and clamping forces, a properly executed weld provides a monolithic, metallurgical bond between the hitch plate and the vehicle frame. This direct structural integration offers superior strength, direct load transfer capabilities, and exceptional resistance to dynamic stresses and fatigue over extended operational periods. The welded connection ensures that the hitch plate becomes an integral part of the vehicle's chassis, distributing towing forces across a wider area of the frame. This permanence is critical for heavy-duty applications, such as those involving dump trucks and other commercial vehicles, where sustained, high-stress towing is a regular requirement. Fabricators must adhere to industry best practices and welding standards to ensure the integrity and safety of this critical structural modification.
Further enhancing the utility and structural integrity of the fabricated system are the included two D-rings and weld-on gussets. The D-rings serve as indispensable recovery points or additional tie-down anchors, offering robust attachment options for winch lines, tow straps, or securing oversized cargo. Fabricated from high-strength steel, these D-rings are designed to withstand significant pulling forces, providing essential versatility for challenging recovery scenarios or for securing diverse loads. The weld-on gussets are engineered structural reinforcements. When strategically positioned and welded, these triangular or trapezoidal plates distribute stress more evenly from the hitch plate into the vehicle frame, significantly increasing the rigidity and load-bearing capacity of the entire assembly. Gussets effectively prevent localized stress concentrations at the plate-to-frame interface, mitigating potential points of fatigue failure and enhancing the long-term durability and safety of the custom hitch system under severe operational conditions.
The substantial dimensions of the Fabricator's Hitch Plate—1 inch thickness, 34.5 inches width, and 22.5 inches height—are deliberately chosen to provide a robust and versatile platform for heavy-duty applications. The 1-inch thickness is critical for enduring the immense forces exerted during towing, particularly when dealing with heavy trailers or extreme off-road conditions where dynamic loads are prevalent. This gauge prevents deformation and ensures consistent performance. The generous width of 34.5 inches offers ample space for mounting various pintle hooks, auxiliary equipment, and additional reinforcements, while also allowing for broader distribution of forces across the vehicle's frame. The 22.5-inch height provides significant vertical coverage, enabling fabricators to integrate the plate securely into vehicle frames of various depths, ensuring a strong, stable connection point for the towing assembly. These dimensions collectively contribute to the plate's ability to serve as a high-performance foundation for the most demanding custom hitch installations.
While the application summary specifically mentions "Dump Truck," the "Application Specific (Y/N): No" designation highlights the inherent universality and adaptability of this Fabricator's Hitch Plate. Its design is not constrained by a particular make or model, allowing it to be integrated into a broad spectrum of heavy-duty vehicles requiring custom towing or mounting solutions. Beyond dump trucks, which frequently tow heavy equipment trailers or material spreaders, this hitch plate is ideally suited for utility service trucks, flatbed trucks, specialized construction vehicles, military transport, agricultural machinery, and industrial equipment that demand custom rear-end modifications for towing, winch mounting, or attachment points for specialized tools. The kit nature of the product empowers professional upfitters and fleet managers to conceptualize and execute unique solutions that are precisely aligned with their operational niche, ensuring optimal performance and safety where off-the-shelf options are insufficient.
It is crucial to address the "M.G.T.W. (lbs.): Not Rated" and "M.V.L. (lbs.): -" specifications. These classifications underscore a fundamental principle of fabricator's components: the hitch plate itself is a high-quality, robust raw material and pre-engineered component, but it is not a complete towing system. Therefore, it does not carry an individual Gross Trailer Weight (GTW) or Vertical Load (VL) rating. The ultimate towing capacity and safety rating of the final assembly are entirely dependent upon the quality of the fabrication, the strength and condition of the vehicle's frame, the specific pintle hook or hitch receiver installed, the welding procedures followed, and the overall engineering design of the completed system. Fabricators are responsible for performing necessary load calculations, adhering to all applicable SAE, DOT, and local regulatory standards, and ensuring that the final welded assembly is structurally sound and safe for its intended purpose. Professional engineering review and certification are highly recommended for custom hitch systems to ensure compliance and mitigate liability. The Fabricator's Hitch Plate provides the essential, high-strength foundation; the responsibility for the final system's rating rests with the installer and end-user.
Effective installation and integration of the Fabricator's Hitch Plate require a high degree of technical proficiency and adherence to industry best practices. Preparation of both the hitch plate and the vehicle frame is paramount, involving thorough cleaning, grinding to achieve clean metal surfaces, and proper fit-up to ensure optimal weld penetration and strength. Welding procedures for 1-inch thick carbon steel demand appropriate filler metals, pre-heating if necessary, and consistent welding techniques (e.g., MIG, TIG, or Stick welding, depending on application and material specifics) to create robust, defect-free welds. Post-weld inspection, including visual inspection for cracks, undercut, and porosity, is critical for quality assurance. Furthermore, fabricators must consider the vehicle's electrical and air brake systems, ensuring seamless and protected integration of trailer connections. Following the welding, the entire assembly should be properly cleaned, primed, and coated to prevent corrosion, especially given the "Plain" finish of the raw steel plate. Careful attention to these details ensures a durable, safe, and long-lasting custom hitch solution.
In summary, the Buyers Products Fabricator's Hitch Plate, with its specific dimensions of 1 x 34-1/2 x 22-1/2 inches, represents an invaluable resource for professional fabricators and operators seeking unparalleled customization in heavy-duty towing and mounting applications. Its construction from 1-inch thick carbon steel ensures maximum strength and weldability. Key features like multiple pintle hook mounting positions, an integrated electrical connector port, and the inclusion of D-rings and weld-on gussets provide both versatility and enhanced structural integrity. While unrated as a standalone component, it serves as the ultimate foundation upon which robust, custom-engineered towing systems can be built to meet the most rigorous demands. This product embodies the technical precision and robust design required by industries where custom solutions, durability, and reliable performance are not merely desired but are absolute necessities for efficient and safe operation.
