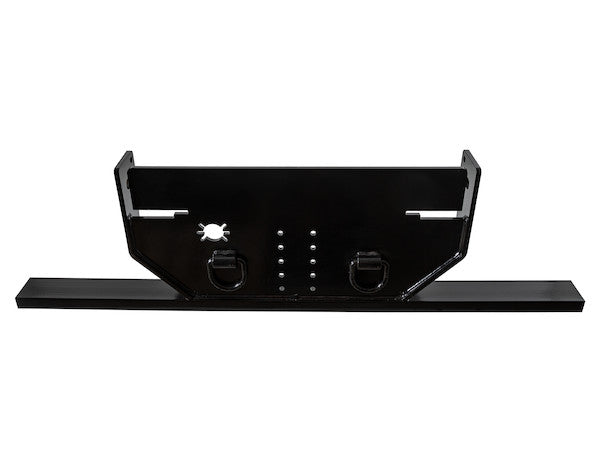

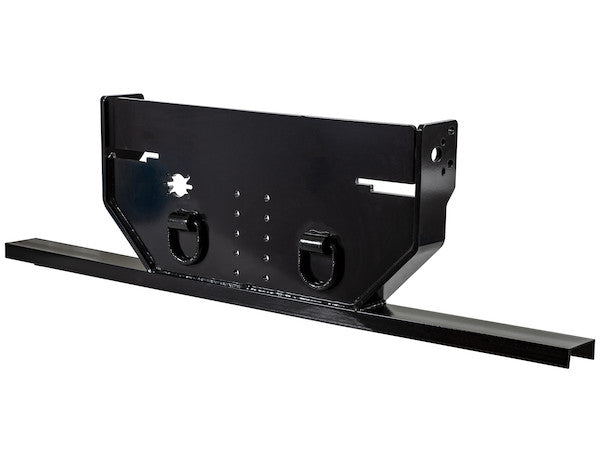

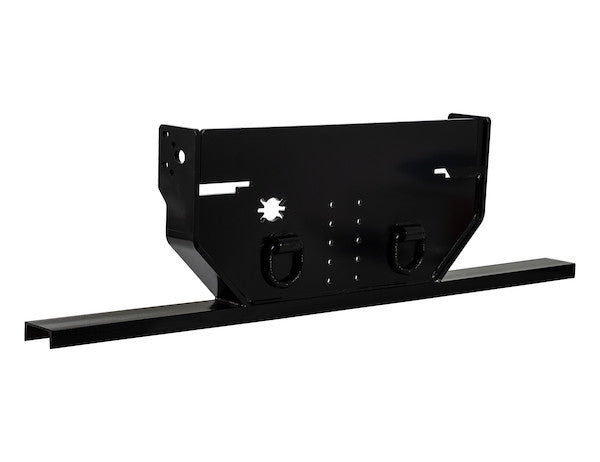

The Hitch Plate for Pintle Mounting with Bottom Channel from Buyers Products features multiple pintle hook mounting positions, two forged D-rings, and a pre-punched hole that fits most trailer electrical connectors. The hitch plate is pre-fabricated and ready to use. The 1/2 in. thick hitch plate includes ICC bumper protection and features a black powder-coated finish for corrosion resistance. It should be both welded and bolted to the frame. Available in several chassis-specific models (not for pickups). Please consult the vehicle/chassis owner's manual before installing. For use with cab and chassis trucks with a nominal 34 in. frame width.
Specifications
| Application Specific (Y/N) | Yes |
|---|---|
| Application Summary | Ford?? F-350 - F-550 Cab & Chassis (1999+) |
| Color | Black |
| Finish | Powder-Coat |
| Height (in.) | 17.2 |
| Hitch Plate or Bumper | Hitch Plate w/ Bottom Bumper |
| M.G.T.W. (lbs.) | 20,000 |
| M.V.L. (lbs.) | - |
| Make | Ford?? |
| Material | Carbon Steel |
| Model | F-350 - F-550 |
| Receiver Size (in.) | - |
| Style | Cab & Chassis |
| Thickness (in.) | 1/2 |
| Width (in.) | 34.25 |
| Year | 1999+ |
Advanced Technical Overview: Ford F-350 - F-550 Cab & Chassis Pintle Hitch Plate with Integrated Bottom Channel and ICC Bumper Protection
This comprehensive technical description details the engineering, functionality, and installation specifics of the Hitch Plate with Pintle Mount, purpose-built for Ford F-350, F-450, and F-550 Cab & Chassis models manufactured from 1999 onwards. Designed to meet the rigorous demands of commercial and vocational applications, this hitch plate system provides an unparalleled combination of robust towing capability, integrated safety features, and a chassis-specific fit for optimal performance and compliance.
Precision Engineering for Ford Cab & Chassis Platforms (1999+)
The core design philosophy behind this hitch plate centers on its explicit compatibility with Ford F-350 through F-550 Cab & Chassis vehicles from the 1999 model year forward. This application-specific engineering is critical; unlike pickup trucks, Cab & Chassis models are sold with an unfinished rear frame section, intended for custom upfitting with various vocational bodies (e.g., dump beds, service bodies, flatbeds, utility bodies). These chassis frames typically feature a nominal 34-inch width, a dimension meticulously accommodated by this hitch plate's design. This precise fit ensures proper alignment with the vehicle's structural frame rails, facilitating a secure and load-distributing attachment without requiring extensive modifications that could compromise the chassis's integrity or manufacturer's warranty. The "Yes" designation for "Application Specific" and the clear "Ford F-350 - F-550 Cab & Chassis (1999+)" summary underscore this commitment to tailored functionality, distinguishing it from generic towing solutions.
Uncompromised Towing Performance with Pintle Hitch Integration
At the heart of this system's utility is its robust pintle mounting capability. Pintle hitches are the preferred choice for heavy-duty towing applications where exceptional strength, durability, and articulation are paramount. Their interlock design, comprising a pintle hook and a lunette ring, allows for greater angular movement between the towing vehicle and the trailer compared to traditional ball hitches, making them ideal for off-road conditions, uneven terrain, or applications involving equipment trailers with significant dynamic loads. This hitch plate offers multiple pintle hook mounting positions, a critical feature for optimizing trailer tongue height and ensuring level towing across a diverse range of trailers and vehicle load conditions. This adjustability allows operators to fine-tune the connection for maximum stability and reduced wear on both the vehicle and trailer components. The impressive Maximum Gross Trailer Weight (M.G.T.W.) rating of 20,000 lbs. (9,072 kg) unequivocally positions this hitch plate as a solution for the most demanding commercial hauling tasks, including construction equipment, heavy machinery, and large utility trailers.
While a specific Maximum Vertical Load (M.V.L.) is not detailed for this particular pintle hitch, it is imperative for operators to understand that pintle systems, like all towing apparatuses, are subject to the overall Gross Vehicle Weight Rating (GVWR) and Gross Combined Weight Rating (GCWR) of the towing vehicle. The design of this hitch plate, particularly its robust 1/2-inch carbon steel construction and dual attachment method, is engineered to transfer significant vertical loads efficiently and safely to the vehicle's frame, maximizing the practical utility of the 20,000 lbs. M.G.T.W. rating within the constraints of the Ford F-350 - F-550 chassis's design parameters.
Integrated Safety and Enhanced Utility Features
Beyond its primary towing function, this hitch plate incorporates several key features designed to enhance safety, regulatory compliance, and operational convenience:
Forged D-Rings for Secure Safety Chain Attachment
Two robust, forged D-rings are integrated into the hitch plate's structure. These D-rings serve as critical attachment points for trailer safety chains, a fundamental requirement for legal and safe towing operations. The "forged" characteristic is crucial here, indicating that the D-rings have been manufactured through a process of shaping metal by hammering or pressing, which aligns the metal's grain structure for superior strength, fatigue resistance, and impact toughness compared to cast or fabricated alternatives. In the event of a primary hitch failure, these D-rings are engineered to maintain a secure connection between the vehicle and trailer, preventing uncontrolled separation and potential hazards. Their strategic placement ensures easy access and proper angularity for safety chain connection, adhering to industry best practices and regulatory standards.
Pre-Punched Hole for Trailer Electrical Connectors
A thoughtfully pre-punched hole is provided to accommodate most standard trailer electrical connectors. This seemingly simple feature offers significant advantages in professional upfitting. It eliminates the need for field drilling, which can introduce burrs, reduce corrosion resistance in untreated steel, or create suboptimal mounting points. By providing a dedicated, clean aperture, it facilitates a secure and weather-protected installation of trailer wiring harnesses, such as 7-way RV blade connectors or 6-way round connectors, ensuring reliable transmission of power for trailer lights, brakes, and auxiliary functions. This attention to detail promotes a tidy, professional installation that safeguards the electrical connections from road debris, moisture, and operational wear.
ICC Bumper Protection Compliance
A critical safety element integrated into this hitch plate is its compliance with International Commercial Council (ICC) bumper protection standards. Often referred to as underride guards or rear impact protection, ICC bumpers are mandated by federal and international regulations for commercial vehicles to prevent passenger vehicles from underriding the rear of a larger truck or trailer in a collision. The "Hitch Plate w/ Bottom Bumper" designation signifies that this unit functions not only as a towing apparatus but also as a robust protective barrier positioned at the lower rear of the vehicle. This dual functionality ensures that the vehicle meets essential safety requirements while also providing high-capacity towing. The structural integrity provided by the 1/2-inch thick carbon steel construction and the strategic design of the bottom channel contribute directly to its efficacy as an ICC-compliant barrier, minimizing the risk of severe injuries in rear-end collisions.
Superior Construction and Durability
The longevity and reliability of any commercial-grade component are paramount. This hitch plate is constructed from high-grade carbon steel, a material renowned for its exceptional strength-to-weight ratio, ductility, and fatigue resistance, making it ideally suited for the dynamic stresses encountered in heavy-duty towing. The material's inherent properties ensure the hitch plate can withstand continuous high load cycles, impact, and torsional forces without premature failure.
Robust 1/2-Inch Thickness
A material thickness of 1/2 inch (approximately 12.7 mm) is a key specification highlighting the structural integrity of this component. This substantial gauge of steel provides superior rigidity and load-bearing capacity, significantly enhancing the hitch plate's resistance to bending, twisting, and cracking under the substantial forces generated by a 20,000 lbs. M.G.T.W. The consistent thickness across the entire plate ensures uniform stress distribution, thereby extending the service life of the component even under the most arduous operating conditions. This robust construction is fundamental to achieving and maintaining the rated towing capacity over years of demanding use.
Advanced Powder-Coat Finish for Corrosion Resistance
To ensure maximum durability and resistance to environmental degradation, the hitch plate features a black powder-coated finish. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto a substrate. The part is then cured under heat, causing the powder to melt and flow into a smooth, uniform, and durable finish. This process yields a coating that is significantly tougher, more chip-resistant, scratch-resistant, and corrosion-resistant than conventional liquid paint. Given that commercial vehicles often operate in harsh environments exposed to road salts, chemicals, moisture, and abrasive debris, this powder-coat finish provides a critical barrier against rust and premature material degradation, preserving the structural integrity and aesthetic appearance of the hitch plate throughout its operational lifespan. The black color offers a professional, subdued appearance that seamlessly integrates with the vehicle's aesthetic.
Pre-Fabricated for Installation Efficiency and Quality
The "pre-fabricated and ready to use" status of this hitch plate offers considerable advantages for installers and fleet operations. It eliminates the need for time-consuming and often costly custom fabrication processes, reducing installation labor and vehicle downtime. Precision manufacturing in a controlled environment ensures consistent quality, exact dimensions, and proper material treatment, features that are often difficult to replicate in field fabrication. This ready-to-install design means the component adheres to stringent engineering specifications from the outset, providing confidence in its performance and compliance.
Optimized Installation Methodology: Welding and Bolting
The prescribed installation method for this hitch plate involves both welding and bolting to the vehicle frame. This dual-attachment strategy is engineered for maximum structural integrity and load transfer efficiency, particularly critical for components subjected to high dynamic and static loads associated with heavy-duty towing:
- Bolting: Initially, bolting provides a secure mechanical connection that ensures accurate alignment with the chassis frame rails. It allows for precise positioning, clamping force, and the ability to verify fitment before permanent attachment. The bolted connection also helps to distribute stress across the contact area, reducing localized stress concentrations.
- Welding: Following bolting, permanent welding creates a monolithic bond between the hitch plate and the vehicle frame. This fusion provides unparalleled shear strength, torsional rigidity, and direct load path for both vertical and horizontal forces, preventing any potential movement or flexing that could occur with bolting alone under severe operational conditions. The combination ensures that the hitch plate becomes an integral, load-bearing extension of the chassis, maximizing safety and durability for the 20,000 lbs. M.G.T.W. application. Professional welding, conforming to industry standards, is essential to achieve the full design strength.
It is crucial to emphasize the directive to consult the vehicle/chassis owner's manual before installation. This step is non-negotiable for several reasons: to understand the specific structural properties and limitations of the Ford F-350 - F-550 chassis, to ensure compliance with manufacturer recommendations for frame modifications or attachments, and to verify the vehicle's overall towing capacity and warranty implications. Adherence to manufacturer guidelines and professional installation practices are paramount for safety, operational efficiency, and legal compliance.
Detailed Technical Specifications and Dimensions
The following detailed breakdown of specifications provides a clear technical profile of the hitch plate:
- Application Specific (Y/N): Yes. Confirms its engineered fit for Ford F-350 - F-550 Cab & Chassis.
- Application Summary: Ford F-350 - F-550 Cab & Chassis (1999+). Specifies the exact vehicle models and production years, ensuring proper fitment and performance.
- Color: Black. Consistent with the durable black powder-coat finish.
- Finish: Powder-Coat. Provides superior corrosion and abrasion resistance.
- Height (in.): 17.2. This dimension is critical for accommodating pintle hook mounting positions and integrating the ICC bumper protection while maintaining appropriate ground clearance and aesthetic alignment.
- Hitch Plate or Bumper: Hitch Plate w/ Bottom Bumper. Clearly defines its dual functionality as a towing platform and a rear impact protection device.
- M.G.T.W. (lbs.): 20,000. The maximum gross trailer weight rating, underscoring its heavy-duty capability.
- M.V.L. (lbs.): - . While not explicitly rated for Maximum Vertical Load (often a tongue weight for ball hitches), the robust construction supports substantial vertical forces inherent to pintle hitches, within the vehicle's GVWR.
- Make: Ford. Direct compatibility with Ford vehicles.
- Material: Carbon Steel. High-strength material for demanding applications.
- Model: F-350 - F-550. Specific Ford truck models designed for commercial and heavy-duty tasks.
- Receiver Size (in.): - . Not applicable, as this is a pintle mount, not a receiver hitch.
- Style: Cab & Chassis. Emphasizes its design for the unfinished frame architecture, differentiating it from pickup truck applications.
- Thickness (in.): 1/2. Demonstrates the substantial gauge of steel used for structural integrity and load capacity.
- Width (in.): 34.25. This precise width is engineered to align perfectly with the typical nominal 34-inch frame width of the target Ford Cab & Chassis models, ensuring a seamless and structurally sound installation.
- Year: 1999+. Defines the extensive range of compatible model years.
Conclusion: A Professional-Grade Solution for Demanding Applications
The Hitch Plate with Pintle Mount for Ford F-350 - F-550 Cab & Chassis (1999+) with a Bottom Channel represents a meticulously engineered, professional-grade solution for heavy-duty towing requirements. Its chassis-specific design, formidable 20,000 lbs. M.G.T.W. capacity, integrated safety features like forged D-rings and ICC bumper protection, and robust 1/2-inch carbon steel construction with a corrosion-resistant powder-coat finish, collectively deliver an unparalleled combination of performance, safety, and durability. By providing multiple pintle hook mounting positions and a pre-punched electrical connector hole, it offers versatility and ease of use in diverse commercial and vocational settings. This pre-fabricated system, designed for a secure welded and bolted installation, is an indispensable component for fleet managers and operators seeking maximum reliability and compliance in their heavy-duty towing operations.
