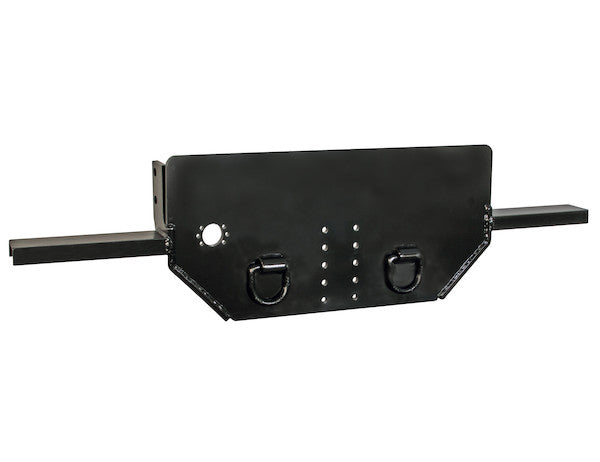

The Hitch Plate for Pintle Mounting with Side Channel from Buyers Products features multiple pintle hook mounting positions, two forged D-rings, and a pre-punched hole that fits most trailer electrical connectors. The hitch plate is pre-fabricated and ready to use. The 1/2 in. thick hitch plate includes ICC bumper protection and features a black powder-coated finish for corrosion resistance. It should be both welded and bolted to the frame. Available in several chassis-specific models (not for pickups). Please consult the vehicle/chassis owner's manual before installing. For use with cab and chassis trucks with a nominal 34 in. frame width.
Specifications
| Application Specific (Y/N) | Yes |
|---|---|
| Application Summary | Chevy?? 4500 - 5500 4x4 Cab & Chassis (2003-2010) |
| Color | Black |
| Finish | Powder-Coat |
| Height (in.) | 22.00 |
| Hitch Plate or Bumper | Hitch Plate |
| M.G.T.W. (lbs.) | 20,000 |
| M.V.L. (lbs.) | - |
| Make | Chevy?? |
| Material | Carbon Steel |
| Model | 4500 - 5500 |
| Receiver Size (in.) | - |
| Style | Cab & Chassis, 4x4 |
| Thickness (in.) | 1/2 |
| Width (in.) | 33.56 |
| Year | 2003-2010 |
Advanced Technical Overview: Hitch Plate with Pintle Mount for Chevy??/GM?? 4500-5500 4x4 Cab & Chassis (2003-2010) - Side Channel
The Buyers Products Hitch Plate with Pintle Mount, specifically engineered with a Side Channel design, represents a robust and precisely tailored solution for heavy-duty towing applications on Chevy??/GM?? 4500-5500 4x4 Cab & Chassis vehicles manufactured between 2003 and 2010. This product is not merely an accessory; it is a fundamental structural enhancement designed to integrate seamlessly with the specific frame architecture of these vocational trucks, providing unparalleled strength, versatility, and safety for the most demanding operations. Our commitment to rigorous engineering standards and material science ensures that this hitch plate stands as a critical component for fleets engaged in construction, utility work, municipal services, heavy equipment transport, and other specialized applications requiring dependable trailer coupling.
Precision Engineering for Unyielding Performance
At the core of this hitch plate's formidable capabilities is its construction from high-grade 1/2-inch thick carbon steel. This material selection is deliberate, chosen for its exceptional tensile strength, yield strength, and inherent durability under dynamic and static loads. Carbon steel offers a superior strength-to-weight ratio, making it an ideal choice for components subjected to significant forces during heavy-duty towing. The half-inch thickness provides the structural rigidity necessary to manage a Maximum Gross Trailer Weight (M.G.T.W.) of 20,000 lbs, ensuring that the hitch plate can withstand the considerable stresses exerted by heavily laden trailers, including torsional forces, longitudinal tension, and compression. The engineering process involves precision cutting and forming of the carbon steel, ensuring dimensional accuracy that is critical for both the structural integrity of the hitch plate itself and its precise fitment to the vehicle frame. The "pre-fabricated and ready to use" designation underscores the meticulous manufacturing process, where each unit undergoes stringent quality control checks, eliminating variations and ensuring consistent performance right out of the box.
Optimized Pintle Mounting System and Versatility
The primary function of this hitch plate is to facilitate pintle hook mounting, a preferred method for heavy-duty towing across various industries. Pintle hooks offer distinct advantages over conventional ball hitches when dealing with significant loads, uneven terrain, or trailers that require a greater range of articulation. Their robust design, comprising a hook and a lunette ring, creates a secure and durable coupling that is less susceptible to wear and detachment under severe conditions. This hitch plate distinguishes itself by offering multiple pintle hook mounting positions. This feature is not merely a convenience but a critical engineering advantage. It allows operators to precisely adjust the height of the pintle hook, thereby optimizing the towing angle. Proper towing angle is essential for maintaining load balance, preventing undue stress on the tow vehicle's suspension, drivetrain, and the trailer's tongue, and ensuring stable handling. Whether connecting to diverse trailers with varying tongue heights or adapting to different loading conditions, the multiple mounting positions enhance operational flexibility and safety. Furthermore, the robust design of the mounting area ensures that these critical connection points maintain their integrity over years of demanding use.
Integrated Safety and Regulatory Compliance
Safety is paramount in heavy-duty towing, and this hitch plate incorporates several features designed to protect both personnel and equipment, while also ensuring regulatory compliance. A key safety element is the inclusion of ICC bumper protection. The Interstate Commerce Commission (ICC) regulations mandate specific requirements for rear impact guards on commercial vehicles to prevent underride accidents, where a smaller vehicle can slide underneath the rear of a larger vehicle in a collision. This integrated bumper protection acts as a robust barrier, absorbing impact forces and safeguarding the vehicle's chassis, fuel system, and other critical components. Its presence significantly enhances overall vehicle safety, contributing to a safer work environment and potentially reducing liability. Complementing this, the hitch plate features two forged D-rings. Forged components are renowned for their superior strength and resistance to fatigue compared to cast or stamped alternatives, making these D-rings exceptionally reliable attachment points for trailer safety chains. These chains are a mandatory safety backup, designed to maintain connection between the truck and trailer in the unlikely event of a primary coupling failure. Their strategic placement and robust construction provide peace of mind and meet all applicable safety standards. Finally, the pre-punched hole for most trailer electrical connectors streamlines the installation of essential electrical circuits. This thoughtful design ensures proper connectivity for trailer lighting, electric brakes, and auxiliary power, which are vital for operational safety, regulatory compliance, and effective trailer management.
Advanced Corrosion Resistance: The Powder-Coat Advantage
The durability and longevity of any heavy-duty component are significantly influenced by its protective finish. This hitch plate features a premium black powder-coated finish, a sophisticated coating technology that far surpasses conventional liquid paint in terms of performance and resilience. The powder coating process involves electrostatically applying a dry powder onto the metal surface, which is then cured under heat to form a hard, durable layer. This process creates a uniform, chip-resistant, and abrasion-resistant finish that adheres exceptionally well to the carbon steel substrate. In the harsh environments typical of vocational trucking – exposure to road salt, chemicals, moisture, UV radiation, and abrasive debris – corrosion is a constant threat. The powder-coat finish acts as an impenetrable barrier, effectively preventing rust and oxidation, thereby extending the operational lifespan of the hitch plate. The black color also provides a professional aesthetic that complements the vehicle's appearance while offering practical benefits such such as reduced glare and ease of cleaning. This investment in a superior finish translates directly into reduced maintenance requirements and increased uptime for your fleet.
Chassis-Specific Integration: Engineered for the Chevy??/GM?? 4500-5500 4x4 (2003-2010)
A critical aspect of this product's design is its "application-specific" nature. It is meticulously engineered for the Chevy??/GM?? 4500-5500 4x4 Cab & Chassis models produced between 2003 and 2010. This precision fitment is paramount for ensuring maximum structural integrity, optimal load transfer, and safe operation. Unlike universal hitch plates, this unit's "Side Channel" design is tailored to integrate directly with the specific frame dimensions and mounting points of these particular chassis. The side channel likely refers to an engineering design that either reinforces the existing frame rails laterally or provides a robust interface along the frame's vertical and horizontal planes, distributing towing forces efficiently across the truck's robust chassis. This custom approach ensures that the hitch plate functions as an extension of the truck's original engineering, rather than an add-on that could compromise structural integrity or handling characteristics. The nominal 34-inch frame width specified for these vehicles is precisely matched by the hitch plate's design, ensuring a snug and secure fit. It is crucial to note that this product is expressly "not for pickups." Cab & Chassis vehicles possess fundamentally different frame designs, suspension systems, and load-bearing capacities compared to conventional pickup trucks. They are engineered from the ground up to accommodate heavy vocational upfits and carry substantial payloads, which necessitates a hitch plate designed for their unique structural properties and higher gross vehicle weight ratings.
Installation Protocol: Welding and Bolting
For ultimate safety and structural integration, the installation of this hitch plate mandates both welding and bolting to the vehicle frame. This dual attachment method provides a level of security and load distribution that neither method could achieve independently. Welding creates a permanent, monolithic bond between the hitch plate and the chassis, ensuring that towing forces are distributed across a wide area of the frame, minimizing stress concentrations and preventing movement under dynamic loads. This fusion eliminates potential points of fatigue that could arise from solely bolted connections in high-stress towing applications. Simultaneously, bolting provides immediate mechanical fastening and can aid in precise positioning during installation. The bolted connection acts as a secondary safeguard, ensuring that even if a weld experiences localized failure, the plate remains secured. This redundant attachment strategy is an industry best practice for heavy-duty towing equipment, signifying a commitment to maximum safety and operational resilience. Given the critical nature of these attachments, it is strongly recommended that installation be performed by certified welding and chassis modification specialists who possess the expertise and equipment to execute the process safely and correctly, in strict adherence to both the manufacturer's guidelines and relevant industry standards.
Detailed Technical Specifications and Performance Parameters
Each technical specification for this Hitch Plate reflects its purpose as a high-performance towing component:
- Application Specific (Y/N): Yes – Confirms that this is a custom-engineered solution, not a generic fit.
- Application Summary: Chevy?? 4500 - 5500 4x4 Cab & Chassis (2003-2010) – Provides definitive vehicle compatibility, reducing guesswork and ensuring optimal performance for the specified models and years.
- Color: Black / Finish: Powder-Coat – As detailed, this combination provides superior corrosion resistance and a professional aesthetic.
- Height (in.): 22.00 – This dimension indicates a substantial vertical profile, contributing to the plate's robust structure and allowing ample space for multiple pintle hook mounting positions and ICC bumper integration.
- Hitch Plate or Bumper: Hitch Plate – Clearly defines the product's function as a dedicated towing accessory, rather than a full replacement bumper, though it integrates bumper protection.
- M.G.T.W. (lbs.): 20,000 – The Maximum Gross Trailer Weight rating is a critical performance metric, signifying the maximum permissible weight of a fully loaded trailer that the hitch plate is engineered to tow. This robust rating caters to a vast array of heavy equipment and vocational trailers.
- M.V.L. (lbs.): - – While a specific Maximum Vertical Load (often related to tongue weight for ball hitches) is not specified, for pintle systems, the vertical load is inherently distributed differently across the lunette ring and hook. The overall M.G.T.W. implies robust vertical load capacity within operational limits.
- Make: Chevy?? / Model: 4500 - 5500 / Year: 2003-2010 – These details underscore the precise fitment and application, guiding purchasers to the correct product for their specific fleet vehicles.
- Material: Carbon Steel – Reinforces the use of a high-strength, durable alloy suitable for severe service conditions.
- Receiver Size (in.): - – This product is designed for pintle hook mounting, not for a receiver-style hitch. The absence of a receiver size specification is therefore appropriate and expected.
- Style: Cab & Chassis, 4x4 – Further specifies the vehicle configuration, highlighting the design considerations for vehicles with dedicated frame structures for body upfitting and enhanced traction.
- Thickness (in.): 1/2 – The substantial material thickness is a direct indicator of the product's heavy-duty rating and structural integrity.
- Width (in.): 33.56 – This precise width dimension is critical for integration with the nominal 34-inch frame width of the target chassis, ensuring proper alignment and load distribution.
Operational Benefits and Industry Impact
The implementation of this specialized Hitch Plate offers numerous tangible benefits to vocational fleets. Firstly, it enhances fleet versatility, allowing trucks to confidently tow a wider range of heavy trailers, from construction equipment to utility platforms, without concerns about capacity limitations of the hitch system. Secondly, the robust design, premium materials, and superior corrosion resistance contribute to significantly reduced downtime and lower maintenance costs over the product's lifespan. By resisting wear and environmental degradation, the hitch plate remains reliable, ensuring continuous operational readiness. Thirdly, the integrated safety features, particularly the ICC bumper protection and forged D-rings, provide an elevated level of safety for drivers, other road users, and the cargo itself, reducing the risk of accidents and associated liabilities. This adherence to safety standards also helps ensure compliance with Department of Transportation (DOT) and other regulatory requirements. Ultimately, investing in such a precisely engineered and durable towing solution translates into a strong return on investment through enhanced productivity, extended component life, and improved safety performance for any demanding commercial operation.
Conclusion: Uncompromising Strength for Demanding Tasks
The Hitch Plate with Pintle Mount for Chevy??/GM?? 4500-5500 4x4 Cab & Chassis (2003-2010) - Side Channel from Buyers Products is more than just a towing accessory; it is a meticulously engineered heavy-duty component designed to meet the rigorous demands of professional vocational applications. Its 1/2-inch carbon steel construction, advanced powder-coat finish, integrated ICC bumper protection, multiple pintle mounting positions, and precise chassis-specific fitment combine to deliver an uncompromising solution for fleets requiring maximum towing capacity, durability, and safety. By providing a secure, robust, and versatile connection point for heavy trailers, this hitch plate empowers operators to perform their most challenging tasks with confidence and efficiency. Its design reflects a deep understanding of the structural requirements of the specific Chevy??/GM?? chassis, ensuring seamless integration and superior performance for years to come.
