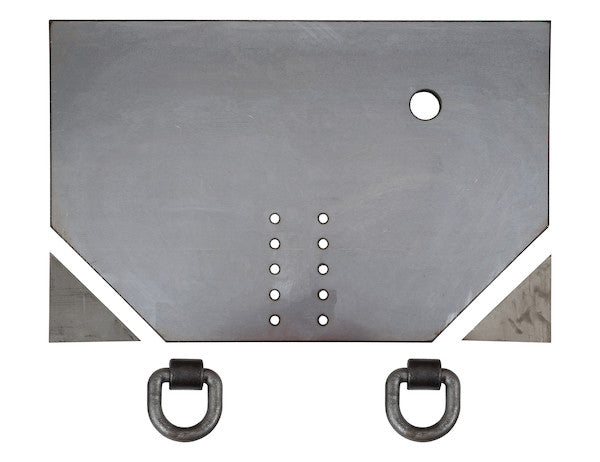

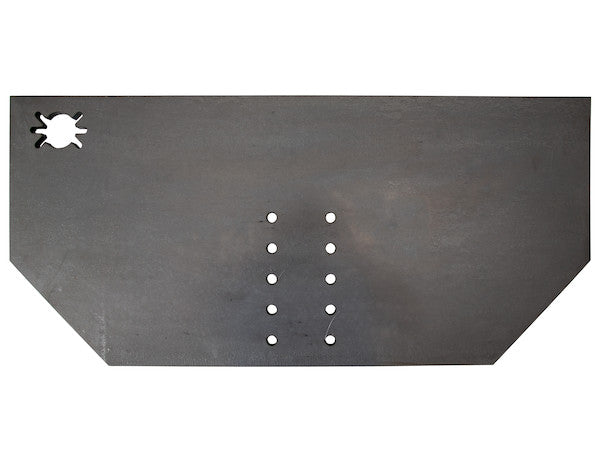

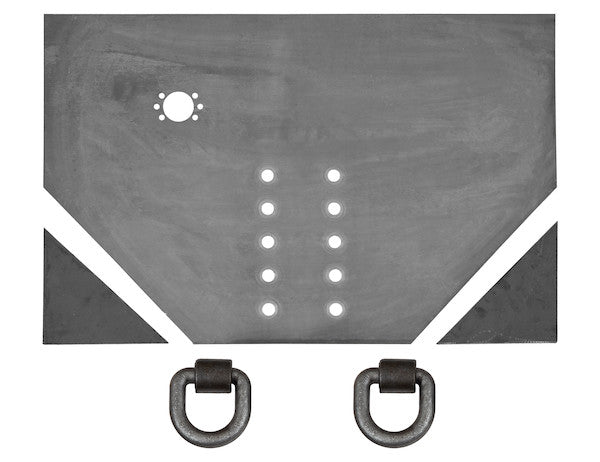

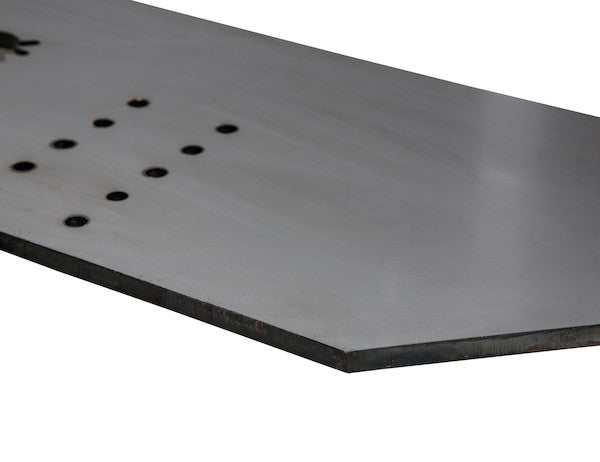

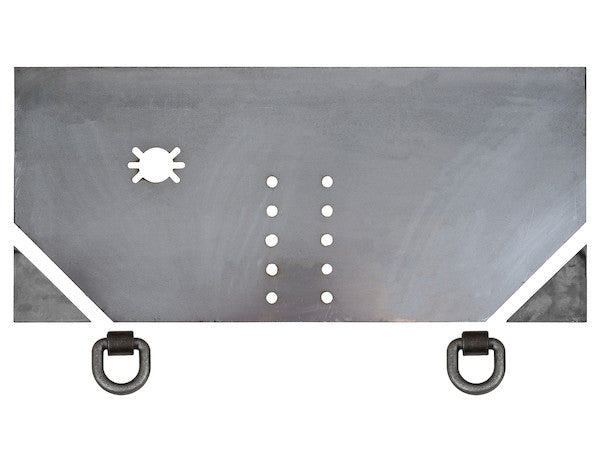

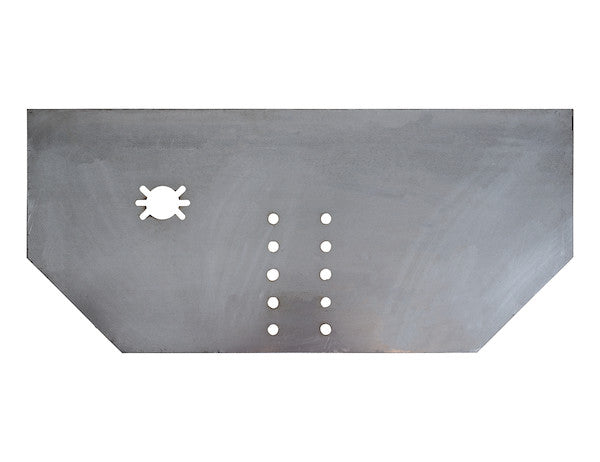

The Fabricators Hitch Plate from Buyers Products lets you build your hitch plate to meet your specific vehicle and needs. Available in thicknesses of 1/2 in., 5/8 in., 3/4 in., or 1 in., the hitch plate features multiple pintle hook mounting positions and a pre-punched hole for electrical connectors. The hitch plate is welded to the frame. Included are two D-rings and weld-on gussets for custom placement. Hole Diameter: .56??? for 1809027A, 1809040, 1809042, 1809043 .812??? for 1809029 Vertical Hole Spacing: 1.75??? for 1809027A, 1809040, 1809042, 1809043 2.25??? for 1809029 Horizontal Hole Spacing: 3.38??? for 1809027A, 1809040, 1809042, 1809043, 4.5??? for 1809029
Specifications
| Application Specific (Y/N) | No |
|---|---|
| Application Summary | Dump Truck |
| Finish | Plain |
| Height (in.) | 15.50 |
| Hitch Plate or Bumper | Fabricators Kit |
| M.G.T.W. (lbs.) | Not Rated |
| M.V.L. (lbs.) | - |
| Material | Carbon Steel |
| Receiver Size (in.) | - |
| Thickness (in.) | 5/8 |
| Width (in.) | 34.50 |
Advanced Engineering and Fabrication Potential of the Fabricators Hitch Plate
The Fabricators Hitch Plate, specifically the 5/8 x 34 x 15-1/2 Inch model from Buyers Products, represents a crucial foundational component for robust, heavy-duty towing and recovery applications. Designed as a "Fabricators Kit," this product provides an unparalleled degree of customization, allowing professionals to engineer a hitch plate system precisely tailored to the unique operational demands and structural specifications of a diverse range of commercial vehicles. This inherent flexibility distinguishes it from pre-fabricated, application-specific alternatives, offering significant advantages in specialized fleet outfitting and bespoke vehicle modifications.
At its core, the utility of this hitch plate lies in its structural integrity and material composition. Fabricated from high-grade carbon steel, it delivers exceptional tensile strength, yield strength, and impact resistance, properties essential for enduring the dynamic and static loads associated with heavy-duty towing. Carbon steel is chosen for its superior mechanical characteristics, including its excellent weldability, which is paramount for a component explicitly designed to be permanently integrated into a vehicle's frame. The 5/8-inch thickness of this particular model strikes an optimal balance between minimizing added weight and maximizing load-bearing capacity, ensuring the final assembly can reliably withstand significant trailer tongue weights, abrupt braking forces, and lateral stresses inherent in towing large equipment or trailers.
The dimensions of 34 inches in width and 15-1/2 inches in height are carefully selected to provide an expansive mounting surface, accommodating a wide array of pintle hooks, ball hitches, and other towing attachments. This generous real estate facilitates optimal positioning of towing points relative to the vehicle's centerline and rear axle, crucial for maintaining vehicle stability, managing load distribution, and ensuring proper articulation with the towed unit. The width allows for secure attachment across multiple frame rails or robust cross-members, distributing stress efficiently across the vehicle’s chassis. The height provides ample vertical space for multiple pintle hook mounting positions, which is a critical feature for vehicles that tow trailers with varying coupler heights or require precise adjustments for different load conditions to achieve level towing, thereby mitigating undue stress on both the tow vehicle and the trailer.
Versatility in Mounting and Electrical Integration
A hallmark of the Fabricators Hitch Plate is its multiple pre-drilled pintle hook mounting positions. This design element reflects a profound understanding of the varied requirements of heavy-duty towing. Different pintle hooks possess distinct bolt patterns, and the provision of multiple pre-engineered hole configurations significantly reduces fabrication time and ensures a robust, factory-level attachment. For instance, the specified hole diameters of .56 inches and .812 inches, along with vertical spacing of 1.75 inches or 2.25 inches and horizontal spacing of 3.38 inches or 4.5 inches, correspond to industry-standard mounting patterns for a broad spectrum of pintle hooks, combination hitches, and drawbar eyes. This foresight eliminates the need for precision drilling on-site for common setups, preserving the structural integrity of the plate by avoiding haphazard modifications and ensuring proper bolt-hole tolerance for secure fastening. The ability to select from these pre-established patterns also allows for quick adaptation to different towing scenarios, such as switching between standard-duty and extreme-duty pintle hooks or configuring for specific trailer types, like those used in construction or agricultural sectors.

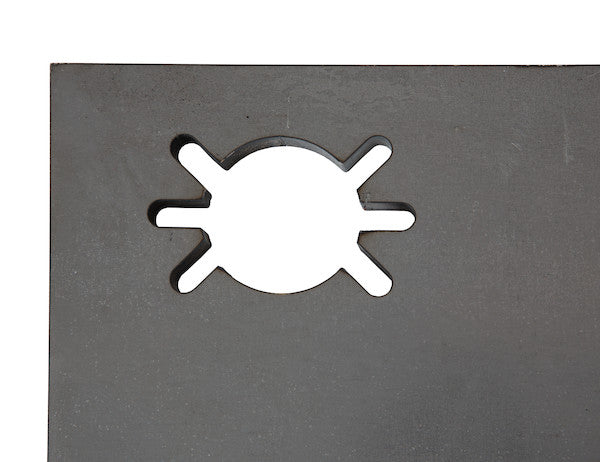

Beyond mechanical attachment, modern towing systems necessitate reliable electrical connectivity. The inclusion of a pre-punched hole specifically for electrical connectors on the Fabricators Hitch Plate streamlines the integration of trailer wiring harnesses. This dedicated opening protects wiring from abrasion, environmental exposure, and potential damage, ensuring consistent signal transmission for trailer lighting, brakes, and auxiliary functions. This feature simplifies compliance with DOT regulations and enhances operational safety by providing a secure and protected pathway for electrical conduits, preventing the common issues of tangled or exposed wiring that can lead to intermittent connections or system failures. Its strategic placement often aligns with standard seven-way or six-way electrical receptacle mounting, further facilitating a professional and compliant installation.
Enhanced Security and Load Management with D-rings and Gussets
The Fabricators Hitch Plate package is thoughtfully enhanced with the inclusion of two weld-on D-rings and corresponding weld-on gussets. These components are integral for effective load securement and recovery operations. D-rings provide robust anchor points for chains, straps, and cables, crucial for tying down equipment on a trailer or for vehicle recovery. Their weld-on nature, combined with gussets, ensures a connection that can withstand extreme dynamic forces without yielding. Gussets, specifically, play a critical role in reinforcing the D-ring attachment points by distributing stress over a larger surface area of the hitch plate, thereby preventing localized stress concentrations that could lead to material fatigue or failure under heavy loads. The custom placement capability for these D-rings allows the fabricator to position them optimally according to the specific load requirements, vehicle geometry, and preferred tie-down angles, maximizing their effectiveness and versatility. This customization is particularly valuable in applications like dump trucks, where loads can be irregular and require precise securement points.
Precision Installation: The Rationale Behind Welded-to-Frame Integration
The directive that the hitch plate is "welded to the frame" is a critical engineering specification. For heavy-duty towing components, welding provides a superior structural connection compared to bolting, particularly in applications subjected to high shear forces, tensile loads, and vibrational stresses. A properly executed weld creates a monolithic connection, effectively becoming an extension of the vehicle's frame, ensuring maximum load transfer efficiency and minimizing relative movement that could lead to wear or fatigue in bolted joints. This method eliminates the potential for bolt loosening, shear failure of bolts, or ovaling of bolt holes under repetitive heavy loading, issues that can compromise the safety and longevity of the towing system. Professional welding, adhering to AWS (American Welding Society) standards and best practices, is essential to leverage the full strength of the carbon steel material and ensure the integrity of the vehicle's chassis. Considerations for welding include selecting appropriate filler metals, controlling heat input to prevent frame material embrittlement, and employing qualified welders to guarantee sound, defect-free welds that can withstand the severe duty cycles characteristic of vocational vehicles.
Customization and Application Versatility
The "Application Specific (Y/N): No" designation is a testament to the product's universal adaptability within the realm of custom vehicle fabrication. While the "Application Summary" highlights dump trucks, the potential uses extend far beyond. This hitch plate is an ideal solution for service vehicles, municipal fleets, construction equipment carriers, heavy-duty recovery vehicles, and agricultural machinery, where off-the-shelf solutions often fall short of specific operational demands. Fabricators can integrate this plate into various frame configurations, including C-channel, box-frame, or I-beam chassis, adapting it to achieve desired departure angles, ground clearance, and integration with existing vehicle systems such as air tanks, exhaust routes, or PTO components. The ability to custom build ensures that the final towing system meets not only functional requirements but also adheres to stringent safety standards and maximizes the operational lifespan of the vehicle and its attachments.
Material Finish and Post-Installation Considerations
The "Plain" finish of the Fabricators Hitch Plate is a deliberate choice, offering significant advantages for the fabrication process. A plain steel finish, free of coatings or paints, allows for direct, high-quality welding without the need for extensive surface preparation, such as grinding off protective layers. This ensures cleaner welds, better penetration, and stronger bonds, which are critical for safety-related components. Post-installation, the plain finish provides a perfect substrate for the fabricator to apply a custom protective coating, such as industrial-grade paint, powder coating, or even galvanization, to match the vehicle's aesthetic or provide superior corrosion resistance tailored to the operational environment. This approach allows the end-user to select a finish that offers optimal protection against road salts, chemicals, and extreme weather conditions, thereby extending the service life of the entire hitch assembly and maintaining its visual integrity.
Unrated Load Capacity and System Design Responsibility
The "M.G.T.W. (lbs.): Not Rated" and "M.V.L. (lbs.): -" specifications signify that this Fabricators Hitch Plate is a foundational component within a larger, custom-engineered system. As a raw material kit, its ultimate load capacity is not independently rated, as it depends entirely on the design, installation quality, and overall structural integrity of the final vehicle assembly it is integrated into. This places the onus on the qualified fabricator or engineer to correctly calculate and certify the Maximum Gross Trailer Weight (MGTW) and Maximum Vertical Load (MVL) for the complete towing system, taking into account the vehicle's frame strength, suspension, tire ratings, and the specific towing attachments used. This approach empowers fabricators to optimize the towing capacity to their precise needs, rather than being constrained by a generic rating that may not fully utilize the vehicle's potential or may be insufficient for specialized applications. It underscores the professional nature of this product, intended for those with the expertise to design and validate complex heavy-duty towing solutions.
Holistic View of Durability and Maintenance
The robust construction and material selection of this Fabricators Hitch Plate contribute significantly to its long-term durability. Carbon steel, properly welded and protected post-installation, exhibits excellent resistance to fatigue, wear, and structural deformation under repeated stress cycles typical of heavy hauling. Regular inspection for signs of wear, corrosion, or weld integrity is recommended as part of a comprehensive vehicle maintenance program to ensure continued safe operation. The simplicity of its plain finish also facilitates easier inspection for cracks or damage compared to components obscured by thick, inflexible coatings. This design philosophy translates into a component that, when correctly integrated, contributes to the overall reliability and longevity of the vocational vehicle it serves.
Conclusion: A Foundation for Custom Towing Excellence
In summary, the Fabricators Hitch Plate 5/8 x 34 x 15-1/2 Inch from Buyers Products is more than just a steel plate; it is a meticulously designed foundational element for constructing bespoke, heavy-duty towing systems. Its high-grade carbon steel construction, precise dimensions, pre-engineered mounting options for pintle hooks and electrical connectors, and the inclusion of versatile D-rings with gussets for custom placement, collectively provide an exceptional platform for professional fabricators. The inherent flexibility to weld it directly to the vehicle's frame, coupled with its plain finish optimized for post-installation customization, underscores its value in specialized applications where off-the-shelf solutions are inadequate. While not factory-rated, its design empowers skilled technicians to engineer towing capacities perfectly matched to specific operational requirements, making it an indispensable component for optimizing the utility and performance of commercial and vocational vehicles requiring robust and adaptable towing capabilities. This product truly embodies the spirit of professional fabrication, offering the strength and versatility necessary to build towing solutions that meet the most demanding challenges.
