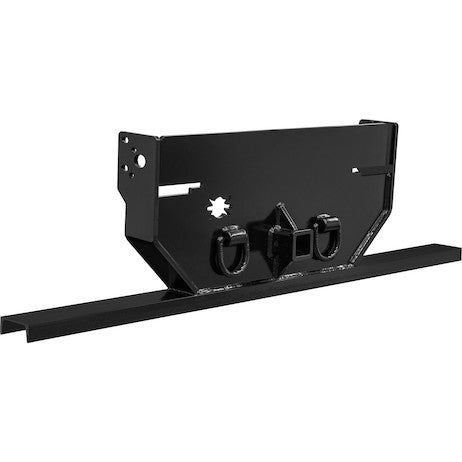

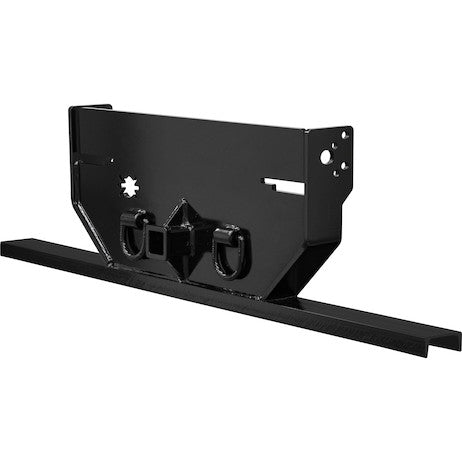

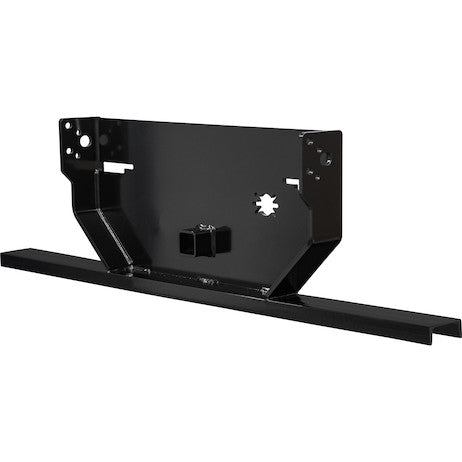

The Hitch Plate with 2 Inch Receiver Tube from Buyers Products is designed to be ready to use so you don't need to spend time at the fabricators. It features an attached 2 in. receiver tube, two forged D-rings, and a pre-punched hole that fits most trailer electrical connectors. The 1/2 in. thick hitch plate includes ICC bumper protection and features a black powder-coated finish for corrosion resistance. It should be both welded and bolted to the frame. The hitch plate fits Ford, Chevy/GMC and Dodge/RAM chassis (not for pickups). Please consult the vehicle/chassis owner's manual before installing.
Specifications
| Application Specific (Y/N) | Yes |
|---|---|
| Application Summary | Ford?? F-350 - F-550 Cab & Chassis (1999+) |
| Color | Black |
| Finish | Powder-Coat |
| Height (in.) | 17.20 |
| Hitch Plate or Bumper | Hitch Plate w/ Bottom Bumper |
| M.G.T.W. (lbs.) | 20,000 |
| Make | Ford?? |
| Material | Carbon Steel |
| Model | F-350 - F-550 |
| Receiver Size (in.) | 2.00 |
| Style | Cab & Chassis |
| Thickness (in.) | 1/2 |
| Width (in.) | 62.00 |
| Year | 1999+ |
Advanced Towing and Utility Solution: The Buyers Products Hitch Plate with Integrated Receiver Tube for Ford F-350 - F-550 Cab & Chassis (1999+)
For commercial operators and fleet managers utilizing Ford F-350, F-450, and F-550 Cab & Chassis platforms manufactured from 1999 onwards, the Buyers Products Hitch Plate with integrated 2-inch Receiver Tube presents a robust, pre-engineered, and highly efficient solution for diverse towing and utility requirements. This purpose-built component is meticulously designed to eliminate the complexities and time-consuming custom fabrication often associated with equipping heavy-duty chassis with towing capabilities, offering an immediate and compliant upgrade.
Engineered for Durability and Performance: Structural Integrity and Material Science
Central to the superior performance of this hitch plate is its foundational material and construction. Fabricated from high-grade carbon steel, precisely 1/2 inch in thickness, the plate is engineered to withstand the rigorous demands of commercial towing. Carbon steel is selected for its exceptional tensile strength, yield strength, and inherent resistance to fatigue, ensuring long-term structural integrity under dynamic load conditions. This substantial thickness provides a critical advantage, dissipating stress across a broader surface area and minimizing localized strain, which is paramount when managing Maximum Gross Trailer Weights (M.G.T.W.) up to 20,000 lbs.
The overall dimensions of the hitch plate, measuring approximately 17.20 inches in height and 62.00 inches in width, are optimized for precise integration with the Ford F-350 through F-550 Cab & Chassis frame rails, from model years 1999 and beyond. This specific sizing ensures not only a proper fit but also distributes towing forces effectively across the vehicle's structural components, mitigating the risk of frame distortion or localized stress concentrations. The design integrates a "Hitch Plate w/ Bottom Bumper," which signifies its dual functionality as both a robust towing platform and a critical component for rear-impact protection, often aligning with International Code Council (ICC) regulations for commercial vehicles.
Integrated 2-Inch Receiver Tube: Versatility and Standardization
The most prominent feature of this hitch plate is the seamlessly integrated 2-inch receiver tube. This industry-standard receiver size ensures broad compatibility with an extensive array of towing accessories and implements. Whether the application calls for standard ball mounts for conventional trailers, pintle hooks for heavy-duty commercial trailers, weight distribution hitches, specialized cargo carriers, or even recovery and winch receivers, the 2-inch receiver tube provides the necessary interface. The integration of this receiver tube directly into the hitch plate structure, rather than as an add-on, contributes significantly to its strength and load-bearing capacity, eliminating potential weak points that could arise from separate mounting mechanisms. This pre-welded attachment also ensures optimal alignment and reduces installation time and complexity.
The design considers the critical interplay between the receiver tube and the overall hitch plate. The robust weldments and structural reinforcement surrounding the receiver tube ensure that vertical tongue weight (the downward force exerted by the trailer on the hitch) is safely transferred through the plate to the vehicle's chassis. While a specific maximum tongue weight is not explicitly stated, the 20,000 lb M.G.T.W. implies a substantial tongue weight capacity, typically ranging from 10% to 15% of the M.G.T.W. for conventional towing applications, underscoring the product's heavy-duty design.
Superior Corrosion Resistance: Advanced Powder-Coated Finish
To ensure prolonged operational life and maintain aesthetic integrity in harsh operating environments, the entire hitch plate assembly is treated with a durable black powder-coated finish. This advanced coating process offers significantly superior protection against environmental degradation compared to traditional liquid paints. The process typically involves meticulous surface preparation, often including sandblasting or chemical etching, to create an ideal substrate for adhesion. Electrostatic application of dry powder paint ensures uniform coverage, even in complex geometries. The subsequent curing in a high-temperature oven melts the powder into a smooth, hard, and resilient coating that chemically bonds to the metal surface.
The benefits of this powder-coat finish are multifaceted:
- Enhanced Corrosion Resistance: It creates an impermeable barrier against moisture, road salts, chemicals, and other corrosive agents prevalent in commercial and industrial settings.
- Impact and Abrasion Resistance: The tough, flexible nature of powder coating makes it highly resistant to chipping, scratching, and abrasion, which are common wear factors for components exposed to road debris and operational stresses.
- UV Stability: The black powder coat is formulated to resist fading and degradation from prolonged exposure to ultraviolet (UV) radiation, ensuring the finish remains vibrant and protective over time.
- Environmental Durability: This finish extends the operational lifespan of the hitch plate, reducing the need for frequent maintenance or replacement due to rust and material degradation.
Integrated Safety and Connectivity: D-Rings and Electrical Connector Hole
Safety and operational efficiency are paramount in commercial towing applications, and this hitch plate incorporates features designed to address both. Two robust, forged D-rings are permanently integrated into the structure. The "forged" designation is critical, indicating that these D-rings are formed from a single piece of steel under immense pressure, resulting in a grain structure that provides exceptional strength and resistance to deformation, surpassing the strength characteristics of fabricated or cast alternatives. These D-rings serve as secure attachment points for trailer safety chains, a mandatory requirement for safe towing, ensuring the trailer remains connected to the tow vehicle in the unlikely event of a primary coupling failure. They can also serve as auxiliary attachment points for recovery straps or other implements as needed, enhancing the overall utility of the system.
Furthermore, the hitch plate includes a pre-punched hole specifically designed to accommodate most standard trailer electrical connectors. This thoughtful inclusion eliminates the need for installers to drill into the hardened steel plate, which can compromise structural integrity or be a challenging task in the field. The pre-punched hole simplifies the installation of 4-way, 6-way, or 7-way electrical connectors, ensuring reliable transmission of power for trailer lighting, electric brakes, and auxiliary functions. This ready-to-use feature significantly streamlines the upfitting process, reducing labor costs and potential for installation errors.
Compliance and Protection: ICC Bumper Integration
The designation "Hitch Plate w/ Bottom Bumper" and the mention of "ICC bumper protection" underscore a crucial safety and regulatory aspect of this product. The International Code Council (ICC) develops comprehensive codes used in the design, construction, and compliance of various structures and components, including commercial vehicle safety. For heavy-duty vehicles, rear-impact protection is a significant concern to prevent underride accidents, where a passenger vehicle can slide underneath a larger truck or trailer during a rear-end collision, often with catastrophic consequences. While specific ICC standards can vary, the integrated bottom bumper design of this hitch plate contributes to providing a robust rear impact guard. It helps to meet regulatory requirements by providing a strong structural barrier at a specified height, designed to absorb impact energy and prevent smaller vehicles from underriding the chassis. This feature not only protects other motorists but also safeguards the chassis, its attached equipment, and potentially cargo during minor impacts or collisions.
Installation Protocol: Welded and Bolted for Maximum Security
The installation of this hitch plate necessitates a dual-attachment methodology: it "should be both welded and bolted to the frame." This prescriptive approach is critical for achieving the specified M.G.T.W. and ensuring the utmost safety and reliability in heavy-duty towing applications.
- Welding: Welding provides a permanent, high-strength bond that effectively integrates the hitch plate into the vehicle's structural frame. It excels at distributing shear forces and dynamic loads across a wide area, minimizing stress concentrations. Professional welding, adhering to industry standards such as AWS D1.1 for structural steel, is essential. This involves proper surface preparation (grinding, cleaning), selection of appropriate welding processes (e.g., GMAW, SMAW), filler materials, and post-weld inspection to ensure metallurgical integrity and prevent cracking or weak joints.
- Bolting: Bolting complements welding by providing additional mechanical redundancy and facilitating precise initial positioning. High-strength fasteners (e.g., SAE Grade 8 or metric equivalent 10.9) should be used, properly torqued to manufacturer specifications. Bolting offers excellent resistance to tensile forces and can help mitigate stress on welds during certain load conditions. The combination of both methods creates an exceptionally robust connection, capable of withstanding the complex forces encountered during heavy towing, including longitudinal, lateral, and torsional stresses.
It is imperative that installation be performed by qualified technicians who possess expertise in heavy-duty vehicle modification and welding. Strict adherence to the vehicle/chassis owner's manual for frame modification guidelines and structural integrity is non-negotiable.
Application Specificity and Compatibility
This Buyers Products Hitch Plate is specifically engineered for Ford F-350, F-450, and F-550 Cab & Chassis models from 1999 onwards. This explicit application ensures that the dimensions, mounting points, and structural characteristics of the hitch plate are perfectly matched to the unique frame configurations of these heavy-duty Ford platforms. It is crucial to note the distinction: "not for pickups." Pickup truck frames, especially in the rear sections, differ significantly from Cab & Chassis frames, which are designed to accept various vocational bodies (e.g., utility bodies, flatbeds, dump bodies). The longer, often straight-rail design of a Cab & Chassis frame allows for a more direct and robust attachment of this type of hitch plate, integrating it seamlessly with the vehicle's inherent load-carrying capabilities.
While the product description also mentions compatibility with Chevy/GMC and Dodge/RAM chassis, the primary focus and optimized fitment, as indicated by the title and detailed specifications, are for the Ford F-Series Cab & Chassis. This highlights the product's versatility for fleet operators managing mixed vehicle types, though diligent cross-referencing with specific chassis models and consulting the respective vehicle owner's manual remains a critical pre-installation step for any application outside the specified Ford F-350 - F-550 range.
Performance Metrics: Maximum Gross Trailer Weight (M.G.T.W.) 20,000 lbs
The declared Maximum Gross Trailer Weight (M.G.T.W.) of 20,000 lbs is a testament to the robust engineering and heavy-duty capabilities of this hitch plate. This rating signifies the maximum combined weight of the trailer and its entire cargo that the hitch system is designed to safely tow. This capacity positions the Buyers Products hitch plate as an ideal solution for demanding commercial applications, including towing large utility trailers, equipment transporters, construction machinery, or specialized vocational trailers. Adherence to this M.G.T.W. is critical for operational safety, vehicle stability, and compliance with transportation regulations. Exceeding this rating can compromise the structural integrity of the hitch, the towing vehicle's frame, braking systems, and overall control, leading to unsafe conditions and potential equipment failure.
Conclusion
The Buyers Products Hitch Plate with integrated 2-inch Receiver Tube for Ford F-350 - F-550 Cab & Chassis (1999+) represents a comprehensive, heavy-duty towing and utility solution. Its meticulously engineered 1/2-inch thick carbon steel construction, advanced black powder-coat finish, integrated forged D-rings, and pre-punched electrical connector hole underscore a commitment to durability, safety, and ease of use. Designed to meet the stringent demands of commercial operations, this pre-fabricated unit eliminates the need for custom fabrication, allowing for direct, professional installation via welding and bolting. With a substantial 20,000 lb M.G.T.W. rating and integrated ICC bumper protection, this hitch plate stands as an indispensable component for vocational fleets seeking reliable, compliant, and high-performance towing capabilities for their Ford Cab & Chassis vehicles.
