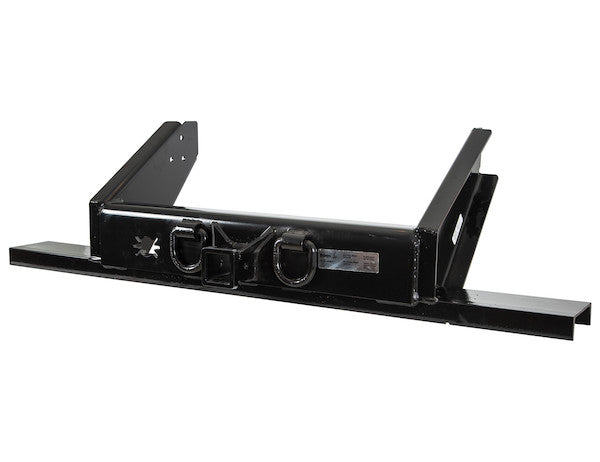

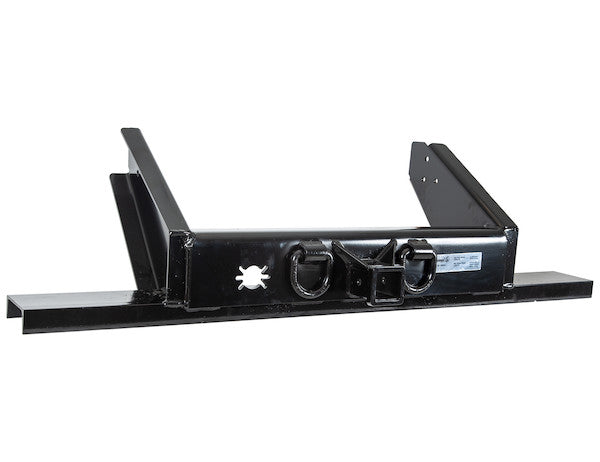

This flatbed hitch plate bumper from Buyers Products is designed to accommodate the longer overhang of flatbeds and flatbed dump trucks, handling towing weights up to 20,000 lbs, while still providing ICC bumper protection. This versatile product comes in three configurations, offering a 2in or 2-1/2in receiver tube, or a 2 position pintle hook mount. It also includes two forged D-rings for safety chains and a pre-punched hole that fits standard electrical connectors, and is powder coated black for maximum corrosion-resistance. This bumper is ready to mount on Ford F-350, F-450, and F-550 cab and chassis trucks with a nominal 34 in. frame width, some drilling may be required for GM or Ram trucks. It should be both bolted and welded to the truck frame.
Specifications
| Application Specific (Y/N) | Yes |
|---|---|
| Application Summary | Cab and chassis trucks with a nominal 34 in. frame width. |
| Color | Black |
| Finish | Powder-Coat |
| Height (in.) | 16.18 |
| Hitch Plate or Bumper | Hitch Bumper |
| M.G.T.W. (lbs.) | 20,000 |
| Material | Carbon Steel |
| Receiver Size (in.) | 2.5 |
| Style | Cab & Chassis with a nominal 34 in. frame width |
| Thickness (in.) | 1/2 |
| Width (in.) | 62.00 |
Advanced Technical Overview: Flatbed/Flatbed Dump Hitch Plate Bumper with 2-1/2 Inch Receiver
The Flatbed/Flatbed Dump Hitch Plate Bumper from Buyers Products, featuring a robust 2-1/2 inch receiver, represents a pinnacle of engineering designed for the most demanding commercial and industrial applications. This specialized component transcends the capabilities of conventional bumpers, offering an integrated solution for heavy-duty towing, enhanced vehicle protection, and superior operational safety for vehicles equipped with flatbed or flatbed dump bodies. Its design is meticulously calibrated to address the unique structural and functional requirements imposed by the extended overhang characteristic of these specialized truck configurations.
Engineering and Design Philosophy for Specialized Applications
The fundamental design of this hitch plate bumper is rooted in a deep understanding of the stresses and operational exigencies faced by flatbed and flatbed dump trucks. Unlike standard pickup truck applications, flatbed configurations often result in a significantly longer rear overhang, which necessitates a more robust and purpose-built towing and protection solution. This product integrates a heavy-duty hitch receiver directly into a structure that simultaneously functions as an ICC-compliant rear underride protection device. Constructed from high-strength carbon steel with a substantial 1/2-inch thickness, the bumper's structural integrity is paramount. This material selection ensures exceptional resistance to torsional forces, bending moments, and impact loads commonly encountered during heavy towing and potential rear-end collisions. The specific dimensions, including a width of 62.00 inches and a height of 16.18 inches, are not arbitrary but are precisely engineered to provide optimal coverage and integration with the chassis frame, particularly those with a nominal 34-inch frame width.
The design accounts for the unique weight distribution and dynamic forces involved in towing heavy loads with flatbed vehicles. By extending the hitch plate forward and integrating it directly with the truck’s chassis rails via a combination of bolting and welding, load transfer is optimized, minimizing stress concentrations on the frame. This robust attachment methodology is crucial for maintaining vehicle stability and structural integrity under maximum gross trailer weight (M.G.T.W.) conditions. The inclusion of a 2-1/2 inch receiver tube, rather than the more common 2-inch variant, signifies its intended use for applications requiring higher tongue weights and overall towing capacities, making it compatible with a broader range of heavy-duty hitches and accessories.
Unparalleled Towing Capacity and Performance
With an impressive Maximum Gross Trailer Weight (M.G.T.W.) rating of 20,000 lbs, this hitch plate bumper is engineered to facilitate the transport of substantial loads, including heavy construction equipment, large commercial trailers, and various utility payloads. This capacity is a direct result of the robust material specification (1/2-inch carbon steel), advanced structural design, and the utilization of a 2-1/2 inch receiver. The larger receiver tube offers several advantages over smaller alternatives, primarily its enhanced strength and resistance to deformation under extreme stress. It provides a more substantial interface for class IV and V trailer hitches, which are essential for achieving such high towing ratings.
The 2-1/2 inch receiver’s greater cross-sectional area and thicker walls distribute the immense forces exerted by heavy trailers more effectively across the vehicle's frame. This significantly reduces the risk of receiver failure, bending, or fatigue over prolonged periods of heavy use. When assessing towing capabilities, it is critical to consider not just the M.G.T.W. but also the gross vehicle weight rating (GVWR) and gross combined weight rating (GCWR) of the tow vehicle, along with the tongue weight of the trailer. This hitch plate bumper is designed to safely accommodate a substantial portion of the vehicle's GCWR, ensuring that operators can maximize their hauling potential while adhering to safety protocols and regulatory standards.
The design's inherent strength supports dynamic loads experienced during acceleration, braking, and cornering with heavy trailers. The secure attachment to the truck frame ensures that these forces are absorbed and distributed efficiently throughout the chassis, preventing undue stress on individual components. This level of engineering ensures reliable, repeatable performance even in challenging terrains or demanding operational cycles, critical for fleet managers and owner-operators who rely on consistent equipment functionality.
Safety and Compliance: ICC Bumper Protection
A pivotal feature of this product is its compliance with ICC (Interstate Commerce Commission) bumper protection standards, specifically referencing Federal Motor Vehicle Safety Standards (FMVSS) 223 and 224. These regulations mandate the installation of rear impact guards on commercial vehicles to prevent underride collisions, where a passenger vehicle can slide underneath the rear of a larger truck during a rear-end impact. The design incorporates structural elements that meet the stringent energy absorption and dimensional requirements of these standards. The bumper's strategic placement and robust construction are designed to intercept impacting vehicles at a specific height range, thereby protecting occupants of the striking vehicle and reducing the severity of injuries and fatalities.
The strength and geometry of the bumper are engineered to withstand significant impact forces without catastrophic failure, absorbing and dissipating energy effectively. This not only protects the occupants of other vehicles but also provides a measure of protection to the truck's chassis and sensitive components located at the rear. The 1/2-inch carbon steel material is critical in achieving this level of impact resistance and structural integrity required by federal regulations. Regular inspection and maintenance of this component are recommended to ensure its continued compliance and effectiveness as a safety device.
Further enhancing operational safety are the two integrally forged D-rings provided for safety chains. These D-rings are not merely attachment points; they are designed to withstand the full breaking strength of standard safety chains required for the specified 20,000 lbs M.G.T.W. In the unlikely event of a primary hitch component failure, these safety chains, when properly connected, prevent the trailer from separating from the tow vehicle, thereby averting potentially catastrophic accidents. The forged construction of the D-rings ensures superior strength and ductility compared to cast alternatives, minimizing the risk of brittle fracture under sudden load. Their strategic placement facilitates easy and secure attachment of safety chains, promoting proper use and adherence to towing regulations.
Versatility and Integrated Functionality

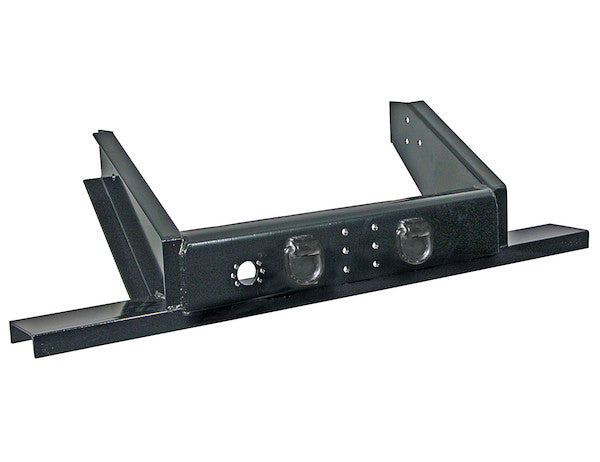

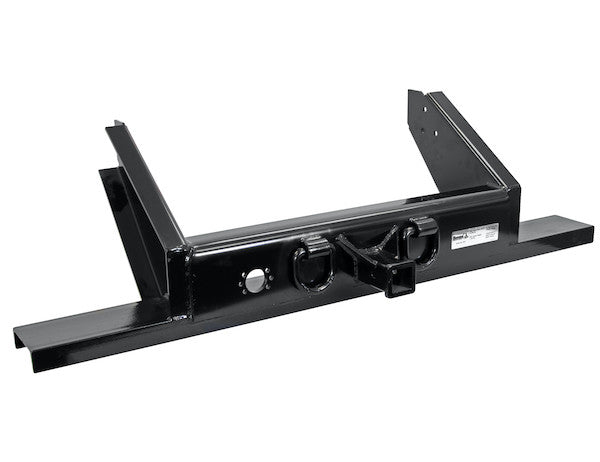

While this specific product configuration focuses on the 2-1/2 inch receiver, it is part of a versatile product line that offers adaptability to diverse operational needs. The availability of 2-inch receiver and 2-position pintle hook mount options highlights the manufacturer's commitment to providing tailored solutions. The 2-inch receiver offers compatibility with a wider range of lighter-duty towing accessories, while the 2-position pintle hook mount is specifically designed for agricultural, construction, and military applications where pintle hitches are preferred for their robust engagement with drawbar-style trailers, particularly in off-road or uneven terrain. This modular approach allows end-users to select the ideal configuration based on their specific equipment and operational requirements, without compromising on the underlying structural integrity and safety features.
Beyond its primary towing and protection functions, the bumper integrates practical features for enhanced utility. A pre-punched hole is strategically located to accommodate standard electrical connectors, simplifying the integration of trailer lighting and braking systems. This thoughtful inclusion eliminates the need for field modifications, saving installation time and ensuring a clean, professional electrical connection that is less susceptible to environmental damage. This detail underscores the product's comprehensive design, anticipating and addressing common installation challenges faced by technicians.
Exceptional Durability and Longevity
Durability is a cornerstone of this product's design, ensuring a long service life even in the most corrosive and physically demanding environments. The choice of carbon steel as the primary material provides an optimal balance of strength, ductility, and cost-effectiveness. The 1/2-inch material thickness is critical for achieving the required structural rigidity and impact resistance, while also providing ample material for robust welds and secure bolted connections. Carbon steel exhibits excellent fatigue resistance, a crucial property for components subjected to repetitive loading cycles inherent in heavy-duty towing applications.
To combat environmental degradation, the entire bumper assembly is finished with a high-quality powder coating in black. Powder coating is a superior finishing process that provides a much more durable and chip-resistant surface than traditional liquid paints. The process involves electrostatically applying a dry powder to the metal, which is then cured under heat to form a hard, protective layer. This finish offers exceptional resistance to abrasion, chemicals, UV radiation, and, most importantly, corrosion. For vehicles operating in regions exposed to road salts, industrial chemicals, or severe weather conditions, this advanced protective coating significantly extends the operational lifespan of the bumper, maintaining both its aesthetic appeal and structural integrity over years of service. This corrosion resistance is vital for preserving the critical safety and load-bearing capacities of the hitch plate bumper, ensuring reliable performance throughout its operational lifecycle.
Installation and Vehicle Compatibility

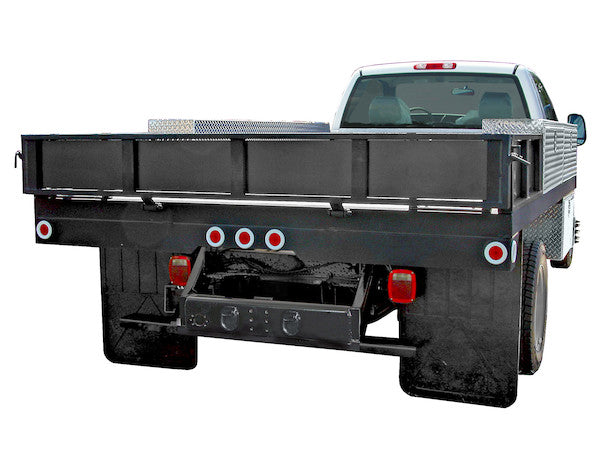

This Flatbed/Flatbed Dump Hitch Plate Bumper is engineered for direct compatibility with Ford F-350, F-450, and F-550 cab and chassis trucks featuring a nominal 34-inch frame width. This application-specific design streamlines the installation process for these popular commercial platforms. For optimal integration and to achieve the specified M.G.T.W. and ICC protection ratings, the product is designed to be simultaneously bolted and welded to the truck frame. The bolting provides initial alignment and clamping force, while the welding creates a permanent, high-strength structural bond that distributes stress across a larger area of the chassis, preventing localized fatigue and maximizing load transfer efficiency. This dual attachment method is critical for mitigating the severe dynamic forces associated with heavy towing and underride impacts.
While primarily designed for Ford chassis, the versatility of the product allows for adaptation to GM or Ram trucks with similar nominal 34-inch frame widths, though some drilling may be required. This potential need for drilling emphasizes the importance of professional installation and careful adherence to manufacturer guidelines to ensure proper fitment and maintain structural integrity. Accurate measurement and alignment are crucial to ensure that the bumper's protective and towing functionalities are fully realized. Qualified technicians should perform installation, utilizing appropriate tools and techniques for drilling, bolting, and welding to guarantee secure and compliant mounting. Thorough inspection after installation, including verification of all connections and clearances, is essential before placing the vehicle into service.
Comprehensive Technical Specifications Analysis
The detailed specifications provided underscore the precise engineering behind this hitch plate bumper:
- Application Specific (Y/N): Yes – Confirms its purpose-built design for certain chassis types.
- Application Summary: Cab and chassis trucks with a nominal 34 in. frame width – Pinpoints the primary target vehicle market, indicating specific design considerations for commercial bare chassis.
- Color: Black, Finish: Powder-Coat – Details the aesthetic and protective treatment, emphasizing durability and corrosion resistance.
- Height (in.): 16.18 – This dimension contributes to the ICC compliance requirements by positioning the impact surface within the regulated height range for underride protection. It also ensures adequate ground clearance while maintaining structural integrity.
- Hitch Plate or Bumper: Hitch Bumper – Clarifies its dual functionality as both a towing apparatus and a protective bumper.
- M.G.T.W. (lbs.): 20,000 – The critical maximum gross trailer weight rating, demonstrating its heavy-duty capability.
- Material: Carbon Steel, Thickness (in.): 1/2 – These specifications are central to the product’s strength, durability, and compliance with safety standards. The 1/2-inch thickness provides superior rigidity and resistance to deformation under load or impact.
- Receiver Size (in.): 2.5 – Confirms the heavy-duty receiver standard, indicating compatibility with high-capacity hitches.
- Style: Cab & Chassis with a nominal 34 in. frame width – Reaffirms the specific vehicle platform and frame dimension it is designed for.
- Width (in.): 62.00 – This dimension is crucial for providing sufficient lateral coverage for ICC compliance and for accommodating the wide frames of heavy-duty chassis, ensuring the structural components extend beyond the vehicle’s primary frame rails for optimal protection and stability.
Applications and Use Cases
This Flatbed/Flatbed Dump Hitch Plate Bumper is an indispensable asset across a multitude of industries where heavy hauling and robust vehicle protection are paramount. Typical applications include:
- Construction: Towing heavy machinery such as mini excavators, skid steers, and material trailers.
- Landscaping and Tree Care: Transporting large wood chippers, stump grinders, and equipment trailers.
- Municipal Services: Use on utility trucks, sanitation vehicles, and road maintenance fleets for towing specialized equipment.
- Agriculture: Hauling farm implements, livestock trailers, and supply wagons.
- Oil & Gas: Supporting field service vehicles for transporting tools and specialized equipment to remote sites.
- Logistics and Delivery: Enhancing capabilities of flatbed delivery trucks for heavier loads and varied trailer types.
Its robust design ensures reliable performance in these demanding environments, providing both the functional capability for heavy towing and the critical safety assurance of ICC-compliant underride protection.
Maintenance and Care
To ensure the prolonged operational integrity and aesthetic condition of the Flatbed/Flatbed Dump Hitch Plate Bumper, routine maintenance is recommended. Periodically inspect the powder-coat finish for any signs of chipping or deep scratches that could expose the underlying steel to corrosion, especially in harsh climates. Touch-up paint specifically formulated for powder-coated surfaces can be applied to address minor damage. Regularly check all bolted connections for tightness, as vibrations from heavy loads and rough terrain can cause fasteners to loosen over time. Inspect the weldments for any signs of cracking or fatigue, which could indicate structural compromise. Additionally, ensure the receiver tube is free of debris and corrosion to facilitate easy hitch insertion and removal, and lubricate moving parts of any connected hitch components as per their respective manufacturer guidelines. Consistent inspection of the forged D-rings for damage or deformation is also vital to guarantee their readiness for emergency safety chain deployment. Adhering to these simple maintenance practices will maximize the lifespan and reliability of this critical component.
Conclusion
The Flatbed/Flatbed Dump Hitch Plate Bumper with a 2-1/2 inch receiver from Buyers Products stands as a testament to engineering excellence in heavy-duty truck accessories. Its meticulously crafted design, robust carbon steel construction, and advanced powder-coat finish ensure superior performance in both towing and protective capacities. With an industry-leading 20,000 lbs M.G.T.W. and full compliance with ICC underride protection standards, this product provides unparalleled safety and operational efficiency for flatbed and flatbed dump truck applications. The seamless integration features, including forged D-rings and a pre-punched electrical connector hole, further enhance its utility and ease of installation. For professionals requiring a durable, reliable, and compliant solution for their heavy-duty towing and vehicle protection needs, this hitch plate bumper represents an optimal investment in both productivity and safety.
