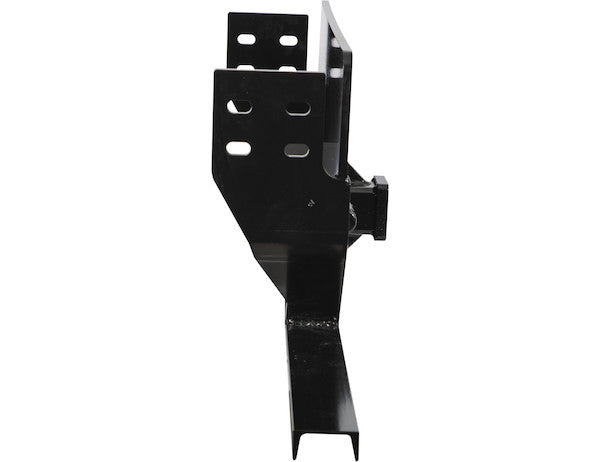

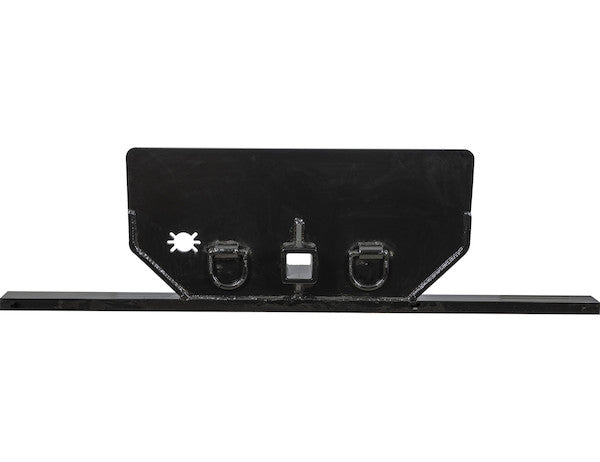

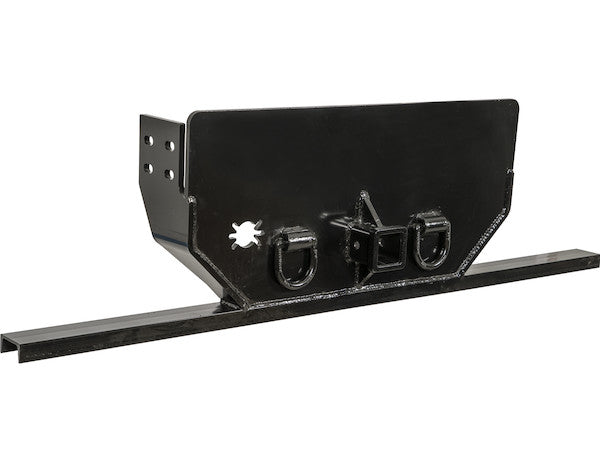

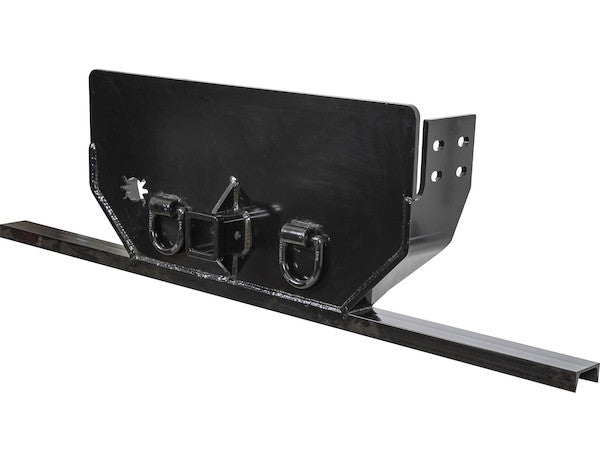

The Hitch Plate with 2-1/2 Inch Receiver Tube from Buyers Products is designed to be ready to use so you don't need to spend time at the fabricators. It features an attached 2 in. or 2-1/2 in. receiver tube, two forged D-rings, and a pre-punched hole that fits most trailer electrical connectors. The 1/2 in. thick hitch plate includes ICC bumper protection and features a black powder-coated finish for corrosion resistance. It should be both welded and bolted to the frame. The hitch plate fits Ford chassis (not for pickups). Please consult the vehicle/chassis owner's manual before installing.
Specifications
| Application Specific (Y/N) | Yes |
|---|---|
| Application Summary | GMC / Chevy 4500/5500/6500, International CV (2019+) |
| Color | Black |
| Finish | Powder-Coat |
| Height (in.) | 17.10 |
| Hitch Plate or Bumper | Hitch Plate w/ Bottom Bumper |
| M.G.T.W. (lbs.) | 20,000 |
| Make | GMC??/Chevy?? |
| Material | Carbon Steel |
| Model | 4500/5500/6500/International |
| Receiver Size (in.) | 2.50 |
| Thickness (in.) | 1/2 |
| Width (in.) | 62.00 |
| Year | 2019+ |
Precision-Engineered Towing and Safety Solution for GMC/Chevy/International 4500-6500 (2019+) Chassis
The Hitch Plate with 2-1/2 Inch Receiver from Buyers Products represents a pinnacle of engineering excellence for medium-duty commercial vehicle applications, specifically designed for the demanding requirements of GMC, Chevrolet, and International 4500, 5500, and 6500 series chassis manufactured from 2019 onwards. This robust, application-specific component is not merely a hitch; it is an integrated towing and rear impact protection system meticulously crafted to ensure superior performance, enhanced safety, and seamless integration with your fleet vehicles. By providing a ready-to-install solution, Buyers Products eliminates the need for extensive fabrication, reducing downtime and installation costs, thereby optimizing operational efficiency for commercial enterprises.
At the core of this product’s design philosophy is an unwavering commitment to strength and durability. Constructed from high-grade 1/2 inch thick carbon steel, the hitch plate is engineered to withstand the rigorous stresses associated with heavy-duty towing and the harsh environments encountered in commercial operations. Its substantial thickness provides exceptional rigidity and load-bearing capacity, crucial for maintaining structural integrity under maximum gross trailer weight (M.G.T.W.) ratings of up to 20,000 lbs. This material choice is deliberate, offering an optimal balance of tensile strength, yield strength, and fatigue resistance, essential properties for components subjected to dynamic loads and repetitive stress cycles inherent in towing applications. The carbon steel composition also ensures excellent weldability, facilitating the required "welded and bolted" installation method that provides a comprehensive, robust attachment to the vehicle's frame. This dual-attachment strategy is critical for distributing towing forces effectively across the chassis, preventing localized stress concentrations, and ensuring long-term reliability even when operating at or near the stated maximum capacities.
Integrated Functionality and Advanced Design
The innovative design of this hitch plate goes beyond simple load transfer, incorporating several key functionalities that enhance both utility and safety:
- 2-1/2 Inch Receiver Tube: The heart of its towing capability is the integrated 2-1/2 inch receiver tube. This larger receiver size is a critical feature for medium-duty trucks, providing a more substantial connection point compared to standard 2-inch receivers. It is designed to accommodate Class V hitch accessories, which are rated for the heaviest conventional towing applications. The increased cross-sectional area of the 2-1/2 inch receiver inherently offers greater strength and torsional rigidity, minimizing flex and maximizing the transfer of force from the vehicle to the trailer. This ensures a more stable and secure towing experience, particularly with larger, heavier trailers that generate significant tongue weights and dynamic loads. The precision manufacturing of the receiver tube ensures a tight, consistent fit with compatible hitch inserts, reducing slop and wear, and thereby extending the lifespan of both the hitch and attached components.
- Forged D-Rings: Two strategically positioned, forged D-rings are integrated into the hitch plate. These D-rings serve as robust attachment points for safety chains, a mandatory safety requirement for all towed vehicles. The forging process, which involves shaping metal through compressive forces, rearranges the material's grain structure to enhance its strength, toughness, and fatigue resistance significantly, making them far superior to cast or cut-and-welded alternatives. In the event of an accidental trailer detachment, these D-rings are engineered to withstand the substantial kinetic forces, ensuring the trailer remains tethered to the tow vehicle, preventing runaway trailer incidents and greatly enhancing public safety. They also provide versatile anchor points for recovery operations or other utilitarian needs on the job site.
- Pre-Punched Electrical Connector Hole: A pre-punched hole is included, specifically sized and positioned to accommodate most standard trailer electrical connectors. This thoughtful design element streamlines the installation process for vital trailer electrical systems, including lighting (tail lights, brake lights, turn signals), electric trailer brakes, and auxiliary power for trailer accessories. By integrating this provision directly into the hitch plate, it ensures a clean, protected routing for wiring, reducing exposure to road debris, moisture, and potential damage, which can lead to costly electrical failures. This attention to detail reflects a comprehensive understanding of the practical demands of commercial vehicle operation, where reliable electrical connectivity is paramount for both legal compliance and operational effectiveness.
ICC Bumper Protection and Bottom Channel Integration
A standout feature of this product, and integral to its nomenclature as a "Hitch Plate w/ Bottom Bumper" or "Bottom Channel," is its incorporation of ICC bumper protection. This refers to compliance with stringent federal and international regulations (e.g., FMVSS 223/224 in the United States, and ECE R58 in Europe) mandating the presence of rear impact guards on commercial vehicles. These regulations are designed to prevent underride collisions, a particularly dangerous type of accident where a passenger vehicle can slide underneath the rear of a larger truck or trailer during a rear-end impact, often with catastrophic consequences for the occupants of the smaller vehicle.
The hitch plate is designed to function as an integral part of this protective system. Its substantial 1/2-inch thick carbon steel construction and overall width of 62.00 inches ensure it meets the dimensional and strength requirements for rear impact guards. The "Bottom Channel" aspect highlights its structural configuration, likely forming a robust, cross-vehicle member positioned at a specific height below the frame rails, optimized to engage with the front structures of passenger vehicles in a collision. This design absorbs and dissipates impact energy, preventing underride and potentially saving lives. The integration of the hitch and the ICC bumper into a single unit ensures that the towing functionality does not compromise critical safety standards, but rather enhances the overall safety profile of the vehicle. This is particularly important for medium-duty trucks which often operate in mixed traffic environments where interactions with lighter passenger vehicles are common. The design considers not just the static strength but also the dynamic response during an impact, ensuring energy is managed safely and effectively.
Advanced Manufacturing and Corrosion Resistance
The manufacturing process and finishing techniques employed for this Hitch Plate are crucial to its long-term performance and aesthetic appeal:
- Precision Engineering and Fabrication: Each hitch plate undergoes precision engineering and fabrication processes to ensure dimensional accuracy and consistent quality. Utilizing advanced laser cutting, forming, and welding techniques, Buyers Products ensures that every unit meets exact specifications, guaranteeing a perfect fit for the specified GMC, Chevy, and International chassis. This precision eliminates the guesswork and rework often associated with universal fit components, delivering on the "ready to use" promise and significantly reducing installation time and effort for fleet maintenance teams or professional installers. The tight tolerances and quality welds contribute directly to the overall strength and reliability of the unit, critical for safety-sensitive towing applications.
- Black Powder-Coated Finish: The entire hitch plate is treated with a durable black powder-coated finish. This advanced coating process offers significantly superior protection compared to conventional liquid paint. During powder coating, finely ground particles of pigment and resin are electrostatically charged and sprayed onto the grounded metal surface. The charged powder particles adhere to the electrically grounded surfaces until melted and fused into a smooth, uniform coating in a curing oven. This creates a remarkably tough, abrasion-resistant layer that is highly effective against a wide array of environmental aggressors, including road salt, moisture, corrosive chemicals, stone chips, and UV radiation. The black finish provides a professional aesthetic that complements the vehicle, while its primary function is to extend the product's lifespan by preventing rust and corrosion, thereby preserving the structural integrity and appearance of the hitch plate through years of demanding service.
Application Specificity and Chassis Integration
This Hitch Plate is explicitly engineered for GMC and Chevy 4500, 5500, and 6500 series chassis, as well as the International CV series, all from model year 2019 and newer. This application-specific design is paramount for optimal performance and installation:
- Tailored for Medium-Duty Chassis: The GMC/Chevy 4500-6500 series (such as the Silverado 4500HD, 5500HD, 6500HD) and the International CV (Class 4/5 commercial vehicle) are purpose-built medium-duty trucks designed for vocational applications like utility service, stake beds, dump trucks, service bodies, and various other commercial fleet roles. These chassis feature robust, straight rail frames, heavy-duty suspension systems, and powerful drivetrains configured for significant hauling and towing capacities. The hitch plate's dimensions (62.00 inches wide, 17.10 inches high) and mounting points are precisely aligned with the structural characteristics and frame rail widths of these specific vehicles, ensuring a direct, secure attachment without requiring modifications to the chassis.
- 2019+ Model Year Compatibility: The "2019+" designation is crucial as vehicle manufacturers often implement chassis design changes, frame modifications, or updated body mounts across model years. This specific hitch plate has been designed and tested to ensure perfect compatibility with the frame geometry and attachment points introduced in these model years and subsequent iterations. This specificity guarantees that the pre-drilled holes for bolting will align correctly and that the welding points are optimally located for maximum strength, adhering to the vehicle manufacturer's recommendations and best practices for frame alterations.
Performance, Safety, and Installation Guidelines
The operational performance of this hitch plate is directly tied to its rigorous design and manufacturing:
- Maximum Gross Trailer Weight (M.G.T.W.) of 20,000 lbs.: This impressive M.G.T.W. rating certifies the hitch for exceptionally heavy trailers, making it suitable for a broad spectrum of commercial towing needs. It’s imperative that users adhere to not only the hitch’s M.G.T.W. but also the vehicle's gross vehicle weight rating (GVWR), gross combined weight rating (GCWR), and maximum tongue weight specifications as outlined in the vehicle owner’s manual. Proper load distribution and tongue weight management are critical for safe towing and preventing excessive stress on the hitch and chassis.
- Safety Compliance: Beyond the ICC bumper protection, the entire design adheres to industry best practices and regulatory standards for towing equipment. The robust construction and dual attachment method contribute to a safe towing environment, minimizing the risk of component failure under load.
- Professional Installation Mandate: The instruction to have the hitch plate "welded and bolted to the frame" is not merely a recommendation but a critical safety directive. Welding provides an incredibly strong, permanent bond that distributes shear forces efficiently, while bolting adds redundancy and secures the hitch against torsional loads and vibration. Given the specialized nature of these tasks and the significant safety implications of improper installation, it is imperative that installation be performed by qualified professionals with expertise in structural welding and commercial vehicle modifications. Consulting the vehicle/chassis owner's manual before and during installation is non-negotiable, as it provides specific guidelines on frame alterations, welding procedures, and torque specifications relevant to maintaining the vehicle’s structural integrity and warranty.
Conclusion: A Comprehensive Solution for Commercial Towing
The Hitch Plate with 2-1/2 Inch Receiver for GMC/Chevy/International 4500-6500 (2019+) from Buyers Products represents a meticulously engineered, highly robust, and functionally integrated solution for heavy-duty commercial towing and rear impact protection. Its construction from 1/2-inch thick carbon steel, enhanced by a durable black powder-coat finish, ensures exceptional durability and resistance to the harsh demands of commercial service. The inclusion of a 2-1/2 inch receiver, forged D-rings, a pre-punched electrical connector hole, and integrated ICC bumper protection provides a comprehensive package that prioritizes both operational efficiency and paramount safety. Designed for direct, ready-to-use installation on specific chassis models from 2019 onwards, this hitch plate minimizes downtime and fabrication costs, offering fleet operators and commercial users an unparalleled combination of strength, compliance, and convenience. By choosing this application-specific component, businesses can ensure their medium-duty trucks are equipped with a dependable, high-capacity towing system that also meets critical safety regulations, thereby maximizing productivity and safeguarding personnel and assets.
