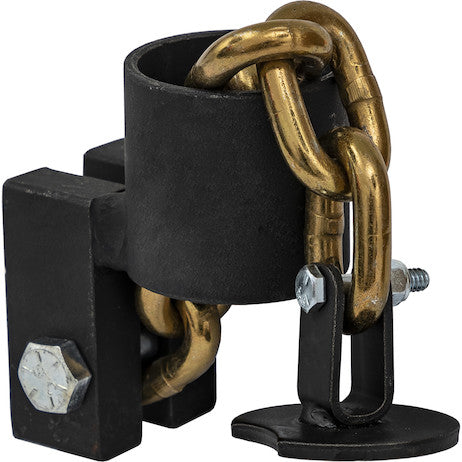

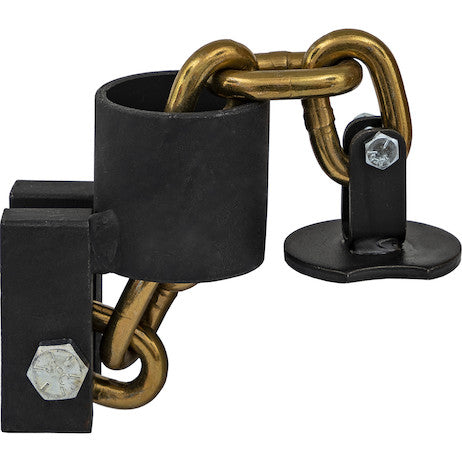

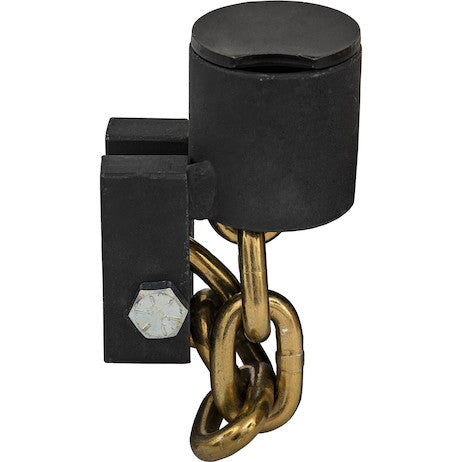

The Trailer Bed Chain Tie Down from Buyers Products creates a sturdy, recessed anchor point on your flatbed floor or trailer bed. With a working load limit of 6,600 lb, it uses a yellow zinc plated 3/8 in. Grade 70 chain. Apply it to your recessed wooden floor by welding to the understructure so the tie down will lay flush when installed.
Specifications
| Finish | Powder-Coat |
|---|---|
| Material | Carbon Steel |
| W.L.L. (lbs) | 6,600 |
Advanced Cargo Securement: An In-Depth Analysis of the Buyers Products Trailer Bed Chain Tie Down
In the demanding realm of commercial transportation, the integrity and reliability of cargo securement systems are paramount. The Buyers Products Trailer Bed Chain Tie Down provides a critical component for achieving unparalleled safety and operational efficiency for flatbed operators and trailer owners. Engineered for robustness and designed for seamless integration, this recessed anchor point system offers a professional-grade solution for securing diverse loads with utmost confidence.
Unrivaled Strength and Performance: The 6,600 lb Working Load Limit (WLL)
Central to the Trailer Bed Chain Tie Down's exceptional capability is its impressive Working Load Limit (WLL) of 6,600 pounds. WLL signifies the maximum load a component can safely support, distinct from ultimate breaking strength. Industry standards like NACSS and FMCSA mandate strict adherence to WLL ratings to prevent accidents and cargo shifts. A 6,600 lb WLL implies a substantial safety factor (often 3:1 or 4:1), ensuring its ultimate breaking strength significantly exceeds its rated capacity. This robust WLL is ideal for securing heavy cargo such as construction equipment, machinery, and industrial components. Using tie-downs with insufficient WLL is a primary cause of securement failures, leading to damages, fines, and safety risks. Its high WLL ensures compliance, protecting cargo and public. Operators must sum the WLL of all tie-downs to meet or exceed minimum requirements for the cargo's weight and type. Its high capacity minimizes chain stretch, wear, and failures, enhancing uptime and driver confidence.
The Backbone of Securement: 3/8 inch Grade 70 Transport Chain
The integrated chain is a meticulously specified component, central to the tie-down's functionality. The Buyers Products Trailer Bed Chain Tie Down features a 3/8 inch Grade 70 transport chain, an industry benchmark for heavy-duty cargo securement. Grade 70 chain, known as transport or binding chain, is manufactured from heat-treated, high-strength alloy steel. Its "Grade 70" designation indicates a specific tensile strength (around 700 MPa), offering a superior strength-to-weight ratio compared to lower-grade chains. This allows lighter chains to manage heavier loads without compromising safety. The 3/8 inch diameter is a versatile size, balancing strength, flexibility, and ease of handling. Each link undergoes rigorous testing for uniform strength and compliance with standards like ASTM A413 and FMCSA. The yellow zinc plating provides exceptional corrosion resistance, protecting the high-carbon steel from rust, moisture, and chemicals, prolonging service life and structural integrity. Secondly, the bright yellow finish significantly improves visibility, aiding quick inspection for damage or wear, especially in low-light conditions, and visually identifies the chain's high-strength grade. Regular inspection for stretched links, nicks, gouges, or excessive wear is crucial; any signs of degradation necessitate immediate replacement to prevent catastrophic failure. The careful selection of Grade 70 chain highlights Buyers Products' commitment to components that meet and exceed rigorous industry demands for durability and securement efficacy.
Engineered for Durability: Carbon Steel Construction and Powder-Coat Finish
The structural integrity and longevity of the Trailer Bed Chain Tie Down derive from its robust carbon steel construction, complemented by a superior powder-coat finish. Carbon steel is chosen for heavy-duty applications due to its high tensile strength, impact resistance, and weldability, ideal for components under significant stress. The specific carbon steel grade ensures an optimal balance of hardness, toughness, and ductility, allowing the tie-down to withstand repetitive loading cycles and incidental impacts without deformation. Its weldability facilitates a strong, monolithic connection to the trailer's understructure, essential for achieving the specified WLL. Post-fabrication, the tie-down receives a durable powder-coat finish. This advanced process involves electrostatically charging finely ground pigment and resin particles and spraying them onto the grounded steel, then curing in an oven to form a smooth, extremely tough coating. Powder coating offers numerous benefits: exceptional corrosion resistance, shielding the steel from moisture, chemicals, and road debris, extending unit life. It is highly resistant to abrasion, chipping, and scratching, crucial for high-traffic trailer beds. Superior impact resistance protects against damage from shifting cargo or dropped items. This combination ensures the tie-down maintains integrity and appearance, minimizing maintenance and maximizing operational value.
Seamless Integration: Recessed Design and Welding Installation

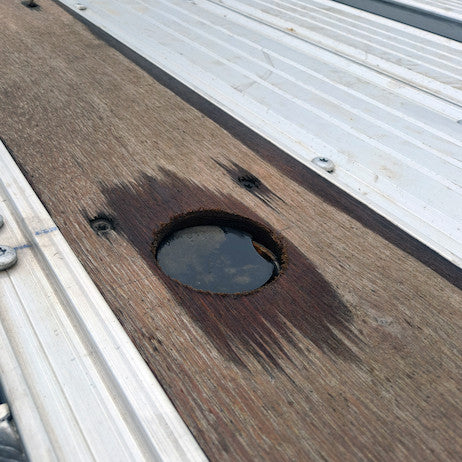

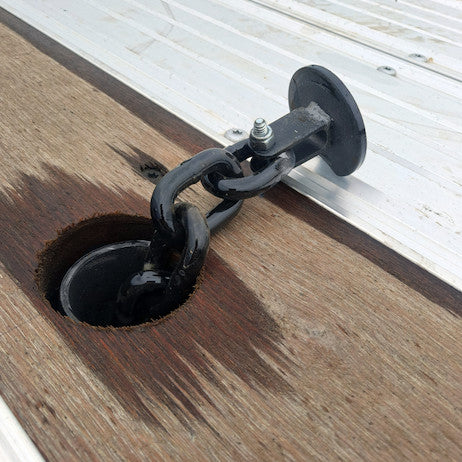

A key feature is its meticulously engineered recessed design, paired with a robust welding installation. A recessed anchor point is fundamental to enhancing both safety and operational efficiency. Installed flush with the deck surface, the chain section retracts below the main plane of the trailer floor. This flush mounting eliminates snag hazards common with conventional surface-mounted anchor points, preventing accidental trips, reducing cargo damage from sliding, and mitigating snagging of equipment during loading/unloading. It maximizes usable deck space, allowing flexible cargo placement without interference, and protects the tie-down itself from direct impacts, preserving its integrity and finish. The recommended installation involves welding the carbon steel tie-down unit directly to the trailer's understructure. This is critical for achieving the advertised 6,600 lb WLL and ensuring the structural integrity of the entire securement system. Proper welding by a certified professional creates a metallurgical bond, integrating the tie-down with the trailer's frame to distribute forces. For recessed wooden floors, the tie-down is positioned within a cutout in the decking, and its steel frame is welded to underlying steel crossmembers or main frame rails. This leverages the trailer's primary structural components to fully realize the WLL. Proper welding considerations include appropriate processes (MIG, TIG, SMAW), compatible filler metals, adequate penetration, and adherence to American Welding Society (AWS) standards. Post-weld inspection confirms weld quality and strength. This thoughtful integration of a recessed design with secure welded installation provides a durable, reliable, and unobtrusive cargo securement solution, superior in both functionality and safety.
Safety, Compliance, and Best Practices in Cargo Securement
The deployment of the Buyers Products Trailer Bed Chain Tie Down is an integral part of a comprehensive cargo securement strategy, prioritizing safety and compliance. In North America, cargo securement practices are primarily governed by FMCSA Part 393, Subpart I, and the harmonized North American Cargo Securement Standard. These regulations specify minimum WLLs and required tie-down counts based on cargo specifics. This tie-down's 6,600 lb WLL significantly helps meet these stringent requirements for heavy loads. Operators must ensure the aggregate WLL of all tie-downs used equals at least 50% of the cargo's weight. Each tie-down must be properly tensioned and positioned to prevent movement in all directions. Regular pre-trip and en-route inspections are crucial to check for damage, wear, or improper securement, including loose chains, damaged links, corroded components, or compromised welds. En-route inspections (first 50 miles and periodically thereafter) are essential to re-tension chains and verify cargo stability. Non-compliance results in severe penalties, fines, and increased liability, also posing significant public safety risks. The robust construction and high WLL of this tie-down, combined with conscientious securement practices, provide a formidable defense against cargo shifts. Operators are advised to undergo proper training in cargo securement techniques and stay updated on regulatory changes for continuous compliance and maximum safety.
The Buyers Products Advantage: Engineering Excellence for Demanding Applications
Buyers Products is renowned for quality, innovation, and reliability in the truck and trailer industry. This Trailer Bed Chain Tie Down exemplifies the company's commitment to engineering excellence and deep understanding of commercial operators' rigorous demands. Every design aspect—from high-strength carbon steel and Grade 70 chain to the durable powder-coat finish and recessed form factor—is meticulously selected and integrated for optimal performance and longevity. Buyers Products’ extensive experience in manufacturing solutions ensures products are practical, field-tested components built to withstand the harshest operating conditions. Investing in Buyers Products equipment means peace of mind, knowing components are designed to meet or exceed industry standards. The emphasis on durable materials and protective finishes translates into lower total cost of ownership through reduced maintenance and replacement frequencies. This commitment to quality directly enhances operational safety and efficiency. Choosing Buyers Products means opting for components that consistently perform, reinforcing their reputation as a leader in robust and reliable truck and trailer solutions.
Conclusion
The Buyers Products Trailer Bed Chain Tie Down is a critical safety component for the modern heavy-duty transport industry. Its robust 6,600 lb Working Load Limit, premium 3/8 inch Grade 70 yellow zinc plated chain, durable carbon steel construction, and resilient powder-coat finish collectively ensure exceptional strength and longevity. The innovative recessed design optimizes deck space and enhances safety by eliminating snag hazards, contributing to a professional trailer appearance. Expertly welded into the understructure of your flatbed or trailer bed, particularly with wooden floors, it provides an unyielding, flush-mounted anchor point that meets stringent cargo securement regulations. It offers an indispensable solution, providing the confidence needed to move valuable assets securely and efficiently.
