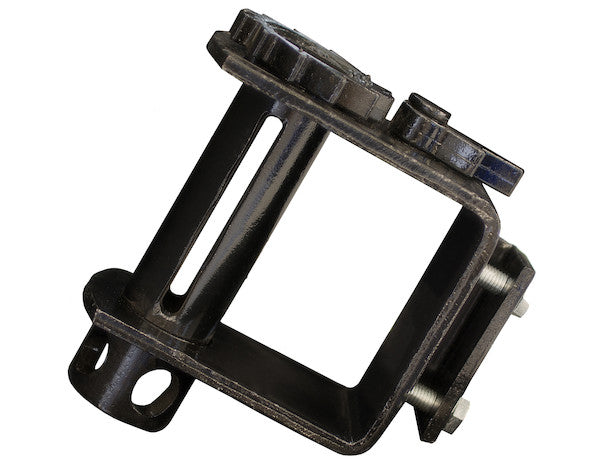

Buyers Products Bolt-On Trailer Winch allows flexible winch placement along a trailer's side channel. This portable design allows you to position your strap points wherever needed to optimally secure your load. The winch is made of durable steel with a corrosion resistant black powder-coated finish. The fully slotted mandrel makes it easy to thread the strap through. The winch is designed for use with 4 in. straps. It has a working load limit of 5500 lb. Strap sold separately.
Specifications
| For Use With Strap Width (in.) | 4.00 |
|---|---|
| Height | 7.25 |
| Internal Width | 4.63 |
| Mounting Style | Bolt-On |
| Spool Diameter | 1.87 |
| Strap Included (Y/N) | No |
| Strap Length | - |
| W.L.L. (lbs) | 5,500 |
Precision Engineered Load Securement: The 4 Inch Standard Bolt-On Trailer Winch
The Buyers Products 4 Inch Standard Bolt-On Trailer Winch represents a pinnacle of robust engineering and practical design, specifically developed to address the demanding cargo securement requirements of modern commercial transport. This device is not merely an accessory but a critical component within a comprehensive load securement system, facilitating the safe, efficient, and compliant transportation of diverse cargo types. Engineered for heavy-duty applications, its technical specifications and innovative features underscore a commitment to operational excellence and long-term reliability in challenging environments.Design and Construction: Uncompromising Durability and Finish Excellence
At the core of this trailer winch's superior performance is its meticulously selected material composition and advanced protective finish. Constructed from durable, high-strength steel, the winch body is designed to withstand the significant static and dynamic stresses inherent in securing heavy loads. The specific grade of steel employed, while generally proprietary, is chosen for its optimal balance of tensile strength, yield strength, and impact resistance, ensuring structural integrity under maximum rated loads and environmental exposure. This robust foundation is critical for resisting deformation and fatigue over extensive operational cycles, thereby guaranteeing the safety and longevity of the securement system.Complementing the inherent strength of the steel is a sophisticated black powder-coated finish. This advanced coating technology provides exceptional corrosion resistance, far exceeding conventional liquid paint applications. The powder coating process involves electrostatically applying a dry powder to the steel substrate, which is then cured under heat to form a hard, uniform skin. This creates a highly durable barrier against environmental aggressors such as moisture, road salts, chemicals, and UV radiation, which are prevalent in outdoor trucking operations. The black finish not only offers a professional aesthetic but also contributes to the material's extended service life by preventing rust and material degradation, thereby reducing maintenance requirements and ensuring consistent performance in varying climates and operating conditions.
Mounting System: Strategic Flexibility and Secure Integration
A defining characteristic of the Buyers Products winch is its "Bolt-On" mounting style. This design affords unparalleled flexibility in winch placement along the trailer's side channel, a significant advantage over fixed weld-on alternatives. The bolt-on mechanism allows for dynamic repositioning of the winch, enabling operators to customize strap points precisely where needed for optimal load securement. This adaptability is paramount for trailers that haul a diverse range of cargo, where the ideal tie-down points may vary significantly with each load's dimensions, weight distribution, and shape. By providing the ability to strategically adjust the securement geometry, the bolt-on winch enhances cargo stability, minimizes the risk of shifting, and maximizes compliance with rigorous securement regulations.The flexible placement along a trailer's side channel is facilitated by universal mounting provisions designed to integrate seamlessly with standard trailer rub rails, C-channels, or I-beam structures. This non-permanent attachment method avoids any heat-affected zones or structural weakening that can occur with welding, preserving the trailer's original structural integrity and finish. Furthermore, the portability of this design simplifies replacement or relocation should operational needs evolve, offering a practical and cost-effective solution for fleet managers seeking versatile and future-proof securement equipment. The ability to precisely position strap points is not merely a convenience; it is a critical engineering feature that ensures load forces are distributed evenly, minimizing localized stress concentrations on the cargo and the trailer structure, and ultimately enhancing overall transport safety.
Operational Mechanics: Engineered for Efficiency and Reliability
The operational efficiency of the 4 Inch Standard Bolt-On Trailer Winch is significantly enhanced by its fully slotted mandrel. This design feature is critical for quick and effortless threading of the cargo strap. The slot allows for simple insertion of the strap end, eliminating the fumbling and difficulty often associated with older, less ergonomic designs. This streamlines the load securement process, reducing the time required for setup and increasing overall operational efficiency, which is a key factor in the fast-paced logistics industry. Once threaded, the strap wraps securely around the 1.87-inch spool diameter mandrel, which is engineered to provide an optimal winding radius. This specific diameter contributes to even strap tensioning, reduces stress on the strap material, and minimizes the potential for crimping or damage during winding and unwinding operations, thereby extending the lifespan of both the strap and the winch.Designed specifically for use with 4-inch wide straps, this winch caters to industry standards for heavy-duty cargo securement. The 4-inch width is preferred for its superior load distribution capabilities, spreading the securement force over a larger surface area of the cargo, thus reducing the risk of damage to sensitive goods. These straps, typically made from high-tenacity polyester, offer excellent resistance to abrasion, weather, and stretching, providing dependable performance in diverse operational conditions. The internal width of the winch, measured at 4.63 inches, is precisely engineered to accommodate a 4-inch strap with sufficient clearance. This clearance is crucial; it prevents the strap from binding, bunching, or rubbing against the winch frame, which could otherwise lead to premature wear or operational failure. The generous internal width ensures smooth winding and unwinding, facilitating consistent tensioning and release, even under heavy loads or when the strap may have slight variations in thickness or minor fraying over time. This meticulous design consideration underscores the winch's commitment to long-term reliability and user-friendly operation.
Performance Specifications and Adherence to Safety Standards
The performance cornerstone of the 4 Inch Standard Bolt-On Trailer Winch is its Working Load Limit (WLL) of 5500 lbs. The WLL is a critical safety specification, representing the maximum force or load that the winch is designed to safely handle under normal operating conditions. It is important to distinguish WLL from the ultimate breaking strength; WLL is typically calculated with a substantial safety factor (e.g., 3:1 or 4:1) applied to the minimum breaking strength of the component, ensuring a wide margin of safety against failure. For a 5500 lb WLL, this winch is capable of securing substantial loads such as heavy machinery, construction materials, industrial components, and large vehicles, aligning with the stringent requirements of the Federal Motor Carrier Safety Administration (FMCSA) and other regulatory bodies regarding cargo securement. Compliance with FMCSA regulations, particularly Part 393, Subpart I – "Protection Against Shifting and Falling Cargo," is paramount for commercial vehicle operators. This winch, when used correctly with appropriately rated straps and securement chains, forms an integral part of a compliant and safe cargo securement system, mitigating the risks of shifting loads during transit, which can lead to accidents, property damage, and severe penalties.Further technical dimensions contribute to the winch's robust design and operational suitability. The overall height of 7.25 inches ensures sufficient leverage for tensioning and provides adequate clearance within common trailer configurations, without obstructing other components or exceeding dimensional limits. The spool diameter of 1.87 inches directly influences the mechanical advantage and the wrap integrity of the strap. A well-proportioned spool diameter helps to prevent tight radius bends that can weaken the strap fibers over time, contributing to its longevity and maintaining its WLL. The internal width of 4.63 inches, as previously mentioned, guarantees that the 4-inch strap moves freely without friction or binding, preserving both the strap and the winch from premature wear. These precise specifications are not arbitrary; they are the result of engineering calculations aimed at maximizing the winch's performance, durability, and safety under real-world operating conditions, making it an indispensable tool for professional haulers who prioritize reliability and regulatory adherence.
Applications and Broad Industry Relevance
The 4 Inch Standard Bolt-On Trailer Winch is an exceptionally versatile securement device, finding indispensable utility across a broad spectrum of industries and cargo types. Its robust construction and high WLL of 5500 lbs make it particularly suited for heavy-duty transport applications. In the **logistics and freight forwarding** sectors, these winches are critical for flatbed, step-deck, and drop-deck trailers, enabling the secure transport of diverse cargo from palletized goods to oversized equipment. For the **construction industry**, the winch is essential for securing heavy machinery such as excavators, bulldozers, and loaders, as well as construction materials like lumber, steel beams, pipes, and pre-fabricated components. The ability to precisely position securement points is invaluable when dealing with irregularly shaped or sensitive construction loads.Within the **agricultural sector**, this winch facilitates the safe transport of farming equipment, implements, and bulk produce containers, ensuring stability over varied terrain and distances. The **manufacturing and industrial sectors** rely on these winches for moving heavy raw materials, finished products, and complex assemblies between facilities or to distribution points. Even in **specialized hauling** scenarios, such as vehicle transport or the movement of unique prototypes, the flexibility of the bolt-on design allows for custom securement strategies that are adaptable to non-standard loads. This adaptability, combined with its robust performance specifications, underscores the winch's role as a cornerstone component in maintaining cargo integrity and operational safety across virtually any commercial transport operation requiring steadfast load securement on trailer side channels.
Maintenance, Longevity, and Critical Operator Considerations
Ensuring the long-term reliability and safety of the 4 Inch Standard Bolt-On Trailer Winch necessitates a regimented approach to maintenance and adherence to best operational practices. Regular inspection is paramount: before each trip, operators should visually inspect the winch for any signs of physical damage, such as deformation, cracks, excessive wear, or corrosion. The integrity of the powder-coated finish should be checked for breaches that could expose the underlying steel to corrosive elements. The internal mechanism should be free of debris, and the bolt-on connections must be checked for tightness to prevent loosening during transit, which could compromise securement efficacy. Any visible wear on the mandrel or any part of the frame warrants immediate attention, and replacement if necessary, to prevent catastrophic failure.To extend the service life of the winch, it is advisable to keep it clean, especially after exposure to harsh elements like road salt or industrial contaminants. While the powder coating offers significant protection, periodic cleaning and reapplication of appropriate protective coatings can further enhance its longevity. Operators must be rigorously trained in the correct use of the winch, understanding not only how to thread and tension a strap but also the principles of load distribution, angles of securement, and the importance of never exceeding the 5500 lb WLL. Overloading or improper tensioning practices can lead to premature wear of the winch, damage to the cargo strap, or, critically, a failure of the securement system during transit. The effectiveness of any securement device is intrinsically linked to the competence and diligence of the operator. Therefore, continuous education on FMCSA regulations and industry best practices for cargo securement is essential to harness the full safety potential and durability of this precision-engineered trailer winch.
Conclusion: The Cornerstone of Secure Transport
The Buyers Products 4 Inch Standard Bolt-On Trailer Winch stands as an exemplary solution for demanding cargo securement applications. Its fusion of durable steel construction, advanced corrosion-resistant powder coating, flexible bolt-on mounting, and user-friendly operational mechanics culminates in a product that not only meets but exceeds the rigorous demands of professional transport. With a robust 5500 lb Working Load Limit and compatibility with standard 4-inch straps, it offers an indispensable tool for safely and efficiently securing a wide array of cargo. This winch represents a strategic investment in operational efficiency, regulatory compliance, and, most importantly, the safety of transported goods and personnel, cementing its status as a critical asset for any commercial fleet.
