2F12 - 3/4 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing - 2 Hole

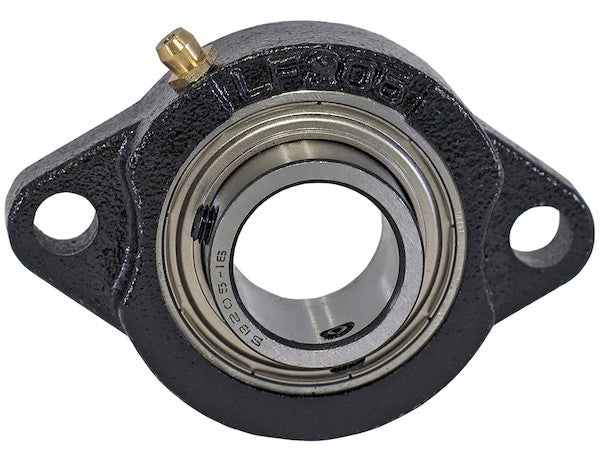

Buyers Products Eccentric Locking Collar Style Flange Bearings are equipped to handle high-speed applications without risking drive shaft slippage. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the flanges rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The standard 2 bolt mounting design makes installation easy even in tight places. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs. The flange bearing has a self-aligning design that allows for a small amount of shaft misalignment.

Specifications

The 3/4 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing - 2 Hole is a meticulously engineered power transmission component designed to deliver uncompromised performance and reliability in demanding industrial applications. This product represents a synthesis of robust material selection, precision manufacturing, and intelligent mechanical design, ensuring optimal operation for rotating shafts. Its fundamental purpose is to provide stable, low-friction rotational support for a drive shaft, maintaining precise alignment and preventing slippage even under strenuous operating conditions, including high speeds and dynamic loads.

At the core of this bearing's exceptional performance is its eccentric locking collar mechanism. Unlike traditional set screw locking methods, which rely on localized pressure points and can potentially damage the shaft or lead to fretting corrosion, the eccentric collar provides a concentric, 360-degree grip. The inner ring of the bearing features an eccentric bore, and a corresponding eccentric collar is designed to mate with it. During installation, as the collar is rotated relative to the inner ring, a camming action occurs, generating a powerful wedging effect that creates a concentric interference fit around the shaft. This uniform clamping force significantly enhances the shaft's security within the bearing, virtually eliminating the risk of slippage, even when subjected to substantial torsional forces, vibrations, or rapid changes in speed and direction. This superior locking method is particularly critical in applications where shaft integrity is paramount and where the consequences of slippage could range from equipment damage to operational downtime. The concentric grip also minimizes shaft deformation and localized stress concentrations, contributing to prolonged shaft life and reduced maintenance requirements.

The bearing insert itself is constructed from high-quality carbon steel, a material chosen for its exceptional mechanical properties pertinent to bearing applications. Carbon steel offers a formidable combination of high tensile strength, excellent wear resistance, and the capability to achieve significant hardness through heat treatment processes. This "driveline-grade" steel ensures that the rolling elements and raceways can withstand the continuous stress of rotational movement, cyclic loading, and the inevitable friction inherent in bearing operation. The metallurgical composition of carbon steel, with its precise carbon content, is optimized to provide the necessary toughness and fatigue resistance for extended service life in power transmission systems, which often operate in challenging industrial environments. This material choice directly translates into a bearing insert capable of sustaining heavy radial and axial loads, exhibiting superior resistance to abrasive wear, and maintaining dimensional stability under varying thermal conditions.

Complementing the robust bearing insert is the self-aligning design, a critical feature for practical industrial installations. The outer diameter of the bearing insert is spherically ground, designed to perfectly match a corresponding spherical bore within the cast iron housing. This ingenious design allows the inner ring, rolling elements, and outer ring assembly to pivot slightly within the housing, accommodating initial shaft misalignments that can arise from fabrication tolerances, mounting surface irregularities, or structural deflections during operation. The capacity to self-align up to a specified angular deviation (typically a few degrees) prevents the detrimental effects of edge loading on the rolling elements and raceways, which would otherwise lead to premature bearing failure, increased friction, and excessive heat generation. By distributing the load evenly across the rolling elements, the self-aligning feature significantly extends bearing life, reduces operational noise and vibration, and simplifies the installation process by allowing for minor deviations without compromising performance.

The housing of this flange bearing is precision-cast from durable cast iron. Cast iron is an ideal material for bearing housings due to its high compressive strength, excellent vibration dampening characteristics, and inherent rigidity. These properties are crucial for providing a stable and unyielding platform for the bearing insert, ensuring that the critical internal clearances and alignments are maintained under load. The mass and structural integrity of the cast iron housing also contribute to its ability to absorb and dissipate operational vibrations, leading to smoother and quieter machinery operation. Furthermore, cast iron exhibits good corrosion resistance in many industrial environments and offers an economical solution for creating complex shapes with high dimensional accuracy. The flange design, specifically a 2-hole configuration, provides a secure and straightforward mounting interface. The bolt holes are strategically placed with a center-to-center distance of 3.531 inches, designed to accommodate standard industrial mounting patterns using 0.375-inch bolts, making installation efficient and reliable even in spaces with limited access. The overall dimensions (Overall Depth: 1.78 inches, Overall Height: 2.38 inches, Overall Width: 4.41 inches) are optimized for a compact footprint while ensuring sufficient material strength for structural integrity.

Maintenance considerations have been integrated into the design to ensure prolonged operational efficiency. The inclusion of a grease fitting, or zerk fitting, facilitates easy and effective re-lubrication of the bearing. Regular lubrication is paramount for the longevity and performance of any rolling element bearing. Grease serves multiple vital functions: it reduces friction between the rolling elements and raceways, thereby minimizing wear and heat generation; it forms a protective film that prevents direct metal-to-metal contact; and it acts as a sealant, preventing the ingress of contaminants such as dust, moisture, and abrasive particles into the critical internal components of the bearing. Periodic re-greasing through the readily accessible fitting ensures that the lubricant film is maintained, extending the bearing's service life, reducing energy consumption, and preventing unexpected failures that could lead to costly downtime. The greasable design signifies a commitment to user-friendly maintenance and optimal total cost of ownership.

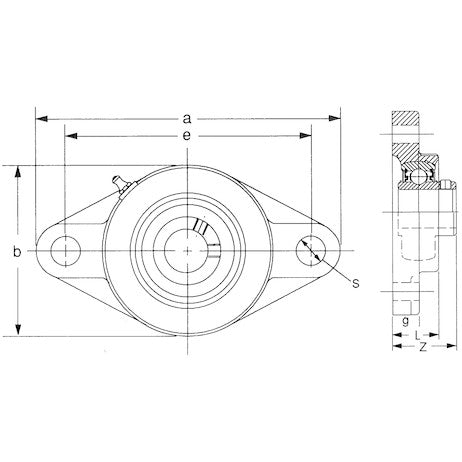

The technical specifications detail the precise engineering of this component. The bore diameter of 0.750 inches (3/4 inch) is a standard dimension, ensuring compatibility with a wide range of industrial shafts. The bolt hole diameter of 0.406 inches (S diagram) is precisely sized for robust fastening. The various diagrammatic dimensions such as Bi (1.712), G (0.44), I (0.75), K (1.250), and L (1.16) provide comprehensive geometric information for engineers and designers to accurately integrate this flange bearing into their machinery designs, ensuring proper fitment and performance predictability. These dimensions attest to the precision manufacturing standards applied to this product, guaranteeing interchangeability and consistent quality across units.

This flange bearing is ideally suited for a diverse array of power transmission applications where dependable shaft support, high-speed capability, and resistance to slippage are critical. Common applications include conveyor systems in material handling, where continuous operation at varying speeds is typical; agricultural machinery, which often operates in dusty environments and encounters shock loads; packaging equipment requiring precise and reliable motion; textile machinery demanding high RPM stability; and various light to medium industrial machines, fans, and pumps where effective power transfer is essential. Its robust construction and reliable locking mechanism make it particularly valuable in situations where traditional set-screw collars might fail or cause shaft damage, or where the slightest shaft movement could lead to operational inefficiencies or safety hazards. The combination of its eccentric locking collar, self-aligning capability, and rugged cast iron housing makes it an indispensable component for maintaining the integrity and efficiency of rotary systems.

In summary, the 3/4 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing - 2 Hole is a high-performance, precision-engineered component designed to meet the rigorous demands of industrial power transmission. Its eccentric locking mechanism provides a superior, concentric grip, ensuring no shaft slippage even under high RPMs and dynamic loads. The driveline-grade carbon steel bearing insert, coupled with a self-aligning feature, guarantees durability, accommodates minor misalignments, and extends operational life. Housed within a robust cast iron flange, this bearing offers exceptional stability and vibration dampening. With its standard 2-bolt mounting pattern and integrated grease fitting, it provides ease of installation and simplifies routine maintenance, leading to reduced downtime and a lower total cost of ownership. This bearing stands as a testament to advanced mechanical engineering, offering a reliable, efficient, and long-lasting solution for critical rotary support applications across numerous industries. Its meticulous design and material selection ensure that it will consistently deliver superior performance and contribute significantly to the overall reliability and efficiency of the machinery it supports.
