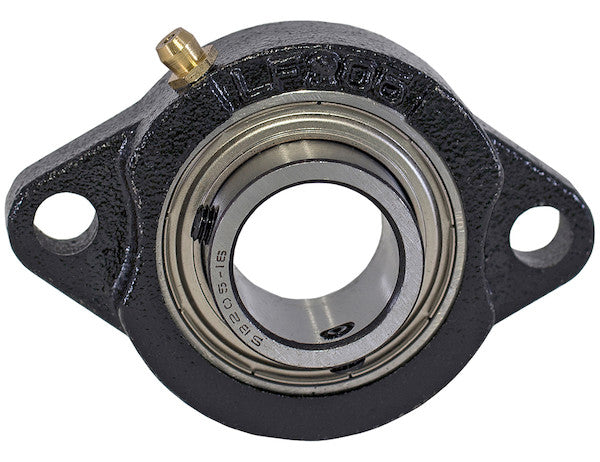

2F16 - 1 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing - 2 Hole

Buyers Products Eccentric Locking Collar Style Flange Bearings are equipped to handle high-speed applications without risking drive shaft slippage. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the flanges rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The standard 2 bolt mounting design makes installation easy even in tight places. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs. The flange bearing has a self-aligning design that allows for a small amount of shaft misalignment.

Specifications

The 1 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing - 2 Hole is a meticulously engineered component designed to meet the rigorous demands of industrial power transmission applications. This product represents a confluence of robust material selection, precision manufacturing, and innovative design, specifically tailored for environments where shaft stability and operational reliability are paramount. Its fundamental purpose is to provide steadfast rotational support for a 1-inch diameter shaft, ensuring consistent power transfer even under challenging operational parameters, including high speeds and intermittent shock loads.

Advanced Locking Mechanism: The Eccentric Collar Advantage

Central to the superior performance of this flange bearing is its eccentric locking collar mechanism. Unlike conventional set screw locking methods, which rely on localized pressure points that can lead to shaft damage or slippage under torsional stress, the eccentric collar employs a more sophisticated principle. The collar features an eccentric bore that, when rotated relative to the inner ring of the bearing, creates a camming action. This action effectively wedges the inner ring against the shaft circumference, generating a secure 360-degree concentric grip. This circumferential clamping force ensures a vastly improved frictional bond between the shaft and the bearing, thereby eliminating the risk of slippage even during rapid acceleration, deceleration, or exposure to significant vibration and dynamic loads.

The benefits of this robust locking system are multifaceted. Firstly, it substantially reduces the potential for fretting corrosion, a common issue with set screw designs where micro-movements between the shaft and bearing bore lead to material degradation and premature failure. By establishing a firm, uniform grip, the eccentric collar minimizes relative motion. Secondly, its inherent resistance to loosening under dynamic conditions makes it ideal for high-speed applications where centrifugal forces and vibrational harmonics could compromise less secure locking mechanisms. The installation process for an eccentric collar is also streamlined; after positioning the bearing, a simple tap on the collar in the direction of shaft rotation, followed by tightening a set screw, achieves the desired lock, simplifying maintenance and installation procedures without requiring specialized tools or highly skilled personnel for routine tasks.

Optimized for 1-Inch Shaft Systems

The 1.000-inch bore diameter of this flange bearing aligns with one of the most widely utilized shaft dimensions in industrial machinery. This standardization ensures broad compatibility across a vast array of equipment, simplifying replacement and design integration. The precision of the bore diameter is critical for achieving the specified fit with the shaft, which, in conjunction with the eccentric locking collar, guarantees optimal concentricity and minimizes run-out. The selection of a 1-inch shaft typically indicates applications requiring a balance of torque transmission capacity and rotational speed, where compact yet robust bearing support is essential. The design parameters of this bearing, including its load ratings and speed capabilities, are specifically engineered to complement the performance envelopes characteristic of machinery utilizing 1-inch diameter drive shafts.

Structural Integrity: Cast Iron Housing and 2-Hole Flange Configuration

The bearing insert is housed within a rugged cast iron flange, a material choice driven by its exceptional mechanical properties suitable for demanding industrial environments. Cast iron, particularly gray cast iron, is renowned for its high compressive strength, excellent vibration damping characteristics, and good machinability. The inherent microstructure of cast iron, with its graphite flakes, provides superior dampening capabilities, which effectively absorb and dissipate operational vibrations, thus contributing to quieter running and extended component life for both the bearing and the surrounding machinery. This robust housing material ensures the bearing can withstand significant static and dynamic loads without deformation or structural fatigue.

The flange housing is designed with a 2-hole bolt pattern, a common and highly practical mounting configuration. This design, with a Bolt Hole Center to Center dimension of 3.891 inches, facilitates straightforward and secure attachment to machine frames or structural components. The relatively compact nature of a 2-hole flange, combined with its robust mounting capability, makes it suitable for applications where space is at a premium (Overall Depth: 1.84 inches, Overall Height: 2.75 inches, Overall Width: 4.88 inches). The bolt holes themselves have a diameter (S) of 0.500 inches, accommodating bolts with a nominal diameter (Bolt Size) of 0.375 inches, ensuring a secure fastening when torqued correctly. The design ensures that the load is adequately distributed across the mounting surface, providing stable support for the rotating shaft assembly. The specific dimensional parameters, such as Bi (1.744 inches), G (0.53 inches), I (0.78 inches), K (1.500 inches), and L (1.22 inches), are crucial for engineers designing compatible mounting structures and for technicians during installation, ensuring precise fitment and optimal performance.

Bearing Insert: Carbon Steel and Self-Aligning Design

The core of this flange bearing features an insert crafted from high-grade carbon steel. Carbon steel is a preferred material for bearing components due to its excellent balance of hardness, wear resistance, and fatigue strength after appropriate heat treatment. The specific composition and heat treatment processes applied to the carbon steel rollers and races enhance its surface hardness, enabling it to withstand the continuous rolling contact stresses and abrasive wear inherent in bearing operation, while maintaining a tough, ductile core to resist shock loads and prevent brittle fracture. This material choice ensures a long service life and consistent performance under various load conditions, providing a cost-effective yet high-performance solution for general industrial applications. The compatibility of carbon steel with standard lubricating greases further contributes to its maintainability and operational efficiency.

Furthermore, the bearing insert incorporates a self-aligning design. This critical feature allows the bearing to compensate for both initial static misalignment and dynamic angular misalignments that may occur during operation due to shaft deflection, housing deformation, or imprecise mounting. The outer ring of the bearing insert is spherically ground, fitting into a corresponding spherical seat within the cast iron housing. This spherical geometry permits the inner ring and rolling elements to pivot slightly, maintaining optimal contact with the shaft despite minor angular deviations. The ability to self-align prevents the imposition of excessive edge stresses on the rolling elements, which would otherwise lead to premature fatigue and reduced bearing life. By accommodating these misalignments, the self-aligning feature significantly extends the operational lifespan of the bearing and reduces the stress transferred to the shaft and other connected components, thereby enhancing overall system reliability and efficiency. This design is particularly advantageous in applications where achieving perfect shaft alignment is challenging or where slight structural shifts are anticipated.

Performance Metrics and Operational Versatility

This eccentric locking collar style flange bearing is engineered for high-speed applications, distinguishing it from general-purpose bearings. The robust locking mechanism, combined with the precision-manufactured carbon steel bearing insert, ensures that the shaft remains securely fixed, preventing slippage that could otherwise generate heat, wear, and compromise the integrity of power transmission at elevated RPMs. The self-aligning characteristic further enhances its high-speed performance by reducing internal stresses that can arise from dynamic shaft movements, thereby contributing to lower operating temperatures and reduced frictional losses.

The design also considers load-carrying capacity. While specific ratings depend on the application and operating conditions, the combination of a hardened carbon steel insert and a rigid cast iron housing provides substantial radial and axial load support. The overall dimensions (Overall Depth 1.84", Overall Height 2.75", Overall Width 4.88") reflect a compact yet robust assembly capable of managing significant forces. The bearing's ability to maintain smooth operation under these loads is critical for minimizing vibration and noise, contributing to a more stable and efficient mechanical system. The robust construction and material selection contribute directly to the bearing's exceptional durability and extended L10 life, providing a reliable solution that minimizes downtime and maintenance costs over its operational lifespan.

Maintenance and Installation Protocol

Ease of maintenance is a key design consideration, highlighted by the inclusion of a grease fitting. This feature simplifies the essential task of relubrication, which is paramount for achieving the bearing's full service life and maintaining optimal performance. The grease fitting allows for the controlled injection of fresh lubricant, ensuring that the rolling elements and raceways are continuously protected from friction, wear, and corrosion. Proper lubrication reduces operating temperatures, extends the life of the bearing components, and maintains the smooth, quiet operation of the shaft. Regular greasing intervals, determined by application specifics such as speed, load, and environmental factors, are easily accommodated through this accessible fitting, simplifying preventive maintenance routines.

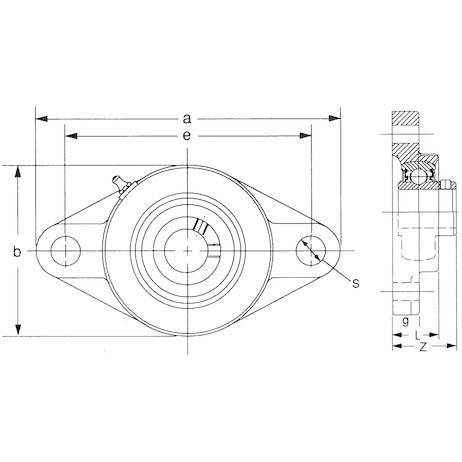

Installation of this 2-hole flange bearing is designed for efficiency. The standard bolt pattern with a Bolt Hole Center to Center distance of 3.891 inches, designed for 0.375-inch bolts, allows for quick and secure mounting to pre-drilled surfaces. The precise dimensions provided, including the Bi, G, I, K, and L measurements, are vital for ensuring accurate physical integration into machine designs. Once the housing is securely bolted, the shaft is inserted into the bearing bore. The eccentric collar is then rotated in the direction of shaft rotation until it firmly grips the shaft, a process typically completed with a light tap, followed by tightening a small set screw on the collar to prevent reverse rotation and ensure the lock remains engaged. This straightforward installation process reduces labor time and complexity, making the bearing an attractive option for both new equipment builds and field replacements, even in confined or challenging installation environments.

Applications and Industry Relevance

The technical specifications and robust design of the 1 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing make it an ideal choice across a wide spectrum of industrial applications. Its ability to handle high speeds and secure shafts against slippage makes it particularly well-suited for conveyor systems, where continuous motion and varying loads are common. Other prominent applications include agricultural machinery, such as cultivators, harvesters, and irrigation equipment, where ruggedness, resistance to environmental contaminants, and self-alignment capabilities are highly valued. Furthermore, it finds extensive use in material handling equipment, industrial fans, textile machinery, packaging lines, and various general power transmission units where reliable rotary support for a 1-inch shaft is crucial. The combination of its secure locking mechanism, self-aligning feature, and durable construction ensures dependable performance in critical operational roles, underscoring its versatility and essential utility in modern industrial contexts.

Commitment to Quality and Performance

This flange bearing is a testament to rigorous engineering and quality manufacturing standards. Every aspect, from the selection of carbon steel for the bearing insert and cast iron for the housing to the precise machining of the eccentric locking collar and the self-aligning outer race, is executed to deliver a product that exceeds industry expectations for performance and longevity. The specified dimensions and material properties are critical data points for engineers and designers, ensuring that the bearing can be seamlessly integrated into new systems or utilized as a direct, high-performance replacement component. By providing superior shaft retention, accommodating misalignment, and simplifying maintenance, this bearing offers a comprehensive solution for demanding rotational support requirements, reinforcing operational efficiency and minimizing total cost of ownership.
