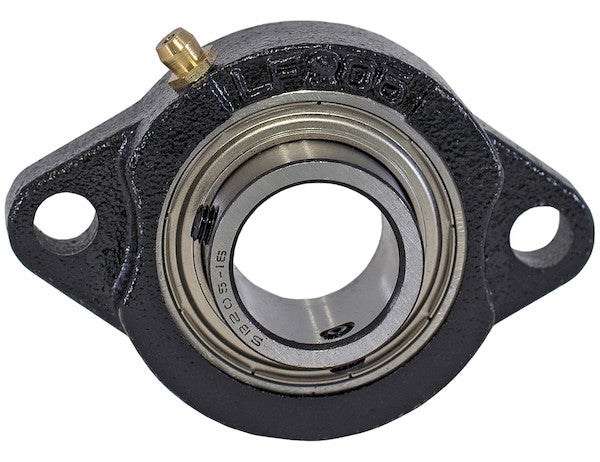

Buyers Products 2 Bolt Flange Bearing is perfect for spreaders, wreckers, and similar applications. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the pillow blocks rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The simple 2 hole mounting design makes installation easy even in tight places. Its set screw design ensures that shaft slippage is avoided.
Specifications
| Bearing Insert Material | Carbon Steel |
|---|---|
| Bearing Insert Type | Self Aligning |
| Bolt Hole Center to Center | 3.000 |
| Bolt Pattern | 2 Hole |
| Bolt Size | 0.375 |
| Bore Diameter | 1.000 |
| Greasable (y/n) | Yes |
| Housing Material | Cast Iron |
| Locking Type | Set Screw |
| Overall Height | 2.63 |
| Overall Width | 3.75 |
| S (diagram/Bolt Hole Diameter) | 0.390 |
The Buyers Products 2-Bolt Flange Bearing: An Engineering Deep Dive into Durability and Performance for Heavy-Duty Applications
The Buyers Products 2-Bolt Flange Bearing represents a critical component in the reliable operation of heavy-duty machinery, particularly within power transmission systems found in demanding applications such as spreaders, wreckers, and various jackshaft assemblies. Engineered for robustness and longevity, this bearing unit integrates advanced material science with practical design considerations to deliver unparalleled performance in environments characterized by high loads, vibration, and exposure to corrosive elements.
Core Design Philosophy: Resilience Through Material Selection
At the heart of this flange bearing's superior performance lies its meticulously chosen materials. The bearing insert, the primary element facilitating rotational movement, is crafted from Driveline-Grade Carbon Steel. Carbon steel is renowned for its excellent balance of hardness, strength, and machinability, making it an ideal choice for bearing applications where consistent performance under significant stress is paramount. The term "driveline-grade" signifies that the steel has been specifically selected and processed to meet the stringent requirements of power transmission systems, which often involve transmitting substantial torque and handling radial and axial loads that can fluctuate rapidly. This specialized steel offers enhanced wear resistance, fatigue strength, and the capability to maintain its structural integrity over prolonged operational cycles, even in high-RPM scenarios common in many driveline setups.
Complementing the robust bearing insert is a housing constructed from Cast Iron. Cast iron is an exemplary material for bearing housings due to its intrinsic properties. It possesses a high compressive strength, superior vibration damping capabilities, and excellent dimensional stability. In harsh operational environments, the cast iron housing provides a rigid, protective enclosure for the bearing insert, shielding it from external impacts, debris ingress, and environmental contaminants. Its inherent mass contributes to the damping of dynamic loads and vibrations, thereby reducing noise, minimizing wear on the bearing insert, and extending the overall lifespan of the assembly. The ruggedness imparted by the cast iron housing ensures that the pillow block can withstand the severe mechanical stresses and potential abuse often encountered in applications like spreaders and wreckers, where accidental impacts or rough handling are not uncommon.
Advanced Bearing Mechanics: Self-Aligning Capability and Reduced Stress
A key technical feature differentiating this product is its Self-Aligning Bearing Insert Type. In real-world applications, perfect alignment between a shaft and its bearing supports is exceedingly difficult to achieve and maintain. Manufacturing tolerances, structural deflections under load, thermal expansion, and mounting inaccuracies can all contribute to shaft misalignment. A conventional rigid bearing, when subjected to misalignment, will experience localized stress concentrations, leading to premature wear, increased friction, higher operating temperatures, and ultimately, catastrophic failure. The self-aligning design ingeniously compensates for these misalignments. The spherical outer surface of the bearing insert allows it to pivot slightly within the housing, accommodating angular deviations of the shaft up to a certain degree. This ability to adjust dynamically ensures that the load is distributed evenly across the rolling elements, preventing edge loading and localized stress. The benefits are profound: significantly extended bearing life, reduced operational noise, lower power consumption due to decreased friction, and enhanced reliability of the entire rotating system. For jackshafts and drivelines that may experience structural flex or imprecise mounting, the self-aligning feature is invaluable for ensuring long-term operational integrity.
Secure Shaft Retention: The Set Screw Locking Mechanism
The integrity of any power transmission system hinges on the secure attachment of rotating components to their respective shafts. The Buyers Products Flange Bearing employs a Set Screw Locking Type to ensure precise and unwavering shaft retention. This mechanism involves a set screw, typically located on the inner ring of the bearing, which is tightened directly against the shaft. The pointed or cup-shaped tip of the set screw creates a localized indentation on the shaft surface, creating a positive lock that effectively prevents relative motion between the shaft and the bearing's inner ring. This positive engagement is crucial for transmitting torque efficiently and preventing shaft slippage, which can lead to excessive wear, fretting corrosion, loss of power, and potential safety hazards. The set screw design offers several practical advantages: it is relatively simple to install and adjust, provides a firm grip, and can be easily accessed for maintenance or shaft replacement. Its reliability in maintaining concentricity and preventing unwanted rotational or axial movement makes it an excellent choice for applications where stable power transmission is paramount, such as driving spreader mechanisms or operating PTOs on wrecker vehicles.
Engineered for Ease of Maintenance: The Greasable Feature
Proper lubrication is the lifeblood of any bearing, critical for minimizing friction, dissipating heat, and flushing out contaminants. Recognizing the importance of proactive maintenance in demanding industrial and mobile applications, this flange bearing is designed to be fully Greasable (Yes). It incorporates a readily accessible grease fitting, typically a Zerk fitting, which allows for convenient periodic replenishment of lubricant. This feature empowers maintenance personnel to inject fresh grease directly into the bearing, ensuring that the rolling elements and raceways remain adequately lubricated. Regular greasing not only reduces wear and tear, thereby extending the bearing's service life, but also helps to create a protective barrier against moisture, dust, and other environmental aggressors. In corrosive environments, such as those encountered by salt spreaders, fresh grease can help to displace existing moisture and contaminants, preventing rust and preserving operational smoothness. The ease of maintenance afforded by the greasable design significantly contributes to reducing downtime, lowering long-term operational costs, and maintaining peak performance throughout the bearing's extensive service life.
Streamlined Installation and Mounting Versatility: The 2-Bolt Flange Design
Efficiency in installation and adaptability to various mounting configurations are crucial considerations in equipment design and maintenance. This Buyers Products bearing features a straightforward 2 Hole Bolt Pattern. The simple 2-bolt flange design simplifies the mounting process, requiring fewer fasteners and often less precise alignment compared to multi-bolt or more complex mounting styles. The Bolt Hole Center to Center dimension of 3.000 inches and a Bolt Size of 0.375 inches (with a Bolt Hole Diameter S of 0.390 inches) provide standardized dimensions for easy integration into existing designs or new fabrications. The compact nature of the 2-hole flange, combined with its optimized Overall Height of 2.63 inches and Overall Width of 3.75 inches, makes it particularly suitable for installation in tight or confined spaces where larger, more elaborate bearing units might not fit. This ease of installation translates directly into reduced labor time and costs during initial assembly or subsequent replacement, making it a highly practical choice for fleet operators and equipment manufacturers alike. The robust mounting interface ensures that the bearing remains securely fixed, even under significant dynamic loads and vibrations.
Applications: Where Robustness Meets Reliability
The "Speader And Jackshaft 2 Bolt Flange Bearing" title succinctly defines its primary areas of application. Its design characteristics are perfectly aligned with the rigorous demands of:
- Spreaders: Whether agricultural spreaders distributing fertilizers and seeds, or municipal salt/sand spreaders combating icy conditions, these machines operate in extremely challenging environments. They are exposed to corrosive materials, abrasive particles, wide temperature fluctuations, and often significant impact loads. The bearing's cast iron housing provides excellent corrosion resistance and protection against material ingress, while the carbon steel insert ensures durable rotation. The greasable design allows for easy flushing of contaminants, essential for maintaining functionality in such applications. The robust construction ensures uninterrupted operation during critical tasks.
- Jackshafts: Jackshafts are intermediate shafts used in power transmission systems to transfer torque and rotation between other shafts, often involving changes in speed or direction. They are integral to driveline mechanisms in various industrial and mobile equipment. The self-aligning feature of this bearing is particularly beneficial for jackshafts, as they can be subject to dynamic deflections and potential misalignments from connected components. The set screw locking mechanism ensures that the jackshaft remains securely coupled, preventing slippage that could compromise power transfer efficiency and system integrity. Its driveline-grade materials are specifically chosen to handle the continuous loads and stresses inherent in these roles.
- Wreckers and Tow Trucks: These vehicles operate under immense intermittent loads, experiencing significant shock and vibration as they hoist, tow, and recover heavy objects. The bearing's rugged cast iron housing and strong carbon steel insert are built to withstand these punishing conditions. Its critical role can be found in various auxiliary systems, such as PTO-driven winches, booms, or hydraulic pump drives, where secure shaft support is vital for safe and effective operation. The ease of maintenance and overall durability contribute significantly to the operational readiness and safety of these essential service vehicles.
- Similar Heavy-Duty Mobile and Industrial Equipment: Beyond these specific examples, the bearing's attributes make it suitable for a wide array of other demanding applications. This includes machinery in construction (e.g., small conveyors, auxiliary drives on excavators), mining (e.g., aggregate processing equipment), material handling (e.g., specialized conveyors, agitators), and general industrial environments where robust shaft support is required. Any application involving rotating shafts under substantial loads, where environmental factors like dust, moisture, or vibration are present, stands to benefit from the engineering integrity of this 2-bolt flange bearing.
Technical Specifications and Their Implications
Understanding the detailed specifications provided is key to proper application and integration:
- Bore Diameter: 1.000 inches: This critical dimension dictates the diameter of the shaft that the bearing is designed to support. A precise fit ensures optimal performance, preventing both excessive clearance (which leads to vibration and wear) and insufficient clearance (which causes installation difficulties and binding).
- Overall Height: 2.63 inches / Overall Width: 3.75 inches: These dimensions define the physical envelope of the bearing unit, crucial for designers and installers to ensure adequate clearance within the machine's structure, especially in space-constrained applications.
- Bolt Hole Center to Center: 3.000 inches / Bolt Size: 0.375 inches / S (diagram/Bolt Hole Diameter): 0.390 inches: These measurements are essential for mounting compatibility. The center-to-center distance ensures that the bolt holes align with the mounting surface, while the bolt size and hole diameter ensure proper fastener selection and fit, guaranteeing a secure and rigid attachment.
Conclusion: A Commitment to Reliability and Performance
The Buyers Products 2-Bolt Flange Bearing is not merely a component; it is a meticulously engineered solution designed to confront and overcome the operational challenges inherent in heavy-duty applications. Its strategic combination of a driveline-grade carbon steel insert, a rugged cast iron housing, self-aligning capabilities, a secure set screw locking mechanism, and a user-friendly greasable design culminates in a product that offers exceptional durability, reliability, and ease of maintenance. For professionals in industries ranging from fleet management to heavy equipment manufacturing, selecting this flange bearing means investing in reduced downtime, prolonged operational life, enhanced safety, and ultimately, a superior return on investment. It stands as a testament to engineering excellence, providing unwavering support for the crucial rotating elements that drive the world's most demanding machinery.
