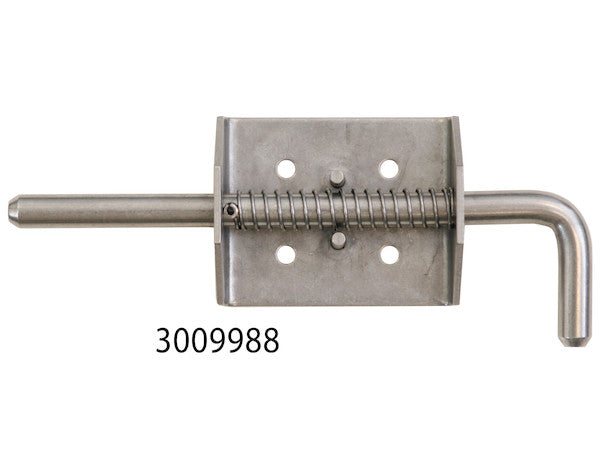

3009988 - 1/2 Inch Stainless Steel Spring Latch Assembly - 2.75 x 8.38 Inch Long

Buyers Products Spring Latch is ideal for uses where doors, compartments, or panels need to engage and disengage quickly and securely. The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure. The latch is available in your choice of stainless steel or zinc-plated steel and in various sizes. It can be ordered with or without the keeper. All mounting hardware is sold separately.

Specifications

The 1/2 Inch Stainless Steel Spring Latch Assembly, measuring 2.75 x 8.38 inches overall, represents a robust and highly functional solution engineered for the secure and rapid engagement and disengagement of doors, compartments, and panels across a diverse range of industrial, commercial, and specialty applications. This specific variant, characterized by its meticulous construction from 304 Stainless Steel, offers superior performance and longevity, distinguishing it as a premier choice for environments demanding exceptional durability and corrosion resistance.

At the core of this latch assembly's functionality is its spring-loaded bolt mechanism. This design intrinsically provides a constant, reliable closing force, ensuring that once engaged, the bolt remains securely in position. A critical feature for operational efficiency is the capacity to lock the bolt in an open position. This mechanism facilitates situations requiring prolonged access or continuous operation without repeated manual manipulation of the latch. The transition from the open to the closed position is achieved by simply turning the integrated lever, which releases the spring pressure, allowing the bolt to retract or extend, thereby securing the intended closure under its inherent spring tension. This dual-action capability — immediate secure closure and temporary open-position retention — underscores the latch's versatility and user-centric design.

The selection of 304 Stainless Steel for the primary components, including the bolt, handle, and housing, is a deliberate engineering decision that significantly enhances the product's performance profile. 304 Stainless Steel is an austenitic chromium-nickel alloy renowned for its outstanding mechanical properties and superb resistance to a wide array of corrosive agents. Its composition, typically around 18% chromium and 8% nickel, forms a passive oxide layer on its surface, which provides inherent protection against rust, oxidation, and various chemical attacks. This makes the latch exceptionally well-suited for deployment in harsh or challenging environments where exposure to moisture, chemicals, salts, or extreme temperatures is common. Examples include marine vessels, chemical processing facilities, food and beverage industries, outdoor utility enclosures, and heavily salted roadways where automotive or transport equipment operates.

Beyond its corrosion resistance, 304 Stainless Steel offers excellent strength-to-weight ratio and maintains its structural integrity across a broad temperature spectrum, preventing brittle fracture in cold conditions and resisting deformation at elevated temperatures. The inherent toughness and ductility of 304 SS also contribute to the latch's ability to withstand repeated operational cycles and incidental impacts without compromising its functional integrity. The "Plain" finish on all components (bolt, handle, housing) signifies that the natural, unadorned surface of the 304 Stainless Steel is presented, which is not only aesthetically clean and professional but also maximizes the material's intrinsic corrosion resistance without relying on external coatings that could chip or wear over time.

Detailed examination of the specifications reveals the precision engineering embedded in this assembly. The bolt diameter of 0.50 inches (1/2 inch) is a critical dimension, indicating a substantial cross-sectional area capable of resisting significant shear forces. This robust diameter ensures that the engaged bolt provides a high level of security and structural connection, preventing unintended dislodgement even under dynamic loads or vibrational stress. The bolt length of 1.25 inches dictates the effective engagement depth into a corresponding keeper or strike plate, providing ample overlap for secure fastening. A bolt height of 0.69 inches ensures appropriate clearance and engagement profile within the housing and against the mating surface.

The overall dimensions of the housing are carefully calibrated for practical application. With a housing height of 2.75 inches, a housing length of 3.50 inches, and a housing width of 2.75 inches, the assembly presents a compact yet robust footprint. This sizing facilitates integration into various panel or door configurations without requiring excessive mounting space, while still providing sufficient structural mass to support the operational forces of the bolt mechanism. The "8.38 Inch Long" designation in the product title, when considered in conjunction with a housing length of 3.50 inches and a pin length of 2.97 inches, suggests an extended operational dimension, possibly referring to the total linear reach when the bolt is fully extended and the handle is factored in, or a maximal measurement for design and installation clearance planning. It underscores the assembly's substantial reach and secure engagement capabilities.

Ergonomics and operational ease are paramount in the design of this latch assembly. The handle, also constructed from 304 Stainless Steel with a plain finish, has a length of 1.75 inches. This dimension is optimized to provide sufficient leverage and grip for comfortable and decisive operation, even when wearing work gloves or in conditions where fine motor control might be compromised. The deliberate sizing of the handle ensures that users can easily engage the "locked open" position or release the bolt for secure closure, contributing to operational efficiency and reducing user fatigue.

Mounting integrity is addressed by the "Bolt-On" mount type, which is the preferred method for heavy-duty applications requiring maximum security and load-bearing capacity. The specified mounting hole diameter of 0.28 inches (approximately 7.1 mm) accommodates standard metric or imperial fasteners, allowing for a strong, mechanical attachment to the host structure. The critical "Mounting Holes Center to Center" dimension of 1.25 inches defines the spacing between mounting points, which is crucial for accurate installation and ensuring uniform distribution of stress across the mounting surface. When selecting mounting hardware (sold separately), it is imperative to choose fasteners of appropriate material, grade, and length to match the strength characteristics of the 304 Stainless Steel latch and the intended application. For maximum corrosion resistance and galvanic compatibility, stainless steel fasteners (e.g., A2/304 or A4/316 grade) are highly recommended, particularly in environments where the latch's corrosion resistance is a primary advantage.

The "Pin Length" of 2.97 inches is another vital specification. In spring latch mechanisms, the pin length often refers to the internal component that guides the bolt's movement and interacts with the spring to provide the necessary tension. This dimension influences the bolt's travel, the strength of the spring force, and the overall smoothness of operation. A well-proportioned pin length, combined with precision manufacturing, ensures consistent performance and longevity of the spring mechanism, which is critical for repeated, reliable engagement.

While this particular assembly is listed without a keeper ("Keeper (y/n): No"), it is important to understand the implications. A keeper is the stationary component, typically a strike plate or a receiving bracket, that the bolt engages with to secure the closure. The absence of a keeper in this specific offering provides flexibility for installers to either select a compatible keeper that best suits their application's specific dimensions and material requirements or to design a custom receiving feature directly into the mating structure. This modular approach can be advantageous for specialized installations where off-the-shelf keepers may not perfectly align or where the structural integrity of the receiving component needs to be optimized.

The "Spring Latch" style itself is inherently advantageous for applications demanding both quick access and secure closure. Unlike cam latches or compression latches, a spring latch provides an immediate, positive engagement with a distinct tactile and audible confirmation of closure. This makes it ideal for situations where rapid operation is necessary, such as emergency access panels, frequently accessed equipment compartments, or utility boxes that require swift but secure sealing. The internal spring mechanism ensures consistent closing force, reducing the likelihood of accidental disengagement due to vibration or minor impacts, a common concern in mobile or dynamic applications.

Applications for this 1/2 Inch Stainless Steel Spring Latch Assembly are diverse and extensive. In the transportation sector, it can secure toolbox doors on utility trucks, access panels on heavy equipment, cargo trailer gates, and specialty vehicle compartments. For marine applications, its 304 Stainless Steel construction makes it ideal for securing hatch covers, storage locker doors, and battery boxes on boats and ships, where exposure to saltwater and humidity is constant. In industrial settings, it is suitable for machine guards, control panel enclosures, equipment cabinets, and safety barriers. Agricultural machinery, construction site containers, and outdoor electrical enclosures also benefit from its robust design and material properties. The ability to lock the bolt in the open position is particularly useful for maintenance access or during operational periods where continuous access is required without full disengagement.

For optimal performance and longevity, proper installation is critical. The "Bolt-On" mount type necessitates careful alignment and secure fastening. Utilizing appropriate torque specifications for the chosen mounting hardware is essential to prevent over-tightening, which could deform the housing, or under-tightening, which could lead to loosening over time. Regular inspection of the mounting points and the functionality of the spring mechanism is recommended, especially in high-cycle or harsh environments, to ensure continued reliable operation. While 304 Stainless Steel is highly corrosion-resistant, routine cleaning to remove accumulated dirt, salt, or corrosive residues can further extend its aesthetic appeal and service life, particularly in exceptionally aggressive environments.

In summary, the 1/2 Inch Stainless Steel Spring Latch Assembly is a meticulously engineered component designed to deliver superior performance in demanding applications. Its construction from premium 304 Stainless Steel ensures exceptional resistance to corrosion, high strength, and long-term durability. The precise mechanical specifications, including the robust 0.50-inch bolt diameter, optimized housing dimensions of 2.75 x 3.50 x 2.75 inches, and ergonomic 1.75-inch handle, all contribute to its reliable and user-friendly operation. The inherent advantages of a spring latch mechanism—rapid engagement, secure closure under spring pressure, and the practical "locked open" functionality—make it an indispensable component for securing doors, compartments, and panels where safety, efficiency, and longevity are paramount. By specifying this high-grade stainless steel assembly, users are investing in a product that will withstand the rigors of its intended environment, providing dependable service for years to come, a true testament to its technical excellence and professional utility.
