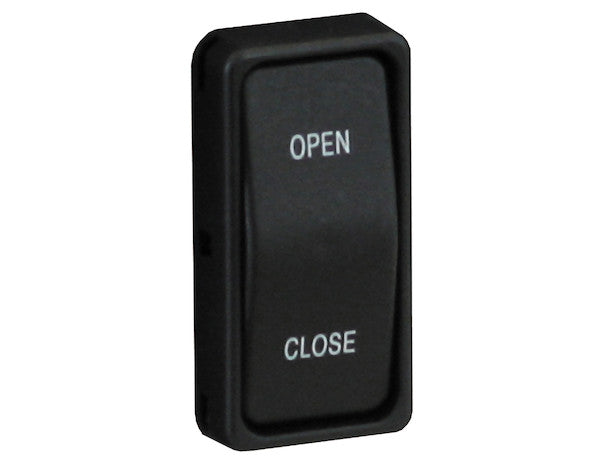

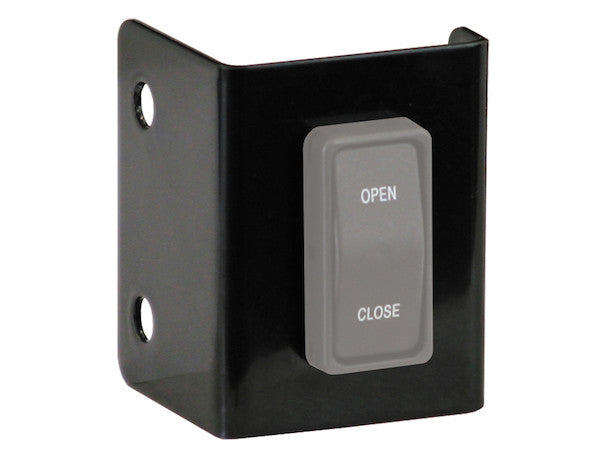

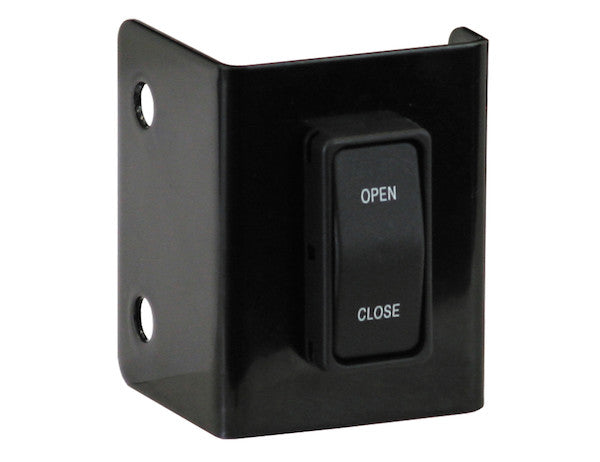

The Rocker Switch from Buyers Products offers momentary control over a 12V electrical function. It is ideal for anti-ice systems and electric dump body tarp systems. Double momentary control gives you convenient system operation. When the switch is released, it returns to its off position. The switch bracket may be ordered separately.
Specifications
| Color | Black |
|---|---|
| Continuous Current Rating | 10 |
| Finish | Plain |
| Material | Plastic |
| Mount Style | Panel |
| Number of Functions | 1 |
| Pre-fused (y/n) | No |
| Pre-Wired (y/n) | No |
| Surge Current Rating | - |
| Switch Style | Rocker |
The 12 Volt Double Momentary Open/Close Rocker Switch is an essential electromechanical component designed for precision control within diverse vehicular, marine, industrial, and specialized equipment applications operating on a 12V DC electrical system. This robust rocker switch offers a distinctive "double momentary" functionality, providing intuitive, temporary activation for bidirectional system operations such as opening and closing, extending and retracting, or lifting and lowering. Unlike conventional latching switches that maintain their state until manually toggled again, this momentary switch automatically returns to its central, off position immediately upon release. This inherent design characteristic significantly enhances operational safety and prevents unintended continuous system activation, making it indispensable for critical control functions.
At its core, the switch is engineered for direct integration into 12V DC circuits, a common voltage standard across a wide array of mobile and stationary equipment. Its primary function involves controlling a single electrical function, which is actuated in two distinct momentary directions. For instance, in an anti-ice system, this could translate to momentary activation of a spreading mechanism in one direction and its cessation or retraction in the other. Similarly, for electric dump body tarp systems, the switch facilitates the momentary deployment ("open") and retrieval ("close") of the tarp, ensuring precise control over the tarp's position and preventing overextension or prolonged motor engagement. The double momentary action ensures that power is supplied only as long as the operator physically holds the switch in the desired position, thus preventing accidental system runaway and conserving power.
Technical Specifications and Operational Principles
Voltage Rating (12V DC): The designation "12 Volt" refers to the nominal direct current (DC) voltage for which this switch is designed. 12V DC systems are ubiquitous in automotive, truck, recreational vehicle (RV), marine, and light industrial equipment. This commonality ensures broad compatibility with existing vehicle electrical architectures. Operating the switch within its specified voltage range is crucial for ensuring reliable performance and preventing premature failure. While designed for 12V, the switch’s internal contact materials and construction are optimized to handle minor fluctuations typical of vehicle electrical systems, such as transient voltage spikes or drops within reasonable limits.
Continuous Current Rating (10 Amperes): A continuous current rating of 10A signifies the maximum steady-state current that the switch contacts can safely carry without incurring damage or excessive heat buildup. This rating is a critical parameter for circuit design. If the connected load (e.g., a motor, solenoid, or lamp) draws more than 10A continuously, direct connection through this switch is not recommended. Instead, the switch should be used to actuate a higher-rated relay or solenoid, which in turn controls the high-current load. This method protects the switch from overcurrent conditions, prolongs its operational life, and maintains the integrity of the electrical system. The absence of a specified surge current rating implies that while it can handle momentary inrush currents from certain loads, applications with extremely high and sustained inrush currents should employ appropriate current limiting or relay-based architectures.
Material (Plastic) and Finish (Plain): The switch body is constructed from durable plastic, selected for its excellent electrical insulation properties, resistance to corrosion, and mechanical strength. Plastic materials commonly used in such applications, like nylon or polycarbonate, offer good resistance to impacts, abrasion, and various chemicals (e.g., oils, greases, cleaning agents) often encountered in demanding environments. The "Plain" finish indicates a functional, unadorned surface, typically matte black, designed for utility and integration into industrial or vehicle dashboards without requiring special aesthetic treatments. This choice of material and finish contributes to the switch’s robustness and suitability for harsh operating conditions while maintaining cost-effectiveness.
Mount Style (Panel): The "Panel" mount style indicates that the switch is designed for flush installation into a pre-cut opening in a control panel, dashboard, or equipment housing. This style provides a secure, integrated, and aesthetically clean appearance. Panel mounting often involves a snap-in design or requires a mounting bracket (which, in this case, is ordered separately) to secure the switch firmly from behind the panel. The precise dimensions for the panel cutout are typically standardized for such rocker switches, ensuring compatibility with common industry practices and facilitating easy replacement or integration into existing systems. The secure fit minimizes movement, enhances durability, and prevents ingress of dust and moisture.
Switch Style (Rocker): The rocker switch design offers ergonomic advantages and clear tactile feedback. Its paddle-like actuator pivots on a central axis, providing distinct "press-to-activate" positions (Open/Close, Up/Down). The larger surface area of a rocker switch makes it easy to operate, even when wearing gloves, which is a common requirement in many industrial and outdoor applications. The tactile response confirms activation to the operator, improving user confidence and reducing the likelihood of errors. The black color specified further ensures it blends seamlessly into most control panel aesthetics, maintaining a professional and uniform appearance.
Number of Functions (1): While described as "double momentary," the "Number of Functions: 1" refers to the single logical control output that the switch manages, albeit with two distinct momentary states. It controls one system or device (e.g., a tarp motor), allowing it to perform two complementary actions (e.g., open/close). This distinction is important; it is not two entirely separate switches combined, but rather one switch mechanism providing bidirectional control over a singular functional element.
Pre-fused (No) and Pre-Wired (No): The absence of pre-fusing and pre-wiring provides maximum flexibility for installers and system integrators. It means the switch is supplied as a standalone component, allowing the user to select appropriate wiring gauges, terminal types, and fuse ratings specific to their application and the connected load. This un-configured state is advantageous for custom installations where wiring harnesses and overcurrent protection requirements vary significantly. However, it also places the responsibility on the installer to ensure proper fusing (e.g., inline fuse holders) and robust wiring practices are implemented to prevent short circuits, overloads, and fire hazards. Adherence to industry standards like SAE or ABYC for electrical installations is strongly recommended.
Applications and System Integration
Beyond the explicitly mentioned anti-ice and electric dump body tarp systems, the 12 Volt Double Momentary Open/Close Rocker Switch finds extensive utility in a myriad of applications requiring precise, temporary bidirectional control of 12V DC circuits. These include, but are not limited to:
- Hydraulic Power Units: Momentary activation of hydraulic pumps for lifting, lowering, or extending hydraulic cylinders on utility vehicles, snow plows, liftgates, and specialized equipment. For instance, controlling the "raise" and "lower" functions of a snow plow blade.
- Linear Actuators: Precise control of linear actuators used in industrial automation, robotics, medical devices, and automotive modifications (e.g., power trunk openers, hood lifts) for "extend" and "retract" functions.
- Electric Winches and Hoists: Momentary "in" and "out" control for light-duty electric winches on ATVs, utility trailers, or marine applications (e.g., anchor winches), ensuring the operator maintains constant awareness of cable tension and motor strain.
- Motorized Valves: Temporary activation of electric ball valves or gate valves in fluid handling systems where precise opening or closing is required, such as in agricultural sprayers or water management systems.
- Marine Equipment: Control of trim tabs, electric hatches, or other motorized marine components requiring momentary bidirectional movement.
- Adjustable Seating or Pedals: In custom vehicle interiors, for momentary adjustment of power seats, mirrors, or pedal positions.
- Automotive Accessories: Control of auxiliary lighting systems (e.g., spotlights with a momentary swivel function), or small motors for ventilation dampers.
The "open/close" nomenclature should be interpreted broadly, encompassing any pair of complementary, temporary actions. The critical aspect is that the switch facilitates controlled, operator-dependent engagement and immediate disengagement of the electrical function.
Installation and Circuit Design Considerations
Successful integration of this rocker switch requires careful attention to electrical circuit design and installation practices. Given its 10A current rating, it is crucial to assess the current draw of the intended load. For loads exceeding 10A, the switch must be wired to control an intermediate relay or solenoid. In such a configuration, the switch activates the coil of the relay, which then switches the higher current to the load. This not only protects the switch but also isolates the control circuit from the power circuit, enhancing overall system reliability and safety.
Wiring: Standard electrical wiring practices apply. Utilize appropriately gauged wire for the 12V DC system, considering the anticipated current draw and the length of the wire run to minimize voltage drop. Secure all connections using crimped terminals, soldered joints, or appropriate connectors to ensure reliable electrical contact and resistance to vibration. The back of the switch typically features spade terminals (or similar) for wiring connections. While specific wiring diagrams are not included with the switch, the momentary open/close functionality generally implies a common positive input and two distinct negative (or positive, depending on the load's wiring) outputs for the "open" and "close" functions, each active only when pressed.
Fusing: Proper overcurrent protection is paramount. An inline fuse, rated slightly above the maximum continuous current draw of the load (or the relay coil if used), should be installed on the positive supply line to the switch. This fuse protects the wiring and the switch itself from damage due to short circuits or excessive current draws. Selecting the correct fuse rating is essential to prevent both nuisance blowing and insufficient protection.
Mounting: The "Panel" mount style requires a clean, precisely cut aperture in the control panel. If a mounting bracket is required and ordered separately, ensure it is installed correctly to provide a rigid and stable mount. A secure mount prevents the switch from rattling or becoming dislodged during operation, especially in applications subjected to vibration or shock. The switch should be positioned for easy operator access and visibility, without obstructing other controls.
Durability, Reliability, and Safety
Constructed from robust plastic, this rocker switch is designed to withstand the rigors of industrial and mobile environments. Its mechanical resilience ensures consistent operation over numerous actuation cycles. The inherent "return-to-off" characteristic of a momentary switch is a significant safety feature. It mandates active operator engagement for system activation, thereby preventing accidental continuous operation if the switch were to be inadvertently bumped or partially engaged. This is particularly vital for systems involving moving parts like tarps, winches, or hydraulic cylinders, where unintended motion could lead to injury or equipment damage.
While specific environmental ratings (e.g., IP ratings for ingress protection) are not provided in the basic specifications, general-purpose plastic rocker switches designed for vehicular applications typically offer reasonable resistance to dust, splashes, and moderate temperature fluctuations. For applications in extremely harsh or exposed environments, additional enclosures or protective covers may be considered to enhance the switch's longevity and reliability.
Maintenance and Longevity
The 12 Volt Double Momentary Open/Close Rocker Switch is largely maintenance-free. Periodic inspection for signs of wear, damage to the housing, or loose wiring connections is recommended, particularly in high-vibration or corrosive environments. If the switch action becomes stiff, inconsistent, or if the internal contacts show signs of arcing (indicated by discoloration or erratic operation), replacement is advisable. Given its solid construction and relatively simple electromechanical design, the switch is engineered for a long operational life under normal operating conditions.
Conclusion
The 12 Volt Double Momentary Open/Close Rocker Switch is a highly versatile and reliable control component, perfectly suited for applications requiring precise, temporary, bidirectional command over 12V DC electrical functions. Its double momentary action ensures enhanced safety and operator control, preventing unintended continuous system operation. With a robust plastic construction, a 10A continuous current rating, and a user-friendly panel-mount rocker style, this switch provides a durable and intuitive interface for critical functions in anti-ice systems, electric dump body tarp systems, hydraulic controls, linear actuators, winches, and numerous other mobile and industrial setups. While supplied unfused and unwired for maximum installation flexibility, proper circuit design, including appropriate fusing and consideration for external relays for higher current loads, is essential to leverage its full potential and ensure long-term system integrity and safety. This switch stands as a foundational element for sophisticated and secure electromechanical control systems.
