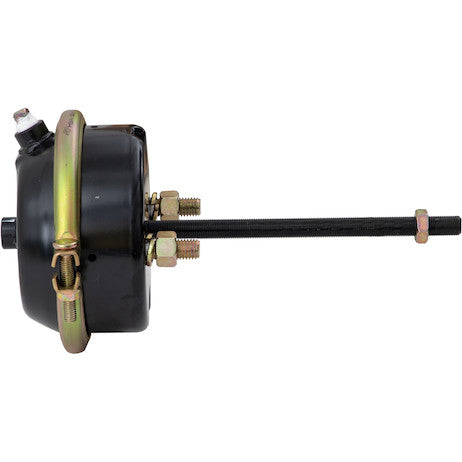

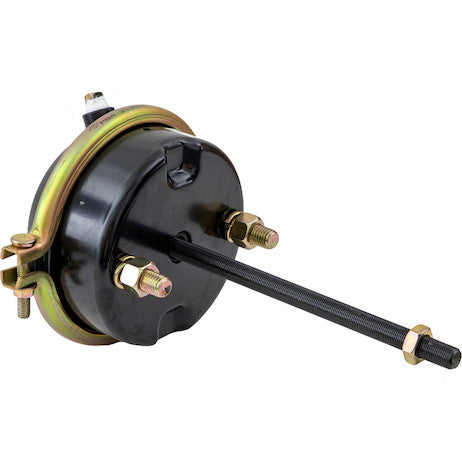

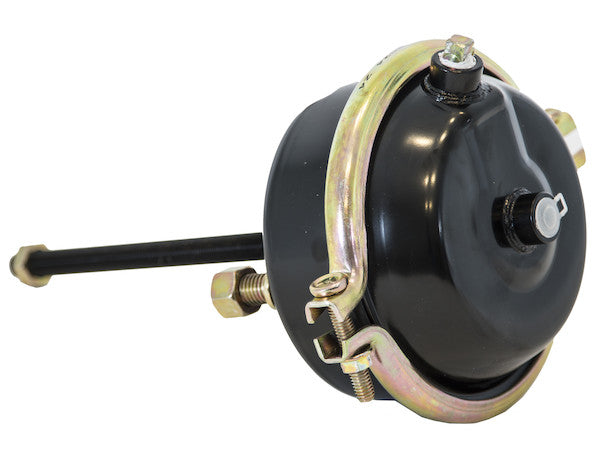

3018091 - Type 24 Brake Chamber with 9-1/2 in. Rod and (1) Nut

3018091 - Type 24 Brake Chamber with 9-1/2 in. Rod and (1) Nut

Regular price $37.57 USD
Regular price Sale price $37.57 USD
Sale Sold out
Shipping calculated at checkout.

We currently do not ship to Alaska or Hawaii.

Quantity
View full details

Buyers Products Type 24 Brake Chamber works with PH50ACMK and P45AC4.

Specifications

For Use With 50 Ton Air Compensated Pintle Hooks

Advanced Technical Overview: Type 24 Brake Chamber for Heavy-Duty Towing Applications

The Type 24 Brake Chamber, featuring a 9-1/2 inch rod and supplied with a single securing nut, represents a critical component within the air brake systems of heavy-duty vehicles, particularly those engaged in demanding towing operations. Engineered for robust performance and exceptional reliability, this specific brake chamber is designed to integrate seamlessly with high-capacity air-compensated pintle hooks, such as the PH50ACMK and P45AC4 models, which are rated for 50-ton applications. This technical exposition will delve into the operational principles, design considerations, materials science, installation specifics, maintenance protocols, and the critical role this component plays in ensuring the safety and efficiency of heavy-duty towing.

Operational Principles and Pneumatic Actuation

At its core, the Type 24 Brake Chamber functions as a pneumatic actuator, converting compressed air energy into mechanical force. This force is then transmitted via the brake chamber's pushrod to the slack adjuster, which in turn rotates the S-cam, ultimately pressing the brake shoes against the brake drum. The "Type 24" designation refers to the effective diaphragm area within the chamber, measured in square inches. A Type 24 chamber typically possesses an effective diaphragm area of 24 square inches. This area, when multiplied by the system's air pressure (e.g., 80-120 psi), determines the total force generated. For instance, at 100 psi, a Type 24 chamber generates approximately 2400 pounds of force at the pushrod, illustrating the substantial mechanical output achievable.

The chamber is divided into two primary sections by a flexible diaphragm: the service brake section and, in combination with spring brake chambers, the emergency/parking brake section (though this specific product description focuses solely on the service brake aspect of the chamber). When air pressure is applied to the service brake port, it pushes against the diaphragm, which is connected to the pushrod. The pushrod extends, initiating the braking sequence. Upon release of air pressure, a return spring within the chamber retracts the diaphragm and pushrod, disengaging the brakes. The 9-1/2 inch length of the pushrod is critical for ensuring proper stroke length and compatibility with various slack adjuster configurations, providing the necessary leverage and travel to actuate the brake mechanism effectively without over-stroking or under-stroking, which can lead to inefficient braking or premature wear.

Design and Construction Materials

The longevity and consistent performance of the Type 24 Brake Chamber are heavily dependent on its robust design and the selection of high-grade materials. Typically, the primary housing components—the service chamber and spring chamber (if applicable)—are fabricated from heavy-gauge steel, often coated with corrosion-resistant finishes such as electrophoretic deposition (E-coating) or powder coating. These coatings provide exceptional protection against environmental stressors, including moisture, road salts, and abrasives, which are commonly encountered in heavy-duty operational environments. The diaphragm itself is a critical component, usually constructed from a high-quality, heat-resistant, and flexible rubber compound, often reinforced with fabric layers to prevent tearing and ensure long-term integrity under repeated flexing cycles and varying temperatures. The return spring is manufactured from high-tensile spring steel, engineered to maintain its resilience and spring constant over countless compression and extension cycles, ensuring reliable brake release.

The pushrod, measuring 9-1/2 inches, is typically made from hardened steel to withstand compressive and tensile forces without buckling or deforming. Its precise length and diameter are crucial for proper mechanical linkage. The threaded end of the pushrod, designed to accept the supplied nut, is manufactured to industry standards (e.g., SAE or DIN) to ensure secure attachment to the slack adjuster. The included nut is typically a self-locking or castellated nut, designed to resist loosening due to vibration and dynamic stresses inherent in vehicle operation, thereby maintaining the integrity of the brake linkage. All internal seals and O-rings are made from durable elastomeric materials that can withstand fluctuations in air pressure, temperature extremes, and potential exposure to contaminants in the air supply, preventing air leaks and maintaining system efficiency.

Integration with 50-Ton Air Compensated Pintle Hooks

The specified compatibility with 50-ton air-compensated pintle hooks, such as the PH50ACMK and P45AC4, underscores the brake chamber's role in heavy-duty towing applications where maintaining positive brake control over massive loads is paramount. Air-compensated pintle hooks utilize compressed air to create a more secure connection between the towing vehicle and the trailer, reducing slack and wear. The Type 24 Brake Chamber complements this by providing the necessary braking force for trailers that are part of such heavy-duty configurations. In many heavy-duty trailer setups, each wheel end will have a brake chamber, and these are all supplied by the vehicle's air brake system. The appropriate sizing of the brake chamber (Type 24 in this case) ensures that the combined braking force is sufficient to bring a fully loaded 50-ton trailer to a safe and controlled stop, adhering to stringent stopping distance regulations.

The seamless interoperability between the brake chamber and these specific pintle hook models implies standardized connection points and operational parameters. This standardization facilitates easier installation, maintenance, and replacement, ensuring that fleet operators can reliably source and integrate components that meet the demanding performance criteria of 50-ton towing.

Installation and Adjustment Procedures

Proper installation of the Type 24 Brake Chamber is critical for its safe and efficient operation. This process typically involves several key steps:

  1. Mounting: The brake chamber is secured to the vehicle's axle or brake spider assembly using high-strength bolts and nuts. The mounting orientation must be correct to ensure proper alignment of the pushrod with the slack adjuster.
  2. Air Line Connection: The air supply line from the vehicle's air brake system is connected to the chamber's air port. This connection must be leak-free, often utilizing robust fittings and thread sealant.
  3. Pushrod Connection: The 9-1/2 inch pushrod is connected to the slack adjuster. This is where the supplied nut plays a crucial role, securely fastening the pushrod to the slack adjuster arm. The threads must be clean and free of damage to ensure a tight connection.
  4. Adjustment of Pushrod Stroke: After installation, the pushrod stroke must be precisely adjusted. This involves ensuring that the slack adjuster is set correctly to achieve the optimal stroke length. Too short a stroke can lead to insufficient braking force, while too long a stroke can result in brake fade or complete loss of braking due to the pushrod bottoming out or the diaphragm rupturing. The recommended stroke for a Type 24 chamber varies but typically falls within a narrow range, often checked using specialized gauges or by measuring the distance the pushrod extends when full air pressure is applied.
  5. Leak Test: A thorough leak test of the entire air brake system, including the newly installed brake chamber, is mandatory. This involves pressurizing the system and checking for audible leaks or using a soap solution to detect bubbles at connection points.
Adherence to manufacturer specifications and industry best practices during installation is paramount to prevent premature failure, maintain braking efficiency, and ensure regulatory compliance.

Maintenance and Longevity

Regular maintenance is essential to maximize the lifespan and operational integrity of the Type 24 Brake Chamber. Key maintenance practices include:

  • Visual Inspection: Routinely inspect the chamber for physical damage, corrosion, air leaks, and diaphragm bulging or cracking. Check the pushrod for straightness and ensure the connection to the slack adjuster is secure and free of excessive play.
  • Check for Proper Stroke: Periodically verify the pushrod stroke. Automated slack adjusters should maintain proper adjustment, but manual verification is still recommended. If excessive stroke is observed, it could indicate wear in the brake linings, drum, or a malfunctioning slack adjuster.
  • Air System Integrity: Ensure the air supply system is clean and dry. Moisture and contaminants in the air lines can degrade internal components of the brake chamber and lead to premature failure. Regular draining of air tanks is crucial.
  • Lubrication: While the brake chamber itself is largely a sealed unit, ensuring that the slack adjuster and S-cam bushings are properly lubricated will reduce wear and ensure smooth brake operation, indirectly benefiting the brake chamber by reducing unnecessary stress.
With proper maintenance, a Type 24 Brake Chamber can provide many years of reliable service in demanding heavy-duty applications. Its robust construction is designed for longevity, but environmental factors and operational stresses necessitate diligent care.

Safety and Regulatory Compliance

Brake chambers are safety-critical components. Their proper functioning is directly linked to vehicle safety, especially in heavy-duty towing scenarios. Failure of a brake chamber can lead to reduced braking efficiency, increased stopping distances, or complete loss of braking for the affected wheel end. Therefore, the design, manufacturing, and installation of Type 24 Brake Chambers must adhere to stringent industry standards and governmental regulations, such as those set forth by the Department of Transportation (DOT) in the United States, or equivalent international bodies. These regulations often specify performance criteria, material standards, and testing procedures to ensure that brake components meet minimum safety thresholds. The use of a Type 24 chamber in conjunction with 50-ton rated pintle hooks highlights an application where exceeding these minimum standards is often the norm to ensure the highest level of safety and operational reliability under extreme loads.

Conclusion

The Type 24 Brake Chamber with a 9-1/2 inch rod and securing nut is an indispensable component in the air brake systems of heavy-duty vehicles, particularly those operating with 50-ton air-compensated pintle hooks. Its sophisticated pneumatic design, robust material construction, and precise mechanical interfacing ensure the reliable conversion of air pressure into the substantial mechanical force required for effective braking of massive loads. Understanding its operational principles, meticulous installation procedures, and rigorous maintenance protocols are key to maximizing its performance, extending its service life, and most importantly, guaranteeing the safety and operational efficiency of heavy-duty towing applications. As a cornerstone of commercial vehicle braking systems, this component exemplifies the engineering excellence required to manage the immense forces and safety demands of modern transportation.
