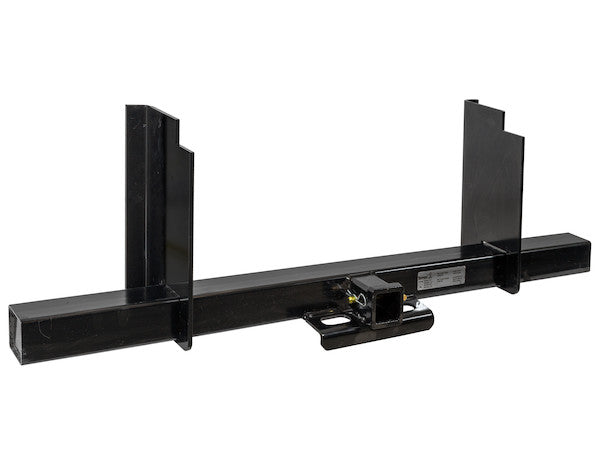

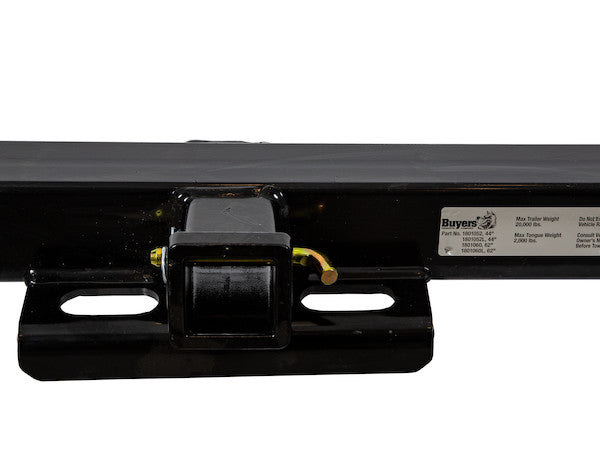

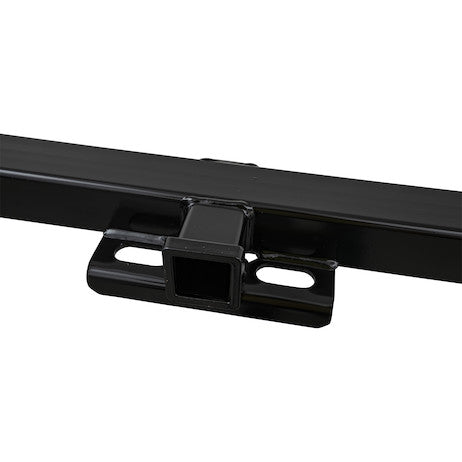

3018538 - Class 5 44 Inch Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube (No Mounting Plates)

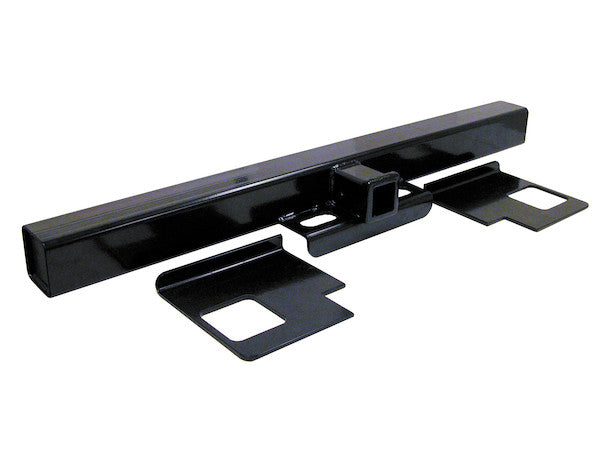

The Class 5 Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube from Buyers Products is rated up to 20,000 lb. It has a black powder-coated finish for corrosion resistance. The receiver is available in 44 in. or 62 in. lengths. The 44 in. model is sold with or without mounting plates, and is black powder coated or available unpainted. The ones sold without mounting plates have no rating listed because the installer needs to fabricate their own mounting brackets. The 62 in. model is sold with standard or tall mounting plates to suit different bumper styles. Plates ship unwelded so you can position them to fit your specific application. All models accept 2-1/2 in. hitches and accessories. Those that come with mounting plates also include a 5/8 in. hitch pin with cotter.

Specifications

Technical Deep Dive: Class 5 44-Inch Service Body Hitch Receiver (Bare)

In the demanding world of commercial and vocational trucking, the ability to safely and efficiently tow heavy loads is paramount. The Class 5 44-Inch Service Body Hitch Receiver, featuring a 2-1/2 Inch Receiver Tube and specifically designed for applications where custom mounting is required (no mounting plates included), represents a critical component for specialized fleet operations. This product is engineered to provide a robust foundation for heavy-duty towing, offering unparalleled flexibility for integration into diverse service body configurations where off-the-shelf solutions are insufficient. Its design caters to professional fabricators, fleet managers, and vocational upfitters who demand precision, strength, and adaptability in their towing infrastructure.

Understanding the Class 5 Rating and its Implications for Custom Fabrication

The designation "Class 5" signifies a hitch receiver engineered for the most arduous towing tasks. According to SAE J684 standards, Class 5 hitches are typically rated for Gross Trailer Weights (GTW) exceeding 10,000 lbs, often extending to 20,000 lbs or even 30,000 lbs, with corresponding Maximum Vertical Loads (MVL), or tongue weights, up to 2,000 to 3,000 lbs. These capacities are essential for towing large utility trailers, heavy equipment, multi-axle cargo trailers, and other substantial industrial or commercial loads. However, it is crucial to understand that for this particular model, which is supplied without pre-fabricated mounting plates, the stated 20,000 lb capacity associated with other Class 5 models from Buyers Products serves as an indication of the receiver tube's inherent strength, not the final system rating.

The explicit lack of a listed M.G.T.W. (Maximum Gross Trailer Weight) and M.V.L. (Maximum Vertical Load) for this "no mounting plates" variant underscores a fundamental principle of vehicle upfitting: the ultimate towing capacity of the integrated system is a direct function of the weakest link. In this scenario, the strength and integrity of the custom-fabricated mounting brackets and their method of attachment to the vehicle’s frame or sub-structure are the decisive factors. Professional installers are tasked with engineering and constructing a mounting solution that not only safely supports the anticipated loads but also integrates seamlessly with the vehicle's chassis, preventing undue stress concentrations and ensuring structural integrity. This demands a profound understanding of mechanical engineering principles, material science, and welding practices, adhering strictly to relevant industry standards and regulatory requirements.

The Advantages of a 2-1/2 Inch Receiver Tube

The 2-1/2 inch receiver tube has emerged as the industry standard for heavy-duty towing applications, offering distinct advantages over smaller 2-inch or 1-1/4 inch receivers. The increased cross-sectional area of the 2-1/2 inch tube provides superior strength and rigidity, minimizing flex and play even under extreme loads. This translates to enhanced stability during towing, reducing trailer sway and improving overall control, which is critical when transporting heavy and often high-value equipment. Furthermore, the larger receiver opening accommodates a broader range of robust towing accessories, including heavy-duty ball mounts, pintle hitches, weight distribution systems, and specialty attachments designed for higher capacities. Compatibility with a 5/8 inch hitch pin, a standard for severe-duty applications, ensures a secure connection for these accessories.

The robust dimensions of the 2-1/2 inch receiver tube are a testament to its design for sustained performance under significant dynamic stresses. The interior tolerance and material thickness are optimized to ensure a snug fit for corresponding hitch components while providing ample structural integrity to resist bending, twisting, and shear forces commonly experienced during aggressive acceleration, braking, and cornering maneuvers with a heavy trailer. This foundational strength makes it an ideal choice for vocational trucks that frequently engage in demanding towing operations.

Designed for Service Body Integration: A Specialized Approach

Service bodies, characterized by their modular compartment designs and specialized equipment storage, present unique challenges for hitch receiver integration. Unlike standard pickup truck beds, service bodies often have complex substructures, varying frame attachments, and multiple layers of steel or aluminum, all of which must be considered when installing a towing system. The Class 5 44-Inch Service Body Hitch Receiver is specifically tailored for these environments.

The 44-inch width offers a versatile dimension that can integrate effectively beneath a wide array of service body designs without interfering with storage compartments, bumper structures, or existing utility systems. This specific length allows for optimal placement relative to the vehicle's frame rails and rear axle, ensuring proper load distribution and maintaining vehicle stability. The design without pre-welded mounting plates is particularly advantageous in custom service body upfits where the precise location and geometry of mounting points can vary significantly from one chassis to another, or even between different models of service bodies. This 'blank canvas' approach empowers fabricators to create a mounting solution that precisely matches the unique structural characteristics and operational requirements of each individual vehicle, ensuring maximum strength and adherence to design specifications.

Critical Considerations for Custom Mounting Bracket Fabrication

The distinguishing feature of this Class 5 hitch receiver is its requirement for custom-fabricated mounting brackets. This necessitates a high level of engineering proficiency and adherence to best practices in metal fabrication. The installer assumes full responsibility for designing, materializing, and validating the structural integrity of the entire towing system. Key considerations include:

1. Material Selection: Mounting brackets must be fabricated from high-strength structural steel, such as ASTM A36 or higher-grade alloys, with appropriate thickness to withstand the anticipated GTW and MVL. The material must possess excellent weldability and fatigue resistance.
2. Design Engineering: The bracket design must effectively transfer towing forces from the receiver tube to the vehicle's main frame rails. This involves distributing loads over a sufficient surface area to prevent localized stress concentrations that could lead to frame deformation or failure. Finite Element Analysis (FEA) may be employed for complex designs to predict stress distribution and ensure structural integrity.
3. Attachment to Frame: Connections to the vehicle frame should primarily utilize Grade 8 bolts (SAE J429) in shear and tension, supplemented by high-quality welding conforming to AWS D1.1 structural welding codes. Any drilling into the frame rails must be done carefully to avoid compromising frame integrity, often requiring the use of reinforcing plates (fish plates) to maintain rigidity and distribute stress. Drilling through the lower flange of the frame is generally discouraged unless specifically engineered and reinforced.
4. Load Path Analysis: A thorough understanding of how towing forces (both longitudinal and vertical) will propagate through the mounting system and into the vehicle chassis is essential. The design must account for dynamic forces, including sudden stops, accelerations, and lateral movements, which can significantly amplify static loads.
5. Clearance and Interference: The fabricated brackets must provide adequate clearance for all vehicle components, including exhaust systems, brake lines, electrical wiring, suspension components, and spare tire mechanisms. Integration with existing bumper structures or service body compartments also requires careful planning.
6. Corrosion Protection: All custom-fabricated components should receive an equivalent or superior level of corrosion protection to that of the receiver tube itself. This includes thorough cleaning, priming, and a durable topcoat, such as powder coating or a high-performance epoxy paint, to ensure longevity in harsh operating environments.
7. Regulatory Compliance: The completed custom installation must comply with all applicable federal, state, and local towing regulations, including those related to safety chains, lighting, and maximum allowable weights. The installer is responsible for ensuring that the modified vehicle meets all legal requirements for safe road operation.

Engaging a certified welding inspector or a structural engineer during the design and fabrication process is highly recommended to validate the safety and compliance of the custom mounting solution. The ultimate responsibility for determining and certifying the integrated system's towing capacity lies with the installer, based on the strength of their fabricated brackets and attachment methods.

Material and Finish: Carbon Steel with Black Powder-Coat

The Class 5 Service Body Hitch Receiver is constructed from high-grade carbon steel, a material chosen for its exceptional strength-to-weight ratio, durability, and excellent weldability. Carbon steel provides the inherent structural integrity required to withstand the immense forces associated with Class 5 towing. Its metallurgical properties allow it to absorb and distribute stress effectively, contributing to the receiver's long-term reliability and resistance to fatigue cracking. The specific grade of carbon steel used is optimized for applications where structural rigidity and robust performance are non-negotiable.

To protect this robust core from the relentless environmental stressors encountered on commercial vehicles, the receiver features a premium black powder-coated finish. Powder coating is a highly durable and environmentally friendly finishing process that far surpasses conventional liquid paint in terms of performance. The process involves electrostatically applying finely ground, dry pigment and resin particles to the metal surface, which are then cured under heat. This curing process causes the powder to melt and flow, forming a smooth, uniform, and extremely tough "skin" over the steel.

The benefits of this black powder-coat include:

• Superior Corrosion Resistance: The thick, continuous layer of powder coat provides an excellent barrier against moisture, road salts, chemicals, and other corrosive agents that can lead to rust and material degradation.
• Enhanced Abrasion and Impact Resistance: Unlike paint, powder coat is highly resistant to chips, scratches, and abrasions, maintaining its protective integrity even in demanding conditions where the receiver may be subjected to impacts from road debris or accidental contact.
• UV Resistance: The finish resists fading and degradation from prolonged exposure to ultraviolet (UV) radiation, ensuring its aesthetic appeal and protective qualities endure over the lifespan of the product.
• Aesthetic Appeal: The uniform black finish provides a professional and integrated appearance, complementing the rugged utility of service bodies.

This combination of high-strength carbon steel and a robust powder-coat finish ensures that the Class 5 receiver will maintain its structural integrity and visual appeal throughout years of heavy-duty service, minimizing maintenance requirements and extending its operational life.

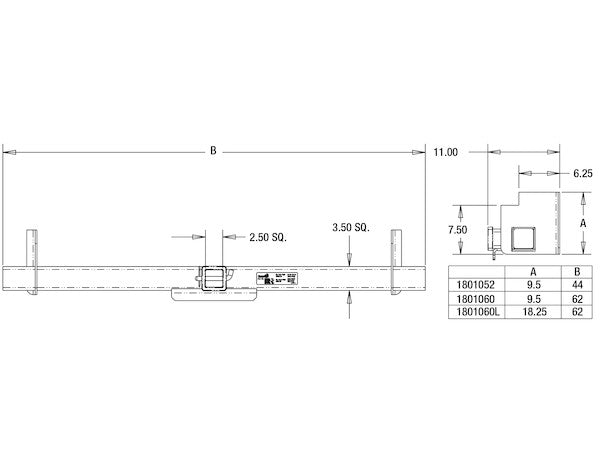

Optimized Dimensions for Versatile Integration

The 44-inch width of this receiver is specifically chosen to offer optimal versatility for service body applications. This dimension typically allows for adequate clearance within the chassis frame rails of most medium-duty trucks, while also providing sufficient length for secure attachment and proper load distribution. The careful selection of this width minimizes the need for extensive modification to the service body structure or bumper, streamlining the installation process for professional upfitters.

While a 62-inch option is available for larger or specific chassis types, the 44-inch variant is ideal for applications where a more compact solution is desired, or where the frame architecture dictates a shorter receiver span. Its dimensions are conducive to maintaining optimal approach and departure angles, which are important considerations for vocational vehicles that may operate in varied terrain or congested urban environments. The absence of pre-attached mounting plates further enhances this dimensional flexibility, allowing the installer to dictate the exact depth and positioning of the receiver relative to the bumper and frame.

Safety, Regulatory Compliance, and Best Practices

Towing heavy loads carries inherent risks if not performed correctly. The Class 5 44-Inch Service Body Hitch Receiver provides the foundational strength, but overall safety and compliance are heavily dependent on proper installation and ongoing maintenance. Key safety and regulatory considerations include:

• SAE J684 Compliance: While custom mounted, the receiver tube itself is designed to meet the dimensional and material standards set forth by SAE J684 for Class 5 receivers, ensuring compatibility with standard towing accessories. The overall system, however, must be evaluated as a whole.
• Load Limits: The installer must accurately determine the final GTW and MVL capacities of the completed vehicle system. This includes verifying the vehicle's Gross Vehicle Weight Rating (GVWR), Gross Axle Weight Ratings (GAWR), Gross Combination Weight Rating (GCWR), and ensuring that all components (tires, suspension, frame, and hitch assembly) are rated appropriately for the intended load.
• Safety Chains: Proper attachment points for safety chains, independently secured to the vehicle's frame, are a critical component of any towing system and must be integrated into the custom mounting design.
• Lighting and Electrical: Ensure that all trailer lighting and electrical connections are properly installed and functioning, adhering to Department of Transportation (DOT) and state-specific regulations.
• Regular Inspection: Operators should conduct routine pre-tow inspections of the hitch receiver, mounting brackets, and all attachment points for signs of wear, fatigue, corrosion, or damage. Any compromised components must be repaired or replaced immediately.
• Load Distribution: Proper trailer loading and weight distribution are essential for safe towing. An unevenly loaded trailer can lead to instability, reduced braking performance, and increased stress on the hitch and vehicle.

By prioritizing these safety and compliance aspects, operators can maximize the benefits of this heavy-duty receiver while mitigating risks.

Conclusion: The Foundation for Heavy-Duty Custom Towing

The Class 5 44-Inch Service Body Hitch Receiver with a 2-1/2 Inch Receiver Tube (No Mounting Plates) represents a premium solution for specialized towing requirements within vocational fleets. It is more than just a component; it is a meticulously engineered foundation designed for maximum strength, durability, and unparalleled customization. For fleet managers, upfitters, and professional fabricators who demand precise integration and robust performance in their heavy-duty service vehicles, this receiver offers the ideal starting point. Its Class 5 rating, combined with the versatility of its 44-inch length and the bare-bones configuration for custom mounting, makes it indispensable for applications where standard bolt-on solutions simply do not suffice.

By entrusting the final installation to qualified professionals who understand the intricate relationship between structural integrity, material science, and regulatory compliance, this receiver will deliver years of reliable, heavy-duty towing capability. It stands as a testament to the commitment to quality and performance, ensuring that your vocational vehicles are equipped to handle the most demanding tasks with confidence and safety. Invest in this exceptional component to build a towing system that is as resilient and adaptable as your fleet's operational needs.
