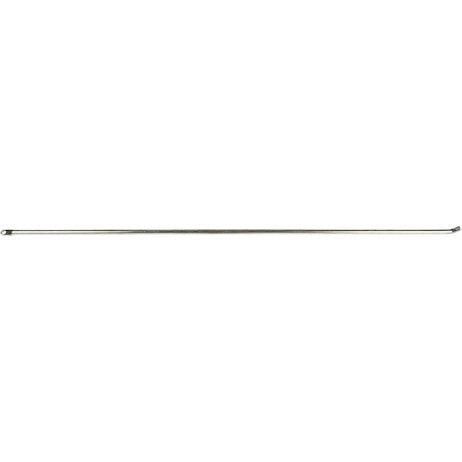

3-Point locking systems upgrade the security in applications like Service Bodies, Truck Boxes, Trailers, and Cabinets. The zinc-plated steel rods are designed for use with the Buyers Products LL90003 compression latch. Available in a variety of lengths and sold individually. Select the right quantity and length for your application.
Specifications
| Description | 28.6" inch length rod |
|---|---|
| Finish | Zinc Plated Clear |
| For Use With | 60" inch doors and enclosures |
| Material | Carbon Steel |
The 28.60-inch individual rod represents a pivotal component in the assembly of advanced 3-Point Latch Systems, specifically engineered to enhance the security and integrity of 60-inch enclosures. This detailed description will delve into the technical specifications, operational principles, material science, and application benefits of this critical element, providing a comprehensive understanding for engineers, fabricators, and end-users.
At its core, a 3-Point Latch System is a sophisticated locking mechanism designed to secure access points at three distinct locations simultaneously, offering a superior level of security and sealing performance compared to conventional single-point latching solutions. The primary advantage of a multi-point system lies in its ability to distribute locking forces across a wider area of the door or panel, making it exceptionally resistant to forced entry attempts such as prying, bending, or cutting. Furthermore, it ensures a uniform compression of door gaskets, which is crucial for achieving optimal environmental sealing against dust, moisture, and temperature fluctuations.
This particular rod, measuring 28.60 inches in length, serves as a vital mechanical linkage within such a system. It is designed to extend from a central compression latch, specifically the Buyers Products LL90003, towards either the top or bottom edge of a 60-inch enclosure door. In a typical configuration for a 60-inch enclosure, two such rods would be employed: one extending upwards from the central latch and another extending downwards. The precise length of 28.60 inches is critical for ensuring proper engagement with the corresponding keepers or cams located at the periphery of the door frame, while also accounting for the dimensions of the central latch body and necessary operational clearances.
Material and Finish Excellence: Carbon Steel with Zinc Plated Clear
The choice of material for this rod is high-quality carbon steel. Carbon steel is renowned for its excellent mechanical properties, including high tensile strength, good ductility, and fatigue resistance, making it an ideal candidate for applications requiring robust structural integrity and consistent performance under repeated stress. Its inherent hardness provides resistance to wear and deformation, ensuring the longevity and reliability of the locking mechanism over its operational lifespan.
To further augment its performance and durability, the carbon steel rod undergoes a specialized finishing process: zinc plating with a clear chromate conversion coating. Zinc plating is an electrochemical process where a thin layer of zinc is deposited onto the steel surface. This sacrificial coating provides exceptional corrosion resistance by acting as an anodic barrier. In the presence of moisture or corrosive agents, the zinc corrodes preferentially to the underlying steel, thereby protecting the rod from rust and degradation. The clear chromate conversion coating applied over the zinc layer further enhances this corrosion protection. This passivation treatment seals the zinc, improves its resistance to white rust, and provides an attractive, uniform appearance. The "clear" designation implies a virtually colorless finish, which integrates seamlessly into various aesthetic requirements while providing superior protection in demanding environments such as those encountered by service bodies, truck boxes, and trailers.
Integration with Buyers Products LL90003 Compression Latch
This 28.60-inch rod is specifically engineered for optimal compatibility and performance when paired with the Buyers Products LL90003 compression latch. The LL90003 is a premium compression latch, meaning it not only secures the door but also actively pulls it inwards, compressing the door seal against the frame. This compression action offers several significant benefits:
- Superior Sealing: It ensures a continuous, tight seal around the entire perimeter of the door, effectively preventing the ingress of water, dust, and other contaminants. This is particularly crucial for protecting sensitive equipment or cargo in outdoor or harsh industrial environments.
- Vibration Dampening: By creating a positive compression force, the latch minimizes door vibration and rattling, which is vital for applications on moving vehicles like trucks and trailers, reducing noise and preventing premature wear of components.
- Enhanced Security: The compressed state adds an extra layer of resistance against tampering and prying, as the door is held firmly against the frame, eliminating gaps that could be exploited.
The mechanical interface between the LL90003 latch and the rod is precisely designed to allow for smooth and reliable transmission of the latch's rotational or linear motion into the longitudinal displacement of the rod. This kinetic energy transfer is what enables the rod to extend and retract, engaging and disengaging the locking points at the door's edges.
Operational Mechanics of a 3-Point System
Understanding the full functionality of this rod requires an appreciation of the complete 3-point system's operational mechanics. When the central compression latch (LL90003) is actuated by its handle or key, an internal mechanism translates this action into a linear movement of the rods. For a 60-inch enclosure, two 28.60-inch rods, positioned vertically, would typically be connected to the central latch. When the latch is moved to the "locked" position, both rods extend simultaneously, pushing their respective ends into keepers, cams, or strike plates located at the top and bottom interior edges of the door frame. Conversely, when the latch is moved to the "unlocked" position, the rods retract, disengaging from these strike points and allowing the door to open.
The terminal ends of the rods are often configured with specific profiles, such as a square, round, or angled shape, designed to interface seamlessly with the corresponding locking hardware installed on the door frame. These receiving components (keepers, cams, or rollers) are critical for securing the rod ends and completing the locking circuit. Precision in the design and installation of these components ensures not only robust locking but also smooth operation and minimal wear over time. The "three points" of the system typically refer to the central latch mechanism itself, and the two points where the rods engage with the door frame, providing a comprehensive and distributed locking force.
Applications and Environmental Suitability
The versatility and robustness of this 28.60-inch rod, combined with a 3-point latch system, make it suitable for a wide array of demanding applications:
- Service Bodies and Truck Boxes: These applications require maximum security for valuable tools and equipment, often exposed to harsh weather conditions and constant vibration on the road. The 3-point system provides anti-theft capabilities and weatherproof sealing.
- Trailers (Utility, Cargo, RV): Ensuring cargo security and protection from the elements during transit is paramount. The compression feature prevents door rattling and improves seal integrity, contributing to a quieter ride and better-protected contents.
- Industrial and Commercial Cabinets: For securing electrical panels, control cabinets, storage units, or outdoor enclosures where security, dust, and moisture protection are critical.
- Emergency Vehicle Compartments: Reliable and quick access with superior security is essential for fire trucks, ambulances, and police vehicles.
- Off-Highway and Construction Equipment: Protecting access to engine compartments, toolboxes, and utility panels on heavy machinery that operates in extreme conditions.
The zinc-plated clear finish ensures that the rod can withstand exposure to various environmental stressors, including moisture, road salts, chemicals, and UV radiation, without compromising its structural integrity or operational performance. This makes it an ideal choice for both interior and exterior applications where durability and resistance to corrosion are non-negotiable.
Installation Considerations and System Optimization
Proper installation of the 28.60-inch rod within a 3-point latch system is crucial for achieving its intended performance. Key considerations include:
- Accurate Measurement: While the rod is pre-cut to 28.60 inches, precise measurement of the door panel and frame is necessary to ensure proper alignment of the central latch and the upper/lower keepers. Any misalignment can lead to binding, excessive wear, or compromised locking efficacy.
- Rod Guides and Retainers: To ensure smooth operation and prevent rod deflection, especially on longer door panels or under dynamic conditions, intermediate rod guides or retainers should be used. These components help maintain the rod's linear path during extension and retraction.
- Keeper/Cam Selection: The design of the keepers or cams at the top and bottom of the door frame must be compatible with the rod's end profile and provide robust engagement. Adjustable keepers can facilitate fine-tuning of the compression and alignment.
- Latch Mounting: The Buyers Products LL90003 compression latch must be securely mounted to the door panel, with appropriate reinforcement if necessary, to withstand the forces exerted during operation and locking.
- Gasket Integration: For optimal sealing, the door gasket should be properly specified, installed, and integrated with the compression mechanism of the LL90003 latch, ensuring a continuous seal without gaps.
- Maintenance: While designed for low maintenance, periodic inspection for wear, proper lubrication of moving parts (if applicable for the specific latch and rod interface), and verification of alignment can extend the system's lifespan and ensure consistent performance.
The 28.60-inch length is specifically tailored for 60-inch enclosures. This suggests an engineering design where the central latch is positioned to allow symmetric or near-symmetric rod lengths to reach the top and bottom of the door. Slight variations in enclosure height or latch placement may necessitate minor adjustments in the overall system design or the selection of compatible hardware to accommodate optimal throw and engagement.
Advantages of a Comprehensive System Approach
Choosing this individual rod as part of a complete system designed by reputable manufacturers like Buyers Products ensures a synergistic interaction between all components. This comprehensive approach yields:
- Guaranteed Compatibility: Components are designed to work together seamlessly, eliminating guesswork and potential fitment issues.
- Optimized Performance: The system is engineered for maximum efficiency in security, sealing, and operational smoothness.
- Reliable Supply Chain: Access to replacement parts and consistent quality through established distribution channels.
- Reduced Engineering Time: Fabricators can integrate proven components, reducing the need for custom design and testing.
The investment in a high-quality 3-point locking system, utilizing components like this 28.60-inch rod, translates into significant long-term benefits. These include enhanced asset protection, reduced maintenance costs due to component longevity, improved operational safety, and compliance with industry standards for enclosure security and environmental sealing.
In conclusion, the 28.60-inch individual rod for use in a 3-Point Latch System for 60-inch enclosures is far more than a simple piece of metal. It is a precisely engineered, durable, and corrosion-resistant component critical to the functionality of an advanced security and sealing solution. Its carbon steel construction, combined with a zinc-plated clear finish, ensures reliability in demanding environments. When integrated with the Buyers Products LL90003 compression latch, this rod facilitates a robust, multi-point locking mechanism that provides superior protection against theft, enhanced sealing against environmental elements, and a quiet, rattle-free operation for a wide range of industrial and vehicular applications. Its selection and proper installation are fundamental to maximizing the security, longevity, and overall performance of the enclosure.
