Buyers Products Snapper Pins are used as a convenient way to fasten accessories on truck equipment. Snapper lock pins join the benefits of a pin and cotter combination in a single assembly. Simply pull the wire loop over the pin to lock it in place. It quickly releases for easy removal. Snapper pins are yellow zinc-plated for corrosion resistance.
Specifications
| Clearance (in.) | 1-1/2 |
|---|---|
| Pin Dia (in.) | 1/4 |
| Usable Length (in.) | 3-1/2 |
Precision Engineered Snapper Pins for Robust Fastening Solutions

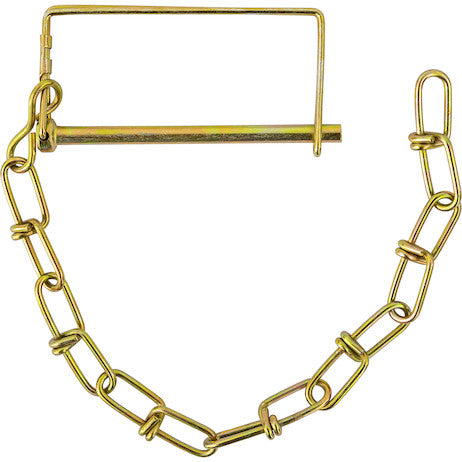

The Snapper Pin, specified with a 1/4-inch diameter, 3-1/2-inch usable length, and a 12-inch chain lanyard, represents a highly refined solution for securing components in dynamic and demanding environments. Designed by Buyers Products, this fastening device transcends the limitations of traditional pin and cotter systems, offering a robust, efficient, and secure method for accessory attachment on a wide array of truck equipment and industrial applications. Its engineering is focused on delivering a reliable, user-friendly, and durable product that withstands the rigors of heavy-duty operation while ensuring operational efficiency.
Mechanical Design and Operational Principle
At its core, the Snapper Pin integrates a meticulously engineered pin body with an innovative, self-locking wire loop mechanism. The pin body, a precisely machined component, features a solid shaft designed to pass through pre-drilled holes in mating parts. The key differentiating feature is the integrated "snapper" mechanism. This consists of a high-grade spring steel wire loop, strategically positioned at one end of the pin, which is designed to pivot and engage with a groove or shoulder on the pin's shaft. When the pin is inserted through the components to be fastened, the wire loop is simply pulled over the end of the pin, leveraging its inherent spring tension to snap into a locked position. This action creates a positive mechanical lock, preventing unintentional disengagement. To release the fastener, the user merely pulls the wire loop back over the pin end, allowing for swift and effortless removal. This single-component design significantly streamlines the fastening process, eliminating the need for separate cotter pins, R-clips, or safety clips, thereby reducing assembly time and mitigating the risk of component loss or fumbling, particularly in challenging field conditions or low-light environments.
Advantages Over Traditional Methods
The Snapper Pin’s design offers substantial improvements over traditional methods. Conventional clevis pins or hitch pins often rely on secondary fasteners like cotter pins, which can be prone to bending, corrosion, or loss. The integrated wire loop of the Snapper Pin ensures that the locking mechanism is always present and functional. This system drastically reduces the number of components to handle, making installations and removals faster and more secure. Furthermore, the positive locking action of the snapper mechanism is inherently more resistant to vibration-induced loosening compared to loosely fitting cotter pins. This is crucial for applications in truck equipment where constant vibration and shock loads are prevalent, ensuring the integrity of the fastened connection throughout operational cycles.
Material Science and Surface Engineering
The selection of materials and surface treatments for the Snapper Pin is critical to its performance and longevity. Each component is chosen for its specific mechanical properties and resistance to environmental degradation.
High-Strength Steel Core
The main body of the Snapper Pin is fabricated from high-strength carbon steel. This material choice is paramount for providing the necessary tensile strength, yield strength, and shear strength required to withstand the significant forces encountered in heavy-duty applications. The 1/4-inch diameter pin, while seemingly small, is engineered to handle substantial shear loads when properly installed. The steel is typically cold-headed or precision-machined to achieve the specified dimensions and surface finish, ensuring consistent performance and compatibility with mating components. The precise metallurgical composition ensures that the pin resists deformation, bending, and fracture even under peak stress conditions.
Yellow Zinc Plating
A distinctive feature of the Buyers Products Snapper Pin is its yellow zinc-plated finish. This electroplated coating serves multiple critical functions beyond mere aesthetics. Yellow zinc plating provides superior corrosion resistance compared to unplated steel or even standard clear zinc plating. The zinc acts as a sacrificial anode; if the coating is scratched or compromised, the zinc corrodes preferentially to the underlying steel, thereby protecting the base metal from rust and oxidation. This is particularly vital for components exposed to diverse environmental elements such as moisture, road salts, chemicals, and abrasive particles, which are common in truck and outdoor equipment applications. The yellow chromate conversion layer further enhances this corrosion protection and gives the pin its characteristic gold-yellow hue, often used for easy identification of plated parts. This finish also contributes to the pin's resistance against minor abrasions and wear, prolonging its service life in harsh operating conditions.
Lanyard Construction
The integrated 12-inch chain lanyard is a practical yet crucial feature designed to prevent the loss of the Snapper Pin. The lanyard is typically constructed from galvanized or zinc-plated steel chain, ensuring its own resistance to corrosion and mechanical durability. The chain link design offers flexibility and strength, allowing the pin to remain tethered to the equipment even when removed, thus eliminating the common problem of misplaced fasteners. The attachment mechanism of the lanyard to the pin is engineered for high integrity, often involving a crimped or swaged fitting that ensures a secure, permanent connection, capable of withstanding repetitive flexing and pulling forces without detaching.
Dimensional Specifications and Critical Tolerances
The precise dimensions of the Snapper Pin are fundamental to its functionality, compatibility, and safety. Understanding these specifications is key for proper application and integration.
Pin Diameter (1/4 inch)
The 1/4-inch (6.35 mm) pin diameter is a standard size, ensuring compatibility with a wide range of commercially available components, such as receiver hitches, clevis mounts, and bracketry. Maintaining precise manufacturing tolerances for this diameter is critical. A slightly undersized pin could lead to excessive play, causing wear on both the pin and the mating hole, potentially leading to connection failure or accelerated fatigue. Conversely, an oversized pin would prevent proper insertion. Buyers Products ensures that the pin diameter adheres to tight industry standards, providing an optimal fit that minimizes slop while allowing for easy insertion and removal, even in painted or slightly corroded holes.
Usable Length (3-1/2 inch)
The "usable length" of 3-1/2 inches (88.9 mm) is a crucial specification, defining the maximum effective grip range of the fastener. This measurement refers to the distance from the underside of the pin's head to the point where the locking mechanism fully engages on the opposite side. It dictates the maximum thickness of material or combination of components that the pin can securely fasten. For example, a 3-1/2-inch usable length pin can securely hold components with a cumulative thickness up to, or slightly less than, 3-1/2 inches. This versatility makes it suitable for a variety of applications, from thin-walled brackets to thicker structural elements commonly found on truck bodies, trailers, and agricultural implements. Proper selection based on the grip length ensures that the locking mechanism fully engages, providing the intended security.
Overall Length and Head Design
While not explicitly listed beyond usable length, the overall length of the pin would include the head and the extended portion of the locking mechanism. The head of the Snapper Pin is typically a rounded or domed profile, designed to provide a positive stop against the first component, distribute load, and offer a smooth, snag-free surface. This design also facilitates gripping during insertion and removal.
Clearance (1-1/2 inch)
The specified "Clearance (in.)" of 1-1/2 inches (38.1 mm) is a critical consideration for the operational envelope of the Snapper Pin. This dimension typically refers to the minimum radial or axial space required around the pin's locking mechanism for its full and unobstructed operation. Specifically, it likely accounts for the swing radius of the wire loop as it engages and disengages. This means that when installing the pin, there must be at least 1-1/2 inches of clear space surrounding the locking end of the pin to allow the wire loop to be fully manipulated without obstruction. Failure to observe this clearance could impede proper locking, compromising the security of the connection. For example, if the pin is installed too close to an adjacent structural member or another component, the wire loop may not be able to fully open or close, preventing the positive lock. This specification ensures that the user can reliably engage and disengage the pin in various mounting configurations.

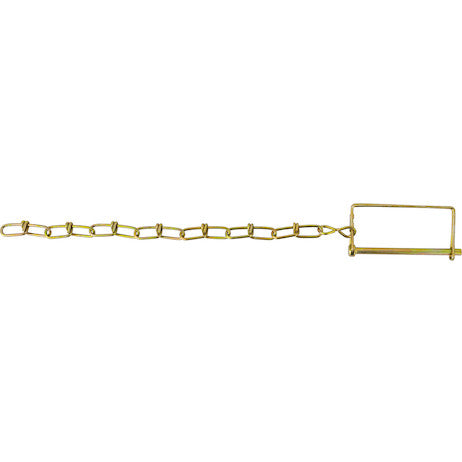

Lanyard Length (12 inch)
The 12-inch (304.8 mm) chain lanyard provides ample reach, allowing the pin to be temporarily set aside without fully detaching it from the equipment. This length is optimized to offer flexibility during maintenance or adjustment tasks, preventing the pin from being dropped or lost, particularly when working at height or in confined spaces. The lanyard’s length contributes significantly to operational safety and efficiency.
Advanced Application Contexts and Industry Versatility
The Snapper Pin's robust design and easy-to-use functionality make it an indispensable fastening solution across numerous demanding industries.

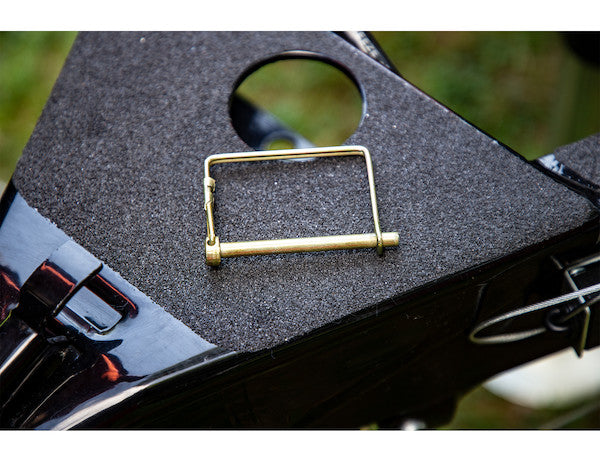

Heavy-Duty Truck Equipment
The primary application for this Snapper Pin is within the heavy-duty truck equipment sector. This includes, but is not limited to:
- Trailer Hitches and Towing Systems: Securing receiver hitches, pintle hooks, and various towing attachments.
- Snowplows and Spreaders: Fastening blades, wings, and spreading equipment components, where quick changes and secure locks are essential.
- Service Bodies and Utility Vehicles: Securing toolboxes, access panels, ladder racks, and other accessories that require frequent removal or adjustment.
- Lift Gates and Ramps: Ensuring the safe operation and secure positioning of hydraulic lift gates and loading ramps.
- Cargo Management: Temporary securing of tie-downs, chains, and other cargo control accessories.
Agricultural Machinery
In the agricultural sector, Snapper Pins are widely used for securing implements to tractors, adjusting the height of attachments, and fastening various components on planters, cultivators, sprayers, and harvesting equipment. The dusty, muddy, and often corrosive environment of farm operations makes the yellow zinc plating and robust locking mechanism particularly valuable.
Construction and Industrial
Construction sites and industrial facilities benefit from the Snapper Pin’s reliability for temporary rigging, securing scaffolding components, locking machinery guards, or fastening temporary fixtures. Its ease of use reduces downtime for setup and reconfiguration, while its strength ensures safety in dynamic work environments.
Marine and Recreational
For marine applications, such as securing boat covers, bimini tops, or certain rigging elements, the corrosion resistance of the yellow zinc plating is highly advantageous. Similarly, in recreational vehicle (RV) and outdoor equipment, these pins offer a reliable way to secure awnings, gear, and temporary structures.
Key Benefits Across Industries
Across all these sectors, the Snapper Pin delivers key benefits:
- Reliability: Positive locking mechanism ensures components remain secured.
- Speed: Quick attachment and detachment save valuable operational time.
- Safety: Reduces risk of unsecured components, enhancing worker safety.
- Versatility: Suitable for a broad range of temporary and semi-permanent fastening needs.
Installation Protocols and Maintenance Guidelines
Proper installation and routine maintenance are crucial for maximizing the performance and lifespan of the Snapper Pin.

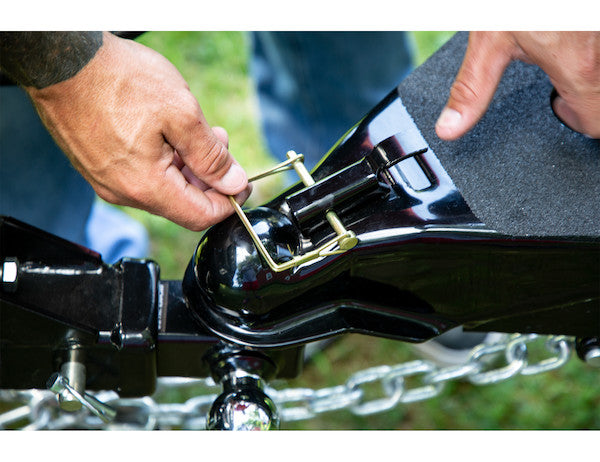

Insertion and Locking Procedure
Installation is straightforward:
- Align the pre-drilled holes of the components to be fastened.
- Insert the 1/4-inch diameter pin through the aligned holes. Ensure the pin passes completely through the combined material thickness, allowing the locking mechanism end to protrude sufficiently.
- With the pin fully inserted, pull the spring-loaded wire loop over the end of the pin and allow it to snap into its designated groove or shoulder. Verify that the loop is fully seated and provides a positive lock. Observe the 1-1/2-inch clearance requirement around the locking mechanism for unimpeded operation.

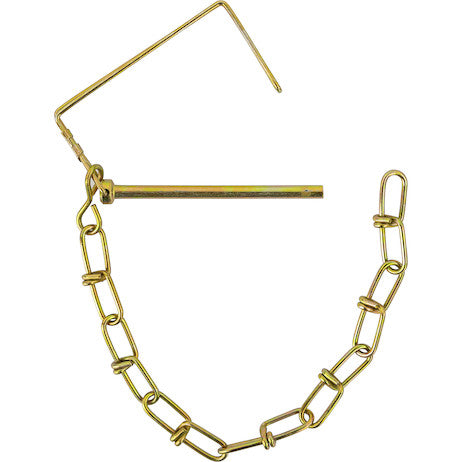

Removal Procedure
To remove the pin, simply reverse the locking action:
- Grasp the wire loop and pull it away from the pin's shaft, disengaging it from the groove.
- Once disengaged, pull the pin out of the fastened components.
Maintenance and Inspection
While designed for durability, routine inspection is recommended to ensure optimal performance:
- Visual Inspection: Periodically check the pin body for signs of bending, deformation, or excessive wear. Inspect the wire loop for signs of fatigue, cracks, or loss of spring tension.
- Corrosion Check: Examine the yellow zinc plating for deep scratches or areas where corrosion might be initiating. While the plating offers excellent protection, extreme abrasion can expose the base metal.
- Functionality Test: Confirm that the wire loop engages and disengages smoothly and securely.
Quality Assurance, Testing, and Compliance
Buyers Products adheres to stringent quality control measures throughout the manufacturing process of the Snapper Pin to ensure its reliability and performance meet industry expectations.
Manufacturing Processes
The manufacturing typically involves cold heading or precision machining of the pin body, followed by careful forming of the spring wire loop. The yellow zinc plating process is meticulously controlled to ensure uniform thickness, adhesion, and consistent corrosion resistance properties across all units. These processes are critical for producing components that meet precise dimensional specifications and mechanical strength requirements.
Performance Testing
While specific testing methodologies may vary, Snapper Pins are generally subjected to a range of performance tests:
- Shear Strength Testing: Evaluates the pin's ability to resist forces that attempt to cut it, simulating direct stress in application.
- Pull-Out Resistance: Verifies the integrity of the locking mechanism under axial load.
- Fatigue Testing: Assesses the durability of the spring wire loop and its ability to withstand numerous engagement and disengagement cycles without failure.
Corrosion Resistance Testing
The yellow zinc plating's effectiveness is often quantified through standardized salt spray tests (e.g., ASTM B117), which expose the plated parts to a corrosive saltwater mist to simulate accelerated environmental aging. This ensures the coating provides the expected level of protection against rust and degradation in real-world conditions.
Industry Standards
Buyers Products components generally comply with relevant industry standards for materials, dimensions, and finishes, ensuring interoperability and consistent quality.
Strategic Advantages and Return on Investment
Investing in Buyers Products Snapper Pins offers significant strategic advantages and a compelling return on investment for businesses and operators.
Operational Efficiency
The inherent ease and speed of use translate directly into reduced labor time for attaching, detaching, or adjusting equipment. This increased operational efficiency minimizes downtime for maintenance or configuration changes, allowing for greater productivity and faster project completion rates.
Enhanced Safety and Security
The positive locking mechanism provides a high degree of fastening security, significantly reducing the risk of accidental detachment of critical components. This directly contributes to enhanced workplace safety, preventing potential accidents or damage that could arise from unsecured equipment.
Durability and Longevity
Constructed from high-strength steel and protected by robust yellow zinc plating, these Snapper Pins are built for longevity. Their resistance to corrosion, wear, and mechanical stress means a longer service life, reducing the frequency and cost of replacement.
Lanyard for Loss Prevention
The integrated 12-inch chain lanyard is a simple yet profoundly effective feature for preventing component loss. By keeping the pin tethered to the equipment, it eliminates the common frustration and cost associated with misplaced or lost fasteners, thereby maintaining operational continuity.
Versatility and Adaptability
The standardized dimensions (1/4-inch diameter, 3-1/2-inch usable length) and robust design make this Snapper Pin highly adaptable to a wide range of applications across various industries, offering a versatile solution for diverse fastening requirements.
Conclusion: The Indispensable Snapper Pin for Demanding Environments
The Snapper Pin, with its 1/4-inch diameter, 3-1/2-inch usable length, and 12-inch chain lanyard from Buyers Products, stands as a testament to intelligent engineering in fastening technology. It offers a superior alternative to traditional fastening methods by combining speed, security, and durability in a single, user-friendly unit. From the carefully selected high-strength steel to the protective yellow zinc plating and the practical loss-prevention lanyard, every aspect of this pin is designed for optimal performance in the most demanding truck equipment and industrial environments. Its precise dimensions, including the critical 1-1/2-inch clearance for operation, ensure seamless integration and reliable function. For operations where efficiency, reliability, and safety are paramount, this Snapper Pin represents an indispensable component, providing a dependable and cost-effective solution for securing valuable assets and ensuring operational continuity.
