3039693 - Class 5 44 Inch Unpainted Service Body Hitch Receiver With 2-1/2 Inch Receiver Tube (No Mounting Plates)

The Class 5 Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube from Buyers Products is rated up to 20,000 lb. It has a black powder-coated finish for corrosion resistance. The receiver is available in 44 in. or 62 in. lengths. The 44 in. model is sold with or without mounting plates, and is black powder coated or available unpainted. The ones sold without mounting plates have no rating listed because the installer needs to fabricate their own mounting brackets. The 62 in. model is sold with standard or tall mounting plates to suit different bumper styles. Plates ship unwelded so you can position them to fit your specific application. All models accept 2-1/2 in. hitches and accessories. Those that come with mounting plates also include a 5/8 in. hitch pin with cotter.

Specifications

Technical Overview: Class 5 44-Inch Unpainted Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube (No Mounting Plates)

This Class 5 44-Inch Unpainted Service Body Hitch Receiver, featuring a 2-1/2 Inch Receiver Tube, represents a specialized and highly robust component designed for professional-grade towing applications on service body vehicles. Manufactured by Buyers Products, a reputable name in truck and trailer equipment, this receiver unit is engineered to serve as the foundational element for custom, heavy-duty towing systems. Unlike pre-configured hitch assemblies, this particular model is supplied without mounting plates and in an unpainted condition, offering an unparalleled degree of customization for installers and fabricators who require precise integration with unique vehicle chassis and body configurations.

Understanding Class 5 Towing Capabilities

The designation "Class 5" signifies the highest tier of conventional trailer hitch ratings as defined by SAE J684 standards. A Class 5 hitch is engineered to handle Gross Trailer Weight (GTW) typically exceeding 10,000 lbs, with some applications reaching up to 20,000 lbs or more, and corresponding Tongue Weight (TW) values up to 2,000-2,500 lbs. This receiver tube itself is inherently designed for such formidable loads, accommodating the larger and more robust 2-1/2 inch hitch shank common in heavy-duty towing. It is crucial to distinguish that while the receiver tube is built to Class 5 specifications, the final towing capacity of the entire hitch system—especially for this model supplied without mounting plates—is entirely dependent on the structural integrity and engineering precision of the custom mounting brackets and their integration with the vehicle's frame. The initial description mentions a 20,000 lb rating for models supplied with mounting plates; for this unmounted version, the installer must ensure their fabricated system can safely support and validate such a rating.

The "Class IV" designation in some specifications might reflect a general category for substantial towing; however, the product's design intent, particularly with its 2-1/2 inch receiver tube and its potential for 20,000 lb GTW when properly mounted, positions it firmly within the Class 5 operational domain. This makes it an ideal choice for service vehicles regularly towing heavy equipment trailers, large dump trailers, or specialized commercial attachments that demand superior strength and durability beyond typical Class 3 or 4 requirements.

Advanced Design and Material Engineering

Carbon Steel Construction

At the core of this hitch receiver's robustness is its construction from high-quality carbon steel. Carbon steel is selected for its superior mechanical properties, including high tensile strength, excellent yield strength, and inherent ductility, which are critical for absorbing dynamic forces encountered during towing. Its inherent weldability also makes it the material of choice for custom fabrication projects, allowing experienced welders to create strong, durable connections between the receiver and custom mounting plates. The choice of carbon steel ensures that the primary load-bearing component of the hitch system can withstand the immense static and dynamic stresses associated with heavy-duty towing, contributing significantly to the overall safety and longevity of the towing setup.

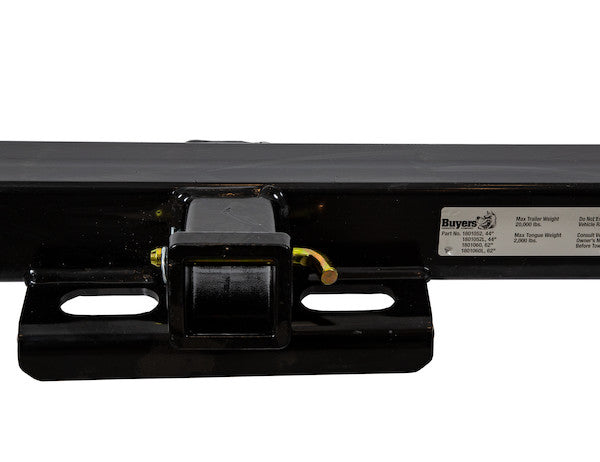

2-1/2 Inch Receiver Tube

The 2-1/2 inch receiver tube is a hallmark of heavy-duty towing equipment. This larger internal dimension (approximately 2.50 inches by 2.50 inches) accommodates robust hitch accessories with commensurately larger shanks. Compared to the more common 2-inch receiver, the 2-1/2 inch tube offers several engineering advantages:

• Increased Strength: A larger cross-section typically translates to greater material volume, enhancing the tube's resistance to bending, torsion, and shear forces. This is particularly vital when managing high tongue weights and uneven trailer loads.
• Reduced Play: While still allowing for proper insertion, the larger shank size of Class 5 accessories often results in a tighter fit within the receiver, minimizing slack and improving overall towing stability, especially during acceleration, braking, and cornering.
• Compatibility: It is designed to integrate seamlessly with the wide array of heavy-duty ball mounts, pintle hooks, weight distribution hitches, and specialized attachments engineered for Class 5 applications. This ensures maximum versatility for diverse towing tasks.

Unpainted (Plain) Finish: Customization and Corrosion Protection

The "unpainted" or "plain" finish is a deliberate design choice that provides significant flexibility for professional installers and end-users. This raw finish allows for complete customization of the corrosion protection system, which is paramount for components exposed to harsh environmental conditions, road salts, moisture, and abrasive debris. The absence of a factory applied coating means that:

• Optimal Welding Preparation: It provides a clean, bare metal surface, which is ideal for high-quality welding. Eliminating the need to grind off existing paint or coatings streamlines the fabrication process and ensures stronger, more consistent weld penetration.
• Tailored Corrosion Protection: The installer can choose a protective coating system that best suits the specific operational environment and aesthetic requirements. Options include high-performance epoxy primers, zinc-rich coatings, durable polyurethane topcoats, industrial enamel paints, or even hot-dip galvanization for extreme corrosion resistance. This tailored approach allows for a superior finish compared to a standard factory coating, potentially extending the service life of the component.
• Color Matching: For fleet operators or individuals with specific aesthetic preferences, the unpainted surface facilitates seamless color matching with the vehicle's existing paint scheme or specific branding requirements.

However, it is critically important to understand that the unpainted finish necessitates immediate and thorough application of a protective coating post-fabrication. Carbon steel, when exposed to oxygen and moisture, will rapidly oxidize and corrode. Neglecting this step will compromise the structural integrity and aesthetic appeal of the receiver over time. Comprehensive surface preparation, including degreasing and abrasive blasting, followed by proper primer and topcoat application, is essential to ensure long-term durability.

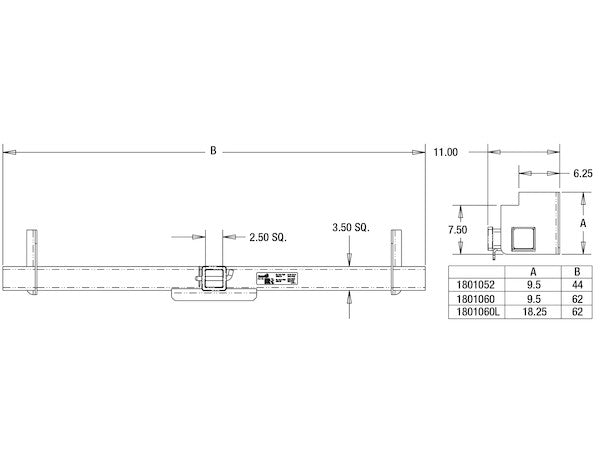

44-Inch Depth for Service Body Integration

The 44-inch depth (length) of this receiver is specifically optimized for integration with various service body designs. Service bodies typically feature specialized compartments and utility access points, and the 44-inch length provides sufficient structural reach to connect to the vehicle's main frame rails while clearing potential obstructions from the body's rear overhang, bumper, and utility systems. This length facilitates optimal load distribution across the frame when properly mounted, preventing localized stress concentrations and ensuring stable towing dynamics. Engineers designing the mounting system must consider not only the structural connection points but also the clearances required for trailer hitches, safety chains, electrical connections, and any other rear-mounted accessories or features of the service body.

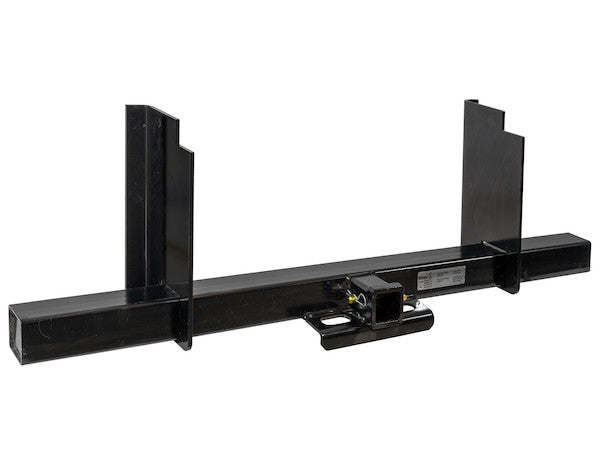

The Critical Role of Custom Fabrication (No Mounting Plates)

The most defining characteristic of this product is its provision without mounting plates. While this offers unparalleled adaptability, it places a significant engineering and fabrication responsibility on the installer. The absence of pre-engineered mounting brackets means that the ultimate strength rating, safety, and compliance with industry standards rest entirely on the quality and design of the custom-fabricated system. This is why "no rating is listed" for these models, as the receiver's performance is intrinsically linked to the mounting infrastructure created by the installer.

Engineering Requirements for Mounting Plates

Fabricating mounting plates for a Class 5 hitch receiver is not a task for amateur mechanics. It demands a thorough understanding of mechanical engineering principles, material science, and welding metallurgy. Key considerations include:

• Load Path Analysis: The fabricated brackets must be designed to effectively transfer the significant longitudinal (towing force), vertical (tongue weight), and lateral (sway, turning) loads from the receiver tube to the robust sections of the vehicle's chassis frame. This requires careful analysis of stress distribution to avoid creating weak points or introducing excessive stress concentrations into the frame.
• Material Selection: Mounting plates should typically be fabricated from high-strength structural steel, such as ASTM A36 or A572 Grade 50, with appropriate thickness to resist deformation under maximum specified loads. The yield strength and tensile strength of the plate material must be compatible with the forces involved in Class 5 towing.
• Bracket Geometry and Reinforcement: The design of the brackets must incorporate features such as gussets, stiffeners, and appropriate radii at corners to prevent stress risers and enhance rigidity. Boxed sections or multi-plate designs often offer superior strength and torsional resistance compared to simple flat plates.
• Frame Attachment Points: The attachment points to the vehicle's frame are critical. These must be located in areas of high structural integrity, ideally utilizing existing frame cross-members or reinforced sections. Any modifications to the vehicle frame itself must be executed with extreme care and often require consultation with the vehicle manufacturer to ensure no compromise to the chassis integrity or warranty.
• Compliance: The entire fabricated system must comply with all applicable federal, state, and local regulations, including SAE J684 towing standards. For commercial vehicles, additional regulatory body certifications might be necessary.

Advanced Welding Procedures

Given the safety-critical nature of towing components, welding procedures for attaching the custom mounting plates to the receiver and the vehicle frame must meet the highest standards. This necessitates:

• Qualified Welders: All welding must be performed by certified welders proficient in the specific welding processes (e.g., GMAW, SMAW) and materials being used.
• Proper Joint Design: Weld joints must be designed for full penetration and adequate throat thickness to ensure maximum strength. Beveling, root passes, and filler material selection are crucial.
• Pre- and Post-Weld Treatment: Proper pre-heating may be required for thicker materials or certain steel alloys to prevent cracking, especially in the heat-affected zone (HAZ). Post-weld cooling control and, in some cases, stress relief can also be vital.
• Quality Assurance: Visual inspection of welds for defects (e.g., porosity, undercut, lack of fusion) is a minimum requirement. For critical applications, non-destructive testing (NDT) methods such as magnetic particle inspection (MPI) or ultrasonic testing (UT) may be advisable to verify weld integrity.

Fastening Methods and Torque Specifications

If the mounting plates are bolted to the vehicle frame rather than welded, the choice of fasteners is equally critical:

• Bolt Grade: Only high-grade bolts (e.g., SAE Grade 8 or metric Class 10.9/12.9) should be used, specified for their high tensile and shear strength.
• Nut and Washer Selection: Matching grade nuts (e.g., Grade C or G) and hardened washers (flat and lock washers, or prevailing torque nuts) are essential to prevent loosening under vibration and load.
• Torque Specifications: All fasteners must be torqued to the manufacturer's specified values using calibrated tools to ensure proper clamping force and prevent premature fatigue or failure.

Installation and Safety Protocols

The installation of this Class 5 hitch receiver requires a meticulous approach to ensure both functionality and, most importantly, safety.

Pre-Installation Assessment

Before any fabrication begins, a comprehensive assessment of the service body vehicle is necessary. This includes:

• Frame Inspection: Thorough examination of the vehicle's frame for any existing damage, corrosion, or previous modifications that could compromise its structural integrity.
• Component Clearance: Identifying potential interferences with fuel tanks, exhaust systems, electrical wiring, brake lines, spare tire mounts, and suspension components. Adequate clearance must be maintained for all vehicle systems to function correctly and safely.
• Weight Distribution: Considering the vehicle's Gross Axle Weight Ratings (GAWRs) and Gross Vehicle Weight Rating (GVWR) to ensure that the added weight of the hitch receiver and tongue weight of the trailer will not overload the vehicle.

Precise Alignment and Positioning

The receiver tube must be precisely aligned and positioned to ensure correct trailer coupling and tracking. This involves:

• Horizontal Alignment: Ensuring the receiver tube is perfectly parallel to the vehicle's centerline to prevent uneven tire wear on the trailer and promote stable towing.
• Vertical Alignment: Positioning the receiver at an appropriate height to achieve a level trailer attitude when coupled, which is crucial for safe weight distribution and brake performance.

Post-Installation Inspection and Validation

Following fabrication and installation, a thorough inspection is paramount:

• Visual Weld Inspection: A detailed visual check of all welds for quality and integrity.
• Fastener Check: Verification that all bolts are correctly torqued and secured.
• Functional Check: Ensuring proper fitment of hitch accessories, full range of motion for electrical connections and safety chains, and no interference with vehicle operation.
• Load Testing (Optional but Recommended): For critical Class 5 applications, particularly custom fabrications, professional load testing or engineering validation may be advisable to confirm the system's capacity and integrity before actual use.

Ongoing Maintenance and Responsibility

Regular inspection and maintenance are essential for all towing equipment. The owner/operator is responsible for:

• Periodic Inspection: Regularly checking for signs of wear, fatigue cracks, corrosion, and loose fasteners on the receiver, custom mounting plates, and frame attachment points.
• Protective Coating Integrity: Maintaining the integrity of the applied corrosion protection layer, promptly repairing any chips or abrasions.
• Adherence to Ratings: Strictly adhering to the established towing capacities (GTW and TW) determined by the properly fabricated and validated mounting system. Exceeding these limits can lead to catastrophic failure.

It is unequivocally the installer's and end-user's responsibility to ensure that the custom mounting system is professionally designed, fabricated, and installed to safely support the intended Class 5 towing loads. Buyers Products provides a high-quality, robust receiver tube, but its ultimate performance and rating are contingent upon the expertise applied in its integration.

Applications in Service Body Vehicles

This Class 5 44-Inch Unpainted Service Body Hitch Receiver is indispensable for a wide range of industries and applications where heavy-duty service vehicles are routinely deployed:

• Construction: Towing mini excavators, skid steers, concrete mixers, scaffold trailers, and large material trailers to job sites.
• Utilities (Electric, Gas, Water): Hauling specialized equipment, cable reels, pipe trailers, and mobile generators.
• Landscaping & Tree Services: Transporting heavy chippers, stump grinders, large utility trailers for debris, and specialized tree care equipment.
• Municipal Services: Supporting public works vehicles for road maintenance equipment, portable generators, or emergency response trailers.
• Specialized Trades: Plumbers, electricians, welders, and other contractors needing to transport heavy tools, machinery, or materials in dedicated enclosed cargo trailers.

The robust towing capability provided by a properly integrated Class 5 receiver significantly enhances the operational versatility and efficiency of these service vehicles, allowing them to manage larger and heavier loads with confidence and safety, thereby reducing the need for separate transport vehicles and optimizing workflow.

Compatibility and Accessories

The 2-1/2 inch receiver tube ensures broad compatibility with a comprehensive range of heavy-duty towing accessories. This includes various ball mounts for different ball sizes and drop/rise requirements, pintle hooks for military or commercial coupling systems, combination hitches, and specialized weight distribution systems designed for Class 5 loads. Since this model is supplied without mounting plates, it also does not include a hitch pin. Installers will need to source a high-quality 5/8 inch hitch pin and cotter, rated for Class 5 applications, to secure hitch accessories. Additionally, appropriate safety chains, trailer wiring harnesses, and brake controllers (often required for trailers exceeding certain weight thresholds) must be installed to complete a safe and compliant towing system.

Conclusion

The Class 5 44-Inch Unpainted Service Body Hitch Receiver with 2-1/2 Inch Receiver Tube from Buyers Products is a premium, heavy-duty component designed for the most demanding towing applications on service body vehicles. Its unpainted finish and lack of pre-attached mounting plates underscore its purpose as a highly customizable solution, empowering skilled fabricators to create bespoke towing systems perfectly matched to specific vehicle chassis and operational requirements. While offering the inherent strength and capacity for Class 5 loads up to 20,000 lbs, its ultimate rating and safety are directly dependent on the professional engineering, material selection, and precision welding involved in the custom mounting system. For professionals seeking a robust foundation for a truly integrated and high-capacity towing setup, this receiver tube provides the essential starting point for achieving unparalleled towing performance and reliability in demanding commercial environments.
