These heavy-duty shocks are used in the production of Buyers Products Truck Tool Boxes, and can be used as a universal aftermarket part to replace broken or damaged shocks on a variety of applications like cabinets, chests, trucks, trailers, and RVs.
Select the length and strength rating best suited to your application. Note: Part number 3028786 includes a 10 mm ball stud. Ball studs are sold separately on all other models (see "Accessories" below).
Specifications
| Ball Socket Diameter (mm) | 10.00 |
|---|---|
| Compressed Length (in.) | 8.00 |
| Cylinder Diameter (mm) | 15.00 |
| Extended Length (in.) | 12.00 |
| Force Rating (lbs) | 80 |
| Rod Diameter (mm) | 6.00 |
| Stroke | 4.00 |

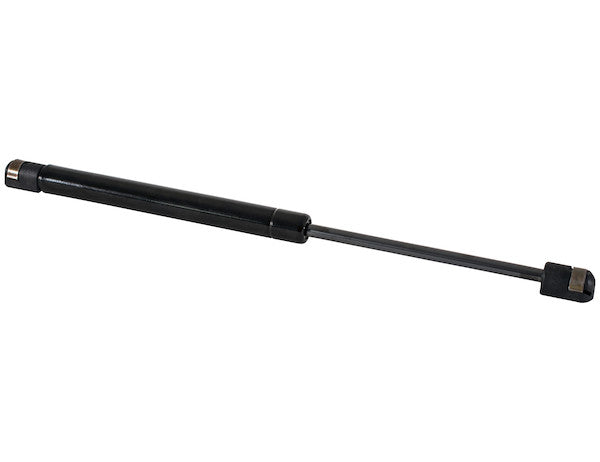

Advanced Technical Overview: The 80 Pound Gas Spring with 10mm Ball Stud (12 Inches Extended / 8 Inches Compressed)
The Buyers Products 80 Pound Gas Spring, featuring a 10mm ball stud connection and precise dimensions of 12 inches extended length and 8 inches compressed length, represents a pinnacle of engineering for controlled motion applications. This heavy-duty gas spring, often referred to as a gas shock or strut, is meticulously designed to provide reliable, consistent, and effortless assistance in lifting and supporting various components. Its robust construction and specific operational characteristics make it an indispensable component across a broad spectrum of industrial, commercial, and recreational sectors. Understanding the intricate mechanics and material science behind this device illuminates its value proposition and suitability for demanding environments.
Engineering Principles and Operational Mechanics
At its core, this gas spring operates on fundamental pneumatic and hydraulic principles. The sealed cylinder contains pressurized inert nitrogen gas, which acts upon a piston rod assembly. When the gas spring is compressed, the piston displaces the gas, increasing its pressure and thus generating the resistive force. Conversely, during extension, the compressed gas expands, pushing the piston rod outwards with a controlled force. The specified 80-pound force rating indicates the nominal force exerted by the gas spring at its fully extended position, providing a powerful assist in lifting and holding loads. This force is critical for counterbalancing the weight of lids, covers, or access panels, making manual operation significantly easier and safer.
A key differentiator of this Buyers Products gas spring is its specific damping profile: dampened extension and undampened compression. During extension, an internal hydraulic fluid, typically a specialized oil, is forced through a precisely engineered orifice within the piston. This fluid resistance creates a controlled, smooth, and predictable extension speed, preventing abrupt or uncontrolled upward movement, which is vital for user safety and equipment longevity. This dampened extension characteristic minimizes slamming and provides a gradual, soft opening. In contrast, the undampened compression allows for rapid and uninhibited closure, which can be advantageous in applications where quick closure is necessary or where the closing force is externally managed. This dual operational characteristic optimizes both convenience and functional efficiency.
Precision Dimensions and Stroke Performance
The dimensional specifications are paramount for proper fitment and functionality. With an extended length of 12 inches and a compressed length of 8 inches, this gas spring offers a substantial 4-inch stroke (12 - 8 = 4 inches). The stroke length defines the total distance the piston rod travels, dictating the range of motion achievable for the application. Careful consideration of these lengths during design is crucial to ensure the gas spring does not over-extend or bottom out prematurely, which could lead to component damage or reduced lifespan. The cylinder diameter of 15.00 mm and rod diameter of 6.00 mm are precision-engineered to provide optimal structural integrity and internal volume for the gas and oil, balancing compactness with performance. The smaller rod diameter, relative to the cylinder, ensures sufficient gas volume for consistent force generation while maintaining a compact form factor.
Secure and Versatile Attachment: The 10mm Ball Stud
The integration of a 10mm ball stud, connected to a 10.00 mm ball socket diameter, provides a highly versatile and robust attachment interface. Ball stud connections are widely favored in dynamic applications due to their ability to accommodate angular misalignment and provide a smooth, articulating pivot point. This design allows for a degree of rotational freedom, minimizing stress on the gas spring and mounting points as the lid or door moves through its arc. The 10mm specification is a common industry standard, ensuring broad compatibility with existing mounting hardware and facilitating easy replacement or integration into custom fabrications. This secure, yet flexible, connection method contributes significantly to the gas spring's overall reliability and adaptability in diverse installation scenarios.
Materials Science and Durability
The longevity and consistent performance of a gas spring are heavily dependent on the quality of its constituent materials and manufacturing processes. The Buyers Products 80-pound gas spring is constructed from high-grade materials selected for their resistance to corrosion, wear, and fatigue. The cylinder typically utilizes robust steel, often treated with a durable finish to resist environmental degradation. The piston rod, a critical component, is usually made from high-strength steel that undergoes advanced surface treatments, such as nitride coating or hard chrome plating. These treatments enhance surface hardness, provide superior corrosion resistance, reduce friction, and extend the operational life of the seals. Precision-engineered seals, often made from specialized elastomers like nitrile rubber (NBR) or fluorocarbon (FKM) for high-temperature applications, are crucial for maintaining the gas and oil integrity within the cylinder, preventing leakage and ensuring consistent pressure. These material selections contribute to the heavy-duty designation, ensuring resilience in demanding operational conditions, from extreme temperatures to dusty or humid environments.
Performance Characteristics and Reliability
The 80-pound force rating, combined with the 12-inch extended and 8-inch compressed lengths, ensures optimal performance for medium to heavy lifting assistance. The consistent force output throughout the stroke, a hallmark of well-designed gas springs, guarantees predictable behavior. The dampened extension provides a controlled opening speed, typically measured in seconds, preventing rapid, uncontrolled movement that could lead to injury or damage. The un-dampened compression allows for quicker closure, which can be beneficial in applications where rapid access or secure fastening is required. Operational temperature ranges are also a critical performance characteristic; these gas springs are typically engineered to perform reliably across a wide range of ambient temperatures, from sub-zero conditions to elevated heat, without significant degradation in force output or damping properties. This broad operational window makes them suitable for global deployment in diverse climates.
Diverse Application Spectrum
The universal nature of the Buyers Products heavy-duty gas spring means its applications are extensive:
- Truck Toolboxes: As highlighted, this is a primary application. The gas spring provides effortless opening and secure holding of heavy toolbox lids, preventing accidental closure and ensuring safe access to tools. The 80-pound force is ideal for larger, loaded truck box lids.
- Cabinets and Chests: From industrial storage cabinets with heavy doors to recreational vehicle (RV) compartment doors and residential storage chests, the gas spring offers ergonomic assistance. It eliminates the need for manual propping mechanisms, providing a clean and efficient solution.
- Vehicular Applications (Trucks, Trailers, RVs): Beyond toolboxes, these gas springs are used in various vehicular contexts, including utility trailer lids, marine hatch covers, engine access panels on service vehicles, and storage compartment doors on RVs and campers. Their resistance to vibration and environmental factors makes them well-suited for mobile applications.
- Industrial Machinery: In manufacturing and processing environments, gas springs are deployed on machine guards, access doors for maintenance, and ergonomic workstation adjustments to lift and hold components, enhancing safety and operational efficiency.
- Furniture and Ergonomic Systems: For heavy furniture components, adjustable desks, or specialized ergonomic equipment, the 80-pound force can provide the necessary lift assist and controlled motion.
The adaptability stems from the standardized ball stud connection and the readily available force and length configurations, making it an ideal aftermarket replacement part for a multitude of OEM applications.
Installation Best Practices and Safety Considerations
Proper installation is paramount to ensuring the maximum lifespan and performance of the gas spring. Key considerations include:
- Mounting Angle: Gas springs should ideally be mounted with the rod end facing downwards or at an angle, especially if the application involves extended periods of static hold. This orientation helps to keep the internal seals lubricated by the hydraulic oil, preventing premature wear and maintaining damping effectiveness.
- Alignment: Ensure that the mounting points are perfectly aligned to prevent side loading on the piston rod. Side loading introduces frictional forces that can damage the rod and seals, leading to premature failure and compromised performance. The 10mm ball stud helps mitigate minor misalignments, but gross misalignments must be avoided.
- Secure Fastening: All mounting hardware must be appropriately torqued to prevent loosening under vibration or operational stresses.
- Clearance: Verify sufficient clearance throughout the entire range of motion to prevent the gas spring from binding or contacting other components.
- Safety: Always use appropriate personal protective equipment (PPE) during installation. Gas springs are pressurized devices and should be handled with care. Never attempt to open or modify a gas spring, as this can lead to serious injury.
Maintenance and Longevity
One of the significant advantages of the Buyers Products gas spring is its virtually maintenance-free operation. As a sealed unit, it requires no lubrication or periodic adjustments. However, regular visual inspection is recommended to ensure optimal performance and identify potential issues early. This includes checking for:
- Rod Damage: Inspect the piston rod for any signs of pitting, scratches, corrosion, or bending. Even minor surface imperfections can compromise the seal and lead to gas or oil leakage.
- Leakage: Look for any signs of oil residue around the rod seal or the end fittings, which would indicate a leak and impending failure.
- Mounting Point Integrity: Ensure that the ball studs and sockets are secure and free from excessive wear or play.
- Force Degradation: Over time, some gas springs may experience a slight reduction in force due to gradual gas loss, though high-quality units like these are designed to minimize this. If a noticeable reduction in lifting assistance occurs, replacement may be necessary.
Adhering to these simple inspection guidelines can help maximize the operational lifespan of the gas spring and maintain its high level of reliability.
The Buyers Products Commitment to Quality
Buyers Products is renowned for its commitment to producing heavy-duty, reliable components, and this 80-pound gas spring is no exception. Utilized in their own line of truck toolboxes, these gas springs are rigorously tested to meet stringent performance and durability standards. The careful selection of materials, precision manufacturing processes, and attention to detail in engineering the dampened extension and undampened compression characteristics ensure a product that delivers consistent performance over its operational life. Choosing a Buyers Products gas spring provides the assurance of a high-quality, dependable solution for critical motion control applications.
Conclusion: A Robust Solution for Controlled Motion
The Buyers Products 80 Pound Gas Spring with a 10mm Ball Stud, boasting 12 inches extended and 8 inches compressed dimensions, is a technically superior component designed for robust performance in a wide array of applications. Its specific force rating, precise stroke, and carefully engineered damping profile ensure safe, smooth, and effortless operation for heavy lids and access panels. The universal 10mm ball stud connection enhances its adaptability, while the high-quality materials and construction guarantee exceptional durability and a long service life. For applications demanding reliable lift assistance, controlled motion, and minimal maintenance, this heavy-duty gas spring stands as an exemplary choice, delivering both ergonomic benefits and enhanced safety across industrial, commercial, and recreational environments.
