Heavy-duty lever-action latch provides leverage for applications like toolboxes and other small compartment doors. Draw latches pull surfaces together and hold them closed. Also known as tension latches. For use with combination lock or padlock. (sold separately)
Specifications
| Finish | Smooth |
|---|---|
| Latch Style | Draw Latch |
| Length (in.) | 6.625 - 7.375 |
| Material | Stainless Steel |
| Stiker or Bracket Included (y/n) | Yes |
| Width (in.) | 1.60 |
Advanced Technical Overview: 6" Heavy Duty Stainless Steel Adjustable-Grip Draw Latch
This comprehensive technical overview details the design, material properties, operational mechanics, and diverse applications of our 6-inch Heavy Duty Stainless Steel Adjustable-Grip Draw Latch. Engineered for superior performance in demanding environments, this latch combines robust construction with precise adjustability to deliver unparalleled security, sealing integrity, and operational longevity across a multitude of industrial and commercial sectors.
Material Excellence: The Stainless Steel Advantage
The selection of industrial-grade stainless steel as the primary construction material for this draw latch is a deliberate engineering choice, providing a foundational level of performance that differentiates it from conventional hardware. Stainless steel, particularly common grades such as 304 or 316 (depending on specific environmental requirements, with 316 offering enhanced corrosion resistance to chlorides), exhibits a unique combination of mechanical strength, ductility, and exceptional resistance to various forms of degradation.
Fundamentally, stainless steel derives its remarkable corrosion resistance from a passive chromium-rich oxide layer that spontaneously forms on its surface when exposed to oxygen. This passive film is self-repairing, meaning that if scratched or damaged, it reforms, providing continuous protection against rust, oxidation, and discoloration. This characteristic makes the latch eminently suitable for applications in outdoor settings, marine environments where salt spray is prevalent, chemical processing plants, food and beverage industries requiring strict hygiene, and medical facilities where sterilization and resistance to aggressive cleaning agents are paramount.
Beyond its anticorrosive properties, stainless steel offers superior mechanical strength compared to other common metals, enabling the latch to withstand substantial tensile and shear forces without deformation or failure. This inherent strength contributes directly to the "Heavy Duty" designation, ensuring the latch maintains its structural integrity under significant operational loads, impact, and continuous use. Its hardness also provides excellent wear resistance, particularly at pivot points and contact surfaces, extending the operational lifespan of the component.
Furthermore, stainless steel exhibits excellent performance across a broad spectrum of temperatures, from cryogenic conditions to elevated heat exposures, without significant degradation in its mechanical properties. This thermal stability ensures reliable operation in environments subject to extreme temperature fluctuations. The non-porous and smooth finish inherent to stainless steel also facilitates easy cleaning and sterilization, preventing the accumulation of dirt, bacteria, and contaminants, a critical factor for hygienic applications.
Engineering the "Heavy Duty" Designation
The "Heavy Duty" characteristic of this draw latch is not merely a descriptive term but reflects a specific design philosophy focused on durability, load-bearing capacity, and resistance to arduous operational conditions. This is achieved through several key engineering considerations:
- Gauge and Section Thickness: The latch components are fabricated from substantial gauges of stainless steel, providing increased material cross-section at critical stress points. This enhances resistance to bending, torsion, and fatigue over extended cycles of operation.
- Robust Pivot Points: The lever action relies on robust pivot pins and bushings, designed to minimize friction and wear. These components are typically oversized and manufactured to precise tolerances, ensuring smooth actuation and preventing slop or play over time.
- Reinforced Structure: The overall geometry of the latch is optimized to distribute stress evenly, avoiding localized stress concentrations that could lead to premature failure. Strategic bends, flanges, and gussets are incorporated into the design to bolster its structural integrity.
- Fastener Interface: The mounting holes are designed for secure attachment, often accommodating larger diameter fasteners suitable for heavy-duty applications, ensuring a strong and stable connection to the mounting surface.
The combined effect of these design elements is a latch capable of enduring high levels of vibration, shock, and dynamic loads without compromising its locking integrity or mechanical function. This makes it an ideal choice for machinery, vehicles, and enclosures subject to harsh operational demands.
The Precision of Adjustable-Grip Mechanics
The "Adjustable-Grip" feature is a cornerstone of this latch's versatility and performance, providing a crucial mechanism for accommodating variability in application requirements and ensuring optimal closure force. This adjustability typically manifests through a threaded spindle or an equivalent cam-action mechanism integrated into the latch body or striker.
The primary function of the adjustable grip is to allow the user to precisely control the compression applied to the mating surfaces. This is vital in applications involving gaskets or seals, where consistent compression is necessary to achieve an effective environmental seal against dust, moisture, or EMI/RFI interference. The ability to fine-tune the grip length ensures that the correct amount of compression is applied to the gasket, preventing under-compression (which leads to leakage) or over-compression (which can damage the gasket and reduce its lifespan).
Furthermore, the adjustable grip compensates for manufacturing tolerances in panels, frames, and enclosure structures. It allows for the accommodation of slight misalignments or variations in panel thickness, ensuring a secure and flush closure even when components are not perfectly dimensioned. This flexibility simplifies installation and reduces the need for highly precise mating components, thereby lowering overall assembly costs.
The over-center lever action, characteristic of draw latches, works in conjunction with the adjustable grip to provide a positive locking engagement. Once the latch is closed past its center point, it creates a self-locking mechanism that resists unintentional opening due to vibration or shock. The adjustable grip fine-tunes this over-center engagement, allowing for customization of the closing effort and ensuring a firm, rattle-free closure. This inherent vibration resistance is a significant advantage in dynamic environments such as transportation vehicles, off-highway equipment, and vibrating machinery.
Operational Dynamics and Dimensions

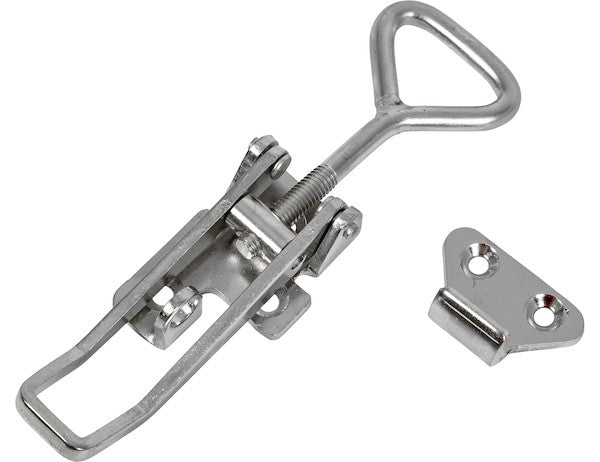

Operating as a tension latch, this device functions by engaging a hook-shaped arm on the main latch body with a corresponding striker (which is included, simplifying procurement and installation). As the lever is actuated, the arm pulls the two mating surfaces (e.g., a door and its frame) together, applying a compressive force. This action creates a secure seal and prevents relative movement between the surfaces.

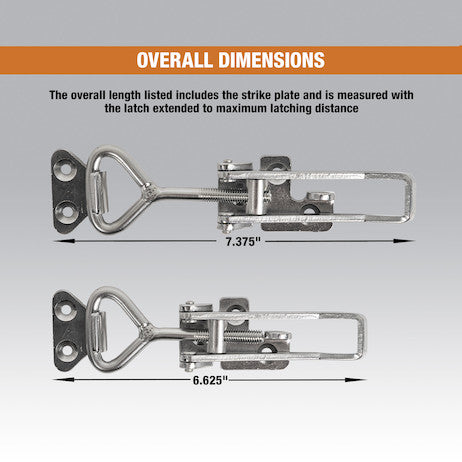

The specified length range of 6.625 - 7.375 inches indicates a nominal 6-inch draw latch with built-in variability to accommodate different installation parameters and desired grip lengths. This length dimension is critical for determining the appropriate spacing between the latch body and the striker plate, as well as ensuring adequate leverage for closure. The width of 1.60 inches provides a stable mounting footprint and contributes to the robust aesthetic and structural integrity of the latch.
The "Smooth" finish not only contributes to the aesthetic appeal but also serves practical purposes, facilitating easy cleaning and reducing the propensity for snagging or accumulation of debris, which is crucial in hygienic or high-visibility applications.
Integrated Security Features

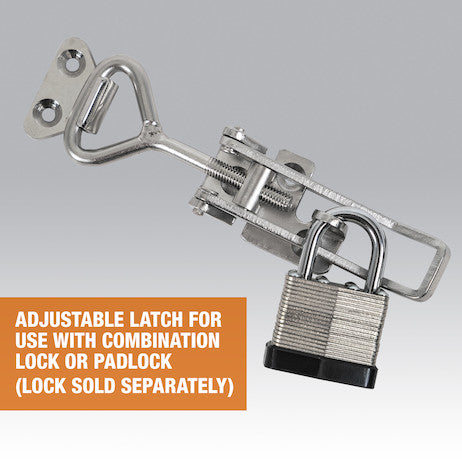

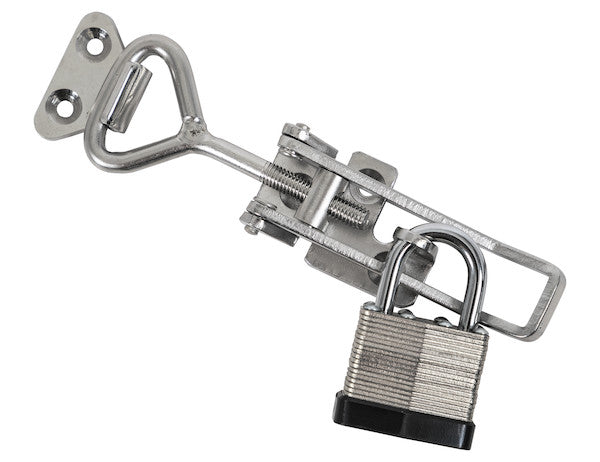

Understanding that security is a paramount concern for many applications, this draw latch is designed with an integrated provision for external locking mechanisms. The inclusion of a dedicated aperture allows for the insertion of a standard combination lock or padlock (sold separately). This feature transforms the simple mechanical closure into a secure access control point, preventing unauthorized opening of compartments, enclosures, or panels.
The padlock compatibility is particularly valuable in scenarios where valuable contents are stored, or where safety regulations dictate restricted access. The heavy-duty stainless steel construction provides substantial physical deterrence against forced entry, complementing the security offered by the external locking device. This layered security approach enhances protection for equipment, tools, sensitive electronics, and hazardous materials.
Diverse Application Spectrum
The inherent strengths of this 6" Heavy Duty Stainless Steel Adjustable-Grip Draw Latch make it an indispensable component across a vast array of industries and applications:
- Industrial Enclosures: Ideal for electrical cabinets, control panels, server racks, and machinery guarding, where robust closure, environmental sealing, and tamper resistance are critical.

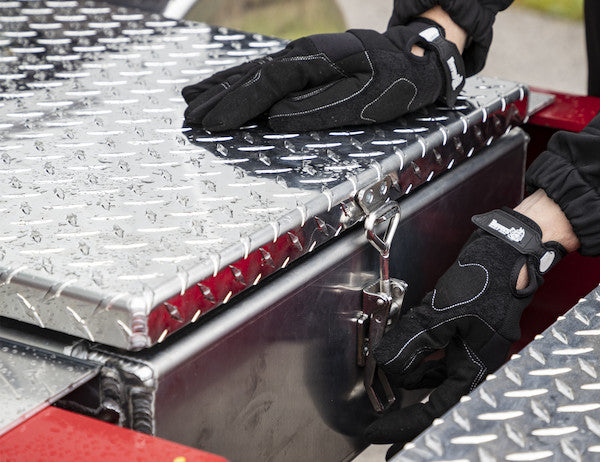

- Transportation & Automotive: Utilized on utility vehicles, truck bodies, recreational vehicles (RVs), bus compartments, and railway cars for securing hatches, access panels, battery boxes, and tool storage. Its vibration resistance is particularly beneficial here.
- Marine Applications: Excellent for boat hatches, storage compartments, and equipment enclosures on vessels due to its superior corrosion resistance in saltwater environments.
- HVAC Systems: For sealing access doors on air handlers, ventilation systems, and filter housings, ensuring energy efficiency and preventing contamination.
- Food & Beverage Processing: Applied to equipment doors, sterilization chambers, and processing lines where hygiene, washdown capability, and chemical resistance are mandatory.
- Pharmaceutical & Medical Equipment: Suitable for sterile environments, laboratory equipment, and medical carts, benefiting from stainless steel's ease of cleaning and non-contaminating properties.
- Construction & Off-Highway Equipment: Securing access panels, engine compartments, and storage boxes on excavators, tractors, loaders, and other heavy machinery.
- Aerospace Ground Support: For fastening access doors on ground support equipment, catering carts, and maintenance platforms, where reliability and durability are essential.
- Outdoor Infrastructure: Used on telecommunication enclosures, utility boxes, and public access panels where weather resistance and security are paramount.
- Custom Fabrications: A versatile component for bespoke projects requiring a strong, adjustable, and durable fastening solution.
Installation and Maintenance Considerations
Proper installation is crucial to maximize the performance and longevity of the 6" Heavy Duty Stainless Steel Adjustable-Grip Draw Latch. The mounting surfaces must be rigid and flat to ensure optimal engagement and load distribution. Predrilled holes for fasteners should align precisely to prevent undue stress on the latch body. Fasteners appropriate for the mounting material and application (e.g., stainless steel bolts, rivets, or welds) should be used.
The adjustable grip mechanism should be carefully set during installation to achieve the desired compression. This typically involves adjusting the threaded spindle until the appropriate sealing force is achieved without excessive effort to close the latch. Regular inspection of the adjustment mechanism ensures consistent performance.
Due to its stainless steel construction, the latch requires minimal maintenance. Routine cleaning with appropriate non-abrasive cleaners can maintain its smooth finish and hygienic properties. Periodic inspection for any signs of wear, particularly at pivot points or areas of high contact, is recommended, although the heavy-duty design significantly extends service intervals.
Conclusion
The 6" Heavy Duty Stainless Steel Adjustable-Grip Draw Latch represents a robust and precisely engineered fastening solution designed to meet the rigorous demands of industrial, commercial, and specialty applications. Its superior stainless steel construction ensures exceptional corrosion resistance, mechanical strength, and thermal stability. The heavy-duty design guarantees long-term durability and high load-bearing capacity, while the adjustable-grip feature provides critical versatility for achieving optimal compression, accommodating manufacturing tolerances, and enhancing sealing integrity. With integrated security provisions and a broad spectrum of applicable environments, this draw latch stands as a testament to reliability, operational efficiency, and cost-effectiveness over its extensive service life. It is an investment in durable, secure, and adaptable mechanical fastening.
