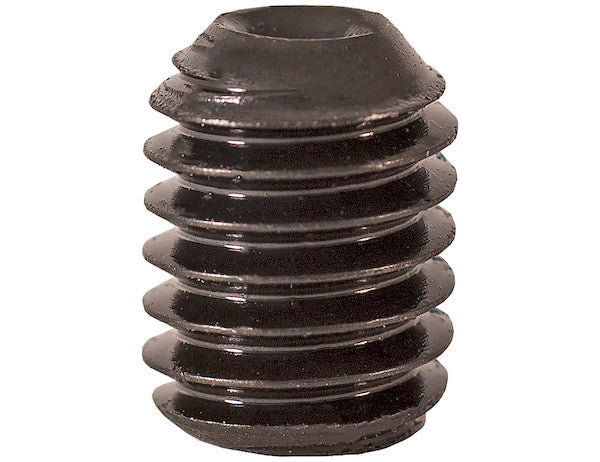

Buyers Products Allen Head Set Screw comes in two sizes to fit your drive shaft set screw needs. It's sold in multiples of 100.
Specifications
| Cup Point (y/n) | Yes |
|---|---|
| Screw Length | 0.500 |
| Screw Type | Allen |
| Thread Size | 3/8-16 |
The Allen Head Set Screw, specified as 3/8-16 x 1/2 Inch with a Cup Point, represents a critical component in mechanical engineering and industrial applications requiring precise positioning, secure fastening, and torque transmission without the need for a protruding head. Manufactured by Buyers Products, this fastener is engineered for robust performance, catering specifically to demanding operational environments such as those involving drive shafts, gears, pulleys, and other rotating or adjustable components.
Understanding the Allen Head (Hex Socket Drive) Advantage
The "Allen Head" designation refers to the fastener's drive type, specifically an internal hexagonal socket. This design offers several significant advantages over traditional slotted or Phillips head fasteners, making it a preferred choice for high-performance applications. Firstly, the hexagonal recess allows for the application of significantly higher torque during installation, which is crucial for achieving optimal clamping force and preventing slippage under dynamic loads. The hex key (Allen wrench) engages with six distinct faces, distributing the applied force evenly and minimizing the risk of cam-out, where the driver slips out of the fastener head. This not only protects the fastener and the tool but also enhances installation efficiency and reduces worker fatigue. Secondly, the internal drive system facilitates a flush-mount installation, meaning the screw head does not protrude above the surface of the mating component. This low-profile design is essential for safety, preventing snags on moving parts, and for aesthetic reasons, contributing to a cleaner, more streamlined machine design. The compact nature of the hex socket also allows for its use in confined spaces where external wrench access might be limited. The durability of the hex socket drive further contributes to its long service life, resisting deformation even after multiple tightening and loosening cycles.
The Cup Point: Engineered for Superior Holding Power
A defining characteristic of this particular set screw is its Cup Point configuration. The cup point features a concave indentation at its tip, forming a sharp, circular edge designed to embed into the mating surface of a shaft or component. This unique design provides exceptional holding power and resistance to loosening, especially in applications subject to vibration, shock, or rotational forces. When tightened, the sharp edge of the cup point creates a positive lock by deforming and gripping the surface of the shaft. This mechanical interlock prevents both axial and rotational movement of the fastened component relative to the shaft. For drive shaft applications, this characteristic is paramount, as it ensures reliable torque transmission from the shaft to the attached component (e.g., a gear or pulley) without slippage. While it does create a slight impression on the shaft surface, its effectiveness in securing components outweighs this consideration in most industrial settings where securement is prioritized over surface integrity. Compared to other point types, such as flat points (which offer less holding power and are suitable for frequent adjustments without marring), cone points (for permanent and precise positioning with deep penetration), dog points (for alignment in pre-drilled holes), or oval points (for softer materials and minimal marring), the cup point strikes an optimal balance of secure engagement and broad applicability for general shaft fastening.
Thread Specifications: Deciphering 3/8-16 UNC
The designation "3/8-16" precisely defines the screw's thread characteristics. "3/8" refers to the nominal major diameter of the thread, expressed in inches. This is a standard fractional size commonly encountered in North American industrial contexts. The number "16" indicates the thread pitch, specifically 16 threads per inch (TPI). This signifies a coarse thread series, denoted by "UNC" (Unified National Coarse). The UNC thread series is distinguished by its larger thread root diameter, providing a deeper thread profile compared to fine thread series (UNF). This structural attribute imparts several key advantages:
- Increased Strength: Coarse threads generally possess higher shear strength and are less susceptible to stripping, particularly in softer parent materials or when frequent assembly/disassembly is required.
- Resistance to Cross-Threading: The larger thread profile makes UNC threads less prone to cross-threading during assembly, speeding up installation and reducing potential damage.
- Faster Assembly: With fewer threads per inch, UNC fasteners achieve full engagement with fewer rotations, contributing to more efficient assembly processes.
- Vibration Resistance: While not inherently vibration-proof, the robust engagement of coarse threads can contribute to stability in dynamic environments, especially when augmented by proper torque and potentially thread-locking compounds.
Optimal Length: The 1/2 Inch (0.500") Dimension
The length of the set screw, 1/2 inch (0.500"), is a critical parameter that dictates the depth of its engagement within the internally threaded component and the extent of its contact with the mating surface. For a set screw, the length is typically measured from the point (the tip of the cup) to the opposite end. An appropriate length ensures that the screw can fully engage the internal threads of the hub or collar without bottoming out prematurely, which would prevent full clamping force, or being too short, resulting in insufficient thread engagement and reduced holding power. For a cup point, the length must also permit the point to adequately embed into the shaft for maximum friction and securement. The 1/2-inch length provides a balance, offering robust thread engagement in standard component thicknesses while allowing the cup point to effectively perform its locking function. Careful consideration of the mating component's wall thickness and the desired penetration depth for the cup point is essential for optimal selection.
Material, Heat Treatment, and Surface Finish: Foundations of Performance
While the specific material composition is often generalized for fasteners of this type, industrial-grade set screws like the Buyers Products Allen Head are typically manufactured from high-strength alloy steel, such as 10B21, 4140, or similar grades. These materials are chosen for their excellent mechanical properties, including high tensile strength, yield strength, and fatigue resistance. To achieve the required hardness and ductility, these set screws undergo a precise heat treatment process, involving quenching and tempering. This process transforms the steel's microstructure, enhancing its core strength and surface hardness, making it resistant to deformation, wear, and shear forces under high loads. Without proper heat treatment, even a high-quality alloy steel would not achieve its full performance potential, risking premature failure.
Furthermore, surface finishes play a vital role in extending the fastener's life and optimizing its performance. Common finishes for alloy steel set screws include:
- Black Oxide: This chemical conversion coating provides a mild level of corrosion resistance, primarily by retaining oil, and offers a non-reflective, aesthetic finish. It's often chosen for indoor applications where severe corrosion is not a primary concern.
- Zinc Plating: A more robust sacrificial coating that offers good corrosion resistance in moderately corrosive environments. Zinc plating prevents rust by corroding preferentially to the underlying steel.
- Phosphate Coatings: Often used as a base for subsequent oil or paint coatings, phosphate provides good wear resistance and excellent lubrication retention.
Diverse Industrial Applications
Beyond the explicit mention of drive shaft set screw needs, this type of fastener finds extensive application across a broad spectrum of industries and mechanical systems:
- Machine Tools: Securing various components like cutting tool holders, dies, jigs, and fixtures, where precise positioning and rigidity are paramount.
- Robotics and Automation: Essential for fastening gears, sensors, and actuators to shafts, ensuring repeatable and accurate motion control.
- Power Transmission Systems: In addition to drive shafts, they are critical for securing sprockets, cams, and couplings in conveyor systems, gearboxes, and power take-offs.
- Pneumatic and Hydraulic Equipment: Fastening internal components within valves, cylinders, and pumps, where a secure, flush-mounted connection is necessary.
- Motor and Pump Assemblies: Used to attach impellers, fan blades, and other rotating elements to motor shafts.
- Material Handling Equipment: Employed in rollers, pulleys, and linkages in conveyors and lifting machinery.
- HVAC Systems: Securing fan blades, damper arms, and other linkages within heating, ventilation, and air conditioning units.
- Instrumentation and Controls: Providing fine adjustments and securing indicators, sensors, or control levers.
- Aerospace and Automotive: Used in non-critical applications or where a compact, vibration-resistant fastener is required, often in control linkages or accessory mounts.
- General Manufacturing: Versatile for assembly of various machinery and equipment where internal hex drive and cup point advantages are beneficial.
Installation Best Practices and Torque Management
Proper installation of the Allen Head Set Screw is critical to leveraging its full design capabilities and ensuring long-term reliability. The primary tool required is a correctly sized hex key (Allen wrench) or hex bit, which must fit snugly into the socket to prevent rounding off the drive. Before installation, it is advisable to ensure that both the internal threads of the component (e.g., hub, collar) and the external threads of the set screw are clean and free from debris, burrs, or damaged areas. Thread lubrication, if specified by the manufacturer, can significantly influence the torque-tension relationship; however, dry torque values are typically higher and should be adhered to unless specific lubrication guidelines are provided.
The most crucial aspect of installation is adhering to recommended tightening torque specifications. Under-torquing can lead to insufficient clamping force, allowing the component to slip or loosen under operational loads, potentially causing equipment damage or malfunction. Conversely, over-torquing can result in fastener failure (shearing of the screw or stripping of threads in either the screw or the mating component) or damage to the shaft itself due to excessive indentation by the cup point. For applications involving multiple set screws, a sequential tightening pattern may be recommended to ensure even stress distribution and consistent clamping force. In environments with extreme vibration or where disassembly is rare, the application of a thread-locking compound (e.g., anaerobic adhesive) can further enhance the set screw's resistance to loosening, acting as an additional safeguard against vibration-induced failure. Regular inspection of set screws in critical applications is also recommended to ensure they maintain their desired preload and have not loosened over time.
Buyers Products Quality and Bulk Packaging Advantages
The designation of this product as a Buyers Products item signifies an inherent commitment to quality and industrial-grade standards. Buyers Products is recognized for manufacturing robust and reliable components designed to withstand the rigors of heavy-duty applications. This implies adherence to stringent manufacturing processes, quality control measures, and potentially relevant industry standards (e.g., ASME, ISO) for dimensional accuracy and mechanical properties. Choosing a product from a reputable manufacturer ensures that the fastener will consistently perform to its intended specifications.
Furthermore, the availability of these set screws in "multiples of 100" offers significant advantages for industrial, manufacturing, and maintenance operations. Bulk packaging streamlines procurement by reducing the frequency of orders and simplifying inventory management. It is inherently more cost-effective per unit, providing economic benefits for high-volume users and reducing overall operational expenditures. From a logistical standpoint, bulk quantities minimize packaging waste and contribute to more efficient stocking and replenishment processes within a supply chain. This approach directly supports the continuous operational demands of industrial settings where these fasteners are consumed regularly.
Conclusion: A Precision-Engineered Fastening Solution
In summary, the Allen Head Set Screw, 3/8-16 x 1/2 Inch with a Cup Point from Buyers Products, represents a meticulously engineered fastening solution for critical mechanical connections. Its design integrates the high-torque, flush-mounting advantages of the hex socket drive with the superior holding power and anti-slip characteristics of the cup point. The 3/8-16 UNC thread form ensures robust engagement and ease of assembly, while the 1/2-inch length provides optimal thread contact. Manufactured from high-strength alloy steel and likely subjected to precise heat treatment and protective surface finishes, this set screw is built for durability and reliable performance in challenging industrial environments. Its versatility extends across numerous applications, particularly in power transmission and machinery where precise component alignment and secure fastening are non-negotiable. With rigorous adherence to installation best practices and the strategic benefit of bulk packaging, this Allen Head Set Screw stands as an indispensable component for maintaining the integrity and operational efficiency of diverse mechanical systems.
