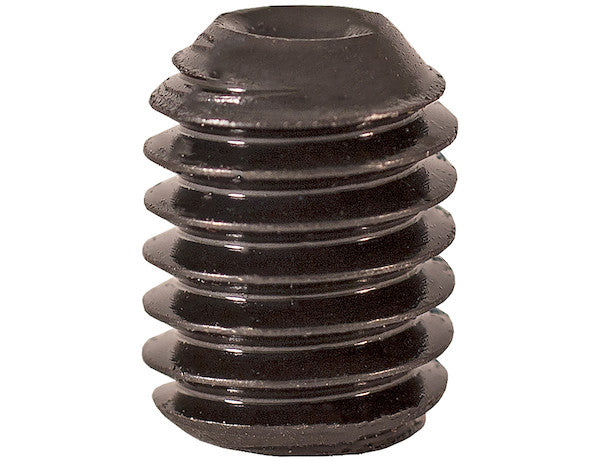

Buyers Products Allen Head Set Screw comes in two sizes to fit your drive shaft set screw needs. It's sold in multiples of 100.
Specifications
| Cup Point (y/n) | Yes |
|---|---|
| Screw Length | 0.375 |
| Screw Type | Allen |
| Thread Size | 3/8-16 |
Advanced Technical Overview: Allen Head Set Screw 3/8-16 x 3/8 Inch for Critical Drive Shaft Applications
The Allen Head Set Screw, specifically the 3/8-16 x 3/8 inch variant from Buyers Products, represents a fundamental and critically important component in mechanical engineering and industrial design. These fasteners are meticulously engineered to provide secure, flush-mounted connections, particularly vital in power transmission systems involving drive shafts, pulleys, gears, and couplings. This comprehensive description delves into the technical specifications, material science, operational principles, and diverse applications that underscore the significance of this particular set screw in demanding industrial environments.
Precision Engineering: Understanding the 3/8-16 x 3/8 Inch Dimensions
The designation "3/8-16 x 3/8 inch" is not merely a label but a precise technical definition of the fastener's geometry and thread specifications. Understanding these parameters is crucial for ensuring compatibility, proper engagement, and optimal performance in any given application.
Thread Size: 3/8-16 UNC (Unified National Coarse)
The "3/8-16" portion specifies the thread parameters. The "3/8" denotes the nominal major diameter of the screw's thread in inches, which is approximately 0.375 inches. This dimension dictates the size of the tapped hole required for proper engagement. The "16" signifies the thread pitch, indicating 16 threads per inch (TPI). This combination of diameter and pitch belongs to the Unified National Coarse (UNC) thread series. UNC threads are characterized by their larger thread depth and wider root radius compared to Unified National Fine (UNF) threads. This design offers several advantages critical for industrial set screw applications:
- Increased Strength: UNC threads possess a larger cross-sectional area at the minor diameter, which contributes to higher tensile and shear strength, making them more robust against breaking under load.
- Ease of Assembly: The coarser pitch makes UNC threads less susceptible to cross-threading and galling during installation, even in less-than-ideal conditions or with slight misalignment.
- Tolerance to Damage: Due to their larger profile, UNC threads are more resistant to damage from nicks or minor impact, which is a common occurrence in harsh industrial settings.
- Vibration Resistance: While not inherently vibration-proof, the robust nature of UNC threads provides a solid foundation for achieving secure locking when combined with a cup point design.
Screw Length: 0.375 Inches (3/8 Inch)
The "x 3/8 inch" indicates the overall length of the set screw, measured from the cup point to the top of the hex socket head. A length of 0.375 inches (or 3/8 inch) is a critical dimension that dictates the depth of engagement within the tapped hole and its interaction with the mating component, typically a shaft. For set screws, the length is not just about reach; it's about optimizing the embedment depth without risking protrusion or insufficient thread engagement. Ideally, the set screw should engage fully with the tapped threads in the outer component (e.g., a pulley hub) and press firmly against the shaft, but not extend so far as to create an obstruction or compromise the structural integrity of the outer component. This specific length is often selected to provide adequate thread engagement for the 3/8-16 thread pitch, while allowing for a relatively flush installation in many standard hub and collar designs.
The Allen Head Advantage: Hex Socket Drive System
The term "Allen Head" refers to the hex socket drive system incorporated into the screw. This internal hexagonal recess is designed to be driven by an Allen key (or hex key), offering significant advantages over traditional slotted or Phillips head drive types, especially for set screw applications:
- Superior Torque Transmission: The hexagonal socket provides six points of contact for the wrench, distributing the applied torque evenly and minimizing the risk of cam-out (where the driver slips out of the fastener head). This allows for much higher tightening torques to be applied, which is essential for creating the substantial clamping force required for set screws to hold components securely against rotation or axial movement.
- Reduced Stripping: With superior torque transmission and reduced cam-out, the likelihood of stripping the drive recess or damaging the driver tool is significantly decreased, leading to more reliable installations and longer tool life.
- Flush Mounting and Compact Design: Since the drive is internal, Allen head set screws can be fully recessed below the surface of the component they are securing. This flush profile is crucial in applications where protrusions could cause interference, snagging, or create safety hazards. It also contributes to a more streamlined and aesthetically pleasing design.
- Tamper Resistance: While not inherently tamper-proof, the use of an Allen key makes these fasteners less susceptible to casual tampering compared to common slotted or Phillips head screws. Specialized tools are required for installation and removal.
- Durability of Drive System: The hex socket design is inherently robust. The forces are contained within the screw head, reducing stress concentrations compared to external drive systems.
Cup Point Configuration: Superior Retention and Minimal Marring
The specification "Cup Point (y/n): Yes" is a critical feature that defines the operational interaction of this set screw with the mating shaft. A cup point set screw features a concave, cup-shaped indentation at its tip. This unique geometry is specifically designed to provide superior holding power and resistance to vibrational loosening in conjunction with round shafts.
Mechanism of the Cup Point
When tightened, the sharp, circular edge of the cup point digs into the surface of the shaft, creating a localized indentation. This action performs several functions:
- Increased Frictional Resistance: The embedding action of the cup point into the shaft surface dramatically increases the frictional resistance between the set screw and the shaft. This resistance is critical in preventing relative rotational movement.
- Positive Locking: The indentation created by the cup point forms a positive mechanical lock, resisting both rotational and axial movement of the secured component relative to the shaft. This is particularly effective in applications subject to high torque, shock, or vibration.
- Self-Centering Tendency: The concave shape can help center the screw's force on the shaft, though proper installation alignment is still necessary.
- Reduced Marring on Hardened Shafts: While the cup point does create an indentation, its design often results in less material displacement or raised burrs compared to, for example, a cone point which can leave a sharp crater. For hardened shafts, the cup point might create a shallower but firmer impression, distributing the localized stress more effectively along its rim.
Material Science and Manufacturing Excellence
While the specific material composition isn't detailed in the provided specifications, set screws designed for drive shaft applications in industrial environments are typically manufactured from high-grade alloy steel, often heat-treated for enhanced strength and durability. Common materials and finishes include:
High-Strength Alloy Steel
Most industrial set screws are made from alloy steels such as AISI 4140, 4340, or similar grades. These materials are chosen for their excellent balance of hardness, toughness, and tensile strength. After machining, these set screws undergo a rigorous heat treatment process, which typically involves:
- Hardening: Heating the steel to a high temperature (austenitizing) followed by rapid cooling (quenching) to transform the microstructure into martensite, significantly increasing hardness.
- Tempering: Reheating the hardened steel to a lower temperature for a specific duration. Tempering reduces brittleness, increases toughness, and relieves internal stresses, optimizing the screw's performance for resisting both breakage and wear under dynamic loads.
Protective Finishes
To enhance corrosion resistance and improve lubricity during installation, set screws are often finished with coatings:
- Black Oxide: A common finish for alloy steel set screws. Black oxide provides a mild level of corrosion resistance by creating a passive, dark finish. Its primary advantage is minimal impact on dimensional tolerances, and it can retain oil, which aids in assembly and provides additional corrosion protection.
- Zinc Plating: For applications requiring greater corrosion resistance, a zinc plating can be applied. Zinc acts as a sacrificial coating, corroding preferentially to the steel substrate. This finish is often specified for applications in moderately corrosive or humid environments.
Operational Mechanics of Set Screws in Drive Shaft Applications
The primary function of a set screw is to secure one component (e.g., a pulley, gear, or coupling hub) coaxially to another component (e.g., a drive shaft) by applying compressive force. Unlike bolts, which often clamp components together with a nut or into a tapped hole with a head on one side, set screws operate by bearing directly against the surface of the inner component, typically a shaft.
Principle of Frictional and Mechanical Engagement
When the Allen Head Set Screw is tightened into a tapped hole in a component's hub, the cup point comes into contact with the underlying shaft. As tightening continues, the cup point begins to indent the shaft surface. This indentation creates a localized positive interlock that significantly enhances the frictional resistance between the two surfaces. The rotational force (torque) applied to the set screw translates into an axial force (clamping force) exerted by the cup point against the shaft. This combination of high friction and mechanical interlock prevents the outer component from rotating independently on the shaft (rotational slip) and resists axial movement along the shaft.
Role in Power Transmission and Positioning
In drive shaft applications, set screws play a crucial role in:
- Preventing Relative Motion: They are fundamental in ensuring that mechanical power is transmitted effectively from one component to another without slippage, which would lead to loss of efficiency, wear, and potential system failure.
- Precise Positioning: Set screws can be used to accurately locate components along a shaft, maintaining critical clearances and operational alignments.
- Maintaining Torque Transmission: For moderate to high torque transmission, the cup point's biting action is indispensable. While keyways are often used for very high torque, set screws offer a simpler, often more cost-effective solution for many applications, and can also be used in conjunction with keyways for added security.
Criticality of Torque Application
Proper torque application during installation is paramount. Insufficient torque will not allow the cup point to fully engage or create enough clamping force, leading to component slippage and premature failure. Conversely, excessive torque can damage the threads in the hub, strip the hex socket, or deform the shaft, all of which compromise the integrity of the connection. Manufacturers' recommended torque specifications, often based on the screw's material, size, and application, should always be strictly adhered to using a calibrated torque wrench. The precise 3/8-16 thread allows for a significant range of torque to be applied, ensuring robust clamping while offering a degree of adjustability.
Diverse Industrial Applications and Versatility
The Allen Head Set Screw 3/8-16 x 3/8 Inch is a highly versatile fastener, finding its utility across a broad spectrum of industrial, commercial, and agricultural machinery. Its robust design and effective clamping mechanism make it indispensable in any application where components need to be securely fastened to shafts or axles.
Power Transmission Systems
This is arguably the most critical application area. Set screws are widely used to secure:
- Pulleys: In belt drive systems (V-belt, timing belt), set screws prevent pulleys from slipping on motor shafts or driven shafts, ensuring consistent power transfer.
- Sprockets: Essential for chain drive systems, they ensure sprockets maintain their position and transmit torque effectively in conveyors, bicycles, and industrial machinery.
- Gears: In various gear reduction units and power trains, set screws fix gears to their respective shafts, preventing backlash and ensuring precise meshing.
- Couplings: Set screws are integral in rigid and flexible shaft couplings, joining two shafts end-to-end to transmit power while maintaining alignment.
- Clutches and Brakes: For securing components of these mechanisms to shafts, ensuring their proper engagement and disengagement.
Machinery and Equipment
Beyond direct power transmission, these set screws are found in numerous other machine assemblies:
- Robotics and Automation: For securing actuators, sensors, and structural components to shafts in robotic arms and automated assembly lines where precise positioning and vibration resistance are crucial.
- Agricultural Machinery: In tractors, harvesters, and irrigation equipment, where components are subjected to harsh conditions, dirt, and significant vibration.
- Heavy-Duty Equipment: Construction machinery, mining equipment, and material handling systems rely on robust fasteners like this set screw to maintain the integrity of their mechanical linkages.
- HVAC Systems: Securing fan blades to motor shafts or blower wheels in air handling units.
- Pump and Motor Assemblies: Fastening impellers, fan guards, or other ancillary components to motor or pump shafts.
- Jigs and Fixtures: In manufacturing processes, set screws are used to accurately position and hold workpieces or components within custom tooling.
Installation Best Practices and Maintenance Considerations
Maximizing the lifespan and effectiveness of the Allen Head Set Screw 3/8-16 x 3/8 Inch requires adherence to best practices during installation and a proactive approach to maintenance.
Proper Installation Procedures
- Clean Surfaces: Ensure that both the tapped hole in the outer component and the surface of the shaft are clean, free from grease, oil, dirt, or burrs. Contaminants can reduce friction and torque accuracy.
- Correct Tooling: Use a high-quality, correctly sized hex key or bit. Worn or undersized tools can strip the socket, especially when applying high torque. For critical applications, a torque wrench with the appropriate hex bit is indispensable to ensure the set screw is tightened to the manufacturer's specified torque.
- Pilot Hole/Indentation (Optional but Recommended): For maximum holding power, especially on harder shafts or where repeated removal/reinstallation is anticipated, a small, shallow dimple or pilot hole (often half the set screw diameter in depth) can be drilled into the shaft at the set screw location. This provides a positive seat for the cup point, enhancing mechanical interlock and preventing axial creep. However, the cup point is designed to create its own indentation on most shaft materials.
- Progressive Tightening: For systems using multiple set screws (e.g., in larger hubs), tighten them progressively and evenly to distribute stress and prevent misalignment.
- Lubrication (Conditional): While thread lubricants can aid in achieving consistent torque values and prevent galling, they can also affect the clamping force achieved at a given torque. Always consult manufacturer guidelines. For cup point set screws, the critical interface is the point-to-shaft contact, where friction is desired, so lubrication here should generally be avoided unless specifically recommended.
Maintenance and Inspection
- Periodic Inspection: In dynamic or high-vibration applications, set screws should be periodically inspected for loosening. Visual checks for signs of rotational slippage (wear marks on the shaft or hub) are also advisable.
- Retorquing: Over time, components can settle, or vibration can slightly reduce clamping force. Retorquing set screws to their specified value after an initial break-in period or during routine maintenance can help maintain optimal performance.
- Replacement: If a set screw shows signs of damage (stripped hex socket, deformed cup point, thread damage), it should be replaced immediately. Attempting to reuse a damaged fastener can lead to catastrophic failure. Given that these screws are sold in multiples of 100, having spares readily available for such replacements is practical and cost-effective.
The Buyers Products Commitment to Quality and Reliability
The Buyers Products Allen Head Set Screw 3/8-16 x 3/8 Inch embodies a commitment to delivering high-quality, reliable fasteners essential for industrial operations. By providing these set screws in multiples of 100, Buyers Products caters directly to the needs of manufacturers, maintenance departments, and industrial suppliers who require a consistent supply of dependable components. This bulk packaging approach not only offers economic advantages but also ensures that critical spares are always on hand, minimizing downtime and supporting efficient operational continuity. Each screw is manufactured to stringent specifications, ensuring dimensional accuracy, material integrity, and consistent performance, thereby guaranteeing that they meet the demanding requirements of various drive shaft and mechanical fastening applications. Choosing Buyers Products means opting for a fastener that integrates seamlessly into your systems, providing a secure and durable connection that you can rely on even in the most challenging industrial environments.
Conclusion: The Indispensable Fastener for Robust Industrial Applications
In summary, the Allen Head Set Screw 3/8-16 x 3/8 Inch is far more than just a simple fastener; it is a meticulously engineered component critical to the functionality and safety of countless mechanical systems. Its specific thread dimensions, coupled with the high-torque Allen head drive and the superior holding power of the cup point, make it an ideal solution for securing components onto drive shafts. Manufactured with precision and often from high-strength, heat-treated alloy steel, these set screws offer exceptional resistance to rotational and axial forces, ensuring reliable power transmission and precise component positioning. From heavy industrial machinery to intricate robotic systems, its role is indispensable. Buyers Products' offering of these set screws in bulk quantities further reinforces their commitment to supporting industrial efficiency and operational excellence, making this particular set screw a foundational element for any robust and dependable mechanical assembly.
