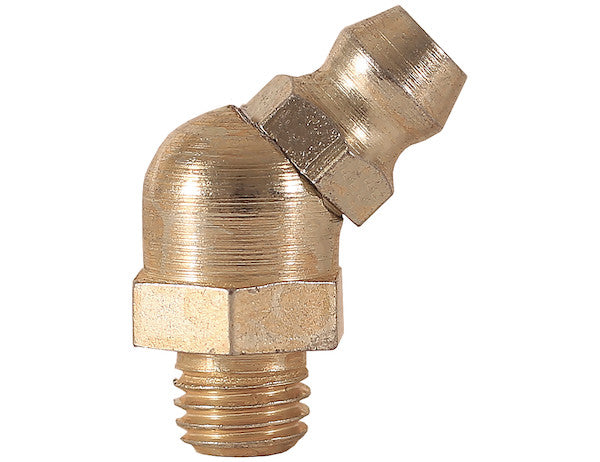

Buyers Products Taper Thread Grease Fittings feature a 1/4 in.-28 tapered thread to seal in the grease. They install into a standard 1/4 in.-28 straight thread hole. Ball checks keep out dirt and unwanted debris.
Specifications
| Angle | 45 |
|---|---|
| Ball Check (y/n) | Yes |
| Finish | Zinc Plated |
| Hole Size | - |
| Material | Carbon Steel |
| Overall Size | 0.906 |
| Thread Size | 1/4-28 |
| Type | Threaded |
Advanced Technical Overview: 1/4-28 Inch Taper Thread 45-Degree Grease Fittings
In the realm of mechanical engineering and industrial maintenance, the efficient and reliable lubrication of moving parts is paramount to ensuring the longevity, performance, and operational integrity of machinery. Grease fittings, also commonly known as Zerk fittings or grease nipples, serve as critical access points for the precise introduction of lubricant into bearings, bushings, and other friction-reducing components. This comprehensive technical overview delves into the specific design, material science, functional advantages, and application considerations of the 1/4-28 Inch Taper Thread 45-Degree Grease Fitting, a fundamental component engineered for demanding lubrication requirements.
The Crucial Role of Lubrication and Grease Fittings
Effective lubrication minimizes friction, dissipates heat, prevents corrosion, and extends the service life of mechanical systems. Without proper lubrication, components are susceptible to accelerated wear, leading to premature failure, increased energy consumption, and costly downtime. Grease fittings provide a standardized, robust, and accessible means to replenish lubricant reservoirs, enabling maintenance personnel to perform routine greasing procedures with high efficiency and minimal effort. The design and quality of these fittings directly impact the effectiveness of the lubrication process, making their selection a critical engineering decision.
Precision Engineering: The 1/4-28 Taper Thread Specification
The core of this grease fitting's design lies in its 1/4-28 tapered thread. This specification denotes a thread diameter of approximately 1/4 inch with 28 threads per inch (TPI), conforming to the Unified National Fine (UNF) thread series, which is common for precision fastening applications where fine adjustments or strong retention is required. However, the critical distinction here is the "tapered" nature of the thread. Unlike a straight thread, which relies primarily on a gasket or O-ring for sealing, a tapered thread creates a mechanical interference seal. As the fitting is tightened into a corresponding straight thread hole – in this case, a standard 1/4-28 straight thread hole – the mating threads compress against each other. This metal-to-metal contact, particularly enhanced by the slight taper, generates an exceptionally tight and leak-proof seal capable of withstanding the high pressures associated with grease injection. This self-sealing characteristic is a significant advantage, reducing the need for additional sealing compounds or washers and thereby simplifying installation and enhancing reliability in environments where traditional seals might degrade.
The specific compatibility with a standard 1/4-28 straight thread hole is a testament to standardized engineering. While the fitting itself is tapered, its ability to securely and reliably engage with a non-tapered counterpart demonstrates a carefully designed interface that leverages thread deformation to achieve a superior seal. This design choice ensures broad applicability and interchangeability within existing mechanical systems that are typically machined with straight threaded ports. The robust thread engagement guarantees that the fitting remains firmly seated even under vibrations and the substantial hydraulic forces exerted during lubrication operations.
Ergonomics and Accessibility: The 45-Degree Angle
The 45-degree angle of this grease fitting is not arbitrary but a deliberate engineering choice to optimize accessibility and operational ergonomics in diverse mechanical contexts. While straight fittings are ideal for direct access and 90-degree fittings excel in tight corners requiring a sharp turn, the 45-degree configuration offers a versatile compromise. It is particularly advantageous in scenarios where a straight fitting would be obstructed or where the trajectory of a grease gun coupler needs to deviate slightly from the mounting surface to avoid interference with adjacent components or structural elements. This angle often provides a natural and comfortable approach for maintenance technicians, allowing for easier attachment and detachment of the grease gun without awkward wrist angles or the need for excessive force. This ergonomic consideration directly translates to reduced operator fatigue, faster lubrication cycles, and minimized risk of damaging the fitting or the grease gun coupler during routine maintenance. In complex machinery, where multiple lubrication points are often situated in close proximity or within confined spaces, the judicious placement of 45-degree fittings can significantly streamline maintenance procedures and ensure all points are adequately serviced.
Contamination Control: The Integrated Ball Check Valve
A fundamental feature enhancing the integrity of this grease fitting is the integrated ball check valve. This small but critical mechanism plays a pivotal role in maintaining the purity of the lubricant and preventing backflow. Internally, a small ball, typically spring-loaded, rests against a seat, sealing the orifice of the fitting. When pressurized grease is injected via a grease gun, the force of the lubricant overcomes the spring tension, momentarily pushing the ball off its seat and allowing the grease to flow into the bearing or component. Once the injection pressure subsides, the spring and the inherent pressure within the lubricated component push the ball back onto its seat, creating a one-way valve. This unidirectional flow mechanism serves several vital functions:
- Contamination Prevention: The sealed nature of the ball check prevents the ingress of external contaminants such as dirt, dust, moisture, and abrasive particles into the critical bearing surfaces. These contaminants are a leading cause of premature wear and catastrophic failure in mechanical systems.
- Backflow Prevention: It ensures that once grease has been injected, it remains within the component and does not leak back out through the fitting. This maintains the desired lubricant fill level and prevents unsightly and environmentally undesirable grease leakage.
- Pressure Retention: The check valve helps to maintain a certain level of residual pressure within the lubricated chamber, which is beneficial for ensuring full lubricant distribution and preventing air pockets.
The inclusion of a ball check significantly contributes to the cleanliness and effectiveness of the lubrication process, directly impacting the operational life and reliability of the machinery it serves.
Robust Construction: Carbon Steel Material
The choice of carbon steel as the primary material for this grease fitting underscores its design for strength, durability, and resilience in challenging industrial environments. Carbon steel is a widely utilized ferrous alloy known for its excellent mechanical properties, including high tensile strength, good hardness, and superior wear resistance. These characteristics are essential for a component that experiences significant mechanical stress, both during installation and operation. During installation, the fitting must withstand the torque applied to create the tapered thread seal. In operation, it must endure the high pressures (often exceeding several thousand PSI) exerted by grease guns, as well as constant vibrations and potential impacts in heavy-duty applications. Carbon steel provides the necessary structural integrity to prevent deformation, cracking, or stripping of the threads under these demanding conditions. Its inherent strength ensures a reliable, long-lasting connection that will not compromise the lubrication system over time.
Enhanced Protection: Zinc Plated Finish
To augment the inherent durability of carbon steel, this grease fitting is treated with a zinc plated finish. Zinc plating is a common electrochemical process where a thin layer of zinc is deposited onto the surface of the steel. This finish serves as a sacrificial coating, providing robust corrosion protection. Zinc is more electrochemically active than steel, meaning it will corrode preferentially to the steel substrate when exposed to corrosive elements like moisture, oxygen, and various industrial chemicals. This galvanic protection prevents rust and oxidation of the underlying carbon steel, significantly extending the service life of the fitting, especially in outdoor, humid, or chemically aggressive environments. Beyond its protective qualities, the zinc plating also imparts an aesthetically pleasing, bright metallic finish, which can be beneficial for visibility and general industrial appearance standards. The quality of the plating adheres to industry standards, ensuring uniform coverage and long-term protective performance.
Overall Size and Dimensional Accuracy
With an overall size of 0.906 inches, this fitting is engineered to strike a balance between sufficient thread engagement for sealing and a compact profile for installation in potentially confined spaces. The precise dimensions are critical for interchangeability and proper fit within the specified application context. Precision manufacturing processes are employed to ensure that each fitting conforms to strict dimensional tolerances, guaranteeing reliable installation and consistent performance across batches. This dimensional accuracy is vital for maintaining the integrity of the tapered seal and ensuring seamless integration into various machinery components.
Installation, Operation, and Maintenance Protocols
Proper installation and operational procedures are critical to leveraging the full benefits of these technical specifications:
- Installation: The tapered thread necessitates careful installation. The fitting should be started by hand to ensure proper thread alignment and prevent cross-threading. It is then tightened with an appropriate wrench, typically to a specified torque value or until a firm, leak-proof seal is achieved. Over-tightening can strip the threads or damage the component, while under-tightening can lead to leaks.
- Operation: When greasing, a suitable grease gun with a compatible coupler should be used. The coupler should be firmly pressed onto the fitting to ensure a secure connection before pumping grease. It is important to observe the component's fill level or lubrication schedule, avoiding over-greasing which can lead to seal damage or excessive heat build-up.
- Maintenance: Regular inspection of grease fittings is recommended. Checks should include looking for physical damage, corrosion, blockages, or signs of leakage around the fitting. Damaged or corroded fittings should be replaced promptly to prevent contamination and ensure effective lubrication. The ball check mechanism should also be verified for proper function; a sticking ball check can prevent grease flow.
Adherence to these protocols ensures maximum component life and optimal machinery performance, directly contributing to preventative maintenance strategies.
Diverse Industrial and Automotive Applications
The 1/4-28 Inch Taper Thread 45-Degree Grease Fitting finds widespread application across a multitude of industries due to its robust design and versatile angle. Its specifications make it suitable for:
- Heavy Equipment: Construction machinery (excavators, bulldozers, loaders), agricultural implements (tractors, harvesters), and mining equipment frequently utilize such fittings for critical pivot points, linkages, and bearing housings that require regular, high-pressure lubrication.
- Automotive Industry: Chassis components, suspension systems, steering linkages, and certain driveline parts in trucks, trailers, and passenger vehicles often incorporate these fittings.
- Industrial Machinery: Conveyor systems, presses, pumps, electric motors, and general manufacturing equipment rely on these fittings for consistent lubrication to maintain operational efficiency and extend the life of moving assemblies.
- Marine and Recreational Vehicles: Components exposed to demanding conditions in marine environments or off-road recreational vehicles benefit from the corrosion resistance and secure sealing offered by these fittings.
Its reliability under high pressure and resistance to contamination make it an indispensable component in any application where precise and clean lubricant delivery is essential for machine health.
Conclusion: Engineering for Enduring Performance
The 1/4-28 Inch Taper Thread 45-Degree Grease Fitting represents a meticulously engineered component designed for the rigorous demands of industrial and heavy-duty lubrication. Its tapered thread provides an inherently superior seal when installed into a standard straight thread hole, eliminating reliance on secondary sealing elements. The 45-degree angle optimizes accessibility and user ergonomics, critical for efficient maintenance operations. The integrated ball check valve is fundamental to preventing lubricant backflow and, more importantly, guarding against the ingress of detrimental contaminants. Constructed from high-strength carbon steel and protected by a durable zinc plated finish, this fitting is built to withstand high pressures, corrosive environments, and mechanical stresses, ensuring a long service life and unwavering performance. By facilitating effective lubrication, this grease fitting directly contributes to the reduction of friction, wear, and downtime, thereby enhancing the operational efficiency and extending the overall lifespan of valuable machinery across a spectrum of demanding applications. It is a testament to precision engineering, where every design choice contributes to the ultimate goal of maximizing mechanical reliability and operational uptime.
