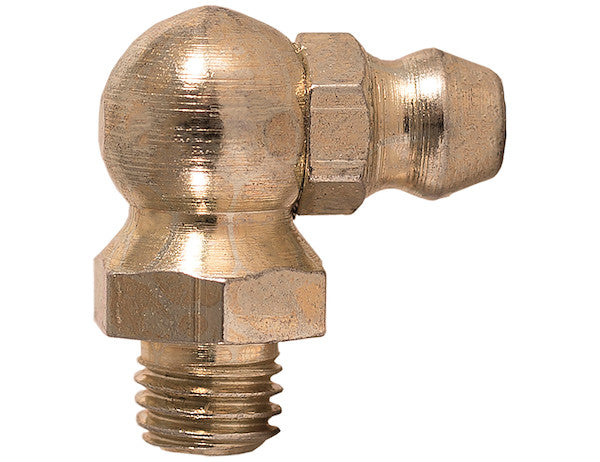

Buyers Products Taper Thread Grease Fittings feature a 1/4 in.-28 tapered thread to seal in the grease. They install into a standard 1/4 in.-28 straight thread hole. Ball checks keep out dirt and unwanted debris.
Specifications
| Angle | 90 |
|---|---|
| Ball Check (y/n) | Yes |
| Finish | Zinc Plated |
| Hole Size | - |
| Material | Carbon Steel |
| Overall Size | 0.312 |
| Thread Size | 1/4-28 |
| Type | Threaded |
The 1/4-28 Inch Taper Thread Grease Fitting with a 90-degree angle represents a critical component in the effective lubrication of industrial, automotive, and heavy machinery. Engineered for precision and durability, this fitting is specifically designed to facilitate the injection of lubricant into vital mechanical components, ensuring optimal performance, reducing friction, and extending equipment lifespan. Its construction, featuring a robust carbon steel body with a protective zinc-plated finish, a meticulously engineered 1/4 in.-28 tapered thread, and an integral ball check mechanism, collectively contributes to its superior functionality and reliability in demanding operational environments.
A fundamental aspect of this grease fitting’s design is its 1/4 in.-28 tapered thread. Unlike parallel or straight threads that rely solely on surface contact and external sealing agents, tapered threads are inherently designed to create a mechanical interference fit upon installation, thereby forming a robust, leak-proof seal under pressure. The 1/4-28 designation refers to a specific thread standard, typically falling under the Unified National Extra Fine (UNEF) series or a proprietary variant designed for specialized sealing applications. The "28" indicates 28 threads per inch (TPI), a fine pitch that provides a greater number of thread engagements over a given length, enhancing the integrity and strength of the connection, particularly in thinner wall sections or where fine adjustments are required. While the fitting itself incorporates a tapered thread for sealing, it is engineered to install into a standard 1/4 in.-28 straight thread hole. This design leverages the taper on the fitting to create a compressive seal within the straight-threaded port of the component, ensuring that grease introduced under high pressure remains contained, preventing weepage and contamination egress. This tapered design is paramount for maintaining system integrity, especially in applications subject to vibration, pressure fluctuations, or thermal expansion and contraction, where conventional straight thread seals might otherwise compromise lubricant retention.
The 90-degree angle of this grease fitting is a deliberate design choice that significantly enhances accessibility and operational efficiency. In numerous machinery designs, lubrication points are often situated in confined spaces, obscured by adjacent components, or positioned at awkward orientations that render straight fittings impractical or impossible to access with standard grease gun couplers. The 90-degree bend allows technicians to connect a grease gun effectively, regardless of the spatial constraints or the angle of the receiving port. This ergonomic advantage not only simplifies routine maintenance procedures but also encourages regular lubrication by minimizing the effort and specialized tooling required. For instance, in complex assemblies such as chassis components, heavy equipment pivot points, or industrial machinery with densely packed hydraulic lines and structural elements, the 90-degree fitting ensures that all lubrication points can be reached efficiently, thereby preventing missed service intervals and the premature wear that results from inadequate lubrication. This angular orientation also facilitates optimal flow dynamics for viscous lubricants, particularly when operating under high pressures, ensuring a consistent and complete charge of grease to the bearing or articulation point.
Integral to the reliable performance of this grease fitting is its sophisticated ball check mechanism. This internal component serves a dual critical function: preventing the backflow of lubricant and excluding external contaminants from entering the lubricated system. The mechanism typically comprises a small, hardened steel ball seated against an orifice, held in place by a light spring. When a grease gun coupler is applied and pressure is exerted, the lubricant overcomes the spring force, pushing the ball off its seat and allowing grease to flow into the component. Upon release of pressure, the spring, assisted by residual system pressure, immediately reseats the ball, creating a positive seal. This instantaneous sealing action ensures that once lubricant is introduced, it remains within the intended area, preventing depletion or egress through the fitting itself. Furthermore, the ball check acts as a crucial barrier against the ingress of dirt, moisture, dust, and other abrasive particles that are ubiquitous in industrial and outdoor environments. Contaminant ingress is a leading cause of premature bearing and component failure, leading to increased friction, heat generation, and ultimately, catastrophic wear. By effectively isolating the internal lubrication system from the external environment, the ball check significantly contributes to the longevity and sustained performance of the machinery it serves.
The material selection for this grease fitting—carbon steel with a zinc-plated finish—is a considered choice balancing mechanical properties, corrosion resistance, and cost-effectiveness. Carbon steel, known for its high tensile strength and ductility, provides the structural integrity necessary to withstand the high pressures typically encountered during grease injection, which can often exceed several thousand pounds per square inch (PSI). Its inherent robustness ensures that the fitting can endure repeated mechanical stresses, impacts, and the rigors of industrial environments without deformation or failure. To mitigate the inherent susceptibility of carbon steel to oxidation and corrosion, the fitting undergoes a zinc plating process. Zinc plating creates a sacrificial protective layer over the steel substrate. In the presence of moisture or corrosive agents, the zinc oxidizes preferentially to the underlying steel, thereby protecting the fitting from rust and maintaining its structural and aesthetic integrity. This galvanic protection is critical for fittings exposed to varying climatic conditions, chemical splashes, or wash-down procedures. Modern zinc plating typically utilizes trivalent chromium passivation to comply with environmental regulations, offering excellent corrosion resistance while avoiding the health and environmental hazards associated with older hexavalent chromium processes. The smooth, uniform zinc finish also provides a clean, professional appearance and enhances resistance to minor abrasions, contributing to a longer operational life for the fitting.
Proper installation of these 1/4-28 taper thread grease fittings into a standard 1/4 in.-28 straight thread hole is crucial for achieving an effective seal and reliable performance. While the fitting possesses a taper, the receiving hole is straight, meaning the seal is formed by the interference fit created as the tapered threads of the fitting are screwed into the parallel threads of the port. This often requires careful tightening to achieve the specified torque, though precise torque values can vary based on the specific material of the component receiving the fitting. Installation typically involves threading the fitting by hand until snug, and then using an appropriately sized wrench to apply additional torque until a firm, leak-proof connection is established. Over-tightening must be avoided to prevent damage to the fitting or the receiving port threads, which could compromise the seal or lead to premature failure. Conversely, under-tightening will result in an inadequate seal, leading to grease leakage and potential contaminant ingress. Compatibility with various grease gun couplers is generally universal, as fittings conform to industry-standard dimensions for the nipple portion. However, operators should always ensure their grease gun coupler is clean and free of debris to prevent damage to the fitting's ball check or contamination of the lubrication system during servicing.
The versatile design of this 90-degree taper thread grease fitting makes it indispensable across a vast spectrum of applications and industries. In the automotive sector, these fittings are found on steering components, suspension linkages, universal joints, and various chassis points of commercial vehicles, trucks, and off-road equipment. In agriculture, they are vital for lubricating tractors, combines, tillers, and other farm machinery where exposure to dirt, dust, and moisture is constant. Construction machinery, including excavators, bulldozers, loaders, and cranes, relies heavily on these fittings for the maintenance of pivot pins, bushings, and articulation points, which bear immense loads and operate in harsh, abrasive environments. Industrial manufacturing facilities utilize these fittings on conveyor systems, processing equipment, presses, and robotic arms to ensure the continuous operation of critical moving parts. Even in marine applications, where corrosion resistance is paramount, the zinc-plated carbon steel offers a degree of protection against saline environments, extending the service life of components on boats, docks, and port machinery. The 90-degree configuration is particularly beneficial in these demanding environments, providing the necessary access for lubrication in tight spaces that are common in heavily engineered equipment.
Routine maintenance and adherence to proper lubrication schedules are paramount to maximizing the lifespan and operational efficiency of machinery utilizing these grease fittings. Regular inspection of fittings is essential; damaged, corroded, or clogged fittings must be replaced promptly to ensure unimpeded lubricant flow and prevent contamination. Blocked fittings can lead to insufficient lubrication, resulting in accelerated wear and eventual component failure. Cleaning fittings before lubrication helps prevent external contaminants from being forced into the system. Proper lubrication practices, guided by equipment manufacturer specifications, including the type and quantity of grease, and the frequency of application, are critical for maintaining optimal performance. The robust construction and reliable sealing capabilities of these 1/4-28 taper thread fittings, combined with diligent maintenance, contribute significantly to reducing unplanned downtime, extending the service life of expensive components, and ultimately lowering overall operational costs. Proactive maintenance facilitated by high-quality grease fittings like these can transform reactive repair into predictive maintenance, improving asset utilization and operational safety.
From a technical standards and quality perspective, these grease fittings are manufactured to stringent specifications, often aligning with or exceeding industry benchmarks such as SAE J534 for Lubrication Fittings. This ensures dimensional accuracy, thread integrity, and consistent performance characteristics. The manufacturing process typically involves precision machining or cold forming of the carbon steel, followed by rigorous quality control checks at each stage. This includes material composition verification, dimensional measurements to ensure adherence to thread specifications and overall geometry, and testing for proper ball check function and pressure retention. The zinc plating process is also meticulously controlled to ensure uniform thickness and optimal adhesion for long-lasting corrosion protection. Compliance with these technical standards guarantees that the fittings will reliably interface with standard lubrication equipment and effectively perform their function under specified operating conditions. The commitment to such high manufacturing standards underscores the reliability and robust engineering inherent in this product, providing users with confidence in its performance and contribution to overall machinery health.
In summary, the 1/4-28 Inch Taper Thread Grease Fitting with a 90-degree angle is more than just a simple component; it is an engineered solution designed to facilitate precise lubrication and protect critical machinery. Its specialized 1/4 in.-28 tapered thread ensures a dependable, high-pressure seal within a straight-threaded port, preventing lubricant leakage and contaminant ingress. The integral ball check mechanism reinforces this protection by acting as a one-way valve, crucial for maintaining system cleanliness and lubricant retention. The 90-degree orientation is a significant ergonomic advantage, providing essential access to lubrication points in spatially restricted environments, thereby encouraging consistent and timely maintenance. Constructed from durable carbon steel and finished with a corrosion-resistant zinc plating, this fitting offers the longevity and resilience required for continuous operation in harsh industrial and mobile equipment applications. By integrating superior design, robust materials, and precision manufacturing, this grease fitting serves as a cornerstone for effective maintenance strategies, contributing directly to extended equipment life, enhanced operational reliability, and reduced total cost of ownership across a diverse range of mechanical systems.
