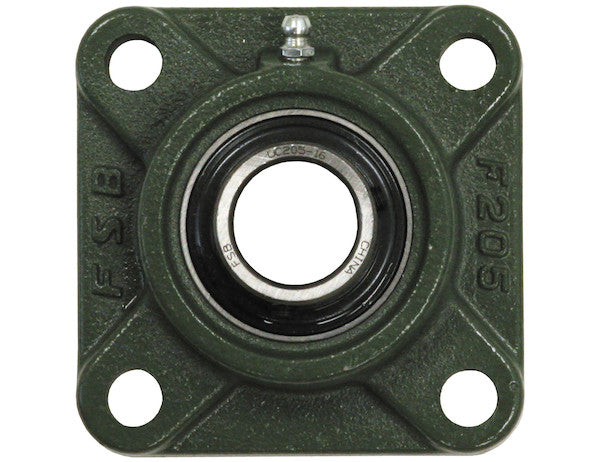

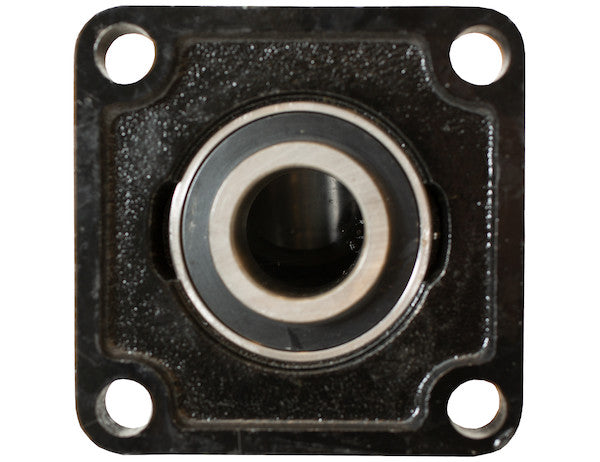

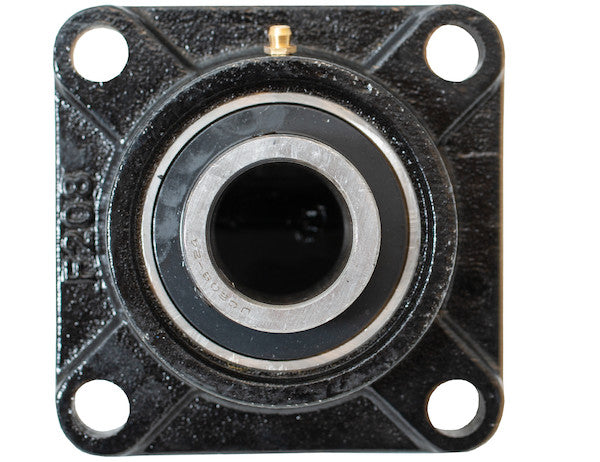

Buyers Products 2 Inch Set Screw Locking Flange Bearing (4 Bolt) is built for long life with simple installation and maintenance. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the flanges rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The standard 4 bolt mounting design makes installation easy even in tight places. Its set screw design helps avoid shaft slippage.
Specifications
| Bearing Insert Material | Carbon Steel |
|---|---|
| Bearing Insert Type | Self Aligning |
| Bi (Diagram) | 1.339 |
| Bolt Hole Center to Center | 2.750 |
| Bolt Pattern | Square |
| Bolt Size | 0.375 |
| Bore Diameter | 1.000 |
| G (diagram) | 0.56 |
| Greasable (y/n) | Yes |
| Housing Material | Cast Iron |
| I (diagram) | 0.63 |
| L (diagram) | 1.06 |
| Locking Type | Set Screw |
| Overall Depth | 1.41 |
| Overall Height | 3.75 |
| Overall Width | 3.75 |
| S (diagram/Bolt Hole Diameter) | 0.469 |
Advanced Technical Overview: The 1 Inch Set Screw Style 4-Hole Flange Bearing for Demanding Industrial Applications
In the realm of industrial power transmission and motion control, the selection of appropriate bearing units is paramount to ensuring operational efficiency, system longevity, and minimized downtime. The 1 Inch Shaft Diameter Set Screw Style Flange Bearing with a 4-Hole configuration represents a meticulously engineered solution designed to meet the rigorous demands of various industrial environments. This product integrates robust material science with a functional design, providing reliable shaft support and rotational precision in a compact and easily maintainable package.
Flange bearings, characterized by their mounting surface that permits direct attachment to a machine frame, are indispensable for applications requiring reliable shaft support in locations perpendicular to the mounting surface. The specific 1-inch bore diameter of this unit ensures compatibility with a widely adopted shaft standard, facilitating seamless integration into existing and new mechanical designs. Its set screw locking mechanism is a testament to its practical engineering, offering a straightforward yet secure method for attaching the bearing to the shaft, effectively preventing unwanted axial or rotational slippage under dynamic loads.
Core Components and Materials: Engineering for Unwavering Durability and Performance
The integrity and performance of any bearing unit are fundamentally determined by the quality and characteristics of its constituent materials. This 1 Inch Flange Bearing leverages a synergy of high-grade materials to deliver exceptional strength, wear resistance, and operational resilience.
Bearing Insert Material: High-Performance Carbon Steel
At the heart of this flange bearing lies a precision-machined bearing insert crafted from high-quality Carbon Steel. Carbon steel is a ferrous alloy primarily composed of iron and carbon, renowned for its superior mechanical properties. The specific grade of carbon steel chosen for this bearing insert provides an optimal balance of hardness, tensile strength, and fatigue resistance, which are critical attributes for components subjected to continuous rotational stresses and varying load conditions. In bearing applications, carbon steel offers excellent wear resistance, particularly when properly lubricated, contributing significantly to the bearing's extended service life. Its structural integrity ensures that the internal rolling elements maintain their geometric precision over time, thereby preserving the bearing's low friction characteristics and rotational accuracy. The inherent strength of carbon steel allows this driveline-grade bearing to reliably support radial and moderate thrust loads, making it suitable for demanding power transmission systems.
Housing Material: Robust Cast Iron Construction
Encasing the carbon steel bearing insert is a rugged housing constructed from Cast Iron. Cast iron is a widely preferred material for bearing housings due particularly to its exceptional compressive strength, rigidity, and inherent vibration damping capabilities. In industrial settings where machinery often generates vibrations and operates under fluctuating forces, a cast iron housing plays a crucial role in absorbing and dissipating these kinetic energies, thus protecting the bearing insert and extending its operational life. Furthermore, cast iron exhibits excellent dimensional stability across a range of operating temperatures, ensuring that the bearing's alignment and mounting integrity are maintained even under thermal expansion or contraction. Its substantial mass contributes to the overall stability of the bearing unit, minimizing deflection and promoting smooth operation. The material's resistance to corrosion, when properly finished, also enhances its suitability for diverse industrial environments, including those exposed to moisture or certain chemical agents. This combination of a carbon steel insert within a cast iron housing forms a robust assembly engineered for sustained performance and reliability.
Precision Engineering: Self-Alignment and Secure Shaft Locking
Beyond material selection, the functional design principles applied to this flange bearing are crucial for its superior performance, especially in challenging industrial contexts where perfect alignment cannot always be guaranteed.
Bearing Insert Type: Self-Aligning Capability
A key feature of this 1 Inch Flange Bearing is its Self-Aligning bearing insert type. This innovative design allows the bearing to compensate for initial static misalignment or dynamic shaft deflections that may occur during operation. In typical applications, it is incredibly difficult to achieve perfect alignment between a shaft and its bearing supports due to manufacturing tolerances, structural settling, or dynamic loads. A self-aligning bearing possesses an outer race or housing bore that is spherically contoured, allowing the inner ring and rolling elements to pivot slightly around the shaft's axis. This inherent flexibility prevents the imposition of damaging bending moments on the bearing elements, which would otherwise lead to premature wear, increased friction, and potential catastrophic failure. By automatically adjusting to minor misalignments, the self-aligning feature significantly reduces stress concentration, extends the bearing's fatigue life, and ensures more uniform load distribution across the rolling elements. This capability is particularly beneficial in long shaft applications or systems where frame distortions are a possibility.
Locking Type: The Dependable Set Screw Mechanism
The "Set Screw" locking type is a fundamental aspect of this flange bearing's design, offering a reliable and straightforward method for securing the bearing to a 1-inch shaft. The mechanism involves one or more set screws threaded radially into the inner ring of the bearing. These screws are tightened against the shaft, creating a localized indentation or gripping force that locks the bearing in place. The primary advantage of a set screw locking mechanism is its simplicity of installation and removal, requiring only a hexagonal wrench. It provides a positive lock that effectively prevents both axial movement and rotational slippage of the shaft relative to the bearing, which is critical for maintaining timing and power transmission integrity. While highly effective, proper installation is crucial: ensuring adequate torque is applied to the set screws is essential to prevent loosening under vibration, but over-tightening should be avoided to prevent shaft damage. The set screw design contributes to the "avoids shaft slippage" benefit highlighted in the initial description, making it a robust choice for many industrial applications. Compared to other locking methods like eccentric locking collars or concentric locking mechanisms, set screws offer a cost-effective and easily adjustable solution for a wide range of operational speeds and loads where moderate shock and vibration are present.
Critical Dimensional Specifications for Seamless Integration
The precise dimensional specifications of this 1 Inch Flange Bearing are fundamental for its proper fitment, performance, and interchangeability within complex mechanical systems. Understanding these parameters is essential for engineers and designers.
Bore Diameter: The 1.000-Inch Precision Interface
The Bore Diameter of 1.000 inches (1 inch) is the critical internal dimension of the bearing, defining the exact diameter of the shaft it is designed to accommodate. This precise dimension ensures a snug fit with standard 1-inch shafts, minimizing play and maximizing the transfer of rotational motion. The accuracy of this bore is crucial for maintaining concentricity and preventing unwanted vibrations or oscillations during operation, contributing to the overall stability and efficiency of the machinery.
Flange Configuration: Robust 4-Hole, Square Bolt Pattern
The mounting configuration of this flange bearing is a 4-Hole, Square Bolt Pattern, which is a widely recognized and utilized standard in industrial applications. This design provides exceptional stability and robust attachment to the machine frame. The four mounting holes distribute the static and dynamic loads evenly across the mounting surface, reducing localized stress points and enhancing the overall structural integrity of the bearing assembly. The specific dimensions associated with this pattern include a Bolt Hole Center to Center distance of 2.750 inches, indicating the precise spacing between adjacent bolt centers. The nominal Bolt Size is 0.375 inches (3/8 inch), defining the recommended diameter for the mounting bolts. Furthermore, the S (diagram/Bolt Hole Diameter) of 0.469 inches specifies the actual diameter of the mounting holes in the flange, providing a slight clearance for the 0.375-inch bolts, which facilitates easier installation and accounts for minor alignment variations during assembly. This standardized square bolt pattern ensures broad compatibility and simplified replacement procedures.
Overall Dimensions: Spatial Considerations and Design Integration
The physical envelope of the flange bearing is defined by its Overall Height of 3.75 inches, Overall Width of 3.75 inches, and Overall Depth of 1.41 inches. These dimensions are crucial for integrating the bearing into machinery designs where space might be a limiting factor. The compact and symmetrical design (3.75" x 3.75" flange face) allows for efficient use of available mounting area, while the relatively shallow depth of 1.41 inches ensures it does not protrude excessively, minimizing potential interference with other components. These measurements are vital for CAD modeling, ensuring correct clearances, and designing appropriate structural supports.

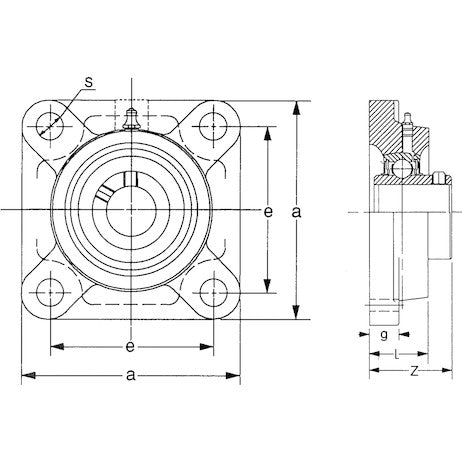

Diagrammatic Dimensions: Precision for Engineering Design (Bi, G, I, L)
The additional diagrammatic dimensions provide further granular detail essential for precise engineering and manufacturing:
- Bi (Diagram): 1.339 inches - This likely refers to the width of the bearing insert or inner ring projection, critical for shaft shoulder clearances or seals.
- G (diagram): 0.56 inches - Typically denotes the distance from the bearing centerline to a specific feature, often related to the base of the housing or a mounting feature.
- I (diagram): 0.63 inches - This dimension could represent the thickness of the flange itself or a specific offset from the mounting surface to the bearing centerline, vital for calculating shaft lengths and component clearances.
- L (diagram): 1.06 inches - Often refers to the total length of the inner ring or the overall length of the bearing unit, which directly impacts shaft seating and potential sealing arrangements.
Optimized Performance and Operational Longevity
The design and material choices of this 1 Inch Set Screw Style Flange Bearing are inherently focused on delivering optimized performance and extending the operational life of industrial equipment.
Greasable Feature: Essential for Continuous Smooth Operation and Longevity
The "Greasable (y/n): Yes" specification, coupled with the inclusion of a grease fitting, underscores a critical aspect of this bearing's design: ease of maintenance for continuous smooth operation. Proper lubrication is fundamental to bearing health, reducing friction between rolling elements and races, dissipating heat, and providing a protective barrier against contaminants. The grease fitting allows for easy replenishment of lubricant, ensuring that the carbon steel bearing insert remains adequately lubricated throughout its service life. Regular regreasing intervals, determined by operating conditions, load, and speed, are crucial for flushing out old, degraded grease and introducing fresh lubricant. This proactive maintenance regimen significantly mitigates wear, prevents premature bearing failure, and contributes directly to the "long life" promised by the product. Utilizing the appropriate type and quantity of grease is vital for maximizing the benefits of this greasable design.
Driveline-Grade Steel Bearing: Engineered for Dynamic Loads
The mention of "driveline-grade steel bearing" signifies that the carbon steel insert is specifically engineered to withstand the dynamic and often arduous conditions associated with power transmission systems. Drivelines inherently experience torsional loads, varying speeds, and potential shock loads. A driveline-grade bearing implies enhanced fatigue strength, resistance to brinelling (indentations from static overload or impact), and robust performance under continuous rotational stress. This quality assurance ensures that the bearing can reliably support the operational demands of demanding applications, contributing to the overall ruggedness and durability of the assembly.
Rugged and Durable Construction: An Integrated System
The synergistic combination of the driveline-grade carbon steel bearing insert and the cast iron housing culminates in a truly "rugged and durable" bearing unit. This integrated construction is designed to withstand the harsh realities of industrial environments, including exposure to dirt, debris, moisture, and temperature fluctuations. The robust housing protects the precision internal components, while the strong bearing insert handles the rotational forces. This comprehensive approach to durability minimizes the need for frequent replacements, reduces maintenance costs, and improves overall equipment uptime.
Versatile Industrial Applications
Given its robust construction, precise 1-inch bore diameter, and reliable set screw locking mechanism, this flange bearing is ideally suited for a broad spectrum of industrial applications where reliable shaft support and power transmission are essential. Common applications include:
- Conveyor Systems: Providing critical support for drive and idler shafts in material handling conveyors across various industries.
- Agricultural Machinery: Enduring harsh outdoor conditions and heavy loads in equipment such as balers, harvesters, and cultivators.
- Industrial Fans and Blowers: Supporting impeller shafts in ventilation and air movement systems, where smooth, vibration-free operation is key.
- Pumps and Mixers: Offering robust support for shafts in fluid handling and processing equipment.
- Packaging Equipment: Maintaining precise motion control in automated packaging lines.
- Textile Machinery: Supporting numerous shafts involved in fabric production and processing.
- General Power Transmission: Any application requiring a 1-inch shaft to be supported against radial and light thrust loads with a positive locking mechanism.
Installation, Maintenance Best Practices, and Value Proposition
The design ethos of this 1 Inch Set Screw Style Flange Bearing prioritizes "simple installation and maintenance." For optimal performance and longevity, proper installation involves ensuring the shaft is clean and free of burrs, sliding the bearing onto the shaft, positioning it correctly, and then tightening the set screws evenly and to the manufacturer's recommended torque specifications. This precise tightening prevents shaft damage and ensures maximum gripping force to avoid slippage. Ongoing maintenance primarily revolves around regular lubrication via the integrated grease fitting, following a schedule tailored to the specific operating environment and load. Periodic inspection for signs of wear, unusual noise, or vibration will also help identify potential issues before they escalate.
The ultimate value proposition of this Buyers Products 1 Inch Set Screw Style Flange Bearing lies in its unique blend of robust engineering, material excellence, and design foresight. It offers engineers and equipment operators a reliable, durable, and easily maintainable solution for shaft support. By minimizing downtime through extended service life and simplified upkeep, this bearing directly contributes to enhanced operational efficiency and a lower total cost of ownership for a wide array of industrial machinery.
