4F24 - 1-1/2 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing - 4 Hole

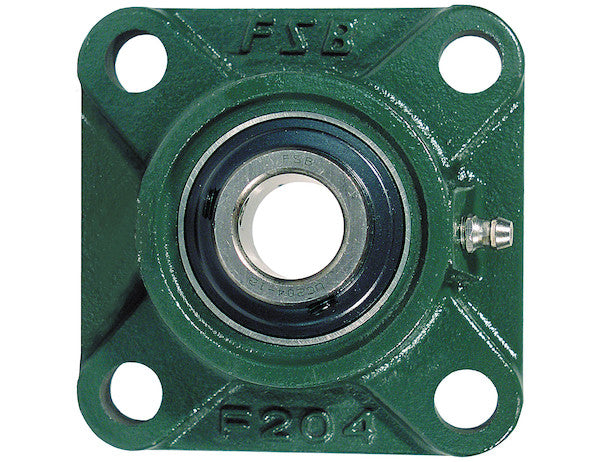

Buyers Products Eccentric Locking Collar Style Flange Bearings are equipped to handle high-speed applications without risking drive shaft slippage. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the flanges rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The standard 4 bolt mounting design provides a secure attachment for the bearing. The eccentric locking collar means that the drive shaft will not slip, even at high RPMs. The flange bearing has a self-aligning design that allows for a small amount of shaft misalignment.

Specifications

The 1-1/2 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing – 4 Hole, offered by Buyers Products, represents a robust and precisely engineered solution for demanding rotary applications. This industrial-grade component is specifically designed to deliver uncompromising performance, particularly in environments characterized by high rotational speeds and dynamic loading conditions. Its meticulous construction and integration of advanced mechanical principles ensure optimal operational integrity and extended service life across a myriad of industrial, agricultural, and commercial applications where dependable shaft support and precise alignment are paramount.

At its core, this flange bearing is engineered to accommodate a shaft with a nominal diameter of 1.500 inches (38.1 mm). This bore diameter is a critical specification, dictating the shaft size it can effectively support. The precise fit between the shaft and the bearing bore is essential for minimizing vibration, reducing wear, and ensuring the efficient transmission of power. A 1.5-inch shaft is a common size in medium-duty power transmission systems, including those found in conveyor systems, agricultural machinery, material handling equipment, and various industrial fan and pump applications, necessitating a bearing that can handle corresponding loads and speeds with high reliability.

The Advanced Eccentric Locking Collar Mechanism

A defining feature of this bearing is its eccentric locking collar mechanism, which provides a superior method for securing the bearing to the shaft compared to traditional set-screw designs. The eccentric locking collar functions by having an inner bore that is eccentric to its outer circumference. When assembled onto the extended inner ring of the bearing, which itself has an eccentric bore, rotating the collar relative to the bearing causes a wedging action. This creates a secure, concentric grip around the shaft. The inner ring of the bearing features an eccentric counterbore, which mates with the eccentric step on the locking collar. A single set screw on the collar is then tightened, forcing the eccentric surfaces to rotate and cam against each other, effectively clamping the shaft with a true 360-degree contact force.

The technical advantages of this locking mechanism are substantial. Firstly, it provides an exceptionally strong and positive grip on the shaft, drastically reducing the risk of shaft slippage, even under extreme vibration, shock loads, or high RPMs, as highlighted in the initial description. Unlike set screws that create point contact stress on the shaft, potentially deforming it or allowing minor creep, the eccentric collar distributes clamping forces more evenly around the shaft circumference. This uniform clamping minimizes shaft distortion, prevents fretting corrosion, and ensures superior concentricity between the shaft and the bearing's inner ring, which is crucial for maintaining dynamic balance at high speeds. This concentricity also contributes to reduced noise and vibration, prolonging the life of both the bearing and adjacent machinery components.

Moreover, installation with an eccentric locking collar is generally simpler and faster than other methods, requiring only a moderate tightening of a single set screw after positioning the collar. This reduces installation errors and ensures consistent performance across multiple units. The inherent design of the eccentric collar also makes it less susceptible to loosening over time due to operational vibrations, offering a more dependable and maintenance-friendly solution for critical applications.

Robust Flange Bearing Design and Materials

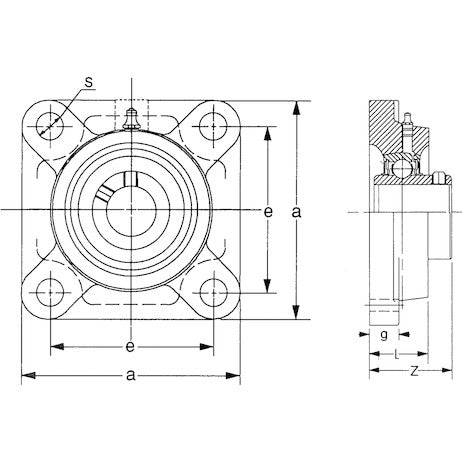

The flange bearing configuration, characterized by its square, 4-hole bolt pattern, is engineered for stable and secure mounting to a machine frame or structural support. The "Bolt Hole Center to Center" dimension of 4.000 inches and "Bolt Size" of 0.500 inches (with a "S (diagram/Bolt Hole Diameter)" of 0.547 inches) provide precise parameters for mounting plate design, ensuring proper alignment and load distribution. This 4-bolt design, a standard in industrial practice, offers exceptional stability and resistance to twisting moments and radial loads, distributing the operational forces across a wider area of the mounting surface. The square bolt pattern facilitates straightforward installation and ensures robust mechanical integration into various equipment designs, from simple pedestals to complex structural frames.

The housing of this flange bearing is meticulously crafted from high-quality cast iron, a material celebrated for its superior mechanical properties in bearing applications. Cast iron possesses excellent rigidity and compressive strength, which are essential for maintaining the precise internal clearances of the bearing assembly under significant operational loads. Its inherent dampening characteristics help to absorb and dissipate vibrations, reducing noise levels and protecting the internal bearing components from excessive stress. This contributes significantly to the bearing's ruggedness and durability, enabling it to withstand harsh operating conditions, impact loads, and prolonged exposure to industrial environments without compromising its structural integrity. Furthermore, cast iron offers good wear resistance and is cost-effective, making it an ideal choice for housings that require a balance of strength, performance, and economic viability.

Within this robust cast iron housing resides a bearing insert made from driveline-grade carbon steel. Carbon steel is a preferred material for bearing components due to its high hardness, excellent wear resistance, and good fatigue life, especially when heat-treated. The specific grade of carbon steel used is optimized to provide the necessary strength and surface hardness to withstand the continuous rolling contact stresses experienced by the bearing elements (balls or rollers, though for typical 1.5-inch shafts in this style, it's usually a deep groove ball bearing configuration within the insert). This material selection ensures the bearing can sustain high-speed rotational forces and transmit significant loads while maintaining its dimensional stability and operational precision over an extended service period. The "Bi (diagram)" dimension of 2.216 inches, "G (diagram)" of 0.63 inches, "I (diagram)" of 0.97 inches, "K (Diagram)" of 2.375 inches, and "L (diagram)" of 1.63 inches provide specific dimensional data for the bearing insert and its interface with the housing, crucial for engineering integration and component interchangeability.

The Critical Role of Self-Aligning Design

A key technical attribute of this flange bearing is its self-aligning design. This feature allows the bearing insert to pivot slightly within the housing, accommodating initial static shaft misalignment and minor dynamic misalignments that may occur during operation. Shaft misalignment, if not properly addressed, is a leading cause of premature bearing failure, generating excessive stresses, localized overheating, and accelerated wear on the bearing elements and races. The self-aligning capability alleviates these detrimental effects by ensuring that the load is distributed evenly across the rolling elements, thereby preventing concentrated stress points. This design characteristic not only extends the operational life of the bearing but also protects the shaft and other connected machinery components from undue stress, ultimately contributing to the overall reliability and efficiency of the mechanical system. It simplifies installation, as precision alignment between the shaft and mounting surface is less critical than with rigid bearing types, reducing labor time and the need for specialized alignment tools.

Optimized for High-Speed Applications and Durability

The design principles integrated into this Buyers Products flange bearing—from the eccentric locking collar to the robust materials and self-aligning insert—collectively contribute to its exceptional capability in high-speed applications. In such scenarios, the integrity of the shaft-to-bearing interface is paramount. Any slippage or instability can lead to catastrophic failure, excessive vibration, and significant downtime. The positive grip provided by the eccentric collar, combined with the low-friction characteristics of the carbon steel bearing and efficient lubrication, allows for sustained operation at high RPMs without compromising the mechanical integrity of the driveline. The "Overall Depth" of 2.34 inches, "Overall Height" of 5.13 inches, and "Overall Width" of 5.13 inches illustrate the compact yet robust nature of the entire assembly, allowing for integration into diverse machinery designs while maintaining structural integrity.

Simplified Maintenance for Prolonged Service Life

Recognizing that even the most robust components require proper care, this flange bearing is equipped with a grease fitting, making it fully greasable. This essential feature allows for routine lubrication, which is critical for mitigating friction, dissipating heat, and flushing out contaminants from the bearing's internal components. Regular application of appropriate industrial grease, as per manufacturer recommendations or operational requirements, ensures that the rolling elements and raceways remain enveloped in a protective film, preventing metal-to-metal contact and extending the bearing's service life significantly. Proper lubrication directly impacts the operational efficiency and longevity of the bearing, minimizing wear and tear, reducing power consumption, and preventing premature failure caused by lubricant degradation or ingress of foreign particles. The ease of access to the grease fitting facilitates quick and efficient maintenance, thereby reducing potential downtime and operational costs over the product's lifecycle.

Diverse Application Spectrum

Given its technical specifications and robust design, this 1-1/2 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing is an ideal choice for a wide array of industrial and mechanical applications. These include, but are not limited to:

• **Conveyor Systems:** For supporting the drive and idler shafts in various material handling conveyors, where continuous operation and resistance to shock loads are critical.
• **Agricultural Machinery:** In equipment such as tillers, harvesters, balers, and spreaders, where shafts operate in challenging, often dusty or wet, environments and require dependable shaft retention.
• **Industrial Fans and Blowers:** Providing reliable support for fan impellers and motor shafts, particularly where high rotational speeds and dynamic balance are essential.
• **Packaging Equipment:** In processing lines where precision, speed, and continuous operation are key to productivity.
• **Textile Machinery:** For various rollers and drive shafts that operate at high speeds and require smooth, consistent rotation.
• **Food and Beverage Processing:** In non-washdown areas where robustness and reliable operation are needed.
• **Mining and Construction Equipment:** For supporting shafts in demanding environments, offering resistance to heavy loads and impacts.
• **Power Transmission Units:** As essential components in gearboxes, reducers, and other power transmission assemblies.

Conclusion

In summary, the 1-1/2 Inch Shaft Diameter Eccentric Locking Collar Style Flange Bearing by Buyers Products stands as a testament to engineering excellence, offering a high-performance solution for challenging industrial applications. Its combination of a precise 1.5-inch bore, a superior eccentric locking collar for uncompromising shaft retention, a robust cast iron housing, a durable carbon steel bearing insert, and critical self-aligning capabilities ensures exceptional reliability and longevity. Coupled with user-friendly maintenance facilitated by an integrated grease fitting, this bearing minimizes downtime, reduces operational costs, and enhances the overall efficiency and safety of mechanical systems. For engineers and maintenance professionals seeking a dependable and high-integrity bearing solution that excels under high-speed and dynamic conditions, this product offers a compelling balance of advanced technical features, durability, and practical utility, representing a strategic investment in the operational continuity and performance of their machinery.
