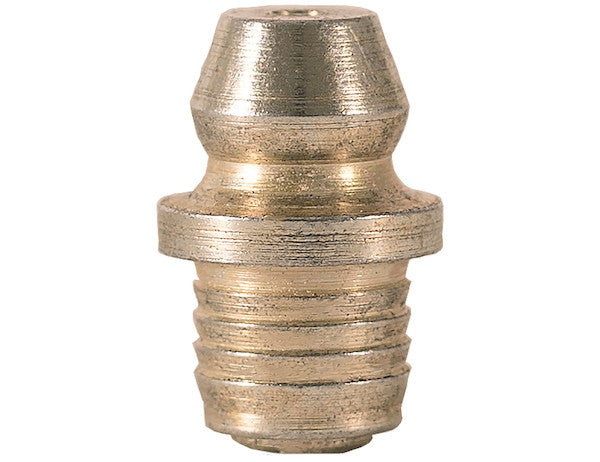

Buyers Products Drive Type Grease Fittings allow for fast and simple grease fitting installation. They are a cost effective, assembly line-friendly solution to replace worn out or damaged grease fittings with serrated shanks and oversized holes.
Specifications
| Angle | 0 |
|---|---|
| Ball Check (y/n) | No |
| Finish | Zinc Plated |
| Hole Size | 0.250 |
| Material | Carbon Steel |
| Overall Size | 0.625 |
| Thread Size | - |
| Type | Press In |
The 5/8 Inch Drive-In Type Grease Fitting with 1/4 Inch Hole: A Comprehensive Technical Overview
In the demanding landscape of industrial and heavy-duty mechanical applications, proper lubrication is not merely a maintenance task but a critical determinant of operational longevity, efficiency, and safety. The 5/8 Inch Drive-In Type Grease Fitting with a 1/4 Inch Hole, offered by Buyers Products, represents a specialized and highly effective solution for facilitating expedient and reliable lubrication. This product is engineered to address specific installation and repair challenges, offering a robust alternative to traditional threaded fittings in various contexts.
Understanding Drive-In Type Grease Fittings
Drive-in grease fittings, also commonly referred to as "press-in" or "hammer-in" fittings, are distinct from their threaded counterparts by their installation mechanism. Instead of relying on a pre-tapped hole for screw-in attachment, these fittings feature a serrated or barbed shank designed to be physically driven or pressed into a pre-drilled, unthreaded hole. The integrity of the connection is established through an interference fit, where the external diameter of the fitting's shank is marginally larger than the diameter of the receiving hole. This creates a tight, frictional seal that resists removal and ensures lubricant containment.
The primary advantage of the drive-in design lies in its simplicity and speed of installation. It eliminates the need for intricate threading operations, which can be time-consuming and prone to error, especially in high-volume manufacturing environments. Furthermore, drive-in fittings are particularly adept at addressing scenarios where the host material is too thin to sustain adequate threads, or where existing threaded holes have become stripped, damaged, or oversized due to wear and tear. The serrated shank actively bites into the softer material of the host component, creating a secure mechanical lock that can often salvage components that would otherwise require costly replacement or re-machining.
Detailed Specifications and Their Implications
Let us delve into the precise specifications of this particular Buyers Products drive-in grease fitting, as each parameter plays a crucial role in its application and performance:
Overall Size: 0.625 Inches (5/8 Inch)
The "Overall Size" of 0.625 inches, or 5/8 inch, refers to the nominal outer diameter of the fitting's shank, which is intended to be driven into the component. This dimension is paramount for proper hole preparation. For a secure interference fit, the receiving hole must be precisely drilled to a diameter slightly smaller than 0.625 inches. The exact drill size will depend on the hardness and ductility of the host material, typically requiring a carefully selected undersized bore to ensure adequate material deformation and retention without causing cracking or excessive stress. The 5/8-inch dimension makes this fitting suitable for applications where a substantial mounting diameter is required, either for robustness or for repairing larger, worn-out bores.
Hole Size: 0.250 Inches (1/4 Inch)
The "Hole Size" of 0.250 inches, or 1/4 inch, refers to the internal diameter of the grease passage through the fitting. This dimension dictates the flow rate of the lubricant during the greasing process. A 1/4-inch internal bore is sufficiently large to accommodate the passage of most standard industrial greases, including those with higher viscosities or particulate additives, without imposing significant resistance. This ensures efficient lubrication delivery to the bearing surface or component being serviced. This internal dimension also affects compatibility with grease gun couplers, though most standard couplers are designed to seal around the external nipple diameter, not the internal passage.
Angle: 0 Degrees (Straight)
A "0-degree angle" signifies a straight grease fitting. This means the fitting projects perpendicularly from the component surface. Straight fittings are the most common and are ideal for applications where direct, unobstructed access to the lubrication point is available. Their straightforward design minimizes flow resistance and offers a clear path for grease delivery. While angled fittings (e.g., 45-degree or 90-degree) are necessary in constricted spaces or for ergonomic access, a straight fitting is preferred for its simplicity, robustness, and ease of installation when space permits.
Ball Check: No
The absence of a "Ball Check" is a significant technical detail. Most conventional grease fittings incorporate a small spring-loaded ball check valve at the tip of the fitting. This ball check serves a critical function: to prevent grease from flowing back out of the fitting after the grease gun coupler is removed, and to prevent ingress of dirt, moisture, and other contaminants into the lubrication system. Its absence in this specific fitting implies a design choice focused on simplicity, cost-effectiveness, or suitability for environments where backflow prevention is either managed by the application itself or is not a primary concern. For instance, in some low-pressure or non-critical applications, or where the grease cavity itself acts as a sufficient seal, a ball check may be deemed unnecessary. Users should carefully consider their application's specific requirements regarding contamination and backflow before selecting a fitting without a ball check. While it simplifies the fitting's internal mechanics and potentially reduces manufacturing cost, it places greater reliance on the integrity of the grease system itself to maintain cleanliness and retain lubricant.
Material: Carbon Steel
The selection of "Carbon Steel" as the material of construction offers a balance of strength, durability, and cost-effectiveness. Carbon steel is renowned for its high tensile strength and resistance to mechanical stress, making it well-suited for applications involving shock loads, vibrations, and high installation forces (as is inherent with a drive-in fitting). It provides excellent structural integrity and wear resistance for the fitting itself. Furthermore, carbon steel is widely available and easily formable, contributing to the overall economic viability of the product. Its mechanical properties ensure that the serrated shank can effectively bite into the host material and maintain a secure hold over time.
Finish: Zinc Plated
"Zinc Plated" refers to the surface treatment applied to the carbon steel fitting. Zinc plating is a common and effective method for enhancing corrosion resistance. The zinc layer acts as a sacrificial coating, corroding preferentially to the underlying steel when exposed to moisture and other corrosive elements. This significantly extends the service life of the fitting, particularly in outdoor or mildly corrosive industrial environments. The plating also provides a clean, aesthetically pleasing finish. Modern zinc plating typically employs trivalent chromium passivation (Cr3+) for environmental compliance, offering good corrosion protection without the use of hexavalent chromium (Cr6+), which is restricted due to its toxicity.
Type: Press In
The "Press In" type further emphasizes the installation method. This means the fitting is designed to be inserted into a pre-drilled hole under mechanical force, typically using an arbor press, hydraulic press, or in field applications, carefully with a hammer. The press-in method ensures consistent installation depth and a uniform interference fit, which is crucial for the long-term reliability of the connection. This classification reinforces that no threading operation is involved in its installation, streamlining assembly processes.
Thread Size: -
The "Thread Size: -" explicitly states that this fitting is not threaded. This absence confirms its nature as a drive-in or press-in fitting, further distinguishing it from threaded grease fittings. This information is vital for selection, as it immediately indicates that no tapping of the receiving hole is required, aligning with its rapid installation benefits.
Installation Principles and Best Practices
The successful installation of the 5/8 Inch Drive-In Type Grease Fitting hinges on precision and adherence to established practices:
- Hole Preparation: The receiving hole must be accurately drilled to the manufacturer-recommended undersized diameter. This diameter is critical for achieving the necessary interference fit without overstressing the host material or allowing the fitting to become loose. The hole should be deburred to remove any sharp edges that could interfere with seating or damage the fitting's shank.
- Method of Insertion: While a hammer can be used for field repairs, a controlled pressing force is ideal for optimal installation. An arbor press or hydraulic press provides a steady, axial force that ensures the fitting is driven straight and evenly into the hole, minimizing the risk of bending or damage to the fitting or the host component.
- Seating: The fitting must be fully seated, with its base flush against the surface of the component, to ensure maximum retention and prevent lubricant leakage from around the fitting.
- Material Compatibility: Consider the hardness of the host material. Drive-in fittings are most effective in softer metals (e.g., some steels, aluminum, cast iron) where the serrations can adequately deform the material and lock into place. In very hard materials, the interference fit might be compromised or require specialized installation tools and techniques.
Applications and Industrial Relevance
The 5/8 Inch Drive-In Type Grease Fitting with a 1/4 Inch Hole finds extensive utility across numerous heavy-duty and industrial sectors:
- Heavy Equipment: Construction machinery (excavators, loaders, bulldozers), agricultural equipment (tractors, harvesters), and mining vehicles often feature numerous lubrication points exposed to harsh conditions. Drive-in fittings offer a quick and durable solution for both OEM assembly and field repairs when threaded ports become damaged.
- Automotive and Trucking: While many modern automotive applications use sealed-for-life components, older vehicles, chassis points, and commercial trucks and trailers frequently utilize grease fittings. Drive-in types are invaluable for fleet maintenance and repairs, particularly on components prone to impact or wear.
- Industrial Machinery: Conveyor systems, processing equipment, gearboxes, and various manufacturing apparatuses benefit from robust lubrication. The simplicity and reliability of drive-in fittings make them suitable for high-volume production lines and maintenance operations.
- Marine Applications (Non-Submerged/Freshwater): For components not continuously submerged in saltwater, the zinc plating provides sufficient protection against rust and corrosion, making these fittings suitable for certain marine equipment.
- Cost-Effective Replacements: As highlighted in the initial description, these fittings are an excellent "assembly line-friendly solution to replace worn out or damaged grease fittings with serrated shanks and oversized holes." This capability to salvage components with compromised threaded bores offers significant cost savings by avoiding the need for re-machining or complete part replacement.
Advantages of Buyers Products Drive-In Fittings
Buyers Products has engineered this grease fitting with several key advantages in mind:
- Expedited Installation: The press-in design inherently reduces installation time, contributing to faster assembly processes and more efficient maintenance operations.
- Enhanced Durability: Constructed from carbon steel with zinc plating, the fitting is designed to withstand the rigors of demanding environments, offering resistance to mechanical stress and corrosion.
- Problem-Solving Capability: Its primary strength lies in its ability to provide a secure lubrication point even when the original receiving hole is damaged or oversized, effectively extending the lifespan of machinery components.
- Versatility: Suitable for a wide range of host materials and applications where traditional threaded fittings may be impractical or fail.
- Cost-Effectiveness: By simplifying installation and offering a repair solution, these fittings contribute to overall cost reduction in manufacturing and maintenance budgets.
Maintenance and Lubrication Best Practices
While the fitting itself is robust, overall lubrication system integrity relies on consistent best practices:
- Regular Greasing Schedule: Adhere strictly to manufacturer-recommended lubrication intervals to prevent premature wear.
- Cleanliness: Always wipe the grease fitting clean before attaching a grease gun coupler to prevent the introduction of contaminants into the bearing or lubrication point.
- Proper Grease Selection: Use only the type and grade of grease specified by the equipment manufacturer.
- Grease Gun Maintenance: Ensure your grease gun and couplers are in good working order to facilitate efficient grease delivery and prevent leakage.
- Inspection: Periodically inspect grease fittings for damage, blockage, or looseness. Damaged fittings should be replaced promptly. The absence of a ball check in this specific fitting makes cleanliness during lubrication even more critical, as it provides no internal barrier against external contaminants once the grease gun is removed.
Conclusion
The 5/8 Inch Drive-In Type Grease Fitting with a 1/4 Inch Hole from Buyers Products is a meticulously designed component offering a pragmatic and robust solution for lubrication access in challenging industrial and heavy-duty applications. Its drive-in mechanism, coupled with the durability of carbon steel and zinc plating, ensures a secure and lasting installation, particularly valuable for mitigating issues arising from damaged or oversized bores. While the absence of a ball check requires careful consideration in specific applications, its straightforward design, ease of installation, and cost-effectiveness make it an indispensable asset for equipment manufacturers and maintenance professionals seeking reliable and efficient lubrication solutions. By understanding its technical specifications and adhering to best practices, engineers and technicians can leverage this fitting to optimize machine performance, extend equipment life, and ensure operational continuity.
