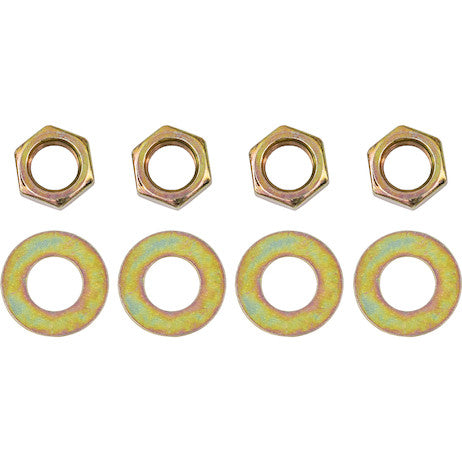

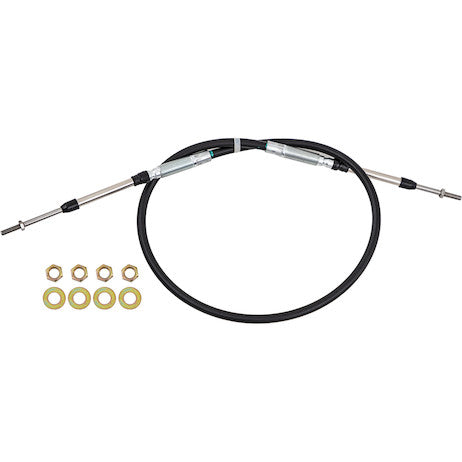

The 5200 Series Universal Mount Control Cable from Buyers Products is a universal mount, push-pull style cable for most medium duty PTO and hoist applications. With an 8 in. minimum bend radius and a 40-100 lb load range, the cable is the flexible choice for many jobs. All cables include bulkhead nuts and washers for fast connectivity.
Specifications
| Total Travel (in.) | 3 " |
| Cable Diameter (in.) | 0.125 " |
| Bulkhead Thread Size | 5/8-18 " |
| Cable Series | 5200 Series |
| End Type | Rod |
| Cable Length (in.) | 48 " |
| Conduit Diameter (in.) | .41 " |
| Conduit Color | Black |
| Rod End Thread Size | 1/4-28 " |
| Cable Core Material | Stainless Steel |
| Conduit Material | PVC |
Advanced Engineering and Performance of the 48 Inch 5200 Series Universal Mount Control Cable
The 48 Inch 5200 Series Universal Mount Control Cable represents a pinnacle in mechanical control system engineering, specifically designed to meet the rigorous demands of medium-duty industrial and commercial applications. Manufactured by Buyers Products, a recognized leader in high-performance vehicle and equipment components, this control cable is engineered for precision, durability, and operational reliability. Its comprehensive design and material selection ensure consistent performance across a broad spectrum of challenging environments, making it an indispensable component for critical power transmission and load management systems.
The 5200 Series Advantage: Design Philosophy and Application Focus
The 5200 Series is a distinguished line of control cables developed with a core philosophy centered on robust functionality and broad compatibility. Unlike light-duty alternatives, the 5200 Series is specifically calibrated for medium-duty applications, bridging the gap between intricate light-duty controls and heavy-duty, often hydraulic, systems. This strategic positioning allows it to excel in scenarios requiring consistent force transmission ranging from 40 to 100 pounds, a sweet spot for numerous Power Take-Off (PTO) and hoist operations. The series is characterized by its meticulous attention to internal friction reduction, protective jacketing, and secure end-fitting design, all contributing to its superior operational lifespan and minimal maintenance requirements. Its widespread adoption stems from its ability to offer a precise and reliable mechanical linkage where hydraulic or electronic systems might be overkill or impractical, providing a cost-effective and robust solution for direct mechanical actuation.
Universal Mount Design: Maximizing Installation Flexibility
The designation "Universal Mount" is a critical feature that underscores the adaptability of this control cable. In the context of mechanical control systems, a universal mount implies that the cable assembly is designed with standardized attachment points and dimensions, enabling it to be integrated seamlessly into a wide array of equipment without requiring specialized brackets or custom modifications. This universality is particularly beneficial in diverse fleets, multi-purpose vehicles, and bespoke machinery where standardization simplifies inventory management, reduces installation time, and minimizes design complexity. The inclusion of bulkhead nuts and washers as standard components further enhances this versatility, providing immediate and secure panel or chassis mounting capabilities. These components are meticulously engineered to facilitate a robust and stable connection, resisting vibration and shock while ensuring the cable remains firmly anchored, preventing operational inefficiencies or potential disconnections in dynamic operating conditions. The bulkhead mounting design allows for precise routing through a designated aperture, offering protection against environmental ingress and mechanical interference, thereby preserving the integrity and longevity of the cable assembly.
Optimized for Medium Duty PTO and Hoist Applications
The primary application focus for the 48 Inch 5200 Series Universal Mount Control Cable lies within medium-duty Power Take-Off (PTO) and hoist systems, two areas where reliable mechanical linkage is paramount. PTO systems are essential mechanisms that allow auxiliary equipment, such as pumps, generators, or winches, to draw power directly from a vehicle's engine or transmission. Actuating a PTO requires a control cable capable of precisely engaging and disengaging the power transfer, often under significant resistance. The 40-100 lb load range of this cable is ideally suited for managing the forces associated with these engagements, ensuring smooth and decisive operation. For hoist applications, whether on service trucks, utility vehicles, or small cranes, the cable provides the crucial control link for raising, lowering, or positioning loads. The push-pull functionality of the 5200 Series cable is particularly advantageous here, enabling positive control in both directions of movement, which is vital for safety and precision in load handling. Beyond these primary applications, its robust design and specified load range make it suitable for various other medium-duty tasks, including remote valve actuation, throttle control in industrial engines, choke controls, and remote latch or lock releases where a direct, reliable mechanical connection is preferred.
Detailed Mechanical Specifications and Material Science
Cable Length: 48 Inches (1219.2 mm)
The 48-inch cable length is a carefully considered dimension, offering a practical reach for numerous medium-duty applications without introducing excessive slack or requiring complex routing. Proper cable length selection is crucial for optimal performance, as an overly long cable can increase internal friction, reduce responsiveness, and create routing challenges that compromise the cable's minimum bend radius. Conversely, a cable that is too short can lead to premature wear or installation difficulties. The 48-inch length strikes a balance, providing ample reach for typical PTO and hoist control panels located a moderate distance from the actuation point, while minimizing the potential for inefficient or problematic routing, thus ensuring a direct and responsive control pathway.
Total Travel: 3 Inches (76.2 mm)
The 3-inch total travel specification indicates the maximum linear displacement of the cable core. This parameter is critical for matching the cable to the throw requirements of the actuated mechanism. A 3-inch travel is sufficient for most engagement/disengagement operations in PTOs and provides adequate range for many hoist control levers, ensuring full actuation without over-travel. This precise travel length contributes to accurate and repeatable control, preventing partial engagements or disengagements that could lead to operational inefficiencies or component wear.
Minimum Bend Radius: 8 Inches (203.2 mm)
The 8-inch minimum bend radius is a significant engineering characteristic, directly impacting both installation flexibility and cable longevity. This specification dictates the tightest curve the cable can endure without causing permanent damage, excessive internal friction, or accelerated wear to the cable core and conduit. A smaller bend radius, such as the 8 inches offered by the 5200 Series, allows for more versatile routing through confined spaces or around obstacles commonly found in vehicle chassis and equipment compartments. Exceeding this minimum bend radius can lead to kinking, binding, increased operational effort, and ultimately, premature cable failure. The careful design of the 5200 Series, incorporating flexible yet durable materials, ensures that it can maintain its performance characteristics even when routed with this relatively tight curvature, offering enhanced installation adaptability without compromising functional integrity.
Cable Core Material: Stainless Steel
The selection of stainless steel for the cable core is a testament to the product's emphasis on durability and resistance to environmental degradation. Stainless steel is renowned for its exceptional corrosion resistance, particularly in moist, humid, or chemically aggressive environments common in outdoor and industrial settings. This property prevents rust and pitting, which can otherwise lead to increased friction, binding, and eventual failure of carbon steel alternatives. Furthermore, stainless steel exhibits high tensile strength and excellent fatigue resistance, allowing the cable to withstand repetitive push-pull cycles and sustained load applications without suffering from elongation or breakage. Its inherent lubricity also contributes to smooth operation within the conduit, ensuring consistent force transmission and a long service life even under demanding operational profiles.
Cable Diameter: 0.125 Inches (3.175 mm)
The 0.125-inch (1/8 inch) cable diameter is carefully chosen to balance strength with flexibility. A larger diameter would increase rigidity and reduce flexibility, while a smaller diameter might compromise the load-bearing capacity. This specific diameter provides ample cross-sectional area for the stainless steel core to handle the specified 40-100 lb load range while remaining sufficiently pliable to conform to the 8-inch minimum bend radius. The precise diameter also ensures optimal clearance and movement within the conduit, minimizing internal friction and maximizing the efficiency of force transmission.
Conduit Material: PVC and Conduit Diameter: 0.41 Inches (10.41 mm)
The external conduit, crafted from high-quality PVC (Polyvinyl Chloride), serves several critical functions: protection, lubrication, and guidance for the internal cable core. PVC is selected for its excellent balance of flexibility, abrasion resistance, chemical resistance, and environmental stability. It effectively shields the stainless steel core from physical damage, dirt, dust, moisture, and common industrial chemicals, which are ubiquitous in the operational environments of PTO and hoist systems. The PVC conduit also contributes significantly to the cable's ability to maintain its 8-inch minimum bend radius without kinking. Its smooth internal surface, often factory-lubricated, minimizes friction between the conduit and the cable core, ensuring smooth and effortless operation throughout the cable's travel. The conduit's diameter of 0.41 inches is specifically matched to the 0.125-inch cable core, providing sufficient internal clearance to facilitate free movement while preventing excessive slop that could lead to imprecise control. The black color of the conduit provides inherent UV resistance, preventing material degradation from prolonged sun exposure, thereby extending its outdoor service life and maintaining aesthetic consistency.
End Fittings and Secure Connectivity
End Type: Rod End and Rod End Thread Size: 1/4-28"
The choice of a rod end for the cable termination is a hallmark of robust mechanical control. A rod end, or spherical plain bearing, provides a high-strength, articulating connection point that accommodates angular misalignment between the cable and the actuated lever or mechanism. This articulation is crucial for preventing binding and transmitting force smoothly, even when the cable's path is not perfectly linear relative to the actuated component. The use of a rod end significantly reduces stress concentrations that might occur with rigid connections, thereby enhancing the longevity of both the cable and the connected equipment. The specified 1/4-28" thread size on the rod end is a common, fine-pitch thread standard, providing a secure and adjustable connection. The fine threads allow for precise length adjustments during installation, enabling technicians to calibrate the control system for optimal engagement and disengagement points. This industry-standard thread ensures compatibility with a wide range of mounting hardware and linkage components, simplifying integration into existing systems.
Bulkhead Thread Size: 5/8-18"
The 5/8-18" bulkhead thread size is a robust and widely recognized standard for panel-mount control cables. This larger diameter thread provides substantial mechanical strength for securing the cable assembly to a control panel, dashboard, or chassis. The 18 threads per inch (fine pitch) ensure a tight, vibration-resistant connection when combined with the included bulkhead nuts and washers. This secure mounting mechanism is vital for maintaining the stability of the cable and preventing movement that could compromise control precision or lead to premature wear at the mounting point. The standardized thread size also simplifies replacement and integration with pre-drilled panels.
Performance Characteristics and Operational Reliability
The combination of meticulously selected materials and precision engineering endows the 48 Inch 5200 Series Universal Mount Control Cable with exceptional performance characteristics:
- Unwavering Durability: The stainless steel core, robust PVC conduit, and high-strength rod end are designed to withstand years of continuous operation in demanding environments, resisting wear, corrosion, and fatigue.
- Smooth and Responsive Operation: The low-friction design, coupled with optimal cable-to-conduit clearance, ensures that the cable operates smoothly and consistently, providing immediate and accurate feedback to the operator. This responsiveness is critical for precise control of PTO and hoist mechanisms.
- Environmental Resistance: Built to endure, this cable resists common environmental stressors including moisture, dust, dirt, oils, and temperature fluctuations. The PVC conduit provides excellent protection against physical abrasion and chemical exposure, while the stainless steel core safeguards against internal corrosion.
- Consistent Load Transmission: Engineered for a 40-100 lb load range, the cable maintains its structural integrity and operational efficiency within these parameters, providing dependable force transmission without undue flex or deformation.
- Low Maintenance Design: With its high-quality materials and construction, the 5200 Series cable is designed for a long, trouble-free service life, requiring minimal maintenance beyond periodic visual inspection to ensure proper routing and connection integrity.
Installation and System Integration Best Practices
While designed for universal compatibility and ease of installation, optimal performance of the 48 Inch 5200 Series Universal Mount Control Cable relies on adherence to best practices during integration:
- Proper Routing: Always adhere to the 8-inch minimum bend radius. Avoid sharp corners, tight turns, and routing paths that subject the cable to excessive heat sources, pinch points, or abrasive surfaces. Smooth, gradual curves maximize cable life and minimize operational effort.
- Secure Mounting: Utilize the included bulkhead nuts and washers to ensure the cable is firmly mounted to the control panel or chassis. A stable mounting point prevents cable movement and maintains alignment, crucial for consistent control.
- Accurate Adjustment: Leverage the adjustability of the 1/4-28" threaded rod end to precisely calibrate the cable's travel and ensure proper engagement and disengagement points for the actuated mechanism.
- Inspection: Prior to and during operation, conduct visual inspections to confirm the cable's integrity, proper routing, and secure connections.
Conclusion
The 48 Inch 5200 Series Universal Mount Control Cable from Buyers Products stands as a testament to advanced mechanical control engineering. Its robust construction, featuring a stainless steel core within a durable PVC conduit, combined with a precise 3-inch total travel and a flexible 8-inch minimum bend radius, positions it as an exemplary solution for medium-duty PTO and hoist applications. The universal mount design, complemented by standard bulkhead fittings and an articulating rod end, ensures effortless integration and reliable performance across a diverse range of industrial and commercial equipment. By offering unparalleled durability, precision, and environmental resistance within its specified load range, this control cable provides a high-performance, long-lasting, and dependable link in critical mechanical systems, underscoring Buyers Products' commitment to quality and operational excellence.
