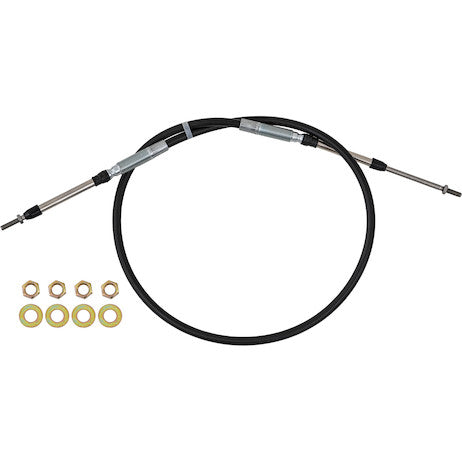

The 5200 Series Universal Mount Control Cable from Buyers Products is a universal mount, push-pull style cable for most medium duty PTO and hoist applications. With an 8 in. minimum bend radius and a 40-100 lb load range, the cable is the flexible choice for many jobs. All cables include bulkhead nuts and washers for fast connectivity.
Specifications
| Total Travel (in.) | 3 " |
| Rod End Thread Size | 1/4-28 " |
| Conduit Color | Black |
| Conduit Material | PVC |
| Cable Length (in.) | 60 " |
| Cable Core Material | Stainless Steel |
| Bulkhead Thread Size | 5/8-18 " |
| Cable Diameter (in.) | 0.125 " |
| Cable Series | 5200 Series |
| Conduit Diameter (in.) | .41 " |
| End Type | Rod |
Advanced Technical Overview: 60-Inch 5200 Series Universal Mount Control Cable
The 60-Inch 5200 Series Universal Mount Control Cable by Buyers Products represents a high-performance, robust solution engineered for precision mechanical control in a diverse array of industrial and commercial applications. This detailed technical description aims to provide an in-depth understanding of its design, operational principles, material science, and suitability for demanding environments, emphasizing its universal applicability and reliability.
Product Foundation: The 5200 Series Design Philosophy
The 5200 Series is a testament to meticulous engineering, focusing on durability, flexibility, and consistent performance. As a universal mount, push-pull style cable, it is specifically designed to translate linear motion from an input source to an output device with minimal loss in efficiency. This series is particularly well-suited for medium-duty Power Take-Off (PTO) systems and hoist mechanisms, where reliable engagement and disengagement are paramount. The "universal mount" designation highlights its adaptability across various equipment platforms, reducing the need for custom fabrication and streamlining installation processes. This inherent versatility makes it an invaluable component for OEMs and maintenance professionals alike seeking standardized, high-quality control solutions.
Operational Characteristics and Performance Metrics
At the core of the 5200 Series cable's performance are its specified operational parameters. The cable boasts a total travel of 3 inches, providing sufficient stroke for actuating a wide range of valves, levers, or linkages commonly found in PTO and hoist systems. This precise travel capability ensures accurate control over the engaged mechanism, preventing over-extension or insufficient engagement. The cable's exceptional flexibility is underscored by an 8-inch minimum bend radius. This critical specification allows for complex routing paths within confined spaces without compromising the cable's internal integrity or smooth operation. A smaller bend radius indicates superior flexibility, which is vital for installations where direct linear paths are impractical or impossible. Maintaining the specified bend radius is crucial for maximizing the cable's lifespan and preventing premature wear or binding.
The load range of 40-100 lbs (approximately 178-445 Newtons) further defines the cable's operational envelope. This range indicates its capacity to effectively transmit force for medium-duty applications. While capable of handling a significant pull/push force, it is important to operate within this specified range to ensure optimal performance and longevity. Exceeding the maximum load can lead to premature fatigue, elongation, or even failure of the cable core, while operating significantly below the minimum might indicate an oversized cable for the application, potentially leading to less precise control or unnecessary expense.
Material Science and Construction Excellence
The robust construction of the 5200 Series cable relies on a carefully selected combination of materials, each chosen for its specific properties contributing to the overall durability and efficiency of the assembly.
Cable Core: Stainless Steel for Enduring Strength
The heart of the control cable is its stainless steel core, with a nominal diameter of 0.125 inches. Stainless steel is a superior choice for control cable applications due to its excellent tensile strength, corrosion resistance, and fatigue resistance. This material ensures that the cable can withstand repeated push-pull cycles and exposure to various environmental conditions without significant degradation in performance. The inherent properties of stainless steel prevent rusting and pitting, which could otherwise lead to increased friction, binding, or failure of the control mechanism. The precise diameter contributes to the cable's stiffness-to-flexibility ratio, balancing the need for efficient force transmission with the ability to navigate bends.
Conduit System: PVC for Protection and Glide
Encasing the stainless steel core is a high-quality PVC (Polyvinyl Chloride) conduit, characterized by its black color and a nominal outer diameter of 0.41 inches. The conduit serves multiple critical functions: it protects the internal cable core from external contaminants such as dust, moisture, and chemicals; it provides a low-friction pathway for the cable core to slide within; and it contributes significantly to the cable's structural integrity and bend radius characteristics. PVC is an ideal material for this application due to its flexibility, abrasion resistance, and chemical stability. The black color offers UV resistance and discreet integration into various machinery aesthetics. The specified conduit diameter ensures sufficient clearance for the cable core while minimizing play, thus maintaining precise control feedback.
End Fittings and Connectivity: Precision and Ease of Installation

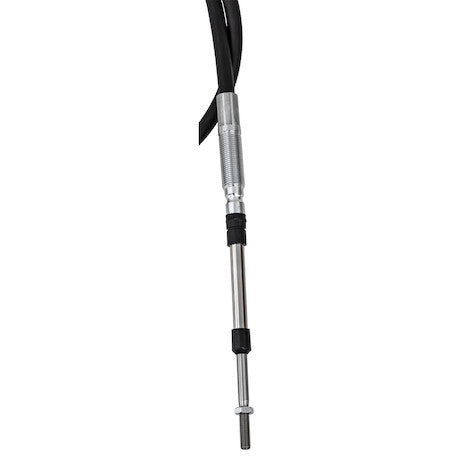

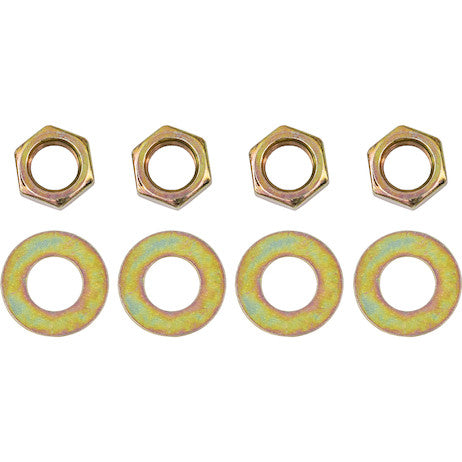

The design of the 5200 Series cable emphasizes ease of installation and secure connectivity. All cables are supplied with essential hardware, including bulkhead nuts and washers. The bulkhead thread size is 5/8-18 inches, a standard dimension that facilitates fast and secure mounting through panels or bulkheads, ensuring a stable anchor point for the control system. The rod end type is a key feature, providing a direct and robust connection point to the controlled mechanism. The rod end thread size of 1/4-28 inches is a common industry standard, allowing for compatibility with a wide array of existing linkages and clevises. This standardization simplifies integration and reduces the need for specialized adapters, further enhancing the "universal mount" aspect of the cable.
The Technical Advantages of a Push-Pull System
The push-pull design is fundamentally simple yet highly effective. It allows for direct mechanical control in both directions of travel, making it suitable for applications requiring both activation and deactivation or bidirectional adjustment. Unlike single-acting cables that rely on external forces (e.g., springs) for return motion, a push-pull cable provides positive control throughout its entire stroke. This characteristic is particularly advantageous in safety-critical applications like PTO engagement, where a definitive "on" and "off" state is required, or in hoist controls, where precise upward and downward movement is essential. The inherent robustness of the design minimizes backlash and hysteresis, ensuring that the operator's input translates accurately and immediately to the output device.
Dimensional Specifications and Their Implications
The overall length of the cable, at 60 inches, is a crucial dimensional specification. This length dictates the maximum distance an operator control can be from the actuated mechanism. Proper selection of cable length is vital to avoid excessive slack, which can introduce imprecise control, or insufficient length, which can lead to overstretching or difficult routing. When selecting a cable, engineers and technicians must meticulously measure the required path, accounting for all bends and connection points, to ensure the 60-inch length is appropriate for the intended application.
Applications in Detail: PTO and Hoist Systems
The designation for PTO and hoist applications is not arbitrary; it speaks to the cable's specific engineering for these demanding environments. In PTO systems, the cable controls the engagement and disengagement of power from an engine or transmission to auxiliary equipment, such as hydraulic pumps, air compressors, or winches. These applications often involve significant forces and require a cable that can withstand continuous operation while maintaining precision. For hoist applications, the cable might control lifting, lowering, or braking mechanisms. Here, the reliability and strength of the cable are paramount for safety and operational efficiency, making the stainless steel core and robust conduit indispensable.
Quality Assurance and Reliability
Buyers Products is known for its commitment to manufacturing high-quality components, and the 5200 Series Universal Mount Control Cable is no exception. Each cable undergoes rigorous quality control checks to ensure it meets stated specifications and performs reliably under expected operating conditions. This commitment to quality translates into reduced downtime, extended service intervals, and enhanced operational safety for end-users. The choice of materials, precision manufacturing processes, and inclusion of necessary mounting hardware all contribute to the superior reliability and longevity of this product.
Installation Best Practices and Maintenance
While designed for universal mounting and ease of installation, adhering to best practices is crucial for maximizing the lifespan and performance of the 60-inch 5200 Series cable. Installers should:
- Ensure the minimum bend radius of 8 inches is never violated during routing. Sharp bends significantly increase friction, wear, and the risk of core failure.
- Secure the conduit adequately along its path to prevent chafing, vibration, and unintended movement. Use appropriate clamps or ties.
- Lubricate the cable core periodically with a suitable lubricant designed for control cables, especially in dusty or corrosive environments. This minimizes friction and extends life.
- Regularly inspect the cable for signs of wear, fraying, kinks, or damage to the conduit. Any visible damage warrants immediate replacement.
- Confirm that the rod end threads and bulkhead nuts are tightened to the manufacturer's recommended torque specifications to prevent loosening due to vibration.
- Ensure the controlled mechanism operates freely and is not binding, as excessive resistance can prematurely wear out the cable.
Conclusion: A Benchmark for Control Cable Excellence
The 60-Inch 5200 Series Universal Mount Control Cable from Buyers Products stands as a technically sophisticated and highly reliable component for medium-duty control applications. Its meticulous design, encompassing a robust stainless steel core, a durable PVC conduit, and standardized end fittings, ensures optimal performance across its specified load range and travel. The inherent flexibility, coupled with the universal mounting capability, makes it a versatile solution for OEMs and aftermarket installations alike. By understanding its detailed specifications and adhering to proper installation and maintenance procedures, users can expect exceptional longevity, precision control, and unwavering reliability from this advanced mechanical control cable.
