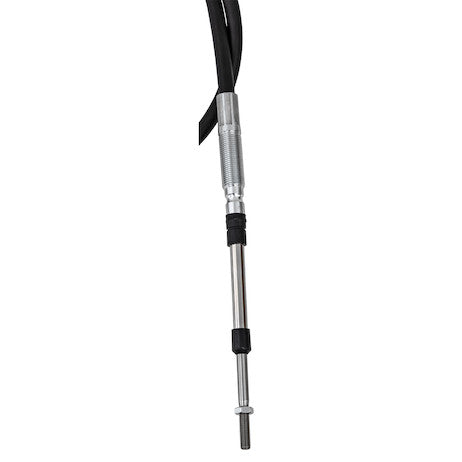

The 5200 Series Universal Mount Control Cable from Buyers Products is a universal mount, push-pull style cable for most medium duty PTO and hoist applications. With an 8 in. minimum bend radius and a 40-100 lb load range, the cable is the flexible choice for many jobs. All cables include bulkhead nuts and washers for fast connectivity.
Specifications
| Conduit Diameter (in.) | .41 " |
| Conduit Color | Black |
| Cable Length (in.) | 84 " |
| Cable Core Material | Stainless Steel |
| End Type | Rod |
| Conduit Material | PVC |
| Cable Diameter (in.) | 0.125 " |
| Bulkhead Thread Size | 5/8-18 " |
| Total Travel (in.) | 3 " |
| Cable Series | 5200 Series |
| Rod End Thread Size | 1/4-28 " |
In-Depth Technical Overview: 84 Inch 5200 Series Universal Mount Control Cable
Introduction to Precision Control Systems
The 84 Inch 5200 Series Universal Mount Control Cable from Buyers Products represents a critical component in the domain of mechanical power transmission and operational control. Designed with a focus on durability, flexibility, and precise actuation, this universal mount, push-pull style cable is engineered to meet the rigorous demands of various medium-duty Power Take-Off (PTO) and hoist applications. Its robust construction and meticulously selected materials ensure reliable performance across a spectrum of industrial and commercial settings, providing a dependable link between operator input and machinery response. This detailed overview will delve into the engineering principles, material science, application versatility, and operational advantages that characterize the 5200 Series control cable.Engineering Design and Core Functionality
At its fundamental level, the 5200 Series cable operates on a push-pull mechanism, a widely adopted method for transmitting linear force and motion over a distance while accommodating changes in direction. This design allows for bidirectional control, meaning the cable can both push and pull a connected lever or mechanism, facilitating functions such as engaging/disengaging PTOs, raising/lowering hoists, or actuating various hydraulic valves and mechanical linkages. The "universal mount" designation highlights its adaptability across diverse equipment configurations. This is primarily achieved through standardized end fittings and the inclusion of bulkhead nuts and washers. These components are integral for secure and stable mounting, allowing the cable to be routed through panels or bulkheads while maintaining structural integrity and preventing axial movement during operation. The 5/8-18" bulkhead thread size specified indicates a common standard, ensuring compatibility with a broad range of existing equipment designs and mounting points.Material Science and Construction Integrity
The longevity and performance of any control cable are heavily dependent on the quality and properties of its constituent materials. The 5200 Series cable showcases a judicious selection of materials optimized for strength, corrosion resistance, and operational smoothness.Cable Core Material: Stainless Steel
The inner core, the primary element responsible for transmitting force, is constructed from stainless steel. Stainless steel is chosen for several compelling reasons:- Corrosion Resistance: In many industrial and outdoor applications, exposure to moisture, chemicals, and varying environmental conditions is common. Stainless steel offers superior resistance to rust and corrosion compared to standard carbon steel, significantly extending the cable's operational life and maintaining its smooth movement.
- High Tensile Strength: Stainless steel provides excellent tensile strength, allowing the cable to withstand the pulling forces within its specified load range (40-100 lb) without permanent deformation or failure.
- Fatigue Resistance: Repeated push-pull cycles can induce material fatigue. Stainless steel exhibits good fatigue resistance, ensuring consistent performance over thousands of operational cycles.
Conduit Material: PVC
The conduit serves as the protective sheath for the inner cable core, guiding its movement and shielding it from external elements, abrasion, and kinking. The 5200 Series utilizes PVC (Polyvinyl Chloride) for its conduit, offering several advantages:- Flexibility: PVC is inherently flexible, contributing to the cable's impressive 8-inch minimum bend radius. This flexibility is crucial for routing the cable efficiently through confined spaces and around obstacles without impeding its internal movement or causing excessive friction.
- Environmental Protection: The PVC conduit provides a robust barrier against dirt, moisture, dust, and minor impacts, protecting the stainless steel core from contaminants that could lead to premature wear or corrosion.
- Chemical Resistance: PVC offers good resistance to many common industrial chemicals, oils, and greases, further enhancing the cable's durability in harsh operating environments.
- Coloration: The black conduit color is a standard industrial choice, offering UV resistance and a professional aesthetic that blends well with most machinery.
Conduit Diameter and Cable Diameter
The conduit diameter of 0.41 inches and the cable diameter of 0.125 inches (1/8 inch) are precisely matched to minimize internal friction while maximizing structural integrity. This optimal clearance ensures smooth travel of the inner core within the conduit, reducing hysteresis and enhancing control responsiveness. A tight tolerance between the core and conduit is critical; too much clearance can lead to buckling during pushing, while too little can increase friction and wear.Operational Parameters and Performance Characteristics
The detailed specifications provided offer critical insights into the cable's operational envelope and performance capabilities.Cable Length: 84 Inches
An 84-inch (7-foot) cable length provides substantial reach, accommodating a wide array of installation requirements where the control mechanism and the actuated device are separated by a significant distance. This length is particularly suitable for vehicles and machinery where operators are positioned remotely from the PTO or hoist mechanism.Load Range: 40-100 lb
The specified load range of 40-100 lb is a key performance indicator. This range denotes the maximum continuous operating force the cable is designed to transmit effectively without exceeding its elastic limits or causing undue wear. It categorizes the cable as suitable for "medium duty" applications, distinguishing it from light-duty cables with lower load capacities and heavy-duty cables designed for significantly higher forces. Exceeding this load range could compromise cable integrity and lead to premature failure.Minimum Bend Radius: 8 Inches
The 8-inch minimum bend radius is a crucial parameter for installation flexibility. It defines the tightest curve the cable can successfully navigate without experiencing excessive internal friction, kinking, or permanent damage to the core or conduit. This low bend radius significantly simplifies routing, especially in complex machinery layouts where space is at a premium. Maintaining this minimum radius is vital to ensure smooth operation and prevent accelerated wear.Total Travel: 3 Inches
The 3 inches of total travel represents the maximum linear displacement the cable core can achieve from one end of its stroke to the other. This parameter is critical for matching the cable to the throw requirements of the actuated mechanism. For instance, if a PTO engagement lever requires 2.5 inches of travel to fully engage, a 3-inch travel cable provides ample range, ensuring full actuation without reaching the cable's mechanical limits prematurely.End Type and Thread Sizes: Rod End with 1/4-28" Thread
The "Rod" end type signifies a solid, threaded rod at the terminus of the inner cable core. This design offers a robust and precise connection point. The 1/4-28" rod end thread size is a common fine-thread standard, facilitating secure attachment to clevises, bell cranks, or custom linkages. The precision of the threaded connection minimizes backlash and ensures accurate transmission of motion, which is paramount for sensitive control applications.Application Versatility
The 5200 Series Universal Mount Control Cable is specifically designed for versatility across medium-duty PTO and hoist applications. Its robust construction and precise engineering make it an ideal choice for:- Truck and Trailer Equipment: Engaging and disengaging PTOs for hydraulic pumps that power dump bodies, plows, cranes, and winches.
- Construction Equipment: Operating auxiliary functions on compact excavators, skid steers, and utility vehicles.
- Agricultural Machinery: Controlling various implements, loaders, and attachments.
- Material Handling: Actuating small to medium-sized hoists, winches, and conveyor systems.
- Specialty Vehicles: Implementing control for emergency vehicle equipment, service trucks, and municipal vehicles.
Advantages and Benefits
Utilizing the 84 Inch 5200 Series Universal Mount Control Cable offers several distinct advantages for equipment manufacturers and operators:- Reliable Performance: The combination of a stainless steel core and PVC conduit ensures consistent, long-term performance even in demanding environments.
- Enhanced Durability: Superior corrosion resistance and robust construction minimize the need for frequent replacement, reducing downtime and maintenance costs.
- Flexible Installation: The 8-inch minimum bend radius and universal mounting hardware simplify routing and installation in complex or confined spaces.
- Precise Control: The push-pull design, combined with robust end fittings and minimal internal friction, provides direct and accurate control over actuated mechanisms.
- Cost-Effectiveness: While offering high quality and durability, the standardized design and materials contribute to a cost-effective solution for medium-duty control requirements.
- Safety: Reliable control cables contribute directly to operational safety by ensuring that critical functions like PTO engagement or hoist operation respond predictably and accurately to operator input.
Installation and Maintenance Considerations
Proper installation is paramount to achieving the full performance potential and lifespan of the 5200 Series cable. Key considerations include:- Maintain Bend Radius: Always adhere to the 8-inch minimum bend radius to prevent kinking, excessive friction, and premature wear. Sharp bends will significantly degrade performance and lifespan.

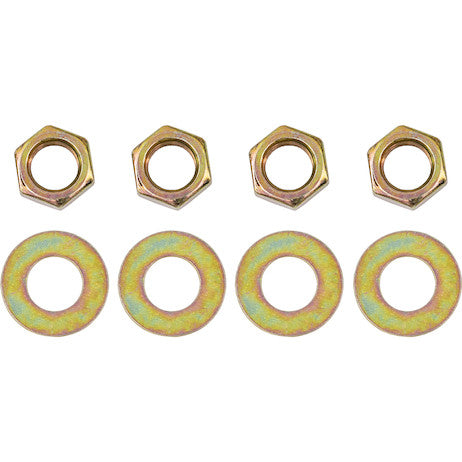

- Secure Mounting: Utilize the supplied bulkhead nuts and washers to secure the cable firmly, preventing unwanted movement that can lead to wear or ineffective force transmission.
- Lubrication: While modern control cables are designed for low friction, periodic inspection and, if recommended by the manufacturer, light lubrication of exposed rod ends or moving parts can further extend lifespan and smooth operation. Avoid over-lubricating the inner core as it can attract dirt.
- Alignment: Ensure that the cable's path is as straight as possible between the control and the actuated device. Misalignment can introduce side loading and increase friction.
- Environmental Protection: While the PVC conduit offers protection, avoiding direct exposure to extreme heat sources, sharp edges, or abrasive surfaces will further prolong the cable's life.
Conclusion
The 84 Inch 5200 Series Universal Mount Control Cable by Buyers Products stands as a testament to intelligent engineering and material selection for industrial control applications. Its combination of a durable stainless steel core, protective PVC conduit, precise end fittings, and flexible design makes it an optimal solution for medium-duty PTO and hoist systems. With a clear focus on reliability, ease of installation, and consistent performance within its specified load and travel parameters, this control cable is not merely a component but a critical enabler of efficient and safe machinery operation across a diverse range of industries. Its technical specifications underscore a commitment to quality and functional excellence, ensuring it meets the demanding requirements of professional use.
