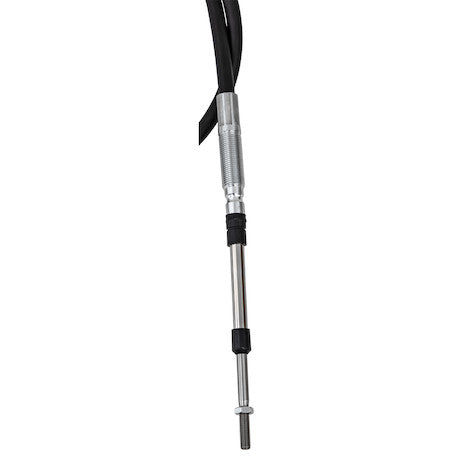

The 5200 Series Universal Mount Control Cable from Buyers Products is a universal mount, push-pull style cable for most medium duty PTO and hoist applications. With an 8 in. minimum bend radius and a 40-100 lb load range, the cable is the flexible choice for many jobs. All cables include bulkhead nuts and washers for fast connectivity.
Specifications
| Conduit Material | PVC |
| Cable Diameter (in.) | 0.125 " |
| Cable Core Material | Stainless Steel |
| Conduit Diameter (in.) | .41 " |
| Cable Length (in.) | 96 " |
| Cable Series | 5200 Series |
| Bulkhead Thread Size | 5/8-18 " |
| End Type | Rod |
| Total Travel (in.) | 3 " |
| Rod End Thread Size | 1/4-28 " |
| Conduit Color | Black |
Advanced Technical Overview: 96 Inch 5200 Series Universal Mount Control Cable
The 96 Inch 5200 Series Universal Mount Control Cable represents a meticulously engineered solution for a wide array of medium-duty mechanical control applications. Designed and manufactured by Buyers Products, a recognized leader in commercial vehicle and equipment components, this control cable excels in environments demanding precise, reliable, and durable push-pull actuation. Its universal mounting capabilities, combined with a robust material selection and thoughtful design principles, make it an indispensable component for PTO (Power Take-Off) engagement, hoist control, throttle mechanisms, and other critical functions across various industrial and mobile platforms.
Core Functionality and Design Philosophy
At its heart, the 5200 Series cable operates on the fundamental principle of push-pull mechanical translation. This design allows for bidirectional force transmission, enabling the user to either push or pull an actuated component with a high degree of precision and control. The 96-inch length provides ample reach for diverse installation requirements, accommodating longer runs often encountered in truck bodies, agricultural machinery, construction equipment, and specialized vehicles where the control lever is situated remotely from the actuated device.

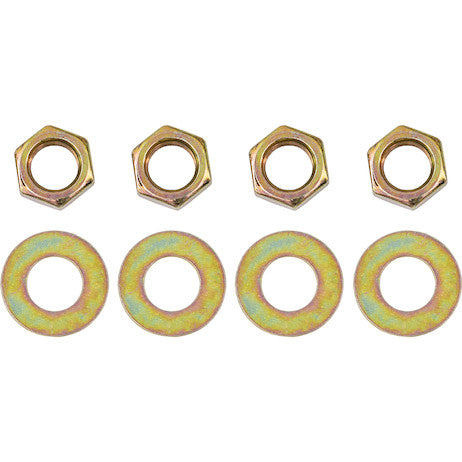

The universal mount characteristic is a cornerstone of its versatility. This ensures that the cable can be integrated into a broad spectrum of existing systems without requiring extensive custom fabrication or specialized mounting hardware. The inclusion of bulkhead nuts and washers as standard accessories significantly streamlines the installation process, ensuring rapid and secure connectivity through panel mounts or structural elements. This not only reduces installation time but also enhances the overall integrity of the control system by providing a stable and vibration-resistant anchor point for the cable conduit.
Material Science and Construction Excellence
The selection of materials for the 5200 Series cable is a critical factor in its superior performance and longevity. The cable core, with a precise diameter of 0.125 inches (1/8 inch), is fabricated from high-grade stainless steel. Stainless steel is chosen for its exceptional resistance to corrosion, particularly in harsh outdoor or corrosive industrial environments, which are common for PTO and hoist applications. Its high tensile strength ensures reliable force transmission over the specified load range of 40-100 lbs, minimizing stretch and maintaining consistent control feel throughout its operational life. The inherent rigidity of the stainless steel core, combined with its flexibility, contributes to the cable's responsiveness and precision.
Encasing this robust core is a conduit made from Polyvinyl Chloride (PVC), a material selected for its excellent balance of flexibility, abrasion resistance, and environmental protection. The conduit's external diameter of 0.41 inches provides substantial protection against external mechanical damage, such as nicks, cuts, and crushing forces, which can compromise cable integrity. The black color of the PVC conduit offers UV resistance and discreet integration into most industrial aesthetics. Furthermore, PVC acts as an effective barrier against ingress of dirt, moisture, and chemical contaminants, thereby preserving the internal lubrication and smooth operation of the stainless steel core. The conduit design also plays a crucial role in maintaining the specified 8-inch minimum bend radius, ensuring that the cable can be routed effectively around obstacles without impairing its functionality or introducing excessive friction.
Mechanical Specifications and Performance Parameters
Cable Length (96 inches): This extended length is a key feature, providing designers and technicians with increased flexibility in system layout. It allows for greater separation between the operator control and the mechanism being actuated, which is often a requirement in larger vehicles or complex machinery where space constraints or safety considerations dictate remote placement.
Cable Diameter (0.125 inches): The precisely specified core diameter is optimized for the intended load range and total travel. This dimension ensures adequate strength for medium-duty applications while maintaining a degree of flexibility that contributes to the minimal bend radius.
Conduit Diameter (0.41 inches): The outer diameter of the conduit is engineered to provide comprehensive protection for the inner cable while maintaining a manageable profile for routing and mounting. The robust wall thickness contributes to the structural integrity of the conduit, preventing kinking or crushing under typical operational stresses.
Minimum Bend Radius (8 inches): This is a critical performance metric. An 8-inch minimum bend radius signifies that the cable can be routed through relatively tight curves without significantly increasing friction or causing premature wear to the cable core or conduit. Maintaining the minimum bend radius is essential for ensuring smooth operation, preserving the cable's lifespan, and preventing operational binding or excessive control effort. Exceeding this bend radius during installation can lead to irreversible damage and degraded performance.
Load Range (40-100 lbs): The specified load range indicates the optimal operational force the cable is designed to transmit. This range encompasses a wide variety of medium-duty applications, providing reliable actuation for mechanisms requiring significant but not extreme force. Operating within this range ensures consistent performance, minimal cable stretch, and extended service life. Applications exceeding this range may require a heavier-duty cable series, while those significantly below might benefit from lighter-duty options for enhanced tactile feedback.
Total Travel (3 inches): The 3-inch total travel denotes the maximum linear displacement the cable core can achieve. This parameter is crucial for matching the cable to the throw requirements of the actuated mechanism. For instance, a PTO engagement lever or a hoist control valve typically requires a specific linear displacement to transition between fully engaged/disengaged or fully open/closed states. The 3-inch travel provides sufficient range for most medium-duty applications, ensuring full actuation without over-travel or under-travel.
Connectivity and Interface
The design of the 5200 Series cable incorporates standardized interface components to facilitate seamless integration into existing systems. The bulkhead thread size is 5/8-18 inches. This common thread specification ensures compatibility with a broad range of mounting plates, control panels, and existing vehicle architecture. The robust threads provide a secure mechanical connection, resisting loosening due to vibration or operational stresses.
The cable features a Rod End type, which is a versatile and widely used terminal for control cables. The Rod End provides a strong, direct connection point to levers, linkages, and other actuated components. The Rod End Thread Size is 1/4-28 inches, another industry-standard dimension that allows for easy attachment to clevises, bell cranks, or custom linkages. This standardized threading simplifies component selection and replacement, reducing downtime for maintenance or repairs.
Application Spectrum and Advantages
The 96 Inch 5200 Series Universal Mount Control Cable is ideally suited for a diverse range of applications, primarily in the medium-duty sector. Key application areas include:
- Power Take-Off (PTO) Controls: Essential for engaging and disengaging auxiliary equipment driven by the vehicle's engine, such as hydraulic pumps, air compressors, or winches. The cable's robust construction ensures reliable operation even under frequent use.
- Hoist and Dump Body Controls: Providing precise control over hydraulic valving for lifting and lowering dump bodies, cranes, or other material handling equipment. The 40-100 lb load range is well-suited for the forces required to operate such valves.
- Throttle and Choke Controls: Offering accurate and responsive control over engine speed or fuel mixture in various industrial engines and heavy equipment.
- Valve Actuation: Controlling pneumatic or hydraulic valves in industrial processes or mobile machinery.
- Shifter Mechanisms: In some specialized applications, they can be used for remote shifting of gearboxes or transfer cases.
The primary advantages of deploying the 5200 Series cable include:
- Enhanced Durability: Stainless steel core and PVC conduit provide superior resistance to corrosion, abrasion, and environmental degradation, leading to a longer operational lifespan.
- Universal Compatibility: Standardized mounting hardware and end fittings facilitate easy integration into a vast array of existing equipment and new designs.
- Precision Control: The low-friction design and consistent travel ensure responsive and accurate actuation, critical for safety and operational efficiency.
- Flexible Installation: The 8-inch minimum bend radius allows for intricate routing paths, accommodating complex equipment layouts without compromising performance.
- Reduced Maintenance: High-quality materials and construction minimize the need for frequent lubrication or adjustment, contributing to lower total cost of ownership.
- Safety: Reliable push-pull action ensures that critical functions like PTO engagement or hoist operation are controlled predictably, enhancing operator safety.
Installation Best Practices and Maintenance
While the 5200 Series cable is designed for straightforward installation, adhering to best practices is crucial for optimizing its performance and longevity:
- Adhere to Minimum Bend Radius: Never route the cable in curves tighter than the specified 8-inch minimum bend radius. Doing so can cause kinking, increased friction, and premature cable failure. Use gradual curves wherever possible.
- Secure Routing: Ensure the conduit is securely fastened along its entire length using appropriate clamps or ties to prevent chafing, sagging, or interference with moving parts. This also helps maintain the bend radius.
- Proper Alignment: Verify that the cable ends are properly aligned with the actuated mechanism. Misalignment can introduce side loads, leading to increased friction and wear on the cable and connecting components.
- Avoid Contamination: While the PVC conduit offers protection, avoid exposing the cable ends or any compromised sections to excessive dirt, moisture, or corrosive substances during and after installation.
- Lubrication (if applicable): While designed for low-maintenance operation, periodic inspection and, if necessary, re-lubrication of the cable core (at the ends, if accessible) with a compatible lubricant can further extend its life, especially in high-cycle applications or extremely dirty environments.
- Regular Inspection: Periodically inspect the cable for signs of wear, abrasion, kinking, or damage to the conduit. Check the security of all mounting points and end connections. Replace the cable if significant damage is observed.
- Torque Specifications: When tightening the bulkhead nuts and rod end threads, adhere to recommended torque specifications to ensure a secure connection without over-stressing the components.
Conclusion
The 96 Inch 5200 Series Universal Mount Control Cable from Buyers Products stands as a testament to precision engineering and material science in the realm of mechanical control systems. Its robust stainless steel core, protective PVC conduit, and standardized interface components collectively deliver a control solution that is durable, reliable, and highly adaptable. With a carefully optimized load range, total travel, and minimum bend radius, this cable provides the precise and consistent actuation required for critical medium-duty PTO, hoist, and general industrial applications. By adhering to best installation and maintenance practices, users can expect exceptional performance and an extended service life from this expertly crafted control cable, ensuring the efficient and safe operation of their machinery and equipment.
