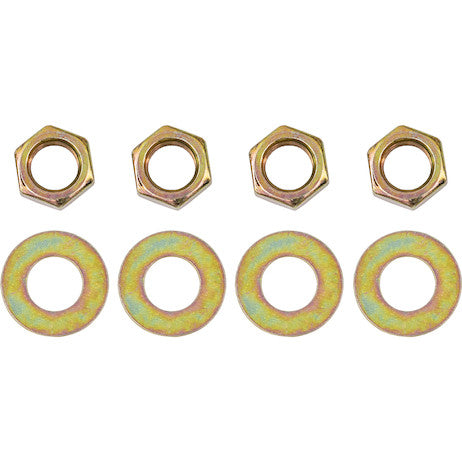

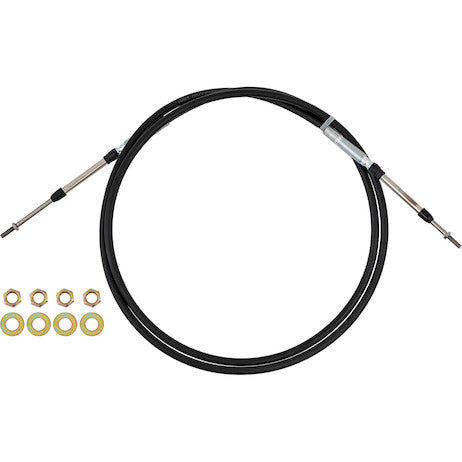

The 5200 Series Universal Mount Control Cable from Buyers Products is a universal mount, push-pull style cable for most medium duty PTO and hoist applications. With an 8 in. minimum bend radius and a 40-100 lb load range, the cable is the flexible choice for many jobs. All cables include bulkhead nuts and washers for fast connectivity.
Specifications
| Total Travel (in.) | 3 " |
| Bulkhead Thread Size | 5/8-18 " |
| Cable Diameter (in.) | 0.125 " |
| Rod End Thread Size | 1/4-28 " |
| Conduit Color | Black |
| Cable Core Material | Stainless Steel |
| Cable Series | 5200 Series |
| End Type | Rod |
| Conduit Diameter (in.) | .41 " |
| Conduit Material | PVC |
| Cable Length (in.) | 120 " |
The 120 Inch 5200 Series Universal Mount Control Cable represents a pinnacle of engineering within the mechanical control cable domain, specifically designed for robust and reliable operation across a myriad of medium-duty industrial and commercial applications. Manufactured by Buyers Products, a brand synonymous with quality and durability in work truck equipment, this control cable embodies a meticulous balance of material science, precision manufacturing, and practical design to deliver consistent push-pull actuation. Its designation as a "Universal Mount" solution underscores its adaptability and ease of integration into diverse machinery and systems, making it an indispensable component for equipment requiring precise and responsive remote control. This extensive description will delve into the intricate technical specifications, operational advantages, and application versatility that define the 5200 Series, offering a comprehensive understanding for engineers, fleet managers, and industrial procurement specialists.
At the core of the 5200 Series Universal Mount Control Cable's exceptional performance lies its carefully selected materials and construction. The central element, the cable core, is fabricated from high-grade stainless steel, precisely engineered to a diameter of 0.125 inches. Stainless steel is chosen for its superior mechanical properties, including remarkable tensile strength, excellent resistance to corrosion, and inherent flexibility. This material’s resistance to rust and oxidation is paramount for applications where the cable may be exposed to moisture, chemicals, road salt, or other aggressive environmental factors common in outdoor or industrial settings. Furthermore, its inherent strength ensures that the cable can consistently transmit the specified 40-100 lb load range without stretching, deforming, or fatiguing prematurely, thus guaranteeing long-term reliability and accuracy in control. The precise diameter contributes to optimal flexibility without compromising the necessary rigidity for effective push-pull action, a critical balance for responsive operation.
Encasing this robust stainless steel core is a high-performance conduit system, designed for both protection and smooth operation. The conduit itself is constructed from durable PVC (Polyvinyl Chloride) material, boasting a robust diameter of 0.41 inches. PVC is an ideal choice for this application due to its inherent resistance to abrasion, oils, grease, and many common industrial solvents. Its resilience to environmental degradation, including UV radiation and extreme temperature fluctuations, ensures the integrity of the cable system over extended periods, preventing cracking or hardening that could impede cable movement. The conduit’s black coloration provides UV stability and a professional aesthetic. Internally, the conduit is engineered with a low-friction lining, though not explicitly detailed in the specifications, it is an industry standard for high-quality control cables. This lining minimizes frictional losses between the moving stainless steel core and the stationary conduit, ensuring exceptionally smooth and consistent push-pull action, reducing operator effort, and preventing premature wear on both components. This optimized internal friction management is critical for the cable's responsiveness and overall operational lifespan, contributing directly to the 3-inch total travel being delivered with minimal resistance.

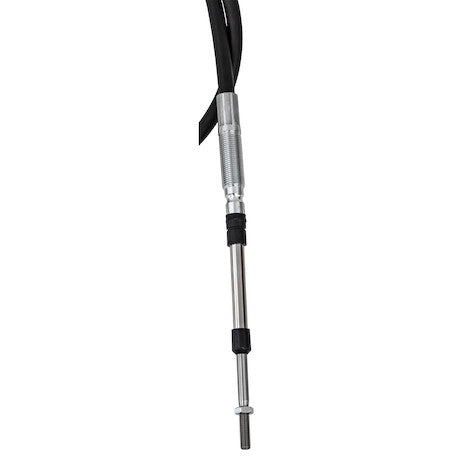

The termination points of the 5200 Series control cable are designed for secure, stable, and straightforward integration into control systems. At one end, the cable features a robust rod end termination, characterized by a 1/4-28 thread size. The rod end provides a solid mechanical linkage point, allowing for direct connection to levers, linkages, or other actuation mechanisms. The 1/4-28 thread is a common, industry-standard size, facilitating broad compatibility with existing hardware and simplifying installation or replacement processes. This threaded rod end ensures a secure, positive connection, crucial for precise control transmission where any play or slippage would compromise operational accuracy. For the mounting through panels or bulkheads, the cable is equipped with a threaded bulkhead fitting, featuring a 5/8-18 thread size. This larger thread size provides substantial mechanical strength for secure panel mounting. Crucially, each 5200 Series cable includes bulkhead nuts and washers, streamlining the installation process by providing all necessary components for a fast and reliable connection directly out of the box. These components enable the cable to be securely anchored to equipment panels or chassis, ensuring that the push-pull forces are effectively managed and transmitted without undue strain on the mounting points, thereby enhancing system stability and longevity.
Beyond its physical construction, the operational characteristics of the 5200 Series cable are meticulously engineered for specific performance envelopes. The total travel of 3 inches is a critical specification, indicating the maximum linear displacement the cable core can achieve in both push and pull directions. This travel length is optimized for a wide array of control functions in medium-duty applications, such as engaging/disengaging PTOs, activating hydraulic valves for hoist systems, or operating various locking mechanisms. A 3-inch travel provides sufficient range for full actuation without being excessively long, which could introduce unnecessary slack or complexity into the linkage design. The specified load range of 40-100 lbs defines the operational force capacity of the cable. This range confirms its suitability for medium-duty tasks, effectively translating manual or mechanical input into the required output force to actuate robust components. Operating within this specified load range ensures the cable's structural integrity and prevents premature wear, deformation, or catastrophic failure, thereby guaranteeing reliable performance throughout its service life. Exceeding this range could compromise the cable’s core or conduit, leading to diminished performance or failure.
An indispensable characteristic for practical installation and prolonged operational integrity is the 8-inch minimum bend radius. This specification dictates the tightest curve the cable can safely navigate without causing internal damage to the core or conduit, or without significantly increasing frictional resistance. Adhering to this minimum bend radius during installation is paramount; sharper bends can crimp the inner core, deform the conduit, or cause excessive wear, leading to reduced cable life, erratic operation, and increased friction. The 8-inch radius strikes an optimal balance, offering substantial routing flexibility within confined spaces while safeguarding the cable's mechanical integrity. Installers must carefully plan routing paths to respect this parameter, ensuring a smooth and unobstructed pathway that allows the cable to move freely and efficiently. Finally, the cable length of 120 inches (10 feet) provides extensive reach, accommodating installations in larger vehicles or machinery where the control point is significantly distant from the actuation point. This generous length reduces the need for intermediate linkages or complex routing, simplifying system design and minimizing potential points of failure. For applications requiring shorter lengths, proper coiling and securing of excess cable, while still respecting the minimum bend radius, is critical for neatness and preventing entanglement or damage.
The "Universal Mount" aspect of the 5200 Series Control Cable is a testament to its design versatility. This universal adaptability stems from its standardized end fittings (rod end and bulkhead threads) and the inclusion of mounting hardware, enabling seamless integration into virtually any panel or chassis type without requiring specialized adapters or custom fabrication. This design philosophy significantly reduces installation time and complexity, making it an attractive solution for both original equipment manufacturers (OEMs) and aftermarket installations. The primary applications for this robust control cable are explicitly medium-duty PTO (Power Take-Off) and hoist systems. In PTO applications, the cable provides a reliable and direct means to engage or disengage auxiliary power units from the vehicle's engine or transmission. This is crucial for controlling various vehicle-mounted equipment such as hydraulic pumps for dump bodies, winches, air compressors, generators, or spreaders. The push-pull action ensures positive engagement and disengagement, vital for both operational efficiency and safety in these demanding environments. For hoist applications, the 5200 Series cable excels in controlling the lifting and lowering mechanisms of hydraulic hoists, often found in dump trucks, service trucks, or material handling equipment. Its precise travel and load capacity ensure smooth and controlled operation of hydraulic valves, allowing operators to accurately position loads or dump materials with confidence and safety. The robust construction and reliable performance of the cable are critical in these heavy-use scenarios where failure could lead to significant operational disruptions or safety hazards.
Beyond these primary applications, the 120 Inch 5200 Series Universal Mount Control Cable offers extensive utility in a broader spectrum of medium-duty industrial and commercial equipment. It can be effectively deployed in various remote actuation scenarios where a precise and durable push-pull control mechanism is required. This includes, but is not limited to, throttle control for specialized off-highway vehicles or industrial engines, choke control systems, valve actuation in fluid power systems, selective braking mechanisms on industrial machinery, or even remote latch and lock release systems. Its ability to transmit both tensile and compressive forces with equal reliability makes it a versatile choice for complex mechanical linkages. The stainless steel core's corrosion resistance and the PVC conduit's environmental resilience make it particularly well-suited for applications exposed to harsh weather conditions, dusty environments, or chemical splashes, common in construction, agriculture, marine, and waste management industries. The professional black conduit finish not only contributes to its durability but also allows for discrete integration into equipment aesthetics, maintaining a clean and organized appearance.
Optimal installation and conscientious maintenance are pivotal to maximizing the lifespan and ensuring the peak performance of the 5200 Series Universal Mount Control Cable. During installation, it is imperative to secure the cable firmly at the bulkhead using the provided nuts and washers, ensuring a tight fit that prevents any movement or rattling which could lead to wear. Careful attention must be paid to routing the cable to strictly observe the 8-inch minimum bend radius; forcing tighter bends will inevitably lead to increased friction, accelerated wear of the internal components, and potential cable failure. Avoiding sharp edges, abrasive surfaces, or pinch points along the cable's path is also crucial to prevent external damage to the PVC conduit. Ensuring that the cable operates freely throughout its entire 3-inch travel, without any obstructions or excessive friction, is essential for responsive control. Periodic inspections should be incorporated into routine equipment maintenance schedules. These inspections should focus on checking for any signs of wear on the PVC conduit, such as abrasions, cracks, or hardening, and assessing the condition of the rod end and bulkhead connections for looseness or corrosion. While the cable is designed to be largely maintenance-free due to its sealed construction and low-friction lining, keeping the external surfaces clean and free from excessive dirt or debris can help prevent contamination from migrating into the system. Any signs of sluggishness, increased operational effort, or inconsistent travel should prompt immediate investigation and potential replacement to prevent operational failure.
The myriad advantages and operational benefits offered by the 120 Inch 5200 Series Universal Mount Control Cable are substantial for any application requiring dependable mechanical remote control. Foremost among these is the enhanced precision and responsiveness it delivers. The meticulously engineered low-friction system ensures that every input from the operator is translated into immediate and accurate output, which is critical for safety and efficiency in tasks like operating a dump body or engaging a PTO. This precision minimizes guesswork and operator fatigue. Its robust construction guarantees exceptional durability and reliability, significantly reducing equipment downtime associated with control cable failures. By utilizing high-quality stainless steel and durable PVC, Buyers Products has engineered a solution that stands up to the rigors of demanding environments, thereby extending the service life of the control system and the associated machinery. The "Universal Mount" design coupled with the inclusion of bulkhead nuts and washers underscores its ease of integration, simplifying installation procedures and reducing labor costs. This plug-and-play capability means faster setup times and less specialized tooling required, making it an economically attractive option for fleet maintenance and new equipment builds alike. From a cost-effectiveness perspective, investing in a high-quality control cable like the 5200 Series translates into a favorable return on investment (ROI). Its extended lifespan and reliable performance minimize the need for frequent replacements and repairs, thus lowering total cost of ownership over the operational life of the equipment. Furthermore, reliable control contributes directly to increased operational efficiency, allowing machinery to perform its functions consistently and without interruption, thereby maximizing productivity.
In conclusion, the 120 Inch 5200 Series Universal Mount Control Cable from Buyers Products stands as an exemplary solution for medium-duty push-pull control applications. Its foundation in superior material science, featuring a stainless steel core and durable PVC conduit, coupled with precise engineering of its 3-inch total travel, 40-100 lb load range, and 8-inch minimum bend radius, culminates in a product that delivers unparalleled reliability, responsiveness, and longevity. The thoughtful inclusion of a universal mount design and all necessary bulkhead hardware further solidifies its position as a highly adaptable and easy-to-integrate component. Whether deployed in critical PTO systems, essential hoist mechanisms, or a broad array of other industrial and commercial remote control applications, this cable ensures consistent, smooth, and precise operation. For professionals seeking a robust, technically sound, and long-lasting control cable that minimizes downtime and enhances operational safety and efficiency, the 5200 Series from Buyers Products represents an intelligent and dependable investment, upholding the brand's reputation for engineering excellence in the most demanding environments.
