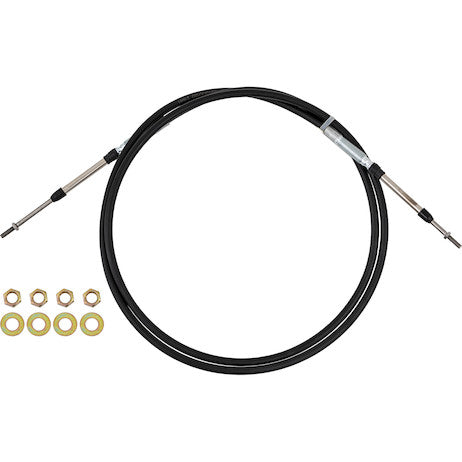

The 5200 Series Universal Mount Control Cable from Buyers Products is a universal mount, push-pull style cable for most medium duty PTO and hoist applications. With an 8 in. minimum bend radius and a 40-100 lb load range, the cable is the flexible choice for many jobs. All cables include bulkhead nuts and washers for fast connectivity.
Specifications
| Cable Core Material | Stainless Steel |
| Cable Series | 5200 Series |
| Cable Length (in.) | 132 " |
| Total Travel (in.) | 3 " |
| Conduit Diameter (in.) | .41 " |
| Conduit Material | PVC |
| End Type | Rod |
| Rod End Thread Size | 1/4-28 " |
| Conduit Color | Black |
| Bulkhead Thread Size | 5/8-18 " |
| Cable Diameter (in.) | 0.125 " |
The 5200 Series Universal Mount Control Cable: Precision Engineering for Medium-Duty Industrial Applications
The 132-inch 5200 Series Universal Mount Control Cable by Buyers Products represents a pinnacle of precision engineering tailored for demanding medium-duty industrial control applications. This push-pull style cable system is meticulously designed to offer reliable and efficient mechanical linkage, crucial for the operational integrity of Power Take-Off (PTO) systems, hoist mechanisms, and various other auxiliary equipment in commercial vehicles and industrial machinery. Its universal mount capability ensures broad compatibility, making it a versatile component in a multitude of system architectures where robust and responsive control is paramount.
Advanced Design and Core Material Selection
At the heart of the 5200 Series cable's exceptional performance is its meticulously selected material composition and thoughtful design. The cable core, a critical component responsible for transmitting tensile and compressive forces, is fabricated from high-grade stainless steel. This choice of material is not arbitrary; stainless steel offers a superior combination of strength, ductility, and critically, outstanding corrosion resistance. In environments where exposure to moisture, road salts, chemicals, or extreme temperatures is common, the inherent corrosion resistance of stainless steel prevents degradation, ensuring the cable's longevity and consistent operational characteristics over its lifespan. The cable's precise diameter of 0.125 inches (1/8 inch) is optimized to provide an ideal balance between flexibility and stiffness, facilitating smooth movement while minimizing susceptibility to kinking or permanent deformation under load.
Encasing the stainless steel core is a robust conduit system, engineered to protect the inner cable from external contaminants and mechanical damage, while simultaneously providing a low-friction pathway for movement. The conduit material is high-quality PVC (Polyvinyl Chloride), chosen for its excellent chemical resistance, abrasion resistance, and flexibility. With a conduit diameter of 0.41 inches, it provides ample internal clearance for the cable core, ensuring minimal frictional losses during operation. The black color of the conduit is not merely aesthetic; it often indicates the inclusion of UV stabilizers in the PVC compound, enhancing resistance to degradation from prolonged sunlight exposure, a common concern for externally mounted components. The PVC conduit maintains its structural integrity and protective qualities across a broad temperature range, vital for applications operating in diverse climates.
Optimized Flexibility and Load Handling
One of the most significant performance attributes of the 5200 Series cable is its remarkable flexibility, characterized by an 8-inch minimum bend radius. This specification is crucial for installation flexibility, allowing the cable to be routed around obstacles and through complex pathways within vehicle chassis or machinery frames without compromising its functional integrity or significantly increasing operational effort. A tighter bend radius indicates a more adaptable cable, reducing the need for intricate mounting solutions and simplifying installation procedures. Despite its flexibility, the cable is engineered to handle a substantial load range of 40-100 lbs. This capacity makes it suitable for a wide array of medium-duty applications, providing the necessary mechanical advantage and responsiveness for tasks such as engaging PTOs, lifting and lowering hoist beds, or actuating various hydraulic or pneumatic control valves. The consistent operation within this load range underscores the robust construction and precise engineering of the cable system.
Total Travel and Precision Control
The 5200 Series cable offers a total travel of 3 inches, a critical parameter that defines the maximum displacement of the cable core relative to its conduit. This 3-inch stroke is meticulously calibrated to provide precise and full engagement or disengagement for most medium-duty PTO and hoist mechanisms. For many industrial applications, a 3-inch travel provides sufficient throw for positive control, ensuring that components are fully actuated and preventing partial engagement which could lead to wear or operational inefficiency. The consistency and repeatability of this travel are vital for applications requiring accurate positioning or reliable on/off functionality. The engineering behind this travel ensures smooth, predictable movement, reducing operator fatigue and enhancing overall system responsiveness.
Connectivity and Installation Efficiency

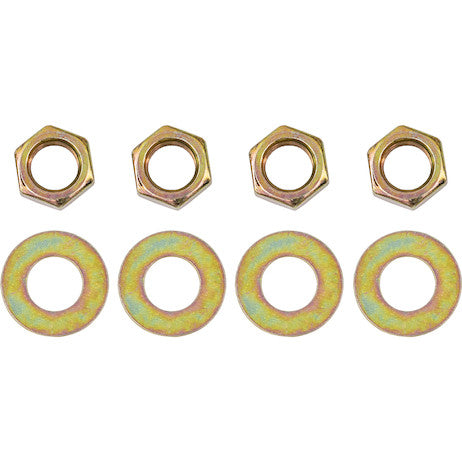

Recognizing the importance of rapid and secure installation, Buyers Products has designed the 5200 Series cable with comprehensive connectivity solutions. Each cable assembly includes all necessary bulkhead nuts and washers. These components are essential for securely mounting the cable conduit to control panels, brackets, or other structural elements, providing a stable anchor point for the push-pull mechanism. The bulkhead thread size, 5/8-18 inches, is a standard dimension, facilitating compatibility with a wide range of mounting hardware and ensuring a robust connection that can withstand operational vibrations and stresses. The inclusion of these components streamlines the installation process, reducing the need for additional parts sourcing and accelerating deployment.

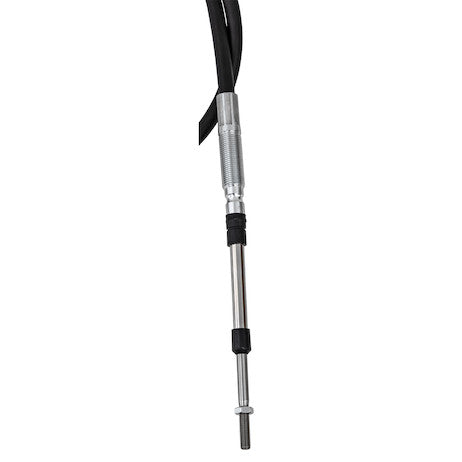

At the active end, the cable features a rod end type, providing a direct and robust mechanical interface for connection to the controlled mechanism. The rod end thread size is 1/4-28 inches, another industry-standard specification that ensures easy integration with existing linkages, bell cranks, and levers. This standardized threading simplifies component selection and replacement, enhancing the serviceability of the entire control system. The rod end design itself is engineered for durability, capable of transmitting significant push and pull forces without deformation, ensuring a reliable mechanical link between the operator input and the controlled output.
Universal Mount Advantage
The "Universal Mount" designation of the 5200 Series cable is a significant advantage for designers and maintenance professionals. Unlike application-specific cables that may require unique mounting brackets or modifications, the universal design offers unparalleled flexibility. This means a single cable model can serve a broad spectrum of equipment and vehicle types, simplifying inventory management for distributors and end-users. Its adaptability reduces complexity in system design and retrofit projects, allowing for a more standardized approach to control cable integration. Whether replacing an old cable in an existing system or designing a new one, the universal mount capability of the 5200 Series cable provides a reliable, off-the-shelf solution.
Applications and Operational Environments
The 132-inch 5200 Series Universal Mount Control Cable is ideally suited for a broad range of medium-duty industrial and commercial applications. Primary uses include:
- Power Take-Off (PTO) Systems: Essential for engaging and disengaging auxiliary equipment such as hydraulic pumps, air compressors, or generators powered by the vehicle's engine. The precise 3-inch travel ensures full engagement, preventing clutch slippage and maximizing power transfer efficiency.
- Hoist Mechanisms: Critical for controlling the lift and lower functions of dump bodies, service cranes, and other material handling equipment. The robust construction and reliable operation are paramount for safety and efficiency in these applications.
- Throttle Control: Can be adapted for remote throttle control in specialized vehicles or stationary engines where direct mechanical linkage is required.
- Valve Actuation: Suitable for actuating various hydraulic or pneumatic valves in industrial machinery, providing reliable remote control.
- Agricultural Equipment: Used in tractors and other farm machinery for controlling implements or auxiliary functions.
These applications frequently expose control cables to harsh operational environments. The 5200 Series cable is engineered to withstand:
- Vibration and Shock: Common in mobile equipment, the robust construction ensures the cable maintains its integrity and performance under dynamic loading.
- Temperature Extremes: The PVC conduit and stainless steel core are designed to perform reliably across a wide temperature range, from freezing cold to scorching heat.
- Contaminants: Resistant to dirt, dust, moisture, and common industrial fluids, minimizing maintenance requirements and extending service life.
- Corrosion: The stainless steel core and durable PVC conduit provide excellent protection against corrosive agents, crucial for outdoor and marine applications.
Long-Term Reliability and Maintenance
Buyers Products is renowned for its commitment to quality and durability, and the 5200 Series Universal Mount Control Cable exemplifies this philosophy. The selection of premium materials, combined with stringent manufacturing processes, ensures a product that delivers consistent, long-term reliability. Stainless steel core material, chosen for its inherent strength and corrosion resistance, minimizes the risk of internal degradation, while the robust PVC conduit shields against external damage. While generally designed for low-maintenance operation, periodic inspection of the cable for any signs of wear, fraying, or conduit damage is recommended, especially in high-cycle or extreme environments. Proper installation, ensuring the minimum bend radius is respected and connections are securely fastened, is key to maximizing the cable's lifespan and maintaining optimal performance. The universal design also simplifies potential future replacements, as a readily available, standardized component ensures minimal downtime.
Conclusion
The 132-inch 5200 Series Universal Mount Control Cable from Buyers Products stands as a testament to advanced mechanical control engineering. Its combination of a high-grade stainless steel core, durable PVC conduit, optimized flexibility, and precise 3-inch total travel, all packaged with convenient universal mounting hardware, positions it as an indispensable component for medium-duty PTO, hoist, and various industrial control applications. Engineered for reliability, ease of installation, and sustained performance in challenging environments, this cable ensures precise and responsive mechanical linkage, contributing significantly to the operational efficiency and safety of a wide array of commercial and industrial machinery. For professionals seeking a robust, versatile, and high-performance control cable solution, the 5200 Series offers an unparalleled balance of technical specifications and practical utility.
