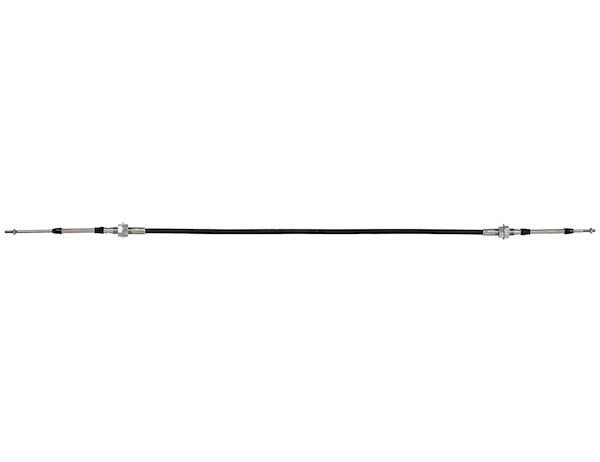

5203BBU156 - 156 Inch 5200 Series Universal Mount Control Cable

The 5200 Series Universal Mount Control Cable from Buyers Products is a universal mount, push-pull style cable for most medium duty PTO and hoist applications. With an 8 in. minimum bend radius and a 40-100 lb load range, the cable is the flexible choice for many jobs. All cables include bulkhead nuts and washers for fast connectivity.

Specifications

The 156 Inch 5200 Series Universal Mount Control Cable: Precision Engineering for Demanding Applications

In the realm of mechanical systems requiring precise and reliable remote actuation, control cables serve as the indispensable conduits for transmitting mechanical force over distance. The 156 Inch 5200 Series Universal Mount Control Cable from Buyers Products represents a pinnacle of design and manufacturing excellence, engineered to meet the rigorous demands of medium-duty industrial and commercial applications. This comprehensive description delves into the technical specifications, material science, operational principles, and application benefits that distinguish this product as a superior choice for professional installations.

Foundational Principles: Push-Pull Control and Universal Mounting

At its core, the 5200 Series cable operates on a robust push-pull mechanism. This design is critical for applications where positive control is required in both directions of movement, distinguishing it from simpler tension-only or slack-permitting systems. The push-pull configuration ensures that the force applied at one end of the cable is directly and reliably transmitted to the other end, whether the operator is pushing or pulling the control lever. This bidirectional force transmission eliminates slack, minimizing lost motion and ensuring highly responsive and accurate control. For critical functions such as engaging and disengaging Power Take-Off (PTO) units or precisely positioning hoist mechanisms, this level of control is not merely advantageous—it is imperative for operational safety and efficiency.

The "Universal Mount" designation underscores the cable's inherent adaptability. This feature signifies a design philosophy focused on maximum compatibility across a diverse array of chassis, mounting surfaces, and control system architectures. By standardizing mounting interfaces, the 5200 Series cable significantly simplifies procurement, inventory management, and installation procedures for maintenance crews and original equipment manufacturers (OEMs). Rather than stocking numerous application-specific cables, a universal mount solution provides a flexible and efficient alternative, capable of integrating seamlessly into various vehicular and industrial setups without requiring custom fabrication or extensive modifications. This versatility is achieved through intelligently designed end fittings and bulkhead configurations, allowing for secure and straightforward attachment to control panels, levers, and actuated components.

Engineering for Performance: Core Components and Material Science

The integrity and performance of a control cable are inextricably linked to the quality and suitability of its constituent materials. The 156 Inch 5200 Series cable exemplifies this principle through its meticulously selected components:

The Stainless Steel Cable Core

The heart of this control cable is its 0.125 inch diameter stainless steel core. Stainless steel is chosen for its exceptional mechanical properties and superior resistance to environmental degradation. Specifically, it offers:

• Corrosion Resistance: Unlike conventional carbon steel, stainless steel forms a passive chromium oxide layer on its surface when exposed to oxygen, providing excellent protection against rust and various corrosive agents. This is crucial in outdoor or harsh operating environments where moisture, road salts, chemicals, or other corrosive elements are prevalent, ensuring long-term functional integrity.
• High Tensile Strength and Fatigue Resistance: The stainless steel core provides the necessary strength to transmit significant push and pull forces within the specified 40-100 lb load range without stretching or deforming. Furthermore, its inherent metallurgical properties contribute to high fatigue resistance, allowing the cable to withstand millions of cycles of flexing and stress reversals typical in high-usage applications, thereby extending its service life considerably.
• Low Friction Properties: The smooth surface finish of stainless steel, combined with the precision stranding of the wire, contributes to low internal friction within the conduit. This translates to smoother operation, reduced control effort, and minimized wear on both the cable core and the conduit lining.

The PVC Conduit

Encapsulating and protecting the stainless steel core is a robust PVC (Polyvinyl Chloride) conduit with an outer diameter of 0.41 inches. The selection of PVC for the conduit material is strategic, offering a balanced combination of protective qualities and operational characteristics:

• Flexibility: The PVC conduit provides the essential flexibility required for navigating complex routings within vehicle chassis or industrial equipment, accommodating an 8-inch minimum bend radius without kinking or compromising the internal cable's smooth movement. This flexibility is key to installation ease and preventing premature wear.
• Abrasion Resistance: The outer jacket of the conduit is designed to withstand external abrasion from contact with other components, chassis elements, or environmental debris, safeguarding the internal mechanism.
• Chemical Resistance: PVC offers good resistance to many common chemicals, oils, greases, and solvents encountered in automotive and industrial settings, preserving the conduit's structural integrity and protective function over time.
• Environmental Protection: The black PVC jacket forms a critical barrier against ingress of dirt, dust, moisture, and other contaminants into the cable's internal mechanism, which could otherwise lead to binding, corrosion, and premature failure. It also provides a degree of UV resistance, mitigating degradation from sun exposure in outdoor applications.
• Temperature Stability: While specific ranges can vary, the chosen PVC compound is formulated to perform reliably across the typical operating temperatures experienced in medium-duty equipment, maintaining its flexibility and protective properties without becoming brittle in cold or excessively soft in heat.

End Fittings: Rod End and Bulkhead Configuration

The efficacy of any control cable system is highly dependent on its termination points. The 5200 Series cable features a precision-engineered "Rod End" termination with a 1/4-28 thread size. Rod ends (often referred to as spherical bearings or clevis ends) are designed to connect the cable to a lever, pedal, or other linkage mechanism, allowing for angular misalignment while ensuring smooth force transmission. The 1/4-28 thread is a standard fine-thread specification, offering secure attachment and precise adjustment capabilities. The choice of materials for these end fittings, typically plated steel or brass, provides excellent strength and corrosion resistance at these critical interface points.

For mounting, the cable incorporates a bulkhead design, complete with bulkhead nuts and washers. The bulkhead thread size is 5/8-18, another common fine-thread standard. This configuration allows the cable to pass through a panel or bracket and be securely fastened, creating a stable and rigid anchor point. The included nuts and washers ensure a tight, vibration-resistant connection, which is paramount for maintaining consistent cable tension and preventing slippage or rattling in dynamic operating environments. This "fast connectivity" feature not only streamlines installation but also contributes to the overall reliability and longevity of the control system.

Precision and Durability: Key Specifications Explained

The detailed specifications provided for the 156 Inch 5200 Series cable are not arbitrary numbers but represent critical design parameters that dictate its performance envelope and suitability for specific applications.

• Cable Length (156 inches): This precise length is crucial for direct application fitment, ensuring there is sufficient cable to span the distance between the control input and the actuated output without excess slack or undue tension. Custom lengths can be critical for OEM integration, and standard lengths like 156 inches provide widely applicable solutions.
• Total Travel (3 inches): The 3-inch total travel specification indicates the maximum linear displacement the inner cable core can achieve. This parameter is vital for matching the cable to the throw distance required by the actuator it controls, whether it's a hydraulic valve, a gear selector, or a throttle mechanism. Insufficient travel would prevent full actuation, while excessive travel could lead to overextension and component damage.
• Load Range (40-100 lbs): This specifies the operational force window within which the cable is designed to perform reliably and efficiently. A 40 lb minimum force indicates its sensitivity and ability to transmit lighter control inputs, while the 100 lb maximum demonstrates its capacity for more strenuous medium-duty applications. Exceeding this range could lead to premature wear or failure, highlighting the importance of proper application matching.
• Minimum Bend Radius (8 inches): The 8-inch minimum bend radius is a critical installation and performance parameter. It defines the tightest curve the cable can form without risking damage to the internal core or outer conduit, which could impede smooth operation or lead to premature failure. Adhering to this specification during installation ensures the cable operates with minimal friction and maximum longevity, preventing kinking, crushing, or binding that would compromise its push-pull capabilities.
• Cable Diameter (0.125 inches) and Conduit Diameter (0.41 inches): These dimensions are carefully balanced. The smaller cable core diameter provides flexibility, while the larger conduit diameter allows for an appropriate clearance, ensuring low friction and smooth movement of the core within the conduit. This clearance, combined with the properties of the PVC, is vital for the cable's operational efficiency and responsiveness.

Application Versatility: PTO and Hoist Systems

The explicit mention of "medium duty PTO and hoist applications" highlights the primary intended use cases for the 156 Inch 5200 Series Universal Mount Control Cable. These applications demand specific performance characteristics from control cables:

Power Take-Off (PTO) Systems

PTO units are critical components on commercial trucks, agricultural machinery, and industrial equipment, enabling auxiliary equipment (e.g., pumps, compressors, generators, winches) to draw power directly from the vehicle's engine or transmission. Engaging and disengaging a PTO requires a control cable that can transmit significant force to an often stiff mechanical linkage, withstand vibration, and operate reliably over extended periods. The 5200 Series, with its robust stainless steel core, durable PVC conduit, and 40-100 lb load range, is perfectly suited for this role, providing crisp, positive engagement and disengagement crucial for efficient and safe operation of attached implements.

Hoist Applications

Hoist systems, found on tow trucks, service vehicles, utility trucks, and various material handling equipment, require precise and reliable control for lifting and lowering operations. Whether controlling a hydraulic valve, a winch clutch, or a braking mechanism, the control cable must offer consistent, low-friction operation to allow operators fine control over the load. The 3-inch total travel and smooth push-pull action of the 5200 Series cable contribute to the safe and effective manipulation of hoists, even under demanding operational conditions where shock loads, vibration, and environmental exposure are common.

Beyond these primary applications, the universal nature and robust specifications of the 5200 Series make it highly suitable for numerous other control functions across medium-duty sectors. This could include throttle controls, choke controls, valve actuators, gear shifters, parking brake releases, and various other remote mechanical linkages where precise, bidirectional force transmission is essential.

Installation Excellence and System Integration

The design of the 156 Inch 5200 Series control cable emphasizes ease of installation and reliable integration into complex mechanical systems. The inclusion of bulkhead nuts and washers for "fast connectivity" is a testament to this user-centric engineering. Proper installation techniques are vital to maximize cable performance and longevity:

• Routing: Adhering to the 8-inch minimum bend radius during routing is paramount. Cables should be routed away from sharp edges, hot components (e.g., exhaust systems), and moving parts. Secure clamping along the route prevents chafing, unsupported flexing, and ensures the cable remains within its intended path, minimizing the risk of damage or operational interference.
• Secure Connections: The 1/4-28 rod end thread and 5/8-18 bulkhead thread sizes are industry standards, ensuring compatibility with a wide range of existing hardware. Proper torque application for the bulkhead nuts and rod end connections is critical to prevent loosening under vibration, which could lead to loss of control or premature wear.
• Adjustment: The threaded rod end allows for precise adjustment of the cable's effective length, ensuring that the control input (e.g., a lever's full sweep) perfectly matches the required throw of the actuated component, maximizing efficiency and preventing over-travel.

Reliability, Longevity, and Value Proposition

The 156 Inch 5200 Series Universal Mount Control Cable is designed not just for performance but for enduring reliability and long-term value. Every aspect, from the material selection to the manufacturing tolerances, contributes to a product that:

• Minimizes Downtime: By employing high-quality, corrosion-resistant stainless steel and a durable PVC conduit, the cable is built to withstand harsh operating conditions, reducing the likelihood of unexpected failures and the associated costs of downtime and repairs.
• Ensures Operational Safety: Reliable push-pull control is fundamental to the safe operation of PTOs, hoists, and other critical systems. The precision engineering of the 5200 Series directly contributes to consistent and predictable control, enhancing operator safety.
• Offers Cost-Effectiveness: While initial investment in a high-quality control cable might be slightly higher than inferior alternatives, the extended service life, reduced maintenance requirements, and consistent performance of the 5200 Series translate into lower total cost of ownership over the product's lifespan.
• Provides Peace of Mind: Buyers Products is synonymous with quality and reliability in the industrial and commercial equipment sector. Specifying the 5200 Series cable means choosing a component backed by a reputation for engineering excellence and rigorous quality control.

Conclusion

The 156 Inch 5200 Series Universal Mount Control Cable from Buyers Products stands as a testament to intelligent design and robust manufacturing. Its carefully selected materials—stainless steel core for strength and corrosion resistance, PVC conduit for protection and flexibility—combined with its push-pull mechanism, universal mounting, and precise specifications, make it an ideal solution for medium-duty PTO and hoist applications. Engineered for reliability, ease of installation, and sustained performance in challenging environments, this cable ensures that critical mechanical operations are executed with precision, safety, and efficiency, providing an unparalleled blend of technical superiority and practical utility for demanding professional applications.
