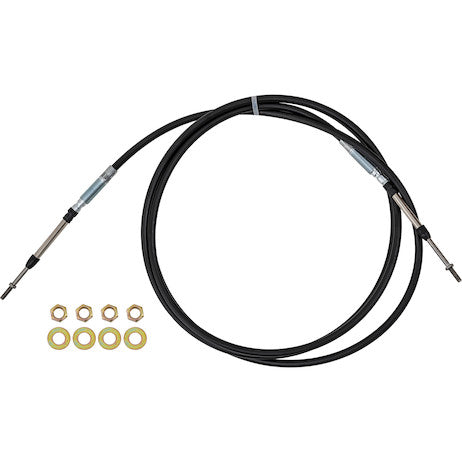

The 5200 Series Universal Mount Control Cable from Buyers Products is a universal mount, push-pull style cable for most medium duty PTO and hoist applications. With an 8 in. minimum bend radius and a 40-100 lb load range, the cable is the flexible choice for many jobs. All cables include bulkhead nuts and washers for fast connectivity.
Specifications
| Cable Length (in.) | 168 " |
| Conduit Diameter (in.) | .41 " |
| Bulkhead Thread Size | 5/8-18 " |
| Rod End Thread Size | 1/4-28 " |
| End Type | Rod |
| Cable Core Material | Stainless Steel |
| Cable Diameter (in.) | 0.125 " |
| Conduit Material | PVC |
| Cable Series | 5200 Series |
| Conduit Color | Black |
| Total Travel (in.) | 3 " |
Technical Overview: 168 Inch 5200 Series Universal Mount Control Cable
The 168 Inch 5200 Series Universal Mount Control Cable represents a pinnacle of engineering within the mechanical control system industry, specifically designed for robust and reliable operation in diverse medium-duty applications. This product, manufactured by Buyers Products, is engineered to provide precise and consistent control, functioning as a critical interface between an operator input device and a remote mechanism, such as a Power Take-Off (PTO) unit or a hydraulic hoist system. Its universal mount and push-pull configuration afford it a high degree of adaptability, making it suitable for a wide array of industrial, agricultural, and commercial vehicle applications where dependable remote actuation is paramount.
Design and Construction: Core Components and Materials
At the heart of the 5200 Series control cable is its meticulously selected material composition and precision manufacturing. The cable core, a vital component responsible for transmitting tensile and compressive forces, is fabricated from high-grade stainless steel. This choice of material is not arbitrary; stainless steel offers superior corrosion resistance, crucial for applications exposed to moisture, chemicals, and varying environmental conditions. Furthermore, stainless steel exhibits excellent tensile strength and fatigue resistance, ensuring the cable’s longevity and consistent performance under repeated cycling. With a cable diameter of 0.125 inches, this core is robust enough to handle the specified 40-100 lb load range without undue stretching or deformation, thereby maintaining the accuracy of control over its operational lifespan. The smooth surface finish of the stainless steel core also contributes to reduced friction within the conduit, translating to smoother operation and less effort required from the operator.
Encasing the stainless steel core is a protective conduit, meticulously designed to guide and support the inner cable while shielding it from external elements. The conduit material is PVC (Polyvinyl Chloride), a polymer chosen for its excellent balance of flexibility, durability, and resistance to environmental degradation. PVC offers good abrasion resistance, preventing premature wear from friction with surrounding components, and is highly resistant to many chemicals, oils, and greases commonly encountered in industrial environments. The conduit's exterior, in a standard black color, provides a clean, professional aesthetic and often incorporates UV stabilizers to prevent degradation from prolonged sun exposure. With a conduit diameter of 0.41 inches, it provides ample space for the cable core while maintaining a compact profile suitable for various routing challenges.
A critical design parameter for mechanical control cables is the minimum bend radius. For the 5200 Series, this is specified at 8 inches. This relatively tight bend radius underscores the cable's flexibility, allowing for versatile routing around obstructions and through complex chassis configurations without compromising operational integrity or inducing excessive friction. Exceeding the minimum bend radius can lead to kinking, increased friction, and premature cable failure, highlighting the importance of adhering to this specification during installation. The flexibility is a direct result of the composite structure of the cable, balancing the rigidity of the core with the pliability of the conduit, ensuring that the control input is accurately translated to the output end even with tortuous routing.
Connectivity and Installation

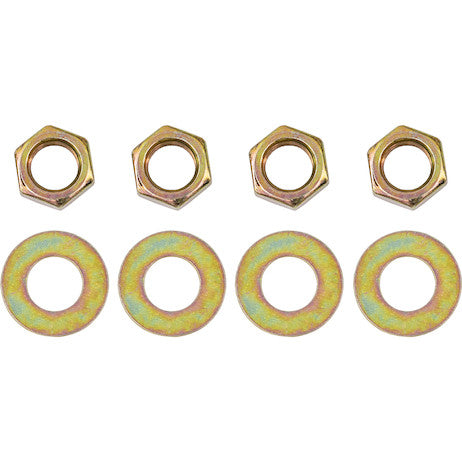

The 5200 Series control cable is engineered for straightforward and secure installation, facilitated by its universal mount design and included hardware. Each cable comes equipped with bulkhead nuts and washers, essential components for mounting the cable securely through a panel or chassis. The bulkhead thread size is 5/8-18 inches, a common and robust standard that ensures a firm, stable connection point, preventing axial movement of the conduit. This secure mounting is crucial for maintaining the precise alignment of the cable and minimizing backlash in the control system. The inclusion of these components streamlines the installation process, reducing the need for additional parts and ensuring compatibility.

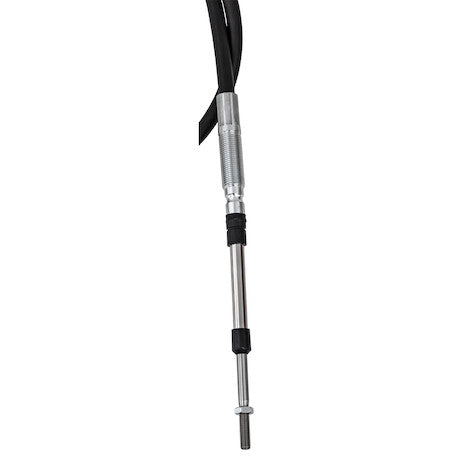

At the actuation end, the cable features a rod end type, a widely recognized and utilized termination for mechanical control cables. The rod end provides a direct, rigid connection to the controlled mechanism, ensuring efficient force transmission. The rod end thread size is 1/4-28 inches, a standard fine thread that allows for precise adjustment and secure attachment to levers, linkages, or other mechanical interfaces. The robust threading ensures that the connection remains secure even under dynamic loads and vibrations, contributing to the overall reliability of the control system.
Performance Characteristics: Load, Travel, and Operation
The operational performance of the 5200 Series cable is defined by several key parameters. Its specified load range of 40-100 lbs (push-pull) indicates its capability to transmit significant force, making it well-suited for medium-duty applications such as engaging PTOs, operating throttle controls, or actuating hydraulic valves for hoist systems. This load capacity is a direct result of the stainless steel core's strength and the robust design of the entire assembly. Operating within this specified load range ensures optimal performance and prevents premature wear or failure.
Total travel, another critical specification, is 3 inches. This defines the maximum linear displacement of the inner cable relative to the conduit. This travel distance is typically sufficient for most medium-duty applications, providing adequate range for full engagement and disengagement of PTOs or full stroke operation of hoist control valves. The precise control over this travel is maintained by the low-friction design of the cable assembly, ensuring a consistent and smooth response to operator input.
As a push-pull style cable, it is designed to transmit both tensile (pull) and compressive (push) forces effectively. This bidirectional capability is essential for applications requiring both activation and deactivation, or movement in two directions. The design minimizes internal friction, often achieved through a low-friction liner within the conduit (though not explicitly stated, it's a common feature in quality control cables), which allows for smooth and consistent operation throughout its travel range, regardless of the direction of force application. This low friction translates to reduced operator fatigue and a more responsive control feel.
Application Suitability: Medium Duty PTO and Hoist Systems
The 168 Inch 5200 Series Universal Mount Control Cable is specifically engineered for "most medium duty PTO and hoist applications." PTO systems, integral to many commercial vehicles and agricultural machinery, require reliable control for engaging and disengaging auxiliary equipment, such as pumps, generators, or spreaders. The robust construction and specified load range of the 5200 Series cable make it an ideal choice for these demanding environments, ensuring that the PTO can be activated and deactivated precisely and safely. The cable's resilience to environmental factors is particularly beneficial in agricultural settings, where exposure to dirt, dust, and moisture is common.
Similarly, for hoist applications, such as those found on dump trucks, wreckers, or utility vehicles, precise and reliable control over hydraulic valves is paramount for safe and efficient operation. The 5200 Series cable provides the necessary mechanical linkage to transmit operator commands to the hydraulic system, enabling smooth and controlled lifting and lowering operations. The 168-inch length offers significant flexibility in routing, accommodating longer distances between the operator station and the hoist mechanism, which is typical in larger vehicles.
Longevity and Maintenance
The design and material selection of the 5200 Series cable prioritize longevity and minimal maintenance. The stainless steel core provides inherent corrosion resistance, significantly reducing the risk of rust and degradation that can lead to increased friction or binding. The PVC conduit further protects the internal components from abrasion, impact, and chemical exposure. While designed for durability, periodic inspection of the cable for signs of wear, fraying, or kinking, especially at bend points and termination ends, is recommended to ensure continued optimal performance. Proper routing that adheres to the minimum bend radius and avoids sharp edges or abrasive surfaces will extend the cable's lifespan considerably. Regular cleaning of the exterior conduit, particularly in dusty or muddy environments, can prevent build-up that might impede movement or damage the outer sheath.
Compliance and Quality Assurance
Buyers Products, as a reputable manufacturer, typically adheres to stringent quality control standards in the production of its components. While specific certifications are not listed in the provided description, the technical specifications and material choices imply a commitment to producing a reliable and durable product. The use of standardized thread sizes for both the bulkhead and rod end connections further indicates an adherence to industry best practices, ensuring compatibility with a wide range of existing equipment and accessories. This focus on quality assurance translates into a product that delivers consistent performance, reduces downtime, and offers a favorable total cost of ownership over its service life.
Conclusion
The 168 Inch 5200 Series Universal Mount Control Cable from Buyers Products stands as a testament to thoughtful engineering and material science applied to mechanical control systems. Its stainless steel core, flexible PVC conduit, robust terminations, and specified performance characteristics make it an exceptionally reliable and adaptable component for demanding medium-duty PTO and hoist applications. The universal mount design, coupled with an adequate length and a manageable bend radius, simplifies integration into complex vehicle and machinery layouts. By providing precise, low-friction, and durable control, this cable ensures operational efficiency and safety, making it a professional's choice for critical remote actuation tasks.
