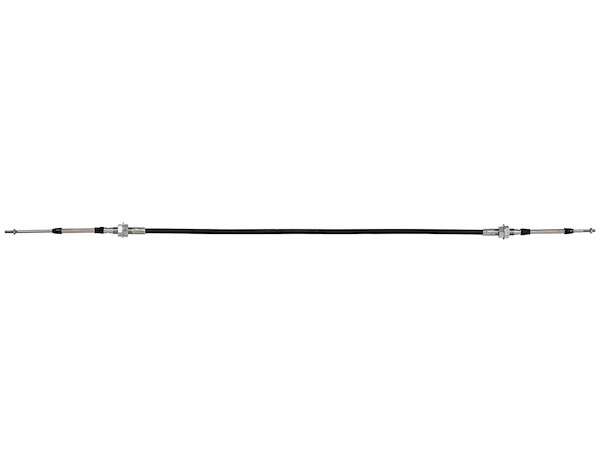

5203BBU192 - 192 Inch 5200 Series Universal Mount Control Cable

Detailed Technical Overview: 192 Inch 5200 Series Universal Mount Control Cable

The 192 Inch 5200 Series Universal Mount Control Cable by Buyers Products represents a high-performance, robust, and precision-engineered solution for mechanical control systems in a diverse array of industrial and commercial applications. Designed specifically as a universal mount, push-pull style cable, it offers unparalleled reliability and operational flexibility, making it an indispensable component for critical functions such as Power Take-Off (PTO) engagement and disengagement, as well as hoist actuation in medium-duty machinery.

Fundamental Principles of Push-Pull Control Cables

At its core, a push-pull control cable is a mechanical linkage system designed to transmit linear motion and force from a control input (e.g., a lever, pedal, or knob) to a remote output device (e.g., a valve, clutch, or brake mechanism). This transmission is achieved through a flexible inner core cable that slides concentrically within a protective outer conduit. When force is applied at one end, the core can either be pushed or pulled, thereby actuating the remote mechanism. The 5200 Series cable excels in this function due to its meticulous construction, ensuring minimal friction and hysteresis, which translates into precise and responsive control.

The inherent advantages of push-pull cables, particularly in dynamic and demanding environments, include their mechanical simplicity, direct operational feedback, and resistance to environmental contaminants compared to more complex hydraulic or electrical systems. They eliminate the need for intricate linkages, pulleys, or fluid lines, simplifying installation and maintenance while significantly reducing potential points of failure. The direct mechanical connection ensures that the operator experiences immediate and tangible feedback, which is crucial for safety and operational accuracy in applications involving heavy machinery.

Universal Mounting and Application Versatility

The designation "Universal Mount" is a critical feature of the 5200 Series cable. This design philosophy ensures broad compatibility across a wide range of equipment types and chassis configurations, dramatically simplifying procurement, inventory management, and installation processes for fleet operators and equipment manufacturers. By adhering to industry-standard mounting dimensions and incorporating adaptable end fittings, this cable minimizes the need for custom fabrication or specialized adapters, thereby reducing downtime and installation complexity. This universal adaptability underscores its value as a go-to solution for diverse control challenges.

Specifically engineered for "most medium duty PTO and hoist applications," the 5200 Series cable is ideally suited for vehicles and machinery that require reliable and consistent power transfer and lifting capabilities. Examples include municipal service vehicles, commercial trucks with auxiliary equipment, agricultural machinery, and certain construction apparatus. For PTO systems, the cable facilitates the smooth engagement and disengagement of power from the vehicle's engine or transmission to auxiliary equipment like pumps, compressors, or spreaders. In hoist applications, it provides precise control over lifting and lowering mechanisms, ensuring controlled and safe material handling operations.

The versatility of this cable extends beyond these primary applications. Its robust design and precise control characteristics make it suitable for various other remote actuation tasks where a reliable, direct mechanical linkage is required. This could include throttle controls, choke controls, valve actuation in fluid power systems, door latches, or brake release mechanisms in a range of industrial settings.

Advanced Material Science and Construction

Stainless Steel Cable Core: The Heart of Durability and Performance

The core of the 5200 Series control cable is constructed from Stainless Steel. This material choice is paramount to the cable's exceptional performance and longevity. Stainless steel, particularly types commonly used for such applications (e.g., 302/304 series), offers a superior combination of mechanical properties:

• Corrosion Resistance: Stainless steel is inherently resistant to rust and corrosion caused by moisture, chemicals, road salts, and other aggressive environmental agents commonly encountered in outdoor and industrial settings. This resistance is critical for maintaining smooth operation and preventing premature failure, especially in applications exposed to harsh weather or corrosive substances.
• High Tensile Strength: The stainless steel core provides excellent tensile strength, allowing it to withstand the significant push and pull forces associated with medium-duty applications without stretching, deforming, or breaking. This ensures consistent and reliable actuation over the cable's operational lifespan.
• Fatigue Resistance: Engineered to endure repeated cycles of bending, pulling, and pushing, the stainless steel core exhibits high fatigue resistance. This attribute is vital for control cables that undergo constant movement during equipment operation, preventing material degradation and ensuring sustained performance over thousands of operational cycles.
• Low Friction Properties: When combined with appropriate internal lubrication and the smooth inner liner of the conduit, stainless steel contributes to a low coefficient of friction. This facilitates effortless movement of the core within the conduit, translating into minimal operational force required by the user and enhanced responsiveness of the actuated mechanism.

PVC Conduit: Robust Protection and Environmental Resilience

The outer conduit, colored Black and constructed from PVC (Polyvinyl Chloride), serves as the critical protective sheath for the stainless steel core. With a Conduit Diameter of 0.41 inches, the PVC conduit is engineered to safeguard the internal mechanism from external damage and environmental ingress, while also defining the cable's flexibility and routing characteristics.

• Abrasion Resistance: The PVC material provides excellent resistance against physical abrasion, protecting the delicate inner core from wear and tear caused by rubbing against chassis components, other cables, or environmental debris.
• Chemical Resistance: PVC offers good resistance to many common industrial fluids, including oils, greases, gasoline, and hydraulic fluids, preventing material degradation and maintaining the cable's integrity in potentially corrosive environments.
• UV Resistance: The black PVC conduit is formulated to resist degradation from ultraviolet (UV) radiation when exposed to sunlight, preventing brittleness and cracking over time, which is crucial for outdoor applications.
• Temperature Stability: While PVC has specific temperature limits, the conduit is designed to operate effectively within the typical temperature ranges experienced by commercial vehicles and industrial equipment, maintaining its flexibility and protective qualities.
• Electrical Insulation: Although primarily a mechanical component, the PVC conduit also provides a degree of electrical insulation, which can be beneficial in certain operational contexts.

The synergistic design of the stainless steel core within the PVC conduit ensures a robust, low-friction system that maintains consistent performance across a wide range of operating conditions.

Precision Engineering: Specifications and Performance Metrics

Cable Length: 192 Inches (16 Feet)

A substantial Cable Length of 192 inches (16 feet) positions the 5200 Series as an ideal solution for applications requiring significant routing distances between the control input and the actuated component. This extended length accommodates larger vehicle chassis, complex machinery layouts, and remote control panels, providing designers with greater flexibility in component placement. Managing long cables effectively is a testament to the overall design quality, ensuring that even over considerable distances, friction remains low and control remains crisp and precise.

Minimum Bend Radius: 8 Inches

The 8 inch minimum bend radius is a critical performance specification that highlights the cable's optimal balance between flexibility and structural integrity. The minimum bend radius defines the tightest curve the cable can form without damaging its internal components, inducing excessive friction, or compromising its operational characteristics. An 8-inch bend radius indicates a highly flexible cable for its diameter and load rating, allowing for versatile routing through complex and confined spaces within a vehicle or machine chassis. Adhering to this specification during installation is crucial for maximizing cable life and ensuring smooth, consistent operation, preventing kinks or stresses that could lead to premature wear or control degradation.

Load Range: 40-100 Pounds

With a specified Load Range of 40-100 pounds, the 5200 Series cable is precisely calibrated for medium-duty applications. This range defines the continuous operational force the cable is designed to transmit reliably. This load capacity is robust enough to actuate many types of hydraulic valves, engage/disengage clutches in PTO systems, or operate brake mechanisms without strain or failure. It signifies the cable's ability to consistently perform under the typical resistive forces encountered in its intended applications, ensuring system responsiveness and preventing control slippage or fatigue over time. Understanding and respecting this load range is vital for proper system design and selection to ensure long-term reliability and safety.

Total Travel: 3 Inches

The Total Travel of 3 inches refers to the maximum linear displacement the inner cable core can achieve from one end of its stroke to the other. This specification is crucial for matching the cable to the actuation requirements of the controlled mechanism. A 3-inch travel provides sufficient throw for a wide variety of industrial components, including operating the full stroke of many common hydraulic control valves, engaging multi-plate clutches, or actuating various detent mechanisms. This precise and consistent travel ensures that the remote device can be fully engaged or disengaged, providing definitive control states without over-stressing or under-actuating the component.

Cable Diameter (0.125 inches) and Conduit Diameter (0.41 inches)

The precise dimensions of the inner Cable Diameter (0.125 inches) and outer Conduit Diameter (0.41 inches) are engineered for optimal performance. The 0.125-inch diameter stainless steel core provides the necessary strength and rigidity for transmitting force, while allowing for significant flexibility. This core size is carefully matched to the 0.41-inch outer diameter of the conduit, ensuring an optimal internal clearance that minimizes friction and allows for smooth sliding motion, even around bends. This precise engineering balance is essential for delivering a responsive and durable control cable that operates efficiently over its long lifespan.

Secure Connectivity and Installation Ease

Bulkhead Mounting and Thread Specifications

The 5200 Series cable is designed for straightforward and secure mounting through bulkheads, which are panels or partitions within the vehicle or machinery structure. It features a Bulkhead Thread Size of 5/8-18 inches. This standardized thread pitch and diameter ensure robust mechanical attachment, preventing movement or vibration-induced loosening. The inclusion of bulkhead nuts and washers as standard components significantly simplifies installation, providing all necessary hardware for a secure and stable mounting point. This design choice underscores the product's commitment to ease of integration and operational stability.

Rod End Type and Thread Specifications

At the actuation end, the cable features a Rod End, equipped with a Rod End Thread Size of 1/4-28 inches. Rod ends, also known as spherical plain bearings or Heim joints, are mechanical articulating joints commonly used to connect control cables to levers, pedals, or other mechanical linkages. They allow for angular misalignment between connected parts while transmitting linear motion, accommodating minor imperfections in alignment or movement during operation. The 1/4-28 inch thread is a common size, facilitating easy connection to a wide range of standard industrial components and actuators, further enhancing the cable's universal applicability.

The 5200 Series: A Benchmark for Control Cable Excellence

The designation "5200 Series" indicates a specific line of control cables from Buyers Products that adheres to a particular set of design standards, material specifications, and performance characteristics. This series is engineered to provide consistent quality and reliability across its various lengths and configurations, ensuring that customers receive a product that meets rigorous operational demands.

Every aspect of the 192 Inch 5200 Series Universal Mount Control Cable, from its stainless steel core to its PVC conduit and precision end fittings, is selected and engineered to deliver superior performance and longevity in demanding applications. Its robust construction ensures exceptional resistance to environmental factors, including temperature fluctuations, moisture, dust, and corrosive agents, which are common challenges in outdoor and industrial settings.

The cable's inherent flexibility, demonstrated by its 8-inch minimum bend radius, simplifies routing in confined spaces, while its substantial 192-inch length provides ample reach for diverse applications. The carefully chosen load range and total travel specifications ensure compatibility with medium-duty PTO and hoist mechanisms, delivering precise and responsive control when it matters most.

Quality Assurance and Operational Benefits

Buyers Products is renowned for its commitment to engineering excellence and product reliability. The 5200 Series control cable undergoes stringent quality control processes to ensure that each unit consistently meets its stated specifications and performance benchmarks. This dedication to quality translates directly into several tangible operational benefits for end-users:

• Enhanced Safety: Reliable and predictable control over critical vehicle and equipment functions contributes significantly to operator safety and accident prevention.
• Increased Productivity: Smooth, responsive, and consistent operation minimizes downtime and facilitates efficient task completion, thereby boosting overall productivity.
• Reduced Maintenance Costs: The durable materials and robust construction lead to a longer service life, reducing the frequency of replacements and associated labor costs.
• Ease of Installation: The universal mount design, combined with included bulkhead hardware and standardized end fittings, ensures a straightforward and quick installation process, minimizing vehicle or equipment downtime.
• Operational Consistency: The precision engineering ensures that the control cable maintains its performance characteristics over time, providing consistent feedback and actuation throughout its operational life.

Conclusion

The 192 Inch 5200 Series Universal Mount Control Cable from Buyers Products stands as an exemplary solution for complex mechanical control requirements in medium-duty industrial and commercial environments. Its meticulously engineered design, featuring a stainless steel core within a durable PVC conduit, coupled with precise performance specifications like an 8-inch minimum bend radius, 40-100 lb load range, and 3 inches of total travel, ensures unparalleled reliability, flexibility, and longevity.

From its universal mounting capabilities to its robust end fittings and resistance to harsh environmental conditions, every attribute of this cable is optimized for superior functionality and ease of integration. For professionals seeking a high-performance, dependable, and technically sound push-pull control cable for critical PTO and hoist applications, the 5200 Series offers a compelling and cost-effective solution, embodying the pinnacle of modern mechanical control engineering.
