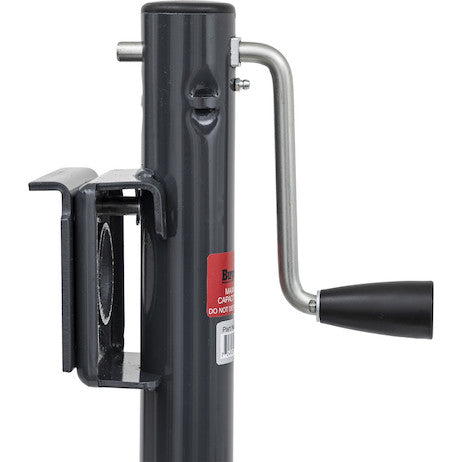

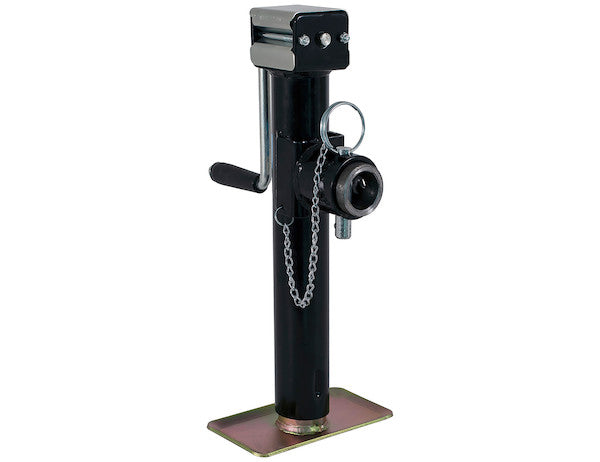

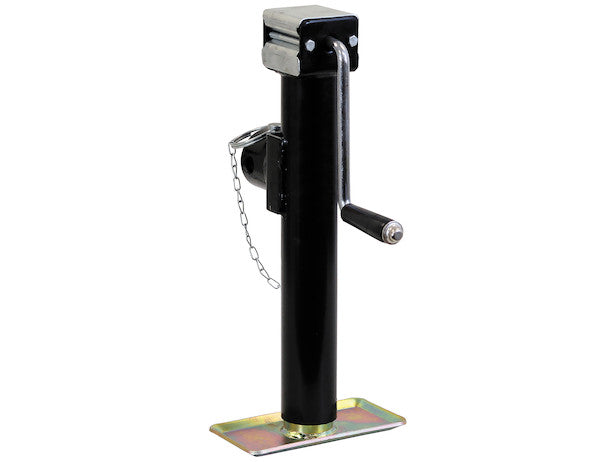

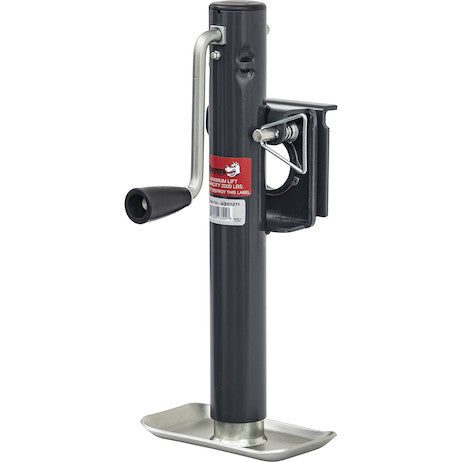

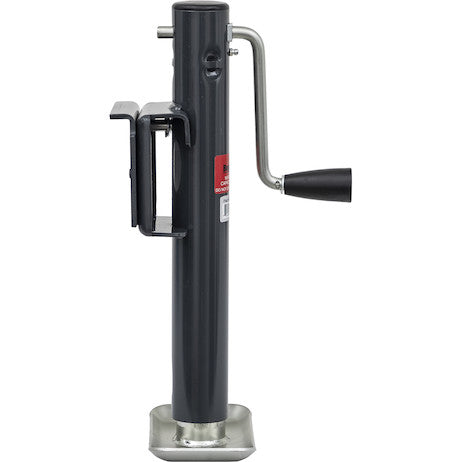

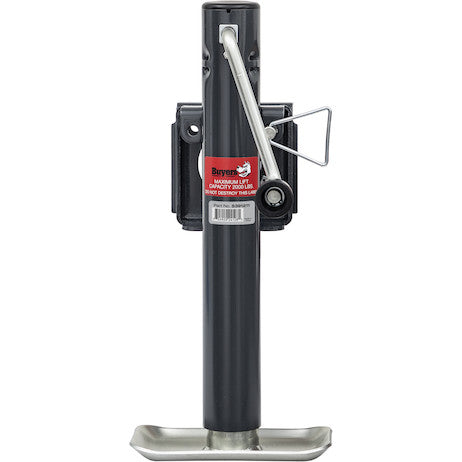

The Side-Wind Jack with Swivel Mount from Buyers Products is an easy to use jack for many commercial and RV trailers. The weld-on swivel mount lets you quickly swing the jack up for traveling and back down for use, and also allows you to remove the jack. The crank is on the side for easy operation using an ergonomic handle. The black powder-coated finish and zinc-plated base and crank help it withstand whatever weather comes its way. It features a 10 in. lift travel, excluding the handle, and has a tongue weight capacity of 5,000 lb. The weld-on mounting assembly is included.
Specifications
| Capacity | 2,000 |
|---|---|
| Color | Black |
| Extended Length (in.) | 20.8 |
| Finish | Powder-Coat |
| Material | Carbon Steel |
| Retracted Length (in.) | 10.8 |
| Square/Round | Round |
| Travel (in.) | 10.00 |
| Type | Bolt On Swivel Bracket |
| Wind | Side Wind |
Technical Overview: Buyers Products Swivel Side-Wind Jack with 10-inch Travel and Bracket Mount
The Buyers Products Side-Wind Swivel Jack, identified by its technical designation as a "JACK, SWIVEL, SIDE WIND, 10inTRVL, BRKT MNT," represents a robust and indispensable component for a wide array of towing applications. Engineered for optimal performance, durability, and user convenience, this jack is meticulously designed to facilitate the lifting, leveling, and stabilization of commercial trailers, recreational vehicles (RVs), utility trailers, and other mobile equipment. Its integration into a trailer system enhances both operational efficiency and safety, providing a reliable interface between the trailer and its support structure during non-towing operations.
Mechanical Engineering and Operational Principles
Lifting Mechanism and Gear Drive
At the core of this jack's functionality is a precisely engineered screw-type lifting mechanism. This system typically involves an Acme threaded rod, which converts rotational input from the crank handle into linear vertical motion, thereby extending or retracting the jack leg. The choice of an Acme thread is crucial due to its superior strength, self-locking properties under load, and resistance to wear, which are critical for maintaining load integrity over extended periods. The internal gearing system, coupled with the side-wind crank, provides a mechanical advantage, significantly reducing the effort required by the operator to lift even substantial tongue weights. The gear ratio is carefully selected to strike an optimal balance between lifting speed and ease of operation, ensuring that the jack can extend and retract smoothly without undue strain on the user or the internal components. The side-wind configuration, specifically, positions the handle horizontally, which can be advantageous in confined spaces or when access to the front of the jack is limited, offering a more ergonomic operational posture compared to top-wind designs.
Load Capacity and Performance Parameters
This jack is engineered with a rated lifting capacity of 2,000 lbs (0.91 metric tons). This capacity denotes the maximum static vertical load the jack is designed to safely support and lift. It is imperative that this specification is strictly adhered to for safe operation and to prevent structural failure or premature wear. While the general application might involve trailers with varying gross vehicle weight ratings (GVWR), the 2,000 lb capacity specifically applies to the tongue weight exerted on the jack when it is supporting the trailer. Misinterpreting this capacity can lead to dangerous overloading scenarios. The 10-inch travel distance, extending from a retracted length of 10.8 inches to an extended length of 20.8 inches, provides ample vertical adjustment for various terrain irregularities and coupling heights. This precise control over extension and retraction is critical for achieving optimal leveling and coupling operations.
Swivel Functionality and Deployment
A defining feature of this jack is its integrated swivel mount mechanism. The swivel design allows the jack to pivot horizontally, transitioning between an operational vertical position and a stowed horizontal position. This pivotal action is essential for providing ground clearance during transit, preventing damage to the jack or interference with road obstacles. The swivel mechanism is constructed with robust pivot points and locking pins or detents, ensuring secure retention in both the deployed and stowed configurations. The ability to quickly swing the jack up for traveling and back down for use significantly enhances user convenience and operational efficiency, eliminating the need for complex removal or repositioning procedures. Furthermore, the design may allow for complete removal of the jack from its mounting bracket, offering flexibility for maintenance or security purposes, though its primary benefit lies in the swift rotational storage.

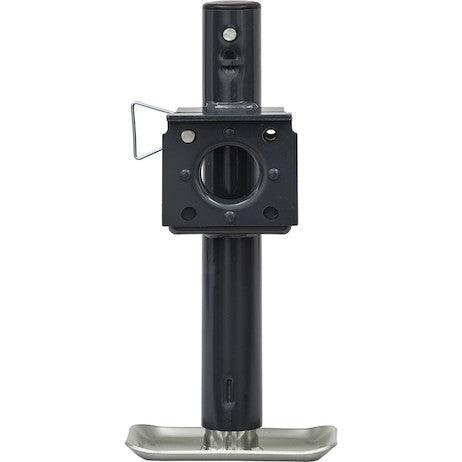

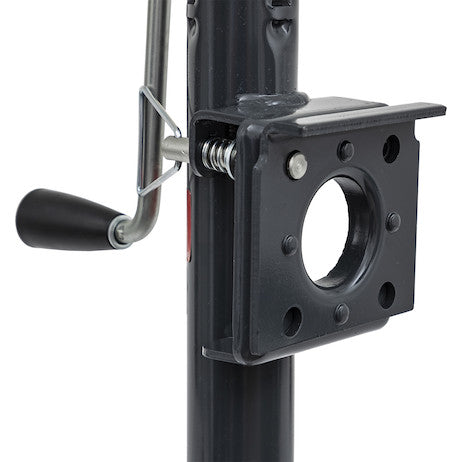

Mounting System: Bolt-On Swivel Bracket
The specified mounting system for this particular model is a Bolt-On Swivel Bracket. This bracket is designed for secure attachment to the trailer frame using appropriate fasteners, typically high-strength bolts, nuts, and washers (not included with the jack itself, but standard for bolt-on installations). The bolt-on methodology offers several advantages, including ease of installation without specialized welding equipment, straightforward replacement if necessary, and adaptability to various frame geometries. The bracket serves as the anchor point for the jack, incorporating the swivel mechanism that allows the jack tube to rotate. The integrity of the trailer frame at the mounting location is critical; it must be adequately reinforced to withstand the concentrated forces exerted by the jack, particularly under maximum load conditions. Proper bolt selection, torque specifications, and installation techniques are paramount to ensure a safe and lasting connection between the jack and the trailer.
Material Science and Durability Engineering
High-Strength Carbon Steel Construction
The primary material utilized in the construction of this jack is carbon steel. Carbon steel is chosen for its excellent balance of strength, ductility, and cost-effectiveness, making it ideal for load-bearing applications in demanding environments. The specific grade of carbon steel employed would be selected to meet stringent performance requirements, offering high yield strength to resist deformation under load and high tensile strength to prevent ultimate failure. This material ensures the jack's structural integrity, allowing it to reliably support the rated 2,000 lb capacity over its operational lifespan. Components such as the inner and outer tube, the screw, and internal gears are typically fabricated from appropriate carbon steel alloys, subjected to precise manufacturing processes including forming, machining, and heat treatment to achieve optimal mechanical properties.
Advanced Corrosion Protection Systems
Given the typical outdoor exposure of trailers and their components, comprehensive corrosion protection is a critical design consideration. This jack incorporates a dual-layer protective system: a black powder-coated finish for the main body and zinc plating for critical ancillary components.
- Powder Coating: The black powder-coat finish applied to the main carbon steel components provides a highly durable and aesthetically pleasing protective layer. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded component. The part is then cured in an oven, where the powder melts and flows to form a smooth, continuous film. This finish offers superior resistance to chipping, scratching, fading, and general wear compared to traditional liquid paints. More importantly, it creates an impermeable barrier against moisture, road salts, UV radiation, and other corrosive agents commonly encountered during trailer operation and storage, significantly extending the jack's service life in harsh weather conditions.
- Zinc Plating: The base and crank handle, which are often subject to direct abrasion and environmental exposure, are protected with zinc plating. Zinc plating is an electrochemical process that deposits a thin layer of zinc onto the steel surface. Zinc acts as a sacrificial coating, meaning it corrodes preferentially to the underlying steel when exposed to corrosive elements, thereby protecting the steel substrate. This method offers excellent galvanic corrosion protection and a high degree of resistance to rust and oxidation, particularly valuable for moving parts like the crank and the bottom support plate that may frequently contact the ground or accumulate moisture.
Operational Ergonomics and User Experience Enhancements
Beyond its robust construction and technical specifications, the design of the Buyers Products Side-Wind Swivel Jack places a significant emphasis on user ergonomics and ease of operation. The "side-wind" mechanism is a prime example of this consideration. By positioning the crank handle on the side of the jack, it offers several practical advantages:
- Enhanced Accessibility: The side-wind configuration allows for easier access to the crank in situations where the trailer tongue may be close to a tow vehicle, a wall, or other obstructions. This prevents the need for an awkward or constrained cranking motion that might be required with a top-wind jack in tight spaces.
- Ergonomic Handle Design: The ergonomic handle is shaped and sized to provide a comfortable grip, minimizing hand fatigue during extended operation. Its design often incorporates a rotating grip, allowing the operator's hand to maintain a natural position as the crank rotates, reducing friction and improving leverage.
- Smooth Engagement: The internal gearing is designed for smooth, consistent operation, ensuring that the cranking effort is distributed evenly throughout the rotation cycle. This reduces sudden jerks or resistance, contributing to a more controlled and comfortable user experience.
- Visible Operation: With the handle positioned to the side, operators often have a clearer line of sight to the jack leg as it extends or retracts, facilitating more precise leveling and preventing accidental over-extension or retraction.
Detailed Technical Specifications Analysis
A comprehensive understanding of the technical specifications is crucial for proper application and integration of this jack:
- Capacity: 2,000 lbs (0.91 metric tons): This fundamental specification defines the maximum vertical static load the jack can safely support and lift. Adherence to this limit is non-negotiable for safety and longevity.
- Color: Black: The black aesthetic, typically achieved through the powder-coating process, offers a classic, professional appearance that blends well with most trailer designs and hides minor abrasions effectively.
- Extended Length (in.): 20.8: This measurement indicates the total vertical dimension of the jack from the mounting surface to the bottom of the foot plate when fully extended. It's critical for determining maximum lifting height and ensuring adequate ground clearance.
- Finish: Powder-Coat: As detailed previously, this finish provides robust protection against environmental degradation and wear, enhancing the jack's durability and visual appeal.
- Material: Carbon Steel: The use of carbon steel ensures the structural integrity and load-bearing capability required for heavy-duty applications, offering a balance of strength and resilience.
- Retracted Length (in.): 10.8: This is the minimum vertical dimension of the jack when fully retracted. It is crucial for verifying sufficient ground clearance in the stowed position and confirming compatibility with trailer frame designs. The difference between extended and retracted length (20.8 - 10.8 = 10 inches) confirms the stated travel.
- Square/Round: Round: The round tube design is a common choice for jacks, offering good structural stability and ease of manufacturing. It often implies a compact design suitable for various frame mounting scenarios.
- Travel (in.): 10.00: The 10-inch vertical travel distance is a generous range, allowing for significant adjustment to accommodate different coupling heights, uneven terrain, or tire changes. This provides versatility for diverse operational scenarios.
- Type: Bolt On Swivel Bracket: This precise specification clarifies the mounting methodology. The bracket is designed to be bolted onto the trailer frame, facilitating the swivel action for storage. This ensures a secure, often easier-to-install, and replaceable connection compared to permanent welding.
- Wind: Side Wind: This indicates the orientation of the crank handle, which is positioned on the side of the jack body, providing ergonomic and space-saving advantages during operation.
Applications and Compatibility
The Buyers Products Side-Wind Swivel Jack is a versatile component suitable for a broad spectrum of trailer types and operational contexts:
- Commercial Utility Trailers: Ideal for landscaping trailers, construction utility trailers, cargo trailers, and equipment haulers where frequent coupling and uncoupling are required. Its robust construction and protective finishes make it suitable for demanding work environments.
- Recreational Vehicles (RVs) and Campers: Provides essential support for leveling RVs and travel trailers when parked, ensuring stability and comfort. The swivel feature is particularly beneficial for RVs, allowing for neat storage and preventing interference with campground obstacles.
- Boat Trailers: Offers reliable support for boat trailers, especially during launching and retrieval, ensuring the trailer remains stable when uncoupled from the tow vehicle. The corrosion-resistant finishes are vital in marine environments.
- Agricultural Equipment: Can be used on smaller agricultural implements and carts requiring adjustable support and easy maneuverability.
- Specialty Trailers: Applicable to various custom and specialty trailers that fall within the 2,000 lb tongue weight capacity, where reliable leveling and stowing capabilities are necessary.
Safety and Maintenance Protocols
Ensuring the longevity and safe operation of the Buyers Products Side-Wind Swivel Jack necessitates adherence to proper installation, usage, and maintenance guidelines:
- Installation: The bolt-on swivel bracket must be installed on a structurally sound section of the trailer frame. All bolts should be of appropriate grade and size, tightened to the manufacturer's specified torque settings. Regular checks for tightness and signs of fatigue in the bracket or frame are essential.
- Load Limits: Never exceed the 2,000 lb rated capacity. Overloading can lead to immediate failure of the jack, resulting in serious injury or property damage. Always ensure the trailer's tongue weight is within the jack's capacity.
- Stable Surface: Always operate the jack on a firm, level surface. If the ground is soft, use a wide, stable block under the footplate to distribute the load and prevent sinking.
- Lubrication: Periodically lubricate the internal screw mechanism and any pivot points of the swivel bracket with an appropriate grease or lubricant. This reduces friction, prevents rust, and ensures smooth operation and extended component life.
- Inspection: Conduct routine visual inspections for signs of wear, damage, rust, or deformation in the jack tube, footplate, handle, crank mechanism, and mounting bracket. Any signs of cracking, bending, or excessive play indicate the need for repair or replacement.
- Cleaning: Keep the jack clean of dirt, mud, and road debris, especially the screw mechanism and the swivel components. Regular cleaning prevents abrasive wear and allows for easier inspection.
