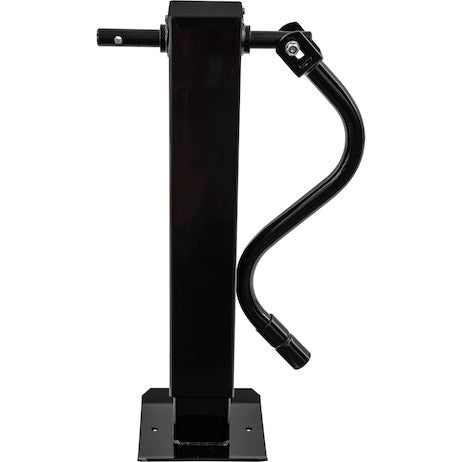

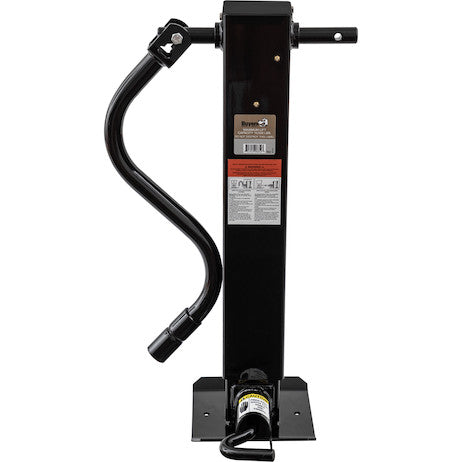

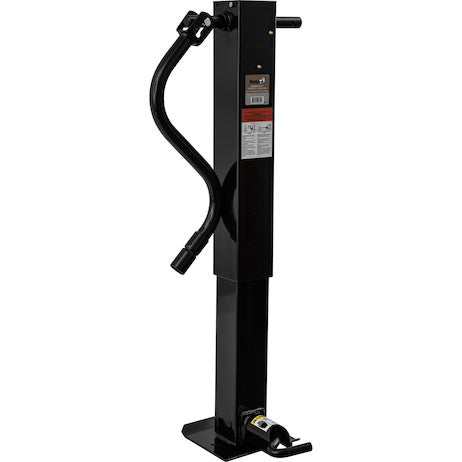

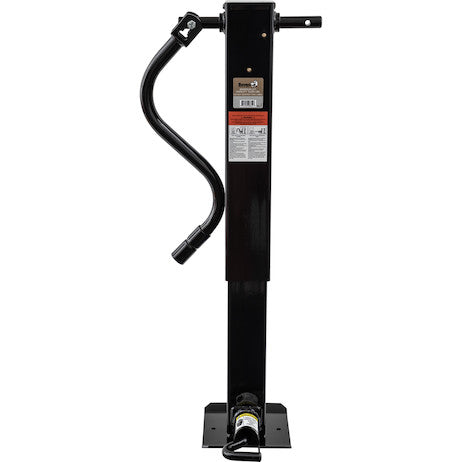

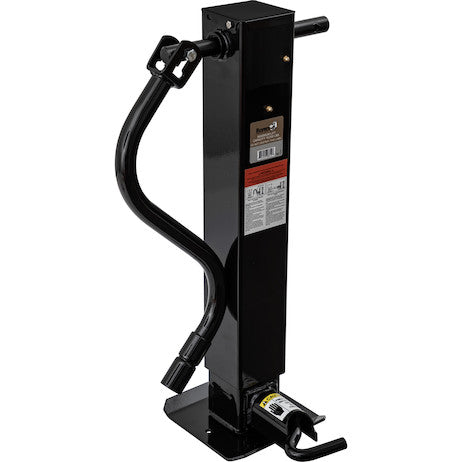

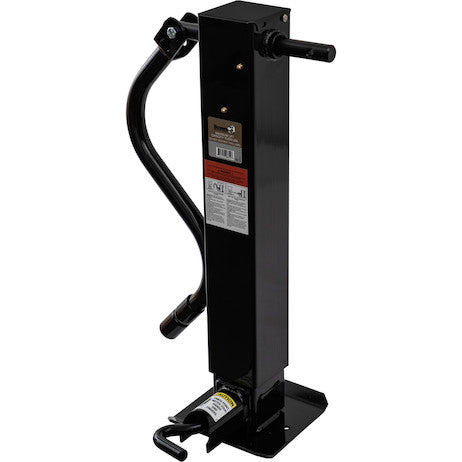

The Front-Pin Heavy Duty Square Jack from Buyers Products features a spring-return drop leg that allows easier expanding and retracting. The spring return is activated by pulling a sturdy front-mounted pin to drop the leg. The Square Jack is often used in pairs, connected to each other, for the heaviest duty lifting. Ideal for RVs, construction trailers and tri-axial trailers, the jack has a 10,000 lb (dynamic) and 12,000 lb (static) capacity. The 4 in. square tube features a weather-resistant black powder-coated finish, and includes a footpad. It can be ordered with or without a handle.
Specifications
| Color | Black |
|---|---|
| Dynamic Capacity | 10,000 |
| Extended Length (in.) | 54 |
| Finish | Powder-Coat |
| Foot | Spring assist foot return: Foot pad retracts with spring assist when locking pin is disengaged. |
| Material | Carbon Steel |
| Retracted Length (in.) | 28.5 |
| Square/Round | Square |
| Static Capacity (lbs) | 12,000 |
| Travel (in.) | 13 |
| Type | Weld On |
| Wind | Side Wind |
The 12 Inch Heavy-Duty Front Pin 4 Inch Square Jack with Handle represents a pinnacle of engineering excellence in trailer stabilization and support systems. Designed for demanding applications, this robust lifting device integrates superior material science with intelligent mechanical design to deliver unparalleled performance, durability, and operational efficiency. The comprehensive specifications underscore its capability to meet and exceed the rigorous requirements of heavy-duty vehicular support, making it an indispensable component for a wide array of industrial and commercial trailers.
At its core, this square jack is fabricated from high-grade Carbon Steel, a material chosen for its exceptional tensile strength, yield strength, and fatigue resistance. This inherent material integrity is paramount in applications where sustained heavy loads and dynamic stresses are commonplace. Carbon steel offers a superior strength-to-weight ratio compared to many other metals, allowing for a sturdy construction that resists deformation under extreme pressure while maintaining a manageable overall weight for installation and integration. The metallurgical composition of the carbon steel ensures longevity, resisting micro-fractures and structural degradation that can occur in less robust materials over prolonged periods of heavy use and exposure to environmental elements.
The distinctive 4-inch square tube design is a critical aspect of its heavy-duty classification. Unlike traditional round jacks, the square profile provides significantly enhanced torsional rigidity, preventing rotational movement and lateral deflection under uneven or dynamic loading conditions. This geometric advantage is crucial for maintaining trailer stability, particularly during loading, unloading, or when parked on uneven terrain. The larger surface area of the square tubing also contributes to improved load distribution across the jack's structure, minimizing stress concentrations and extending the lifespan of internal components. This design choice directly correlates with its superior static and dynamic load capacities.
Central to the jack's operational efficiency is its innovative Front-Pin mechanism, which governs the deployment of the spring-return drop leg. This mechanism is engineered for both swift deployment and retraction, significantly enhancing user convenience and reducing operational downtime. The sturdy front-mounted pin is easily accessible and manipulated, requiring minimal effort to disengage the locking mechanism. Upon disengagement, the integrated spring-assist feature autonomously initiates the retraction of the footpad and the lower leg segment. This "Spring assist foot return" ensures that the foot pad retracts smoothly and completely into its housing, preventing dragging or interference during trailer movement and eliminating the need for manual lifting and securing of the footpad. This intelligent design not only improves safety by reducing manual intervention but also streamlines the entire process of setting up and breaking down trailer operations.

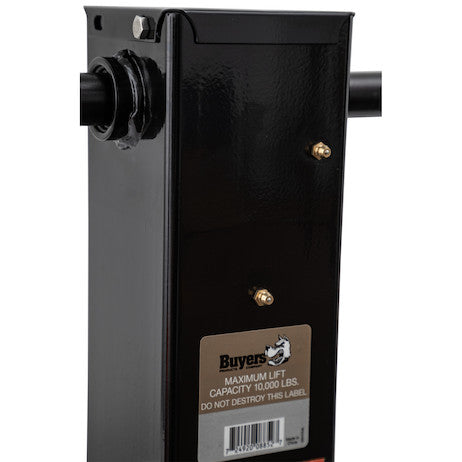

The capacity ratings of this jack are a testament to its robust construction and engineering. With a Dynamic Capacity of 10,000 lbs and a Static Capacity of 12,000 lbs, it is engineered to handle substantial loads with a significant margin of safety. The dynamic capacity refers to the maximum load the jack can lift and hold while in motion or under active load cycling, reflecting its ability to withstand operational stresses. The static capacity, on the other hand, indicates the maximum load the jack can support when stationary, acting primarily as a stable support structure. These ratings position the jack as an ideal solution for a broad spectrum of heavy-duty trailers, including those transporting equipment, materials, or functioning as mobile workshops. The conservative engineering behind these ratings ensures that even under maximum rated loads, the structural integrity of the jack remains uncompromised, providing reliable long-term service.
For applications involving exceptionally heavy or multi-axle trailers, such as tri-axial trailers, the practice of deploying two of these heavy-duty square jacks in tandem is highly recommended. When used in pairs, these jacks provide a symmetrical and reinforced support system, distributing the immense weight across multiple load points. This configuration not only maximizes the overall lifting and static support capacity but also significantly enhances the stability and safety of the trailer, preventing localized stress on the frame and mitigating the risk of structural deflection. The synchronization of two such robust units ensures even load distribution and balanced support, critical for maintaining the structural integrity of the trailer chassis and its cargo.
Durability and resistance to harsh environmental conditions are paramount for trailer components. This jack features a superior weather-resistant black powder-coated finish. Powder coating is a highly advanced finishing process that offers substantial advantages over conventional liquid painting. The electrostatically applied dry powder, cured under heat, creates a tough, uniform, and aesthetically pleasing finish that is significantly more resistant to chipping, scratching, fading, and wear. Critically, it provides exceptional corrosion protection, shielding the carbon steel from moisture, road salts, chemicals, and UV radiation, which are prevalent challenges in outdoor and vehicular applications. The deep black color not only contributes to a professional aesthetic but also aids in UV absorption, further enhancing the longevity of the protective layer. This finish ensures that the jack maintains its structural integrity and appearance even after prolonged exposure to adverse weather conditions, contributing to a longer service life and reduced maintenance requirements.
The operational flexibility of the jack is further highlighted by its "Travel (in.)" of 13 inches, an "Retracted Length (in.)" of 28.5 inches, and an "Extended Length (in.)" of 54 inches. This travel range provides ample adjustability for various trailer heights and ground clearances, accommodating different coupling heights and terrain irregularities. The 28.5-inch retracted length ensures sufficient ground clearance when the trailer is in transit, preventing scraping or damage over uneven surfaces or inclines. Conversely, the 54-inch extended length allows for comprehensive leveling and stabilization, even on significantly sloped ground or when requiring elevated positioning for maintenance or detachment. This broad operational envelope ensures the jack is versatile enough to meet the varied demands of different towing vehicles and operational environments.
The lifting mechanism itself is designed for precision and reliability. Categorized as "Side Wind," the handle operation allows for gradual and controlled adjustment of the jack's height. The internal gearing system is meticulously engineered to provide mechanical advantage, translating rotational input from the handle into linear vertical motion of the inner leg. This side-wind configuration offers ergonomic benefits, allowing operators to make adjustments without being directly in front of the trailer coupler, potentially reducing strain and improving visibility. The smooth operation of the side-wind mechanism contributes to the fine-tuning capability essential for precise leveling and secure coupling or uncoupling processes.
The inclusion of a robust footpad is integral to the jack's stability and load-bearing performance. This footpad is designed to provide a broad, stable base that effectively distributes the immense static and dynamic loads over a wider ground area. This minimizes ground penetration and enhances stability, particularly on softer surfaces like gravel, dirt, or asphalt. As previously mentioned, the "Spring assist foot return" ensures that the foot pad retracts efficiently and securely when the front pin is disengaged, preventing any dangling components during travel and safeguarding against accidental damage or loss. This attention to detail in the footpad's design and functionality underscores the product's commitment to comprehensive user experience and operational safety.
Installation is streamlined due to its "Weld On" type classification. This method of attachment provides an exceptionally strong, permanent, and rigid connection between the jack and the trailer frame. Welding creates a monolithic bond, eliminating the potential for loosening or fatigue that can occur with bolted connections under heavy vibration and stress. This ensures that the jack becomes an integral part of the trailer's structural system, offering maximum security and load transfer efficiency. Professional welding is recommended to ensure the integrity and safety of the installation, aligning with the heavy-duty nature and high-capacity performance expectations of this product.
The availability of the jack "with or without a handle" provides crucial flexibility for integrators and end-users. For new installations or replacements where a dedicated handle is desired for immediate operational readiness, the packaged option with a handle is ideal. Conversely, for situations where the jack is being integrated into existing trailer systems that might have alternative remote control mechanisms, or where a specific type of handle or crank is preferred or already available, the handle-less option allows for greater customization and cost efficiency. This modular approach ensures that the product can seamlessly adapt to a variety of operational setups and user preferences, emphasizing its versatility in the market.
This 12 Inch Heavy-Duty Front Pin 4 Inch Square Jack is specifically engineered to meet the demanding requirements of various heavy-duty applications. For RVs, it offers stable leveling and robust support, crucial for extended stays and ensuring the comfort and safety of occupants. In the construction industry, it provides essential support for utility, equipment, and dump trailers, where stability during loading, unloading, and site operations is critical to preventing accidents and ensuring efficient workflow. For agricultural trailers, it offers reliable support for heavy implements and produce. Its robust design is particularly well-suited for severe service conditions, including those involving frequent coupling and uncoupling, exposure to corrosive elements, and operation on challenging terrains.
In conclusion, the 12 Inch Heavy-Duty Front Pin 4 Inch Square Jack with Handle is not merely a component but a comprehensive solution for trailer stabilization and lifting. Its construction from high-quality Carbon Steel, coupled with a geometrically optimized 4-inch square tube design, delivers unparalleled structural integrity. The intelligent Front-Pin mechanism with a spring-assist drop leg and foot return epitomizes user-centric engineering, providing ease of operation and enhanced safety. The impressive 10,000 lb dynamic and 12,000 lb static capacities, combined with a weather-resistant black powder-coated finish, guarantee long-term reliability and performance in the most arduous environments. With its versatile travel range, precise side-wind mechanism, and robust weld-on installation, this jack represents an investment in safety, efficiency, and durability for any heavy-duty trailer application, solidifying its position as a superior choice in the market for professional-grade lifting and support equipment.
