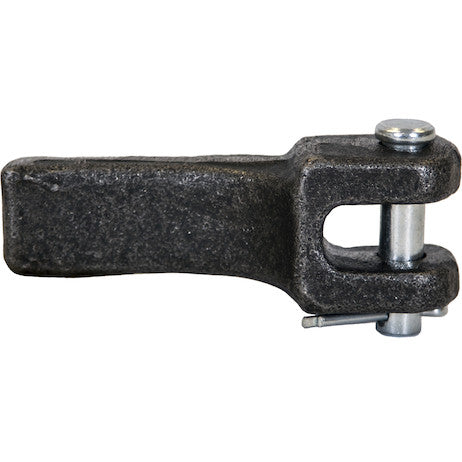

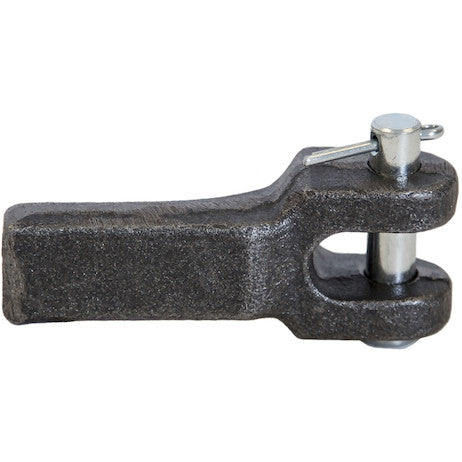

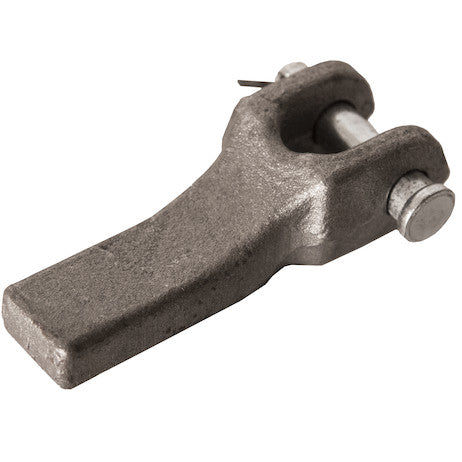

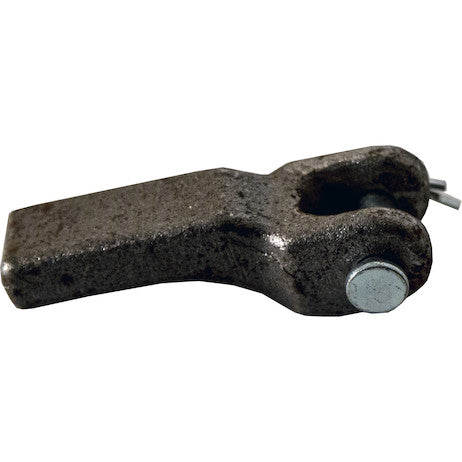

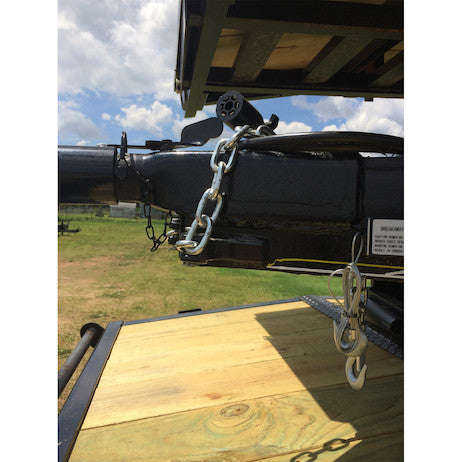

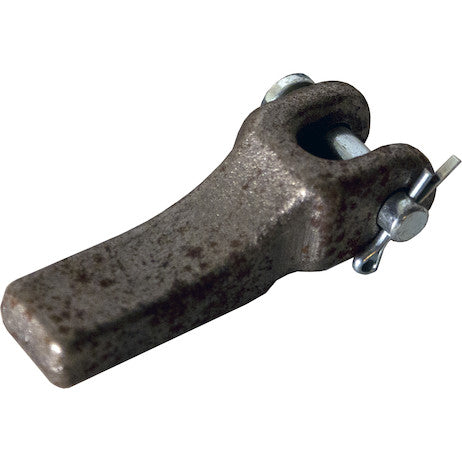

Buyers Products Weld-On Safety Chain Retainer has a removable clevis pin for ease of painting and chain replacement. Retainers are rated to 10,000 lb or 25,000 lb.
Specifications
| Accommodates Chain Dia. (in.) | 3/8 |
|---|---|
| Finish | Plain |
| Material | Forged Steel |
| W.L.L. (lbs) | 25,000 |
The Buyers Products Weld-On Safety Chain Retainer represents a critical component in ensuring the secure and compliant operation of trailers and towed equipment across various industries. Engineered for robust performance and designed to accommodate 3/8-inch safety chains, this retainer is a testament to meticulous design and superior material selection, boasting a substantial Working Load Limit (WLL) of 25,000 pounds. This detailed exposition will delve into the technical attributes, operational benefits, installation considerations, and maintenance protocols associated with this essential piece of towing hardware.
At its core, the primary function of a safety chain retainer is to provide a reliable attachment point for safety chains, which serve as a crucial secondary coupling system between a tow vehicle and its trailer. In the event of a primary coupling failure, safety chains are designed to keep the trailer connected to the tow vehicle, preventing catastrophic detachment and minimizing the risk of accidents. The Weld-On Safety Chain Retainer by Buyers Products excels in this role by offering a secure, permanent, and high-strength anchoring solution.
Material Engineering: Forged Steel for Unparalleled Durability
One of the most defining characteristics of this safety chain retainer is its construction from forged steel. The choice of forged steel is not arbitrary; it is a deliberate engineering decision based on the material's superior mechanical properties compared to cast or machined alternatives. Forging is a manufacturing process involving the shaping of metal through localized compressive forces using hammers or presses. This process refines the grain structure of the steel, eliminating internal voids and improving its overall strength, toughness, and fatigue resistance.
Specifically, forged steel exhibits enhanced tensile strength, yield strength, and impact resistance, making it exceptionally well-suited for applications subjected to high dynamic loads and potential impacts, such as those encountered in heavy-duty towing. The refined grain flow achieved through forging aligns with the contours of the part, providing directional strength that is crucial for components under significant stress. This results in a retainer that is not only robust but also capable of withstanding the rigorous demands of continuous heavy-duty use without exhibiting premature wear or structural fatigue. The intrinsic strength of forged steel directly contributes to the impressive 25,000 lb WLL, ensuring a substantial margin of safety under load conditions.
Design Philosophy: Weld-On Integration and Removable Clevis Pin System
The weld-on design of this safety chain retainer offers significant advantages over bolt-on alternatives, particularly in applications where maximum structural integrity and a permanent attachment are paramount. Welding creates a monolithic connection between the retainer and the trailer frame, effectively making the retainer an integral part of the trailer's chassis. This eliminates potential points of failure associated with bolted connections, such as loosening over time due to vibration, shear stress on bolts, or corrosion affecting fasteners. A properly executed weld ensures optimal load transfer and distributes stress more evenly across the attachment surface, enhancing the overall strength and reliability of the safety chain system.

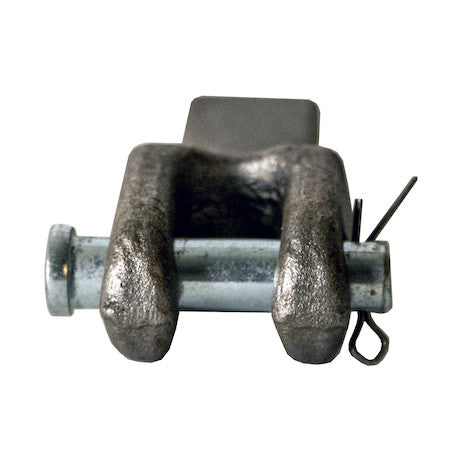

A standout feature of the Buyers Products retainer is its removable clevis pin mechanism. This design element offers several practical benefits. Firstly, it facilitates ease of chain replacement. Safety chains, like any component subject to wear and environmental exposure, may require periodic replacement due to damage, corrosion, or updated regulatory requirements. The removable clevis pin allows for quick and straightforward detachment and reattachment of the safety chain without the need for specialized tools or cumbersome disassemblies. This significantly reduces downtime and streamlines maintenance procedures.
Secondly, the removable clevis pin simplifies the painting process. The "Plain" finish specification indicates that the retainer is supplied without a protective coating, allowing the end-user to apply a primer and topcoat that matches the trailer's finish or specific corrosion protection requirements. By removing the clevis pin, painting can be performed more thoroughly, ensuring complete coverage and preventing paint buildup in critical moving parts or threaded areas. This attention to detail in design contributes to the longevity and aesthetic integration of the retainer with the trailer's structure. The clevis pin itself is typically manufactured from high-strength alloy steel, often heat-treated to achieve optimal hardness and shear resistance, and is secured by a cotter pin or similar retaining device to prevent accidental dislodgement during operation.
Performance Specifications and Application Context
The Weld-On Safety Chain Retainer is engineered to accommodate a 3/8-inch diameter chain. This precise sizing is critical for ensuring proper fitment and optimal load distribution. Using a chain that is too small for the retainer can lead to excessive play and premature wear, while a chain that is too large will not fit or will compromise the retainer's structural integrity. The 3/8-inch chain size is commonly associated with heavy-duty towing applications, capable of handling significant loads when paired with appropriately rated safety chains (e.g., Grade 70 transport chain, which typically has a WLL of approximately 4,700 lbs per chain, or Grade 80/100 for even higher strength). When two such chains are used, the combined capacity is sufficient for a wide range of trailers within the 25,000 lb WLL of the retainer.
The specified Working Load Limit (WLL) of 25,000 pounds is a critical safety parameter. WLL represents the maximum static load that a piece of lifting or towing equipment is designed to safely withstand when new and in good condition. It is typically a fraction of the component's ultimate breaking strength, incorporating a substantial safety factor (often 3:1 or 4:1). For this retainer, a 25,000 lb WLL signifies that it can reliably support trailer gross vehicle weight ratings (GVWRs that, when combined with appropriate safety chain capacities, comply with regulatory requirements for trailers up to and potentially exceeding 25,000 lbs, depending on specific state and federal regulations concerning safety chain calculations). Users must never exceed the WLL of any component in their towing system, as doing so can lead to material fatigue, deformation, and catastrophic failure, posing severe safety risks.
This robust WLL makes the retainer suitable for a broad spectrum of heavy-duty applications. These include, but are not limited to, commercial flatbed trailers, enclosed car haulers, construction equipment trailers, agricultural implements, and specialized industrial transport vehicles. In all these scenarios, the reliable performance of safety chain retainers is non-negotiable for operator safety and public road compliance.
Installation: Critical Considerations for Welding
Given its weld-on nature, professional installation is not merely recommended but often mandatory for this safety chain retainer. Proper welding techniques are paramount to achieve the intended strength and durability. Key considerations for installation include:
- Qualified Welder: The welding procedure should be performed by a certified or highly experienced welder proficient in relevant welding processes (e.g., SMAW, GMAW, FCAW) and capable of producing structurally sound welds.
- Surface Preparation: The mating surfaces on both the retainer and the trailer frame must be thoroughly cleaned, free from rust, paint, grease, and other contaminants that could compromise weld integrity. Grinding to bare metal is often required.
- Base Material Compatibility: The trailer frame material must be compatible with the steel of the retainer and the chosen welding filler material. Most trailer frames are constructed from various grades of structural steel (e.g., A36, A572 Grade 50), which are generally highly weldable.
- Welding Process and Parameters: Appropriate welding parameters (current, voltage, travel speed, shielding gas if applicable) must be selected based on the thickness of the materials being joined and the type of filler metal used. Following manufacturer recommendations for welding consumables is essential.
- Weld Quality: Welds must be full penetration, uniform, free from defects such as porosity, undercut, cracks, and incomplete fusion. Visual inspection and, where critical, non-destructive testing (NDT) such as dye penetrant or magnetic particle inspection may be employed to verify weld quality.

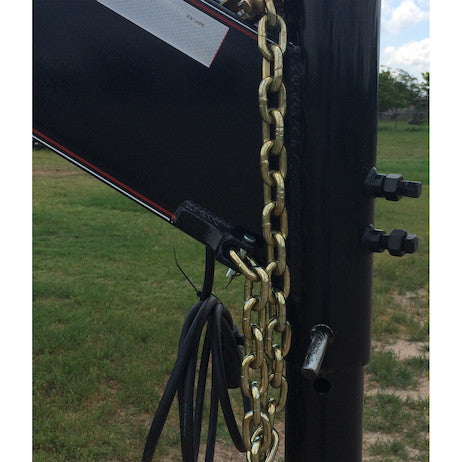

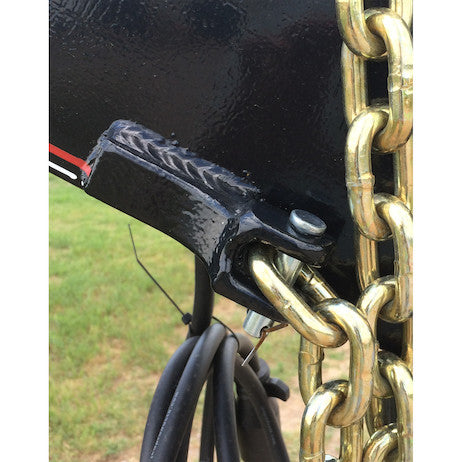

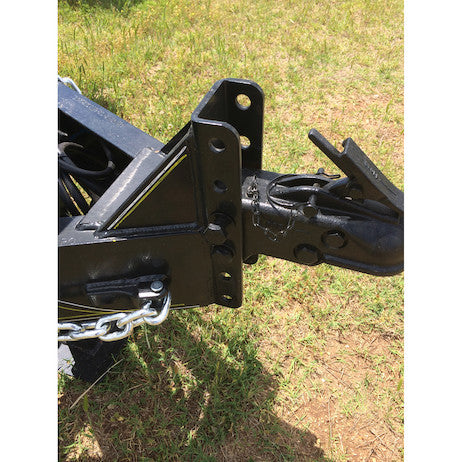

- Positioning: The retainer must be positioned correctly on the trailer frame to ensure the safety chain can be attached without obstruction and hangs freely without chafing against other components.
Improper welding can create stress concentrators, reduce the effective load-bearing capacity, and lead to premature failure of the retainer or the trailer frame itself, undermining the entire safety chain system.
Maintenance and Longevity
While the forged steel construction and weld-on design inherently contribute to the longevity of the Buyers Products safety chain retainer, regular inspection and maintenance are vital for sustained safe operation. Users should implement a routine inspection schedule, focusing on the following points:
- Weld Integrity: Periodically inspect the weld seams for any signs of cracking, corrosion, or fatigue. Any compromise to the weld requires immediate professional assessment and repair.
- Retainer Body: Check the forged steel body for deformation, severe abrasion, deep gouges, or signs of stress such as stretching or bending.
- Clevis Pin and Retainer: Ensure the clevis pin is securely in place and not bent or worn. The cotter pin or other retaining device must also be present, undamaged, and functional. If the pin shows signs of wear, it should be replaced immediately.
- Corrosion: Although the retainer is made of robust steel, prolonged exposure to moisture, road salt, and harsh chemicals can lead to corrosion, especially given its "Plain" finish. While the initial application of a protective coating by the user mitigates this, regular checks for rust and reapplication of coatings as needed will extend the service life.
- Chain Interface: Inspect the area where the safety chain interacts with the retainer for signs of excessive wear or friction that could compromise either component.
Prompt replacement of any damaged or excessively worn retainers is crucial to maintaining the safety and regulatory compliance of the towing system. The removable clevis pin design greatly simplifies this process if only the pin needs replacement or if the entire retainer needs to be cut off and a new one welded on.
Safety and Regulatory Compliance
The use of safety chains and their proper attachment points, such as this weld-on retainer, is mandated by federal and state regulations across North America (e.g., DOT regulations in the United States, CMVSS in Canada) and by equivalent standards internationally. These regulations typically specify requirements for safety chain strength, attachment methods, and the number of chains required based on the Gross Vehicle Weight Rating (GVWR) of the trailer. The Buyers Products Weld-On Safety Chain Retainer, with its 25,000 lb WLL and robust construction, is designed to meet or exceed these stringent requirements when properly installed and used with appropriately rated safety chains.
Beyond legal compliance, the ultimate purpose of this component is to prevent catastrophic accidents. The failure of a primary coupling device, such as a trailer hitch or fifth wheel, can have devastating consequences, including loss of control of the tow vehicle, impact with other vehicles, and severe injury or fatality. A properly installed and maintained safety chain system, anchored by high-quality retainers like this one, provides a vital layer of redundancy, significantly mitigating these risks.
Conclusion
The Buyers Products Weld-On Safety Chain Retainer for 3/8 Inch Chain stands as a testament to engineering excellence in critical towing components. Its forged steel construction provides unparalleled strength and fatigue resistance, while the weld-on attachment ensures maximum structural integration with the trailer chassis. The thoughtful inclusion of a removable clevis pin simplifies maintenance, chain replacement, and protective coating application. With a formidable 25,000 lb Working Load Limit, this retainer is designed for the most demanding heavy-duty applications, ensuring that operators can transport their valuable cargo with confidence and in full compliance with safety regulations. Investing in such a high-quality component is not merely a purchase but a commitment to uncompromising safety and operational reliability in the challenging world of commercial and heavy-duty towing.
