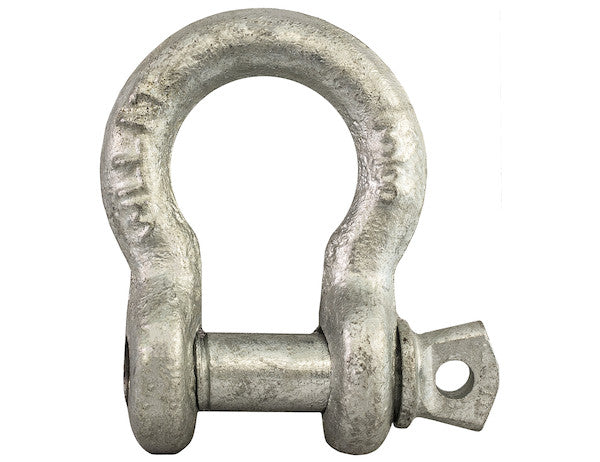

The Galvanized Anchor Shackle from Buyers Products offers the convenience of attaching chains to a sturdy D-ring without the need for a hook. The screw pin is strong and durable, with easy chain hook-through capability and an overall working load limit of 2,000 lb. The shackle features a premium galvanized finish.
Specifications
| Finish | Galvanized |
|---|---|
| Material | Carbon Steel |
| W.L.L. (lbs) | 2,000 |
The 3/8 Inch Galvanized Anchor Shackle represents a fundamental component in a myriad of rigging, towing, and securing applications, designed for robust performance and exceptional durability. This comprehensive description delves into the technical specifications, material science, operational considerations, and diverse applications that underscore the utility and reliability of this essential piece of hardware. Engineered to facilitate secure and reliable connections between various components such as chains, wire ropes, straps, and other fittings, this shackle is a cornerstone of safe and efficient load management.
At its core, a shackle is a U-shaped or D-shaped metal link secured by a removable pin across the open end, enabling quick and secure attachment. The "anchor shackle" designation typically refers to a bow shackle, characterized by its rounded, broader body compared to a conventional D-shackle (or chain shackle). This distinct shape is crucial as it allows the anchor shackle to accommodate a wider range of rigging components and effectively handle loads from multiple directions without significant side loading stress. The generous bow radius minimizes stress concentration on individual components and provides superior articulation when connecting several items or when rotational forces are present. This design makes it particularly well-suited for applications where multi-directional pull or the connection of multiple lines is necessary, such as in marine mooring systems or complex industrial rigging setups.
Material and Construction: Carbon Steel Excellence
The foundation of this shackle's strength lies in its carbon steel construction. Carbon steel is an iron-based alloy with carbon as the primary alloying element, known for its high tensile strength, excellent ductility, and cost-effectiveness. These properties make it an ideal material for components subjected to significant mechanical stress and dynamic loads. The specific grade of carbon steel used in such applications is selected to provide an optimal balance of hardness, toughness, and resistance to fatigue. The manufacturing process typically involves forging, a metallurgical process that shapes the metal through localized compressive forces using hammers or dies. Forging refines the grain structure of the steel, eliminating internal voids and creating a uniform, continuous grain flow that follows the contours of the shackle. This enhanced grain structure significantly improves the material's mechanical properties, including its strength-to-weight ratio, impact resistance, and fatigue life, rendering the shackle exceptionally robust and reliable under demanding operational conditions.
The Galvanized Finish: Superior Corrosion Protection
A critical feature of this anchor shackle is its premium galvanized finish. Galvanization is a process of applying a protective zinc coating to steel or iron to prevent rusting. The most common and effective method for rigging hardware like shackles is hot-dip galvanizing. In this process, the fabricated steel shackle is immersed in a bath of molten zinc at temperatures around 450-460°C (840-860°F). The zinc reacts metallurgically with the surface of the steel, forming a series of highly durable zinc-iron alloy layers, topped by a layer of pure zinc. This multi-layered coating is metallurgically bonded to the steel, providing a far more robust and long-lasting protection than paint or electroplated coatings.
The benefits of hot-dip galvanization are manifold. Firstly, it offers sacrificial protection: if the coating is scratched and the base steel is exposed, the surrounding zinc corrodes preferentially, protecting the steel underneath. Secondly, the zinc coating acts as a physical barrier, preventing corrosive elements like moisture and oxygen from reaching the steel surface. Thirdly, galvanized coatings are inherently resistant to abrasion and mechanical damage due to their metallurgical bond and layered structure, making them suitable for harsh industrial and outdoor environments. This superior corrosion resistance is paramount for equipment exposed to marine environments, harsh weather, road salts, chemicals, or prolonged outdoor storage, significantly extending the service life of the shackle and reducing the frequency of replacement. For a 3/8 inch shackle, this protection ensures that its structural integrity is maintained over time, even in challenging conditions, which is crucial for safety and reliability.
The Screw Pin Mechanism: Ease of Use and Security
The anchor shackle is secured by a durable screw pin. The screw pin design features a threaded pin that is manually tightened into a corresponding threaded hole on the shackle body. This mechanism offers several distinct advantages. It allows for quick and tool-free installation and removal, making it ideal for applications requiring frequent connection and disconnection. The threaded engagement provides a secure and positive locking mechanism, reducing the risk of accidental disengagement under load, provided the pin is fully seated and properly tightened. For temporary or semi-permanent rigging setups, the screw pin offers convenience without compromising safety. Users can easily inspect and re-tighten the pin as needed, ensuring continuous operational security. The robust construction of the pin, often made from the same high-strength carbon steel as the shackle body, ensures it can withstand the same working loads. Regular inspection of the pin and its threads for wear, deformation, or corrosion is essential to maintain its integrity and secure locking capability.
Working Load Limit (WLL): A Critical Safety Parameter
A pivotal specification for any rigging hardware is its Working Load Limit (WLL). For this 3/8 inch galvanized anchor shackle, the WLL is specified at 2,000 lb. The WLL is the maximum static load that a piece of lifting or rigging equipment is designed to safely support or lift when the load is evenly distributed. It is crucial to understand that the WLL is not the breaking strength. Instead, it is a fraction of the breaking strength, incorporating a substantial safety factor. For industrial shackles, the typical safety factor is 4:1 or 5:1, meaning the ultimate breaking strength of the shackle is four or five times its WLL. This inherent safety margin accounts for various real-world conditions, including dynamic loading, potential manufacturing variances, slight material imperfections, and environmental factors, ensuring that the shackle can perform reliably without catastrophic failure well within its specified operational limits.
Strict adherence to the stated WLL is paramount for operational safety. Exceeding the WLL can lead to permanent deformation, material fatigue, or immediate catastrophic failure, posing severe risks to personnel and equipment. Users must also consider dynamic loads, which are created by movement, acceleration, deceleration, or shock, and can impose stresses significantly higher than the static weight of the load. For example, lifting a 1,000 lb object with a sudden jerk can momentarily create forces far exceeding 1,000 lb, potentially pushing the shackle beyond its safe WLL. Therefore, when selecting a shackle, it is always recommended to choose one with a WLL that comfortably exceeds the anticipated maximum dynamic load, not just the static weight.
Dimensions and Compatibility: The 3/8 Inch Standard
The 3/8 inch dimension refers to the nominal diameter of the shackle's body, which is a critical indicator of its overall strength and compatibility with other rigging components. A 3/8 inch shackle is considered a light to medium-duty component, suitable for a range of applications where a WLL of 2,000 lb is appropriate. This size commonly interfaces with 3/8 inch chains, wire ropes, or straps, ensuring proper fit and load transfer. Mismatched component sizes can lead to inefficient load distribution, premature wear, or failure. For instance, connecting a shackle to a chain with a significantly smaller link diameter can concentrate stress at the point of contact, reducing the effective WLL of the system. Conversely, using a shackle that is too small for the connected component can result in binding or inability to connect at all. The 3/8 inch size is versatile enough for many applications without being excessively heavy or bulky, balancing strength with practicality.
Diverse Applications
The 3/8 Inch Galvanized Anchor Shackle finds extensive use across numerous industries and applications:
- Marine and Boating: Essential for mooring lines, anchor chains, securing fenders, connecting sail rigging, and general deck hardware where resistance to saltwater corrosion is vital. Its bow shape allows for attachment of multiple lines or wide straps.
- Towing and Recovery: Used in light-duty towing applications, connecting tow chains, recovery straps, or winches to vehicle recovery points. The 2,000 lb WLL is suitable for smaller utility vehicles, ATVs, or for securing light cargo.
- Industrial and Construction: Employed in general rigging operations, non-overhead lifting, securing equipment, material handling within warehouses, and creating temporary connections in construction sites. It's ideal for static loads and light-duty dynamic applications.
- Agricultural: Useful for attaching implements to tractors, securing gates, connecting chains for pulling stumps or debris, and general farm utility tasks.
- Utility Services: Utilized by utility crews for cable pulling operations, securing equipment on trailers, or creating secure attachment points for temporary setups.
- Off-Road and Recreational: While 3/8 inch might be small for heavy 4x4 recovery, it’s perfect for securing smaller off-road vehicles, recreational equipment, or setting up camp infrastructure.
- General Purpose: Any situation requiring a strong, corrosion-resistant, and easily detachable connection point.
Best Practices and Safety Considerations
To ensure the safe and prolonged use of the 3/8 Inch Galvanized Anchor Shackle, several best practices and safety considerations must be observed:
- Regular Inspection: Prior to each use, inspect the shackle for any signs of wear, deformation (bending, twisting, elongation), cracks, nicks, gouges, excessive corrosion, or damaged threads on the pin. Discard any shackle exhibiting such deficiencies.
- Proper Pin Engagement: Always ensure the screw pin is fully seated and tightened. Periodically check and re-tighten the pin, especially during prolonged use or under dynamic loads, as vibration can cause it to loosen.
- Avoid Side Loading: While anchor shackles are designed to handle multi-directional loads better than chain shackles, extreme angular loading can still significantly reduce the WLL. Always try to ensure the load is applied along the centerline of the shackle's body.
- Avoid Point Loading: Do not use a shackle in a way that concentrates the load on a small area, such as on the tip of the pin or edge of the bow. The load should be distributed evenly across the full bearing surface.
- Environmental Factors: Be aware that extreme temperatures, exposure to certain chemicals, or highly abrasive environments can impact the shackle's performance and service life. The galvanized finish offers significant protection, but it is not impervious to all conditions.
- Compatibility: Always match the shackle size and WLL to the specific application and the WLL of other components in the rigging system. The weakest link determines the overall system's safe working load.
- Never Exceed WLL: Under no circumstances should the Working Load Limit be exceeded. This includes considering dynamic and shock loads, which can momentarily create forces far greater than the static weight of the load.
- Storage: Store shackles in a clean, dry environment, protected from corrosive elements and physical damage, to preserve their galvanized finish and structural integrity.
Conclusion
The 3/8 Inch Galvanized Anchor Shackle from Buyers Products is a meticulously engineered component, combining the inherent strength and ductility of carbon steel with the superior corrosion resistance of a galvanized finish. Its 2,000 lb Working Load Limit, coupled with the versatile anchor (bow) design and user-friendly screw pin mechanism, makes it an indispensable tool for reliable and secure connections across a broad spectrum of light to medium-duty applications. Adherence to best practices and safety guidelines ensures that this robust shackle provides long-term, dependable performance, making it a valuable asset for professionals and enthusiasts alike who demand durability, safety, and efficiency in their operations.
