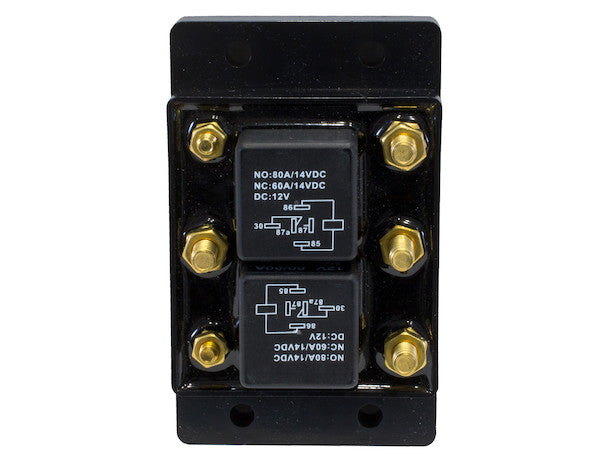

5541100 - Forward and Reverse Relay Module

Buyers Products Forward and Reverse Relay Module can be used for any application that requires the ability to reverse motion. It's ideal for tarp systems.

Specifications

The Buyers Products Forward and Reverse Relay Module represents a critical component in the advanced control of direct current (DC) motors across a diverse range of industrial, commercial, and mobile applications. Engineered for robust performance and exceptional reliability, this module facilitates the precise reversal of motor direction, a fundamental requirement for systems demanding bidirectional movement. While its utility in tarp systems is highlighted as a primary application, its versatile design extends its efficacy to numerous other mechanical and electromechanical systems that necessitate dynamic motion control.

Fundamental Principles of Directional Motor Control

At its core, a forward and reverse relay module operates on the principle of polarity reversal. DC motors change their direction of rotation when the polarity of the voltage applied to their terminals is reversed. Achieving this reversal safely and efficiently, especially under significant electrical loads, requires specialized switching mechanisms. This module leverages high-capacity electromagnetic relays, specifically configured to create an H-bridge or a similar switching topology. An H-bridge arrangement typically employs four switches (in this case, relay contacts) to allow current to flow in either direction through the motor, thereby controlling its rotational direction. When one pair of diagonal switches is closed, the motor runs in "forward." When these open and the other diagonal pair closes, the polarity is reversed, and the motor runs in "reverse." This methodology ensures that the high operational currents required by powerful DC motors are handled by contacts designed for such demands, rather than by more delicate control circuitry.

Detailed Analysis of Technical Specifications

Current Rating: 80 Continuous, 100 Intermittent, 150 Max

The specified current ratings are paramount for understanding the operational capacity and suitability of this relay module for various applications. These figures denote the maximum current the module can safely switch and conduct under different operational scenarios:

• 80 Continuous Amperes: This rating indicates the maximum current the relay can sustain indefinitely without overheating or degradation of its internal components, particularly the contact points and coil winding. Applications requiring prolonged motor operation, such as automated tarp deployment or continuous conveyor adjustments, must operate within this continuous rating to ensure the longevity and reliability of the module. Exceeding this value for extended periods will lead to thermal breakdown, increased contact resistance, and ultimately, premature failure.
• 100 Intermittent Amperes: The intermittent rating signifies the current the relay can handle for short durations, typically defined by a specific duty cycle (e.g., 25% on-time within a 10-minute period). This higher threshold accommodates momentary peak loads that often occur during motor startup (inrush current) or when a motor encounters temporary resistance. For instance, a tarp system motor might experience intermittent loads exceeding its continuous running current when initiating movement against aerodynamic drag or overcoming initial inertia. The ability to manage 100A intermittently provides a critical safety margin and expands the range of motors and applications this module can support without immediate failure.
• 150 Maximum Amperes: The maximum current rating, often referred to as surge or peak current, represents the absolute highest current the relay can withstand, typically for extremely brief periods (milliseconds). This capacity is crucial for handling instantaneous electrical spikes that can occur due to sudden mechanical stalls, short circuits, or extreme inrush currents, acting as a momentary fuse or circuit breaker. While not a working current, it indicates the module's inherent robustness and ability to survive transient events that would otherwise damage less capable devices. This high maximum rating underscores the module's heavy-duty design, ensuring resilience in demanding operational environments where sudden load variations are common.

These ratings collectively confirm that the Buyers Products Forward and Reverse Relay Module is designed for heavy-duty applications, capable of managing substantial electrical loads and providing a significant margin of safety against overcurrent conditions, provided proper circuit protection (fuses, circuit breakers) is implemented upstream.

Duty Cycle: -

While a specific percentage duty cycle is not explicitly listed, the high current ratings (80 Continuous, 100 Intermittent, 150 Max) implicitly suggest that this module is engineered for demanding, frequent, and often prolonged operational periods. In industrial and commercial applications, duty cycle defines the ratio of "on" time to total cycle time. For relays, a high duty cycle capability implies robust contacts, efficient heat dissipation mechanisms, and a coil designed for sustained energization. Given its comparison to well-known industrial-grade motor reversing solenoids like the Cole Hersee 24452, it can be inferred that this module is built for continuous or very high intermittent duty, making it suitable for applications that are cycled frequently throughout a workday, such as repeatedly opening and closing dump truck tarps or operating lift gates multiple times per hour. The absence of a specific numeric duty cycle does not diminish its perceived robustness; rather, the robust current specifications serve as the primary indicator of its operational endurance.

Physical Dimensions: Height 4.22 inches, Width 2.59 inches

The compact physical dimensions of the module (4.22" H x 2.59" W) are a significant advantage for integration into various equipment. Space within vehicle chassis, control boxes, or industrial machinery is often at a premium. A compact footprint allows for greater flexibility in mounting locations, reducing the need for extensive modifications to existing enclosures or designs. This small form factor contributes to a neat, organized electrical installation, which is beneficial for troubleshooting and maintenance. Despite its compact size, the module's substantial current handling capabilities signify efficient thermal management and optimized internal component layout, ensuring that performance is not compromised by miniaturization. This balance between size and power makes it an ideal solution for retrofits and new installations where both performance and spatial efficiency are critical design considerations.

Number of Terminals: 2

The specification of "2 Terminals" for a forward and reverse relay module requires clarification, as a typical motor reversing solenoid (like the Cole Hersee 24452 it compares to) usually features multiple high-current studs for power input and motor output, plus additional smaller terminals for coil control. The most technically plausible interpretation, given the module's function, is that "Number of Terminals: 2" refers specifically to the *control input terminals* that dictate the forward or reverse direction. In this configuration, external control signals (e.g., from a switch, joystick, or programmable logic controller) would be applied to these two terminals to energize the internal relay coils in a specific sequence, thereby activating the appropriate high-current paths for the motor. The main high-current power input and motor output terminals (typically 5 or 6 heavy-duty studs for battery positive, ground, and two motor leads) are inherent to the design of such a module and would likely not be included in a "Number of Terminals" count if it specifically refers to control inputs. This design simplifies the user interface for directional control, requiring only two wires to command the motor's movement, while the robust power connections are handled by integrated, high-amperage studs on the module's housing, ensuring secure and efficient power delivery to the motor.

Switch Style: Relay

The designation "Relay" for the switch style confirms the module's reliance on electromagnetic relays for switching high currents. Relays offer several distinct advantages over alternative switching technologies like solid-state devices (SSRs) for high-power DC motor reversal:

• Electrical Isolation: Relays provide complete galvanic isolation between the control circuit (low voltage/current) and the power circuit (high voltage/current). This significantly enhances system safety by preventing transients or faults in the power circuit from affecting sensitive control electronics.
• Low On-Resistance: When closed, relay contacts have extremely low electrical resistance, minimizing power dissipation as heat. This makes them highly efficient for high-current applications, reducing energy loss and thermal management challenges compared to semiconductor switches, which always have some voltage drop.
• Robustness to Overcurrents: While semiconductor switches can be damaged by sudden overcurrents, relay contacts can often withstand temporary surges well beyond their continuous rating (as evidenced by the 150A max rating of this module) without permanent damage, offering inherent resilience.
• Cost-Effectiveness: For the power levels typically encountered in heavy-duty DC motor applications, electromagnetic relays often provide a more cost-effective solution compared to solid-state alternatives that would require significant heatsinking and complex control circuitry to achieve similar current capabilities.
• Established Technology: Relays are a mature and well-understood technology, benefiting from decades of refinement in design and manufacturing, leading to highly reliable and predictable performance.

The choice of relay technology ensures a dependable and durable switching solution, perfectly suited for the harsh electrical and mechanical environments commonly found in commercial vehicles and industrial machinery.

Primary Applications: Tarp Systems and Beyond

Advanced Tarp System Control

As explicitly mentioned, the Buyers Products Forward and Reverse Relay Module is an ideal solution for tarp systems, particularly those found on dump trucks, roll-off containers, and agricultural trailers. These systems rely on electric motors to quickly and efficiently deploy and retract protective tarps over cargo. The ability to reverse the motor's direction is fundamental to their operation, allowing for seamless opening and closing of the tarp. The module's robust current ratings (80 Continuous, 100 Intermittent) are perfectly matched to the demands of these motors, which can experience significant startup current and varying loads depending on the tarp's size, material, and environmental factors like wind resistance or ice. Its heavy-duty construction ensures reliable operation in challenging outdoor conditions, where vibration, temperature extremes, and exposure to dust and moisture are common.

Benefits for tarp systems include:

• Enhanced Efficiency: Rapid deployment and retraction of tarps improve operational efficiency, reducing downtime for operators.
• Increased Safety: Automated tarp systems minimize the need for manual handling, reducing the risk of falls or injuries associated with climbing onto loads.
• Cargo Protection: Securely covering cargo protects it from weather elements, theft, and spillage, ensuring compliance with transportation regulations.
• Durability: The module's industrial-grade components ensure a long service life, even with frequent daily use.

Versatile Applications Across Industries

Beyond tarp systems, the forward and reverse relay module is indispensable in a wide array of applications:

• Electric Winches: Crucial for controlling the winding and unwinding of cables on ATVs, utility vehicles, marine vessels, and industrial winches. The module's current handling capacity is vital for the high torque and occasional stalls associated with winch operation.
• Linear Actuators: Used in industrial automation, medical equipment (e.g., adjustable beds, patient lifts), and automotive power seats. This module enables precise bidirectional movement for positional control.
• Lift Gates and Power Tailgates: For commercial trucks and vans, the module controls the up and down motion of hydraulic or electric lift gates, facilitating loading and unloading.
• Conveyor Systems: In material handling, it can control the forward and reverse motion of small conveyor belts for sorting, preventing jams, or specific process requirements.
• Robotics and Mobile Platforms: Essential for controlling the drive motors of mobile robots, automated guided vehicles (AGVs), and other autonomous systems that require precise directional movement.
• Agricultural Machinery: Used for controlling various motorized components, such as augers, feeders, or adjustable implements, where reversing direction is necessary for function or clearing blockages.
• Snow Plows and Salt Spreaders: Many snow plow and salt spreader control systems utilize similar relay configurations for managing hydraulic pump motors and directional actuators.

Installation, Integration, and Longevity

Proper installation is crucial for maximizing the performance and lifespan of the Forward and Reverse Relay Module. Key considerations include:

• Wiring: Given the high current ratings, it is imperative to use appropriate gauge wiring for both power input and motor connections. Undersized wires can lead to voltage drop, overheating, and potential fire hazards. All connections should be secure and insulated to prevent shorts.
• Circuit Protection: Adequate overcurrent protection (fuses or circuit breakers) must be installed in series with the power supply to the module and motor. This protects the entire circuit, including the module and motor, from damage in the event of an overload or short circuit.
• Mounting: The module should be securely mounted in a location that is protected from direct exposure to extreme elements (if not rated for full outdoor exposure) and excessive vibration. The compact dimensions (4.22" H x 2.59" W) facilitate mounting in tight spaces within control boxes, vehicle cabs, or equipment frames.
• Environmental Protection: While robust, ensuring the module is protected from direct water ingress, corrosive chemicals, and extreme dust accumulation will prolong its operational life.
• Control Interface: The two control input terminals simplify integration with various control devices, including momentary switches, rocker switches, or digital outputs from PLCs (Programmable Logic Controllers) or microcontrollers. Clear labeling and adherence to the wiring diagram are essential for correct operation.

The Buyers Products Forward and Reverse Relay Module is designed for minimal maintenance. Its sealed construction typically prevents internal contamination, and the robust relay contacts are engineered for thousands of cycles. Longevity is primarily ensured by correct installation, operating within specified current limits, and adequate circuit protection. Regular visual inspections for loose connections or signs of physical damage are recommended in demanding environments.

The Buyers Products Advantage

Choosing the Buyers Products Forward and Reverse Relay Module offers distinct advantages:

• Proven Reliability: Engineered to meet demanding industrial and commercial standards, ensuring consistent performance in critical applications.
• Heavy-Duty Capacity: The impressive current ratings (80 Continuous, 100 Intermittent, 150 Max) confirm its suitability for high-power DC motors, providing ample headroom for various loads.
• Broad Compatibility: As a direct replacement for OEM parts such as Cole Hersee 24452, Mountain Tarp K10746M, and U.S. Tarp 13994 EZ Relay, it simplifies procurement and maintenance for existing systems.
• Optimized Design: The compact physical footprint combined with robust electrical specifications represents an optimized balance between size and power, facilitating easy integration.
• Simplified Control: The streamlined control interface, likely via two dedicated control terminals, simplifies wiring and integration into complex control schemes.

Conclusion

The Buyers Products Forward and Reverse Relay Module stands as a testament to robust engineering and practical design, providing an indispensable solution for precise bidirectional control of DC motors. Its comprehensive technical specifications, including high continuous and intermittent current ratings and a durable relay-based switching mechanism, underscore its suitability for heavy-duty applications ranging from automated tarp systems to winches, linear actuators, and industrial automation. By ensuring reliable polarity reversal, compact integration, and compatibility with industry-standard components, this module offers a superior combination of performance, durability, and operational efficiency, making it an essential component for any system requiring dependable directional motor control in challenging environments.
