Protect your truck's electrical system with convenient Dual Fuse Holders from Buyers Products. The dual fuse holders let you turn one fuse slot into two. It is ideal for accessory lighting, snow plow, and spreader operations.
Specifications
| Adder Fuse Capacity | 5 |
|---|---|
| Cable Gauge | 14 |
| Fuse Style | ATM Mini |
| Main Fuse Capacity | 10 |

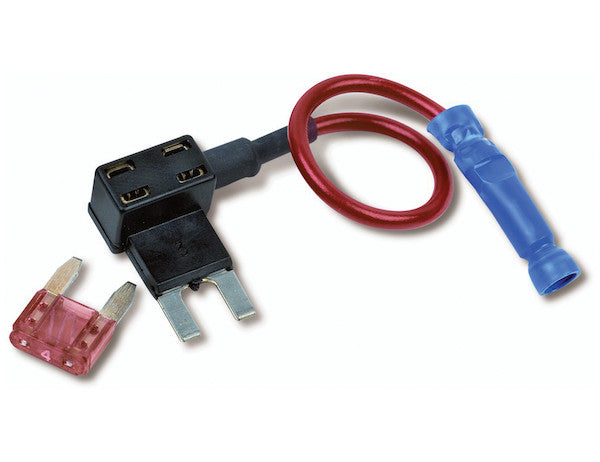

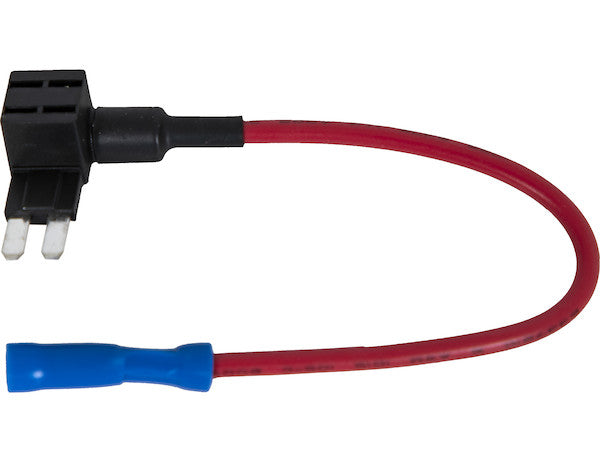

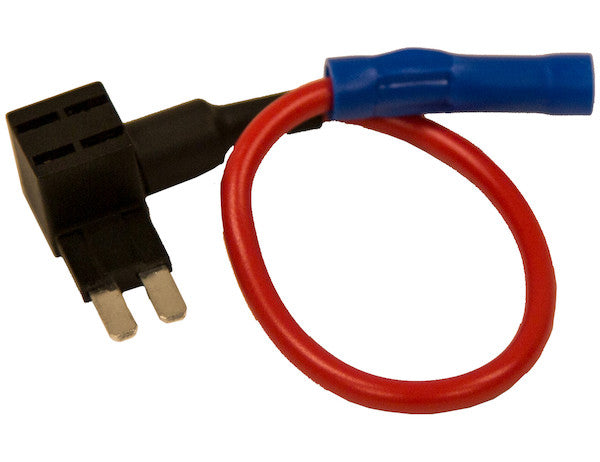

The ATM Mini Dual Fuse Holder, featuring a 10 Amp main circuit and a 5 Amp added circuit, represents an advanced solution for expanding the electrical capabilities of modern vehicles, particularly trucks and utility vehicles. Engineered by Buyers Products, this innovative component addresses the common challenge of integrating additional electrical accessories without compromising the integrity or safety of the vehicle’s original wiring harness. It achieves this by efficiently converting a single existing ATM Mini fuse slot into two independently fused circuits, providing both convenience and robust electrical protection.
At its core, this dual fuse holder is designed to streamline the installation of auxiliary electrical equipment. Traditional methods often involve cutting into existing wires, which can lead to weakened connections, potential short circuits, and difficulties in troubleshooting. The ATM Mini Dual Fuse Holder circumvents these issues by providing a dedicated, plug-and-play interface. It leverages the existing fuse box infrastructure, ensuring that any new accessory circuit is professionally integrated and independently protected by its own fuse, isolating it from the vehicle’s primary electrical system and preventing potential overloads from impacting critical functions.
Technical Specifications and Core Functionality
The selection of the ATM Mini fuse style is crucial to this product's design. ATM Mini fuses, also known as APM or mini-blade fuses, are widely adopted in contemporary vehicles due to their compact size, high current interruption capability, and reliability. Their small footprint allows for high-density fuse box designs, which makes them ideal for applications where space is at a premium, such as under the dashboard or in engine compartments of modern trucks. The ATM Mini Dual Fuse Holder is specifically tailored to fit these standard slots, ensuring broad compatibility with a vast range of vehicles equipped with this fuse type.
The dual circuit design is a hallmark of this holder's utility. When installed, the device effectively bifurcates the power drawn from the original fuse slot. One path maintains the connection to the vehicle's original circuit, protected by the "Main Fuse Capacity" of 10 Amps. This ensures that the existing electrical function connected to that slot continues to operate as intended, with its original overcurrent protection intact. The second path is dedicated to the new accessory, protected by the "Adder Fuse Capacity" of 5 Amps. This separation is vital for safety, as it prevents an electrical issue in the accessory circuit from affecting the vehicle's primary systems, and vice versa. It also allows for precise amperage matching to the specific needs of the auxiliary device, preventing both under-fusing (which could lead to nuisance blowing) and over-fusing (which could fail to protect the accessory wire adequately).
Understanding the Amp Capacities: Main (10 Amp) and Added (5 Amp)
The specified fuse capacities are critical parameters that dictate the appropriate applications for this holder. A "Main Fuse Capacity" of 10 Amps is generally suitable for a wide array of existing vehicle circuits. These might include circuits for interior lighting, radio power (constant or switched), auxiliary power outlets (like cigarette lighter sockets), or certain engine management sensors that typically draw moderate current. By maintaining the 10 Amp rating for the main circuit, the original electrical component or system remains protected according to its manufacturer’s specifications, ensuring operational continuity and safety.
The "Adder Fuse Capacity" of 5 Amps is specifically chosen to accommodate a common range of auxiliary accessories that typically require lower current draws. This amperage is ideal for many popular additions to trucks, such as:
- LED accent lighting (interior or exterior)
- Small auxiliary driving lights (e.g., fog lights, spot beams with low power consumption)
- Dash cameras or other small recording devices
- GPS units or satellite navigation systems
- USB charging ports for mobile devices
- Small communication devices (e.g., CB radios, amateur radio transceivers)
- Solenoid control circuits for snow plows, spreaders, or other hydraulic accessories
- Heated mirror elements or similar low-power comfort features
The 5 Amp rating provides robust protection for these types of accessories, preventing damage to the device itself and guarding against wire overheating in the event of a fault. It also ensures that the added accessory does not excessively burden the original circuit, maintaining overall electrical stability.
The Importance of Cable Gauge (14 AWG)
The inclusion of 14 AWG (American Wire Gauge) cabling in the design of this fuse holder is a deliberate choice based on electrical engineering principles concerning current carrying capacity and voltage drop. 14 AWG wire is robust enough to safely carry currents up to approximately 15 Amps in automotive applications, assuming appropriate insulation and ambient temperature conditions. While the added circuit is fused at 5 Amps, the use of 14 AWG wire provides a significant safety margin, ensuring that the wire itself can easily handle the maximum current that the 5 Amp fuse allows, and even higher transient currents if necessary, without overheating or degrading. This over-engineering of the wire gauge relative to the fuse rating is a best practice in electrical system design, contributing to long-term reliability and safety.
Furthermore, using 14 AWG wire helps to minimize voltage drop over short to moderate distances typical in accessory installations. Voltage drop occurs as current flows through a conductor, leading to a reduction in voltage available at the load. While a 5 Amp accessory might not be highly sensitive to minor voltage drops, maintaining optimal voltage ensures the accessory operates at peak efficiency and longevity. For critical applications, consistent voltage is paramount, and the choice of 14 AWG contributes positively to this aspect.
Installation and Integration
One of the primary advantages of the ATM Mini Dual Fuse Holder is its straightforward installation process. The design promotes a "tap-and-play" methodology:
- **Identification:** Locate an existing ATM Mini fuse slot in your vehicle's fuse box that corresponds to a circuit suitable for tapping (e.g., a switched ignition source for accessories that should turn off with the vehicle, or a constant power source for always-on devices).
- **Removal:** Carefully remove the existing fuse from the chosen slot.
- **Insertion:** Insert the ATM Mini Dual Fuse Holder directly into that vacant slot. The holder is designed to fit snugly and securely.
- **Fusing:** Insert the original fuse (up to 10 Amps) into the lower slot of the holder to protect the vehicle’s original circuit. Insert a new 5 Amp ATM Mini fuse into the upper slot of the holder to protect the new accessory circuit.
- **Connection:** Connect the accessory's positive power wire to the pre-wired 14 AWG lead extending from the fuse holder. Ensure all connections are secure and properly insulated to prevent shorts.
This method eliminates the need for complex wiring modifications, soldering, or specialized tools, making it accessible even for users with basic electrical knowledge. However, it is always recommended to consult the vehicle's wiring diagrams to ensure the chosen fuse slot is appropriate for the intended accessory and does not interfere with critical safety systems.
Expanded Applications and Versatility
The versatility of the ATM Mini Dual Fuse Holder extends across numerous applications, primarily within the realm of vehicle customization and utility enhancements:
- **Accessory Lighting:** Beyond basic LED accents, this holder is perfect for powering supplemental interior lighting (e.g., footwell lighting, console lighting), small grille-mounted strobes for warning applications, or auxiliary reverse lights that draw minimal current.
- **Snow Plow and Spreader Operations:** In commercial applications, snow plows and salt/sand spreaders often rely on complex control circuits, low-current solenoids, or small motors. The 5 Amp adder circuit is ideal for powering these control modules or specific solenoid valves, ensuring they are independently protected and can be easily installed without interfering with the truck's core electrical system. This robust connection is crucial for equipment operating in harsh winter conditions.
- **Communication and Navigation Systems:** Install dedicated power for CB radios, amateur (ham) radios, two-way radios, or advanced GPS units that require a stable, fused power source. This prevents intermittent power issues common with standard accessory plugs.
- **Dash Cameras and Recording Devices:** Modern dash cameras often have parking mode features requiring constant power. Using the dual fuse holder with a continuously powered fuse slot allows for professional, always-on installation while protecting the device and vehicle.
- **USB Charging and Power Outlets:** Expand the number of USB charging points or add a dedicated 12V power outlet without overloading existing circuits. Ideal for service vehicles, personal trucks, or RVs where multiple devices need charging.
- **Work Vehicle Upgrades:** Power diagnostic tools, small power inverters (within the 5 Amp limit), specialized sensors, or telemetry devices that are vital for fleet management or specific job requirements.
- **Recreational Vehicles (RVs) and Off-Road Vehicles:** For campers, ATVs, and UTVs, the need for additional fused circuits for auxiliary lights, winches (control circuits), infotainment systems, or small appliances is constant. This holder provides a clean, safe way to integrate these additions.
Safety, Reliability, and Longevity
Buyers Products prioritizes safety and durability in its electrical components. The ATM Mini Dual Fuse Holder is manufactured using high-quality materials resistant to automotive environmental factors such as vibration, temperature fluctuations (from extreme cold to engine compartment heat), and moisture ingress. The robust construction ensures secure fuse retention and reliable electrical contact, which is paramount for preventing intermittent power issues or arc faults.
Proper fusing is the cornerstone of a safe electrical system. An unfused or improperly fused circuit poses a significant fire hazard, as excessive current can overheat wires, melt insulation, and ignite surrounding materials. This dual fuse holder provides two distinct layers of overcurrent protection, significantly mitigating these risks. By isolating the accessory circuit, any fault (e.g., a short circuit within the accessory) will only blow the 5 Amp adder fuse, leaving the vehicle's primary electrical functions unaffected. This level of protection not only safeguards the vehicle and its occupants but also prolongs the lifespan of both the accessory and the vehicle's electrical components.
Conclusion
The ATM Mini Dual Fuse Holder with 10 Amp main and 5 Amp added capacity from Buyers Products is an indispensable tool for anyone looking to safely and efficiently expand their vehicle's electrical system. Its professional-grade design, ease of installation, and robust safety features make it an ideal choice for a broad spectrum of applications, from personal vehicle customization to specialized commercial and recreational vehicle upgrades. By offering a secure, independently fused power source for auxiliary devices, it ensures optimal performance, protection, and peace of mind, solidifying its position as a superior solution for modern automotive electrical integration.
