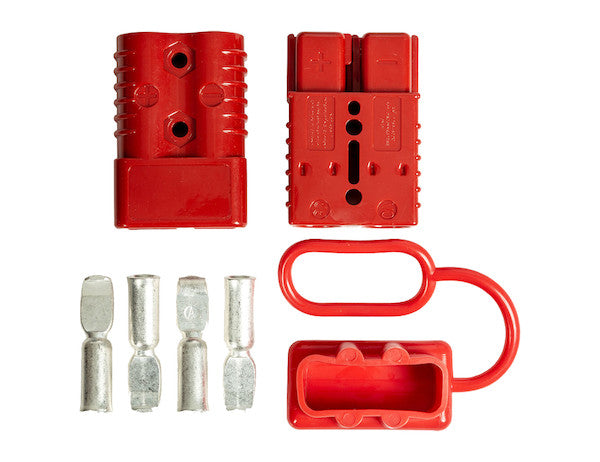

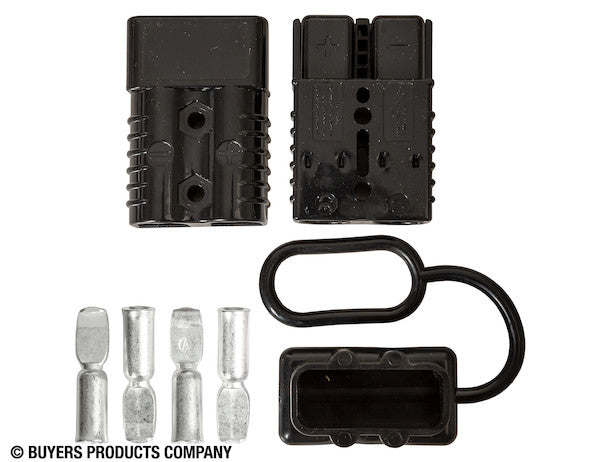

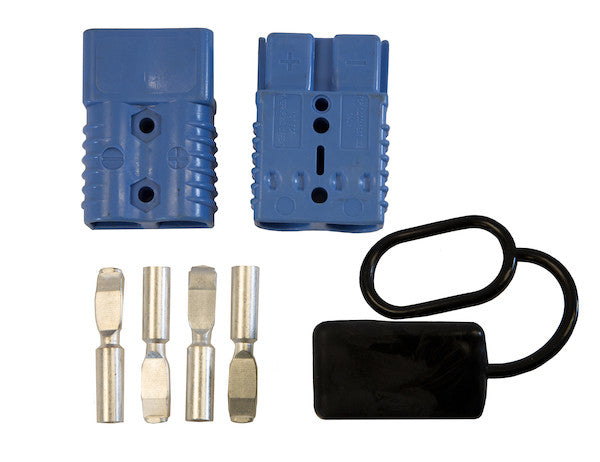

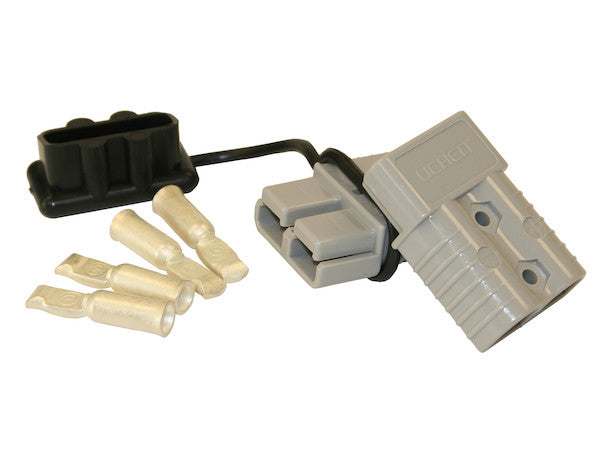

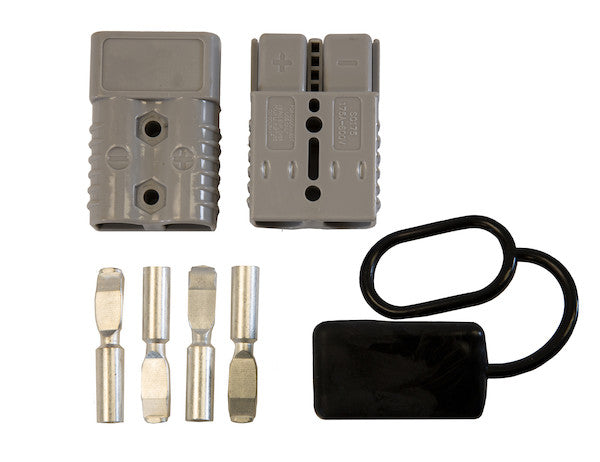

Buyers Products Replacement Quick Connect Kits for Booster Cables are compatible with the following: 5601015 works with Booster Cables with Gray Quick Connect (part number 5601025). 5601016 works with Booster Cables with Blue Quick Connect (part number 5601026). 5601017 works with Booster Cables with Red Quick Connect (part number 5601032). 5601018 works with Booster Cables with Black Quick Connect (part number 5601033). Replacement kits come with different keys to help prevent mismatching your jumper cables.
Specifications
| Cable Gauge | 4 |
|---|---|
| Cable Length | - |
| Connection Type (charging side) | Blue |
| Connection Type (Vehicle Side) | Blue |
| Current Rating | 600 |
The Essential Role of the Booster Cable's Blue Quick Connect Replacement Kit
In demanding commercial, industrial, and heavy-duty environments, the reliability and safety of electrical connections are paramount. The Booster Cable's Blue Quick Connect Replacement Kit, specifically Buyers Products part number 5601016, is a critical component engineered to sustain the integrity and functionality of high-current power transfer systems. This kit seamlessly integrates with booster cables featuring blue quick connect terminals, such as Buyers Products part number 5601026, ensuring a consistent and secure interface for jump-starting and auxiliary power requirements. A comprehensive understanding of its technical specifications and operational significance is vital for professionals seeking optimal performance and safety in their electrical infrastructure.
Precision Engineering for High-Current Applications
The primary function of any quick connect system for booster cables is to facilitate rapid, secure, and repeatable electrical connections under high current loads. The Buyers Products Blue Quick Connect Replacement Kit achieves this through robust material selection and intelligent design. These connectors are typically constructed from high-impact resistant polycarbonate or similar engineered polymers, chosen for their exceptional mechanical strength, impact resistance, and wide operating temperature range. This material also provides excellent dielectric properties, ensuring electrical isolation between contacts and minimizing the risk of accidental short circuits in industrial and automotive settings.
Central to the connector's performance are its contacts, precisely machined from high-purity copper and often silver-plated. Silver plating is crucial as it significantly enhances electrical conductivity, reducing contact resistance and thereby minimizing heat generation at the connection point. This reduction in heat is vital for high-current applications, improving efficiency and preventing potential damage to the connector or cable. Furthermore, silver plating offers superior corrosion resistance, particularly in environments exposed to moisture, chemicals, or road salts, which ensures consistent performance over the connector's lifespan. The design often incorporates a self-wiping action during connection, which helps clean contact surfaces for optimal conductivity and reduced wear.
The Significance of Color-Coding and Keying
A critical safety feature of the Buyers Products Quick Connect system, underscored by the "Blue" designation, is its sophisticated color-coding and mechanical keying mechanism. This system's principle is straightforward yet highly effective: connectors of different colors possess unique mechanical profiles that physically prevent them from mating with connectors of another color. For instance, the blue quick connect (5601016) is exclusively designed to pair with other blue quick connects (5601026). This ingenious design eliminates the risk of accidental misconnection between incompatible voltage systems or mismatched amperages, a common and dangerous hazard in environments with multiple power sources or vehicle types.
In a busy fleet maintenance yard, various vehicles—from light-duty trucks to heavy-duty machinery—may require jump-starting, each potentially utilizing a different quick connect color based on its electrical architecture. Without a keying system, an operator could inadvertently attempt to connect a 12V system to a 24V system, or a low-amperage cable to a high-amperage demand. Such errors can lead to catastrophic electrical damage, equipment failure, or severe personal injury due to arcing, overheating, or component overload. The blue keying mechanism specifically ensures that only compatible blue-coded booster cables and power sources can interconnect, providing an unambiguous visual and tactile safeguard against such critical errors. This standardization dramatically enhances operational safety and reduces the potential for costly mistakes, making it an indispensable feature for professional applications.
Detailed Technical Specifications: A Deep Dive
The specifications of the Booster Cable's Blue Quick Connect Replacement Kit (part number 5601016) offer crucial insights into its performance capabilities and intended applications.
Cable Gauge: 4 AWG
The specified cable gauge of 4 AWG (American Wire Gauge) is a fundamental parameter that dictates the electrical current capacity of the entire booster cable assembly. The AWG system is an inverse logarithmic scale, meaning a smaller AWG number corresponds to a larger conductor diameter and, consequently, a higher current carrying capacity. A 4 AWG cable is significantly thicker than typical consumer-grade booster cables (often 8-12 AWG). This robust gauge is selected to minimize electrical resistance, and by extension, voltage drop and heat generation when conducting high currents. For a 600 Amp application, as indicated by the current rating, a 4 AWG cable is engineered to efficiently transfer substantial power from a charging source to a depleted battery without excessive energy loss or overheating, even over moderate lengths. This gauge ensures long-term reliability and prevents premature cable degradation under sustained high-current operations by managing thermal properties and resistance characteristics effectively.
Current Rating: 600 Amps
The 600 Amp current rating signifies the severe-duty nature of this quick connect system, indicating the maximum continuous current the connector is designed to safely handle without degradation or overheating. In jump-starting applications, peak currents can briefly exceed the continuous rating during the initial surge. A 600 Amp rated connector provides the necessary headroom and thermal stability to manage these transients. This capacity is essential for starting large diesel engines found in commercial trucks, buses, heavy construction equipment, agricultural machinery, and marine vessels, which demand substantial current to overcome engine compression and inertia. The ability to reliably handle 600 Amps ensures the quick connect itself does not become a bottleneck in the power transfer chain, allowing the full capability of the booster cable and power source to be utilized effectively. Materials and geometries for the contacts and housing are meticulously selected to dissipate the I²R (current squared times resistance) heat generated at this high amperage, ensuring the connector operates within safe temperature limits even under prolonged heavy use.
Connection Type (Charging Side) and (Vehicle Side): Blue
The explicit designation of "Blue" for both the charging side and the vehicle side connection types reinforces a singular, standardized interface concept. This means the entire power transfer system—from the source battery to the recipient battery—utilizes the same blue-keyed quick connect. This uniformity simplifies operations, reduces inventory complexity (as only one type of connector is needed for both ends of a blue system), and, critically, eliminates any ambiguity regarding compatibility. It ensures that regardless of which end of the booster cable is connected to the charging vehicle or the vehicle requiring a jump, the connection mechanism remains consistent and fully compatible with other blue-keyed connectors. This commitment to a unified blue interface throughout the system is a cornerstone of the Buyers Products design philosophy, prioritizing user safety and operational efficiency.
Installation and Maintenance Protocols
Proper installation and routine maintenance are crucial for maximizing the lifespan and ensuring peak performance of the Booster Cable's Blue Quick Connect Replacement Kit. Installation typically involves several critical steps:
- Cable Preparation: The end of the 4 AWG booster cable must be precisely stripped to the correct length, exposing the copper conductors without nicking or damaging individual strands.
- Contact Attachment: The stripped cable is then inserted into the barrel of the silver-plated copper contact. A high-quality, hydraulic crimping tool specifically designed for heavy-gauge electrical terminals is essential to create a robust, low-resistance connection. Proper crimping ensures maximum surface area contact between the wire strands and the terminal, minimizing resistance and heat generation. For permanent installations, professional-grade soldering techniques may also be employed.
- Strain Relief and Insulation: After crimping, applying heat-shrink tubing over the connection is advisable. This provides additional mechanical strain relief, protecting wire strands from bending fatigue, and offers an extra layer of electrical insulation and environmental protection against moisture and contaminants.
- Contact Insertion into Housing: The crimped contacts are then carefully inserted into the polycarbonate connector housing until they positively lock into place. It is imperative to ensure correct polarity if the contacts are polarity-specific, though many quick connect designs are genderless, meaning either contact can mate with the other.
Routine maintenance should include periodic visual inspections for signs of wear, damage, or corrosion on both the contacts and the housing. Contacts must be clean and free of debris, and the housing should be free of cracks or discoloration. Any signs of excessive heat, such as melted plastic or discolored contacts, indicate a potential problem requiring immediate attention. Promptly replacing damaged connectors with the appropriate Buyers Products replacement kit ensures the safety and reliability of the entire booster cable system.
Versatile Applications Across Industries
The robust design and high current capacity of the Blue Quick Connect Replacement Kit make it suitable for a wide array of demanding applications:
- Fleet Maintenance and Logistics: Essential for jump-starting diverse fleets of delivery trucks, semi-trailers, and service vehicles, minimizing downtime.
- Construction and Mining: Critical for powering heavy machinery such as excavators, bulldozers, and generators in remote or challenging environments.
- Agriculture: Used with tractors, combines, and other farm equipment to ensure readiness during critical planting and harvesting seasons.
- Emergency Services: Provides reliable power transfer for fire trucks, ambulances, and police vehicles, where dependable operation is non-negotiable.
- Marine Applications: Facilitates auxiliary power or jump-starting large marine engines in boats and other watercraft, resistant to harsh marine conditions.
- Utility and Municipal Operations: Supports bucket trucks, street sweepers, and other specialized vehicles that require robust power connections.
- Remote Power Systems: Enables quick and secure connections for portable generators, battery banks, and solar power installations.
In these scenarios, the quick connect system significantly improves operational efficiency by allowing for rapid and error-free connection and disconnection of power sources, thereby streamlining workflows and enhancing overall productivity.
Safety, Reliability, and Economic Advantages
Adopting the Booster Cable's Blue Quick Connect Replacement Kit offers a multitude of safety, reliability, and economic advantages for professional users:
- Enhanced Safety: The primary benefit is the significant enhancement of safety through explicit color-coding and mechanical keying, preventing hazardous misconnections that can lead to electrical fires, equipment damage, or personal injury. The robust housing and arc-suppression capabilities further contribute to a safer working environment.
- Uncompromised Reliability: Manufactured with high-grade materials like impact-resistant polycarbonate and silver-plated copper contacts, these connectors are built to withstand repeated use in harsh conditions. Their low resistance ensures efficient power transfer, reducing the risk of overheating and premature failure.
- Operational Efficiency: The quick connect mechanism allows for rapid deployment and disconnection, invaluable in time-sensitive situations such as emergency jump-starts or power provisioning, translating directly into reduced downtime for critical equipment and personnel.
- Cost-Effectiveness: By offering replacement kits, Buyers Products enables users to repair individual damaged components rather than replacing entire booster cable assemblies. This modular approach extends equipment life, significantly reducing long-term operational costs and minimizing waste.
- Standardization and Compatibility: The standardized blue connection type ensures universal compatibility within a blue-coded system, simplifying inventory management and ensuring any blue-keyed cable or device can interface seamlessly.
- Durability in Extreme Environments: Designed to endure temperature extremes, vibrations, and exposure to dirt, dust, and moisture, these connectors provide reliable performance in the most challenging operational contexts.
Conclusion: The Professional's Choice for Power Transfer
The Booster Cable's Blue Quick Connect Replacement Kit (part number 5601016) from Buyers Products is an integral part of a comprehensive, high-performance power transfer solution. Its meticulous engineering, high-quality material composition, and innovative safety features—including the distinctive blue color-coding and mechanical keying—collectively deliver unparalleled reliability and operational efficiency for high-current applications. With a robust 4 AWG cable gauge and a substantial 600 Amp current rating, this kit is perfectly suited for the rigorous demands of commercial, industrial, and emergency service sectors. By ensuring safe, secure, and rapid connections, and by offering a cost-effective path to maintenance and repair, this replacement kit stands as a testament to Buyers Products' commitment to quality and user safety. For professionals who cannot compromise on the integrity of their electrical systems, the Blue Quick Connect Replacement Kit is the definitive choice for maintaining robust and dependable power connections.
