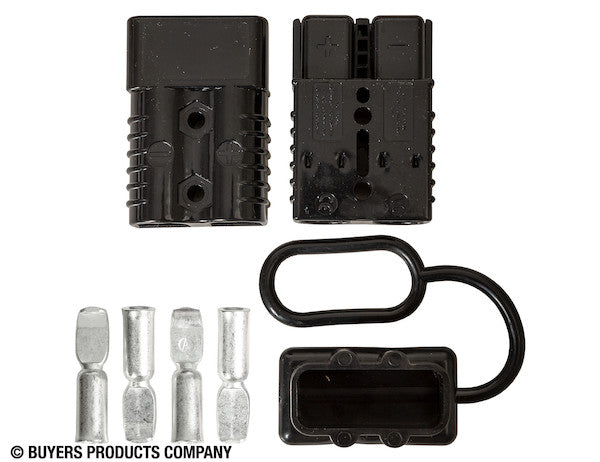

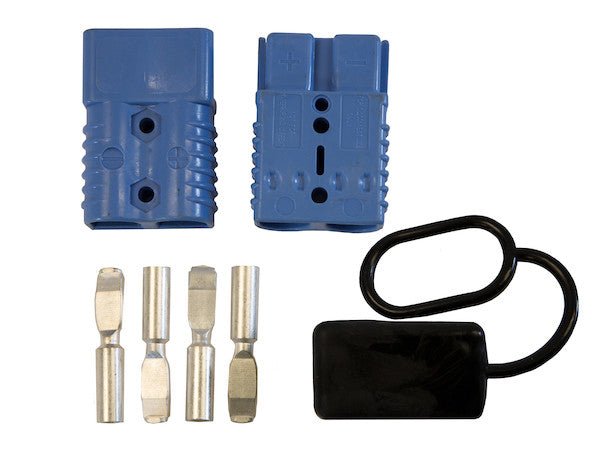

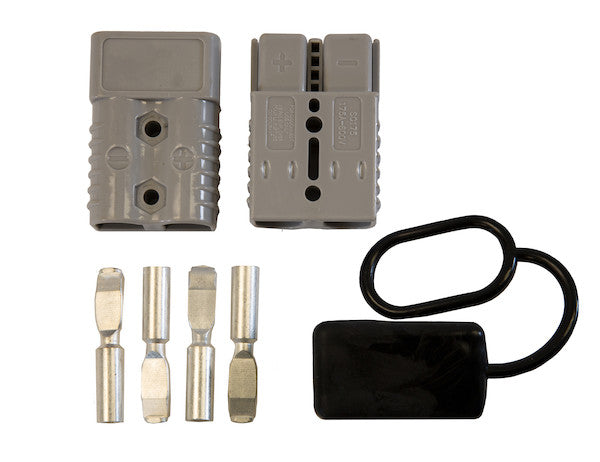

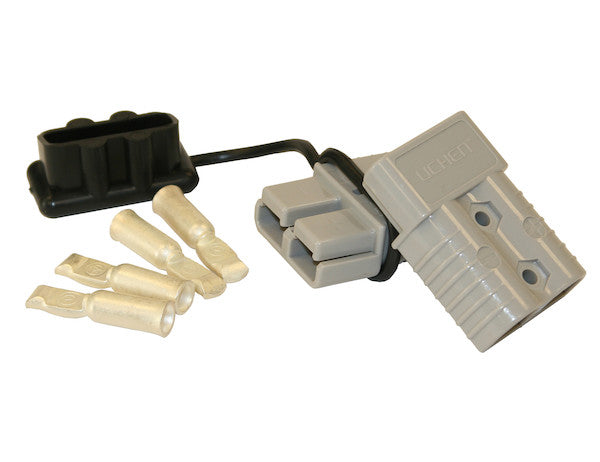

Buyers Products Replacement Quick Connect Kits for Booster Cables are compatible with the following: 5601015 works with Booster Cables with Gray Quick Connect (part number 5601025). 5601016 works with Booster Cables with Blue Quick Connect (part number 5601026). 5601017 works with Booster Cables with Red Quick Connect (part number 5601032). 5601018 works with Booster Cables with Black Quick Connect (part number 5601033). Replacement kits come with different keys to help prevent mismatching your jumper cables.
Specifications
| Cable Gauge | - |
|---|---|
| Cable Length | - |
| Connection Type (charging side) | - |
| Connection Type (Vehicle Side) | Red |
| Current Rating | 800 |

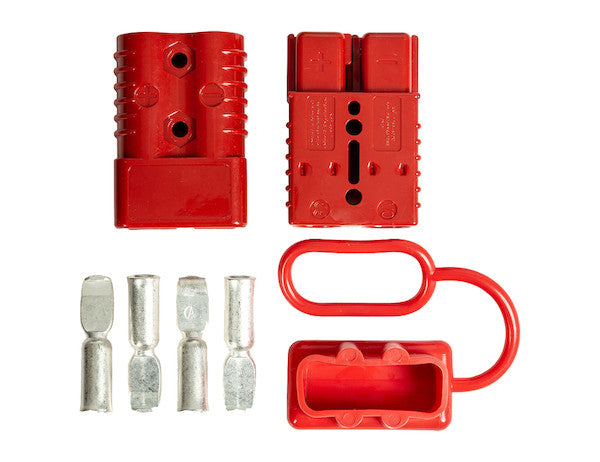

The Buyers Products Replacement Red Quick Connect Kit for Booster Cables represents a critical component in maintaining the operational integrity and safety of heavy-duty electrical power transfer systems. Engineered for durability and precision, this specific kit, identified by its red coloration and unique keying, is exclusively designed to ensure seamless compatibility with Booster Cables featuring a Red Quick Connect, particularly part number 5601032 within the Buyers Products ecosystem. In environments demanding robust and reliable power connections, such as commercial fleets, construction sites, and emergency services, the efficiency and safety of booster cable systems are paramount. This replacement kit addresses common wear and tear issues that can compromise these vital connections, offering a professional-grade solution to restore peak performance without requiring a complete cable overhaul.
Advanced Engineering of Quick Connect Technology
The fundamental principle behind quick connect systems is to facilitate rapid, secure, and repeatable electrical connections, minimizing downtime and enhancing safety. Unlike traditional clamp-style booster cables, which can be prone to arcing, poor contact, and cumbersome attachment, quick connect systems provide a stable, low-resistance interface. The "Quick Connect" designation implies a mechanism designed for swift engagement and disengagement, crucial in time-sensitive situations. This specific Red Quick Connect Kit is constructed with an emphasis on high-conductivity materials and robust mechanical design, ensuring optimal electrical transfer and mechanical resilience under strenuous conditions. The male and female components are engineered to mate precisely, creating a continuous electrical path with minimal voltage drop and heat generation, which are critical factors in high-current applications.
The Significance of the 800-Ampere Current Rating
A key specification of this replacement kit is its impressive 800-ampere current rating. This figure is not merely an arbitrary number but a testament to the connector's capacity to handle significant electrical loads, characteristic of starting large internal combustion engines found in heavy-duty trucks, construction equipment, and marine vessels. The 800A rating typically refers to the instantaneous peak current the connector can safely sustain during engine cranking, which is substantially higher than continuous operating currents. Such high current capabilities demand meticulous attention to material selection and design:
- Contact Materials: The conductive elements within the quick connect must be fabricated from high-purity copper or copper alloys, known for their superior electrical conductivity and resistance to fatigue. Surface plating, often tin or silver, further enhances conductivity, reduces contact resistance, and provides corrosion protection, particularly vital in outdoor or harsh environments.
- Thermal Management: Efficient current transfer minimizes resistive heating. The design of the contacts and the overall housing must allow for effective heat dissipation to prevent thermal degradation of the connector components, which could lead to increased resistance and potential failure over time.
- Mechanical Strength: At 800 amps, the electromagnetic forces generated within the connector can be considerable. The housing and internal structure must be mechanically robust enough to withstand these forces, as well as the physical stresses of repeated connection and disconnection, without deformation or loss of integrity.
The Crucial Role of Color-Coding and Keying Systems
The present description explicitly highlights that "Replacement kits come with different keys to help prevent mismatching your jumper cables." This feature is a cornerstone of the safety and operational efficiency provided by Buyers Products’ quick connect systems.
- Color-Coding: The "Red" designation for this particular kit is more than just an aesthetic choice; it's a vital part of a comprehensive identification system. In the context of Buyers Products, different colors (Gray, Blue, Red, Black) are employed to denote specific compatibility profiles. This visual cue allows for rapid and unambiguous identification of the correct mating connector. For this kit, the red color specifically indicates its intended use with booster cables that also feature a Red Quick Connect, such as part number 5601032. This prevents accidental connections between different cable sets, which might have varying voltage ratings, current capacities, or internal wiring configurations.
-
Unique Keying Mechanism: Beyond superficial color, the "different keys" refer to a distinct physical configuration of the mating surfaces. These keys are precisely machined or molded protrusions and corresponding recesses that allow only correctly matched connectors to engage. This mechanical lockout system is a critical safety feature with several profound implications:
- Polarity Protection: While booster cables typically adhere to positive (red) and negative (black) polarity conventions, quick connect systems like this one often integrate keying to prevent accidental reversal within a proprietary system, which could lead to severe damage to batteries, vehicle electronics, or even pose a risk of injury from arcing or explosion.
- Voltage System Isolation: In multi-voltage fleet environments (e.g., 12V and 24V systems), different keyed connectors can be used to physically segregate circuits, preventing a 12V system from being inadvertently connected to a 24V power source, or vice versa.
- Current Capacity Mismatch Prevention: A less robust connector (e.g., one rated for lower amperage) cannot be connected to a cable system requiring higher current, thereby preventing component overload and potential failure.
- Proprietary System Integrity: For manufacturers like Buyers Products, keying also serves to maintain the integrity of their proprietary systems, ensuring that only their specified components are used together, thereby guaranteeing system performance and liability.
Material Science and Construction for Durability
The long-term reliability of any electrical connector, particularly one rated for 800 amps and intended for demanding environments, is intrinsically linked to the quality and properties of its constituent materials and manufacturing processes.
-
Housing Materials: The external casing of the quick connect is typically molded from high-performance polymers such as polycarbonate, glass-filled nylon, or other impact-resistant thermoplastics. These materials are chosen for their:
- Dielectric Strength: Ensuring excellent electrical insulation to prevent short circuits and protect users.
- Impact Resistance: Withstanding drops, impacts, and mechanical abuses common in industrial and automotive settings.
- UV Resistance: Preventing degradation from prolonged exposure to sunlight, which can cause embrittlement and discoloration.
- Temperature Stability: Maintaining structural integrity and mechanical properties across a wide operational temperature range, from extreme cold to intense heat.
- Chemical Resistance: Protecting against common automotive fluids, oils, greases, and cleaning agents.
-
Contact Design and Material: As noted, high-conductivity copper or plated copper alloys are standard. The design of these contacts often incorporates features such as:
- Spring-Loaded Mechanisms: To ensure constant, robust pressure between mating contacts, compensating for minor misalignments and maintaining low resistance over time.
- Self-Wiping Action: As contacts mate, a slight wiping motion can occur, helping to clean minor surface contaminants and ensure a fresh, low-resistance contact point.
-
Cable Termination: The method by which the quick connect terminates the booster cable is paramount for electrical integrity. For 800-amp applications, secure and low-resistance termination is critical. Common methods include:
- Heavy-Duty Crimping: Specialized crimping tools are used to permanently deform the connector terminal around the stripped cable conductor, creating a gas-tight, high-strength, and low-resistance electrical and mechanical bond. Proper crimping prevents strand breakage, corrosion ingress, and loosening over time.
- Set Screw / Compression: Some designs may utilize robust set screws or compression plates to secure the cable, requiring specific torque values for optimal performance.
- Soldering (less common for high amperage field termination): While providing excellent electrical connection, soldering high-gauge cables in the field can be challenging and less mechanically robust than proper crimping for dynamic applications.
Applications and Operational Context
The Replacement Red Quick Connect Kit finds its primary utility in a broad spectrum of heavy-duty and commercial applications where dependable power transfer for jump-starting or auxiliary power is essential:
- Commercial Trucking Fleets: Ensuring rapid and safe jump-starts for semi-trucks, delivery vehicles, and other heavy goods transporters.
- Construction and Mining Equipment: Powering large excavators, bulldozers, loaders, and dump trucks often operating in remote or harsh conditions.
- Agricultural Machinery: Facilitating quick starts for tractors, combines, and other farm equipment, especially critical during planting and harvesting seasons.
- Marine Vessels: Providing reliable power connections for boats and ships, where exposure to corrosive environments demands robust connectors.
- Emergency Services Vehicles: Maintaining operational readiness for fire trucks, ambulances, and police vehicles, where immediate power is non-negotiable.
- Utility Fleets: Supporting bucket trucks, service vans, and other utility vehicles that require consistent power for tools and starting.
- Winch Systems and Auxiliary Power: Beyond starting, these quick connects are invaluable for quickly connecting and disconnecting high-current devices like vehicle-mounted winches, portable power supplies, or large inverters.
Safety Protocols and Best Practices
While the Red Quick Connect Kit is designed with inherent safety features like keying and robust construction, proper usage and adherence to established safety protocols are indispensable for preventing accidents and ensuring optimal performance:
- Correct Compatibility: Always verify that the replacement quick connect (e.g., Red) matches the existing booster cable system (e.g., 5601032) to leverage the protective benefits of the keying system.
- Polarity Awareness: Even with keyed connectors, users should always exercise caution and visually confirm proper polarity when connecting to batteries or vehicles. Red is traditionally positive, black negative, but variations exist.
- Personal Protective Equipment (PPE): Wearing appropriate PPE, including safety glasses and gloves, is mandatory when working with high-current electrical systems to protect against potential arcing, sparks, or chemical splashes from batteries.
- System Disconnection: Before attempting to replace a quick connect or work on any part of the booster cable, ensure that all power sources are disconnected and de-energized.
- Inspection for Damage: Regularly inspect all components of the booster cable system, including the quick connects, for signs of wear, corrosion, cracking, or exposed wiring. A damaged quick connect should be replaced immediately.
- Environmental Considerations: Avoid making connections in wet conditions or in the presence of flammable gases. Ensure the connection points are clean and free of debris to prevent poor contact and arcing.
- Installation Integrity: When installing the replacement quick connect, ensure that cable stripping, crimping, or other termination methods are performed to manufacturer specifications to achieve a robust, low-resistance connection.
Conclusion: A Strategic Investment in Fleet Reliability
The Buyers Products Replacement Red Quick Connect Kit for Booster Cables is more than just a spare part; it is a strategic investment in the enduring reliability, safety, and efficiency of high-current power transfer operations. Its precise engineering, indicated by the 800-ampere current rating and robust material specifications, assures performance under the most demanding conditions. The integration of a distinct red coloration and a unique keying mechanism fundamentally prevents connection errors, thereby safeguarding electrical systems and personnel alike. For fleet managers, maintenance technicians, and equipment operators, the availability of such a precisely matched, high-quality replacement connector dramatically extends the service life of costly booster cable assemblies, minimizes operational downtime, and reinforces safety protocols. By choosing the correct replacement kit, specifically the Red Quick Connect for part number 5601032, users uphold the designed integrity of their power systems, ensuring consistent, dependable performance in critical moments. This product exemplifies a commitment to operational excellence and underscores the importance of specialized components in maintaining peak functionality across diverse heavy-duty applications.
