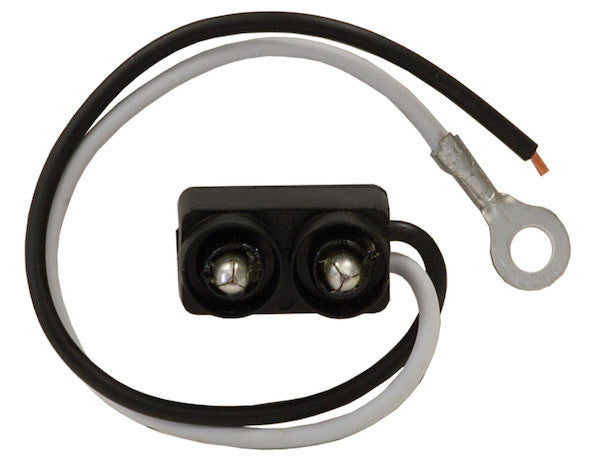

5620250 - DOT Light Plug 2-Pin PL-10 Male With Stripped Power And #10 Ring On Ground

Buyers Products DOT Light Plugs are available with different pin combinations and terminations for connecting your DOT lighting.

Specifications

Advanced Technical Overview: DOT Light Plug 2-Pin PL-10 Male with Stripped Power and #10 Ring on Ground

The DOT Light Plug, specifically the 2-Pin PL-10 Male variant featuring a stripped power lead and a #10 ring terminal for ground, represents a critical component in the electrical infrastructure of commercial and heavy-duty vehicles. Engineered to meet the rigorous demands of Department of Transportation (DOT) regulations, this connector solution ensures robust and reliable electrical connectivity for a wide array of lighting applications. Its design prioritizes durability, ease of installation, and consistent performance under challenging environmental and operational conditions, which are paramount for maintaining vehicle safety and regulatory compliance.

The PL-10 Connector Standard: Reliability in Heavy-Duty Environments

The PL-10 connector, a cornerstone in heavy-duty vehicle electrical systems, is widely recognized for its robust design and dependable performance. This specific male plug variant is engineered to interface seamlessly with corresponding female PL-10 receptacles, forming a secure and weather-resistant connection. The "2-Pin" configuration signifies its dedicated utility for applications requiring a singular power input and a common ground return, typical for many marker, clearance, and identification lights, as well as certain stop/turn/tail functions where a dual-filament bulb is not utilized or separate ground return is preferred.

Key design attributes of the PL-10 male plug include its high-grade polymer housing, which offers exceptional resistance to environmental stressors such as moisture, dust, road salts, chemicals, and UV radiation. The material selection often includes engineering-grade thermoplastics that maintain their mechanical integrity and dielectric properties across a broad temperature range, from extreme cold to intense heat. This resilience prevents common issues like cracking, embrittlement, or degradation that can lead to intermittent connections or complete system failure. The connector's sealing capabilities are crucial, typically employing an integrated seal or gasket system around the mating surfaces to achieve ingress protection (IP) ratings suitable for exterior vehicle applications, protecting the internal electrical contacts from water and particulate contaminants.

The internal contacts are typically constructed from a highly conductive alloy, often brass or copper, with an electroplated finish, such as tin or nickel, to enhance corrosion resistance and ensure low electrical resistance. This low resistance is vital for minimizing voltage drop across the connection, thereby ensuring that the connected lighting fixture receives adequate power to operate at its specified lumen output. The design of the pin interface ensures a secure mechanical engagement, often incorporating detents or friction-fit mechanisms to resist vibration-induced disconnections, which are prevalent in the dynamic environments of commercial vehicle operation. The precise manufacturing tolerances of PL-10 connectors guarantee interchangeability and consistent mating force, facilitating straightforward installation and replacement while ensuring long-term operational integrity.

Stripped Power Lead: Versatility in Power Integration

One of the distinguishing features of this DOT light plug is the inclusion of a stripped power lead. This design choice provides significant versatility and simplifies the integration process into various electrical systems. Rather than terminating in a proprietary connector, the stripped end allows for direct connection to a vehicle's power distribution system via a multitude of standard electrical termination methods.

The power lead itself is a critical component, engineered to transmit electrical current reliably. Typically, this lead consists of stranded copper wire, which offers superior flexibility and resistance to fatigue compared to solid core wire, an essential characteristic in applications subject to constant vibration and movement. The gauge of the wire (e.g., 16 AWG, 18 AWG) is carefully selected to ensure adequate current carrying capacity for DOT-compliant lighting, minimizing resistive losses and preventing overheating. The insulation surrounding the conductor is equally important, commonly made from PVC (Polyvinyl Chloride) or XLPE (Cross-linked Polyethylene). These materials are chosen for their excellent dielectric strength, resistance to abrasion, chemicals (oils, fuels, solvents), and a wide operating temperature range. The specific length of the stripped portion is optimized to facilitate efficient termination, allowing for easy crimping into butt connectors, soldering to terminal strips, or insertion into screw-type terminals, depending on the installer’s preference and the specific application requirements. This flexibility reduces the need for additional adapters or custom wiring, streamlining installation and reducing overall complexity and potential points of failure.

The stripped power lead is advantageous for custom installations, repairs, or upgrades where the existing vehicle harness may not have a matching connector or where a direct, permanent connection is desired. It allows for precise control over the final connection method, enabling installers to select the most appropriate and secure technique for their specific environment and load requirements. This adaptability enhances the product's utility for both OEM applications and aftermarket installations, providing a robust solution for diverse electrical architectures.

#10 Ring Terminal on Ground: Secure and Low-Resistance Grounding

The ground termination of this DOT light plug is factory-equipped with a #10 ring terminal, a feature engineered for optimal electrical performance and mechanical stability. A secure and low-resistance ground connection is fundamental to the reliable operation of any electrical circuit, and vehicle lighting systems are no exception. Poor grounding is a common cause of intermittent lighting, dimness, or complete failure, leading to costly downtime and potential safety hazards.

The #10 ring terminal is designed to accommodate a #10 bolt (typically M5 metric equivalent), a standard size for grounding points on vehicle chassis and body panels. This choice of terminal type offers several distinct advantages. Firstly, a ring terminal provides a full 360-degree contact surface around the bolt, ensuring a consistently robust electrical connection that is less susceptible to loosening under vibration compared to spade or fork terminals. Once tightened, the bolt passes through the center of the ring, creating a mechanically locked connection that is highly resistant to accidental dislodgement.

The material composition of the ring terminal is crucial for its long-term performance. High-quality terminals are typically manufactured from tinned copper or brass. Tin plating on copper enhances corrosion resistance, particularly important in outdoor and road environments where exposure to moisture, salt spray, and chemicals is constant. It also improves conductivity and reduces oxidation over time, ensuring a consistently low-resistance path to ground. The crimp connection between the wire and the terminal is equally critical; factory-applied crimps utilize specialized tooling to create a gas-tight seal between the wire strands and the terminal barrel. This prevents oxygen and moisture from entering the connection, thereby inhibiting galvanic corrosion and maintaining electrical integrity. The quality of this crimp is a direct indicator of the connector's overall reliability.

Proper grounding ensures that the return path for electrical current is robust and minimizes voltage drop. A dedicated chassis ground connection via a securely bolted ring terminal provides this optimal path, preventing issues such as stray currents, electromagnetic interference, and potential damage to sensitive electronic components. For critical safety components like DOT lighting, this level of grounding reliability is not merely a convenience but a mandatory aspect of design for operational safety and regulatory compliance.

DOT Compliance and Safety Imperatives

The designation "DOT Light Plug" inherently signifies adherence to the stringent safety and performance standards set forth by the Department of Transportation. For vehicle lighting, these standards are primarily outlined in the Federal Motor Vehicle Safety Standard (FMVSS) 108, which dictates the performance requirements for all lighting equipment on motor vehicles and associated components. SAE (Society of Automotive Engineers) standards, such as SAE J560 for commercial vehicle electrical connectors and various J-series standards for specific lamp types (e.g., J592 for clearance and marker lamps), also inform the design and functionality of such plugs.

The reliability of electrical connections is paramount to achieving and maintaining DOT compliance. A failing connector can lead to intermittent or complete failure of a safety-critical light, rendering the vehicle non-compliant and increasing the risk of accidents. This plug, with its robust PL-10 interface, durable wire leads, and secure ring terminal ground, is engineered to prevent such failures. By ensuring consistent power delivery and a stable ground return, it supports the continuous operation of essential vehicle lighting, enhancing visibility for other road users and significantly contributing to overall road safety. The technical specifications of the materials, the precision of the terminations, and the design for environmental resilience all contribute to a product that helps vehicle operators meet regulatory obligations and uphold safety standards.

Applications and Versatility in Vehicle Fleets

This 2-pin PL-10 male plug with stripped power and #10 ring ground is suitable for an expansive range of applications within the commercial vehicle sector. Its primary use includes connecting various DOT-mandated lighting fixtures on:

• Heavy-Duty Trucks: Class 8 tractors and vocational trucks where reliable marker, clearance, and identification lighting is crucial.
• Commercial Trailers: Flatbeds, dry vans, refrigerated trailers, and specialty trailers, which depend on robust connections for their extensive lighting arrays.
• Buses: Both transit and school buses, where exterior lighting is vital for passenger safety and public visibility.
• Construction Equipment: Large machinery like excavators, loaders, and cranes that operate in demanding environments and require durable lighting connections.
• Agricultural Machinery: Tractors, combines, and implements that need reliable lighting for field operations and road transport.
• Emergency Vehicles: Fire trucks, ambulances, and police vehicles, ensuring the functionality of their critical warning and operational lights.

Beyond new installations, this plug is an ideal component for maintenance and repair operations. It provides a standardized and durable solution for replacing damaged or corroded existing plugs, restoring full functionality to lighting systems. Its design also supports custom wiring harnesses and modifications, offering flexibility for unique vehicle configurations or specialized equipment integration.

Installation Best Practices for Optimal Performance

To maximize the lifespan and performance of the DOT Light Plug, adherence to professional installation practices is essential:

1. Wire Management: Ensure the power lead is routed securely, away from sharp edges, heat sources, and moving parts. Use appropriate wire loom or conduit for protection against abrasion and environmental exposure.
2. Strain Relief: Implement proper strain relief techniques near the connection points to prevent tension on the electrical conductors, which can lead to premature failure.
3. Environmental Sealing: While the PL-10 connector itself offers ingress protection, consider using dielectric grease on the mating surfaces to further enhance protection against moisture and corrosion, especially in areas subjected to frequent washing or extreme weather.
4. Ground Connection: Prepare the grounding surface by removing any paint, rust, or debris to expose bare metal, ensuring a low-resistance contact for the #10 ring terminal. Tighten the grounding bolt to the manufacturer's recommended torque specifications to achieve optimal electrical and mechanical connection.
5. Power Lead Termination: When connecting the stripped power lead, use high-quality crimp connectors (e.g., heat-shrink butt connectors for environmental sealing) or solder connections, ensuring proper insulation and mechanical integrity. Always verify the wire gauge compatibility of chosen connectors.
6. Testing: After installation, always test the circuit to confirm proper operation of the lighting fixture. Verify correct polarity and ensure there are no short circuits or open circuits.

Benefits and Value Proposition

The DOT Light Plug 2-Pin PL-10 Male with Stripped Power and #10 Ring On Ground delivers significant benefits to fleet operators, vehicle manufacturers, and maintenance professionals:

• Uncompromised Reliability: Engineered for sustained performance in harsh operating conditions, minimizing unexpected failures and associated downtime.
• Enhanced Safety: Ensures consistent illumination of critical DOT lighting, contributing directly to vehicle visibility and accident prevention.
• Durability: Constructed from robust materials designed to withstand mechanical stress, environmental exposure, and chemical degradation.
• Streamlined Installation: Pre-terminated ground and stripped power lead simplify wiring, reducing installation time and labor costs.
• Regulatory Compliance: Designed to meet or exceed DOT and SAE standards, providing peace of mind regarding legal operation.
• Versatile Application: Suitable for a broad spectrum of commercial and heavy-duty vehicles across various industries.

By investing in high-quality electrical components like this DOT light plug, fleet owners can significantly reduce maintenance expenditures, improve vehicle uptime, and uphold the highest standards of operational safety and regulatory adherence. Its technical sophistication and practical design make it an indispensable solution for ensuring the electrical integrity of vehicle lighting systems.
