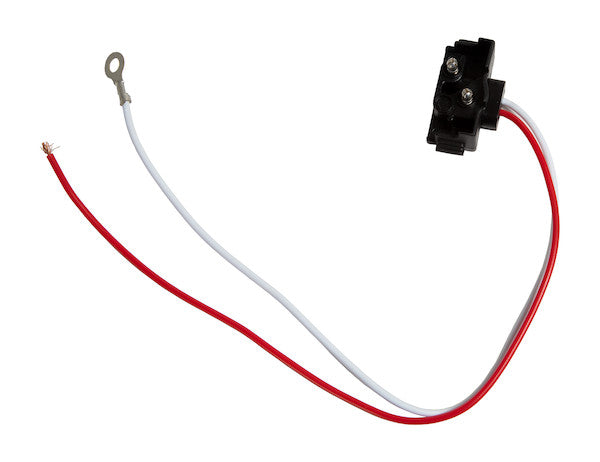

5620251 - DOT Light Plug 2-Pin Right Angle Male with Stripped Power and #10 Ring on Ground

Buyers Products DOT Light Plugs are available with different pin combinations and terminations for connecting your DOT lighting.

Specifications

The Buyers Products DOT Light Plug, featuring a 2-Pin Right Angle Male PL-10 Plug with Stripped Power Leads and a #10 Ring Terminal on Ground, represents a meticulously engineered solution for ensuring robust, reliable, and compliant electrical connections in critical Department of Transportation (DOT) lighting systems. This product is specifically designed to address the rigorous demands of commercial vehicles, trailers, construction equipment, and other applications where safety, visibility, and regulatory adherence are paramount. The design integrates industry-standard components with thoughtful termination options to provide a versatile and durable interface for various DOT-approved lighting fixtures.

The Indispensable Role of DOT Lighting Systems

DOT lighting systems are not merely accessories; they are fundamental safety components that ensure vehicles are visible to other road users, especially during adverse weather conditions, low light, or nighttime operations. These systems include a wide array of lights, such as marker lights, clearance lights, tail lights, stop lights, turn signals, and backup lights, each serving a specific function to communicate a vehicle's presence, size, and intended actions. The reliable operation of these lights is mandated by federal, state, and local regulations (e.g., FMVSS 108 in the US), which dictate performance, placement, and visibility standards. Non-compliance can lead to severe penalties, accidents, and increased operational costs. Given the harsh environments in which commercial vehicles operate—exposure to extreme temperatures, moisture, road salt, vibrations, and impact—the electrical connections for these lights must be exceptionally durable and fault-tolerant. Inferior connections can lead to intermittent lighting, complete system failure, accelerated bulb or LED degradation, and potential electrical hazards, all compromising safety and operational efficiency. The Buyers Products DOT Light Plug is engineered to mitigate these risks by providing a superior connection integrity.

Technical Deep Dive: The 2-Pin Right Angle Male PL-10 Plug

The primary interface of this product is the 2-Pin Right Angle Male PL-10 Plug, a designation that conveys specific technical attributes essential for heavy-duty automotive applications.

PL-10 Standard: A Benchmark for Durability and Compatibility

The "PL-10" designation refers to a common industry standard for sealed electrical connectors in the commercial vehicle market. These connectors are specifically designed to withstand the severe operational conditions encountered by trucks, trailers, and off-road equipment. Key characteristics of PL-10 connectors include:

• Weather Resistance: PL-10 plugs typically feature robust sealing mechanisms, often incorporating silicone or EPDM gaskets and internal seals, to prevent the ingress of moisture, dust, dirt, and corrosive agents. This protection is critical for maintaining electrical integrity in environments exposed to rain, snow, road spray, and washdowns.
• Vibration and Shock Resistance: Commercial vehicles are subject to constant vibration and occasional impact. PL-10 connectors are designed with secure locking features and durable housing materials (e.g., high-grade PVC or nylon composites) to prevent accidental disconnection or damage under dynamic stress.
• Material Composition: The housing is generally constructed from UV-stabilized, impact-resistant thermoplastic, ensuring longevity even with prolonged exposure to sunlight and physical abuse. The electrical contacts are typically made from brass or other high-conductivity alloys, often tin-plated to resist corrosion and ensure low electrical resistance for efficient power transmission.
• Ease of Use and Maintenance: Despite their robust construction, PL-10 connectors are designed for straightforward connection and disconnection, facilitating installation, diagnostics, and component replacement in the field.

The 2-Pin Configuration: Simplified Efficiency

A 2-pin configuration denotes a connector designed to carry two distinct electrical conductors. In the context of DOT lighting, these pins typically serve as the positive power input and the negative return (ground) for a single-function light (e.g., a simple marker light or a clearance lamp). This simplicity makes the 2-pin plug ideal for applications where complex multi-function signaling is not required. The advantages include:

• Reduced Complexity: Fewer pins mean a simpler circuit design, less potential for wiring errors, and easier troubleshooting.
• Reliability: With fewer contact points, the likelihood of connection failure due to corrosion or wear is inherently reduced compared to multi-pin connectors.
• Compact Design: 2-pin plugs tend to be smaller and more compact, allowing for installation in confined spaces.

Right Angle Design: Space-Saving and Strain-Relieving

The "Right Angle" aspect of the plug refers to the orientation of the cable exit relative to the mating face of the connector. Instead of the cable extending straight out, it exits at a 90-degree angle. This design offers significant practical advantages:

• Space Optimization: In tight mounting locations typical of vehicle chassis or light fixtures, a right-angle plug minimizes the protrusion of the cable, allowing for installation where straight connectors would be impractical or would create an obstruction.
• Enhanced Cable Management: It facilitates neater cable routing, reducing the chance of snagging or interfering with other components.
• Strain Relief: The right-angle design naturally provides a degree of strain relief by directing the cable immediately parallel to the mounting surface. This minimizes sharp bends at the point of connection, which can stress conductor wires and insulation, leading to premature failure.
• Protection Against Damage: By keeping the cable closer to the mounting surface, it is less exposed to accidental impacts or abrasion from road debris.

Male Connector: The Interfacing Element

As a "Male" connector, this plug features pins that are designed to insert into corresponding sockets (female receptacles) on the DOT light fixture. This universal male-to-female mating convention ensures a secure and standardized connection. The male pin design also often incorporates features that resist bent pins and ensure proper alignment during connection, contributing to overall system reliability.

The Significance of Termination Methods: Stripped Power Leads & #10 Ring on Ground

Beyond the primary plug, the product's termination options play an equally critical role in its versatility and performance, providing flexible integration into a vehicle's electrical system.

Stripped Power Leads: Adaptability and Direct Integration

The "Stripped Power Leads" refer to the conductor wires that have had their insulation removed at the ends, exposing the bare copper strands. This termination method offers substantial flexibility for installers:

• Customizable Connection: Stripped leads allow for various methods of connection to the vehicle's power supply, including soldering, crimping into terminal blocks or butt connectors, or direct integration into custom wiring harnesses. This adaptability is crucial for systems that require specific connection types or where existing infrastructure dictates the termination method.
• Optimized Lengths: Installers can cut the stripped leads to the exact length required for a particular application, minimizing excess wire and promoting a cleaner, more organized installation.
• Direct Wiring: For installations requiring a direct, unmediated connection to a power source or switch, stripped leads offer the most straightforward approach, minimizing intermediate connection points that could introduce resistance or potential failure points.

When working with stripped leads, it is imperative to use appropriate crimping tools for mechanical connections or proper soldering techniques for electrical joints, ensuring a robust, low-resistance, and environmentally sealed connection (e.g., using heat shrink tubing with adhesive lining).

The #10 Ring Terminal on Ground: Unyielding Grounding Integrity

The provision of a "#10 Ring Terminal on Ground" highlights a critical design choice aimed at maximizing the reliability of the electrical system's ground path. A robust ground connection is arguably as important as a reliable power connection, if not more so, for the consistent performance and longevity of electrical components.

• Importance of Reliable Grounding: The ground wire provides the return path for electrical current to complete the circuit. A poor ground connection can manifest as dim or flickering lights, intermittent operation, increased current draw, heat buildup, and even damage to sensitive electronic components. In vehicle systems, the chassis often serves as the primary ground point, requiring a secure connection to ensure system stability.
• Why a Ring Terminal? Ring terminals are chosen for ground connections due to their superior mechanical security and electrical contact properties:
  • Mechanical Security: Once fastened with a screw or bolt through its eyelet, a ring terminal is highly resistant to accidental dislodgement caused by vibration, shock, or tension. This is a significant advantage over fork or spade terminals, which can more easily slip off a stud.
  • Large Contact Area: The full circular contact area of the ring terminal, when properly tightened, provides a large surface for current flow, minimizing resistance and heat generation at the connection point.
  • Corrosion Resistance: High-quality ring terminals, typically made from tin-plated copper, offer excellent conductivity and resistance to oxidation and corrosion, especially when paired with appropriate hardware and dielectric grease.
• The #10 Size Specification: The "#10" in "#10 Ring Terminal" refers to the size of the stud or screw for which the terminal's eyelet is designed. A #10 screw has a major diameter of approximately 0.190 inches (4.826 mm). This size is a common standard for grounding points in automotive and heavy-duty vehicle applications, ensuring compatibility with existing chassis ground studs or facilitating the creation of new, standardized ground points.
• Dedicated Ground Path: By providing a dedicated ring terminal for ground, this plug ensures that the primary earth connection for the lighting circuit is robust and independent of any potential grounding issues that might arise from the light fixture's mounting hardware. This is particularly beneficial for lights where the fixture body is not intended to be the primary ground path or where optimal conductivity to the chassis is paramount. The "Number of Wires: 3" specification makes sense here: two wires typically go into the 2-pin plug (e.g., power for the light, and a return wire for the light module), and the third wire is dedicated to the #10 ring terminal, ensuring a robust chassis ground.

Material Science and Performance Attributes

The overall performance and longevity of the Buyers Products DOT Light Plug are heavily dependent on the materials selected for its construction and the inherent design principles. The combination of its components ensures resilience in demanding environments:

• Conductor Materials: High-purity copper strands for optimal electrical conductivity, reducing voltage drop and heat generation. The gauge of the wire is carefully selected to handle the anticipated current draw of DOT lighting systems without overheating.
• Insulation and Jacket: The wires are typically insulated with PVC or cross-linked polyethylene (XLPE) for excellent dielectric strength, flexibility, and resistance to abrasion, chemicals, and oil. The outer jacket provides additional mechanical protection and environmental sealing.
• Contact Materials: Brass or copper alloy pins, often tin-plated, for superior conductivity, corrosion resistance, and mating cycle durability.
• Housing Materials: Durable thermoplastic polymers (e.g., nylon, PVC) for the PL-10 plug housing, chosen for their impact resistance, UV stability, and broad temperature operating range.
• Sealing Elements: High-quality silicone or EPDM rubber seals within the PL-10 connector provide IP (Ingress Protection) ratings against dust and water ingress, crucial for preventing electrical shorts and corrosion.

These material choices, coupled with precision manufacturing, contribute to a product that can withstand operating temperatures from extreme cold to intense heat, resist fuel, oil, and road chemicals, and endure continuous vibration and mechanical stress without degradation in performance.

Installation, Maintenance, and Application Spectrum

The design of this DOT light plug simplifies installation and supports long-term reliability across a wide range of applications.

Installation Best Practices

For optimal performance, proper installation is key:

• Wiring Techniques: When utilizing the stripped power leads, use high-quality crimp connectors with a proper crimping tool for secure, low-resistance connections, or solder connections carefully for maximum integrity, followed by heat shrink tubing for insulation and environmental sealing.
• Grounding: Ensure the #10 ring terminal is attached to a clean, rust-free, and painted-free metal chassis or frame member, using a bolt or screw of appropriate size and material. Apply dielectric grease to the connection point to further inhibit corrosion.
• Cable Management: Route cables away from sharp edges, hot components, and moving parts. Use cable ties or clamps to secure the wiring, preventing chafing and strain.
• Sealing: Ensure the PL-10 plug is fully seated and locked into its mating receptacle to maintain its weather-tight seal.

Maintenance Considerations

While designed for durability, periodic inspection can extend the lifespan of the connections:

• Visual Inspection: Check for signs of corrosion, abrasion on the wiring, or damage to the plug housing.
• Connection Integrity: Verify that the plug is securely mated and that the ground terminal remains tightly fastened.
• Cleaning: Keep the connector area free of excessive dirt and debris, especially around seals.

Broad Application Spectrum

This DOT Light Plug is an essential component for a vast array of vehicles and equipment requiring compliant and dependable lighting:

• Commercial Trucking: Semi-trucks, tractor-trailers, box trucks, flatbeds, and other heavy-duty transport vehicles.
• Construction Equipment: Excavators, loaders, dump trucks, bulldozers, and other heavy machinery operating in demanding environments.
• Agricultural Machinery: Tractors, combines, planters, and other farm equipment that frequently operate on public roads or in dusty/wet conditions.
• Utility and Service Vehicles: Tow trucks, service vans, municipal vehicles, and emergency response vehicles that require highly reliable lighting systems for safety and operational efficiency.
• Off-Road and Specialty Vehicles: Any vehicle subject to DOT regulations or requiring robust electrical connections in challenging conditions.

Conclusion

The Buyers Products DOT Light Plug with its 2-Pin Right Angle Male PL-10 Plug, Stripped Power Leads, and #10 Ring Terminal on Ground is more than just a connector; it is a critical component engineered for the demanding world of commercial and heavy-duty vehicle operations. By integrating industry-standard design with robust materials and thoughtful termination options, it delivers unparalleled reliability, ease of installation, and long-term performance. For professionals in vehicle manufacturing, fleet management, and maintenance, this product ensures that DOT lighting systems remain compliant, functional, and ultimately, contribute to the overall safety of personnel and the public. Investing in such purpose-built components from a reputable brand like Buyers Products is an investment in operational efficiency, regulatory adherence, and uncompromising safety.
