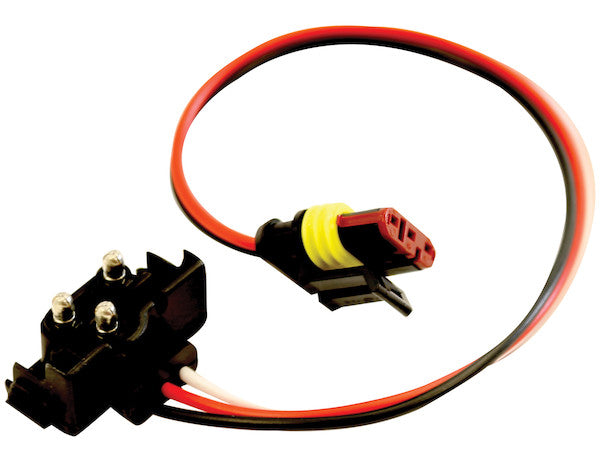

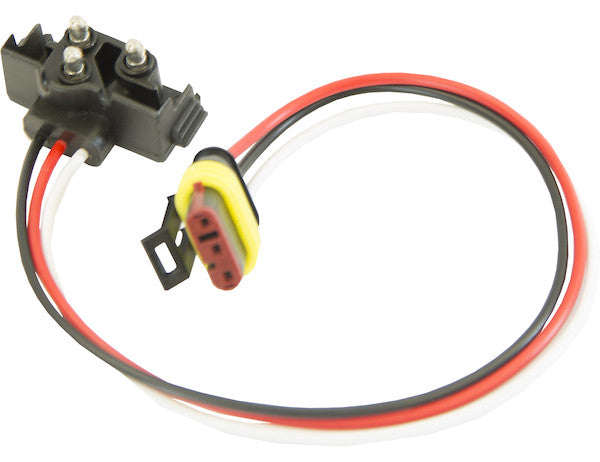

5620354 - DOT Light Plug 3-Wire AMP-Style Female Plug With 3-Pin Right Angle PL-3 Male Plug

Buyers Products DOT Light Plugs are available with different pin combinations and terminations for connecting your DOT lighting.

Specifications

Comprehensive Technical Overview: DOT Light Plug 3-Wire AMP-Style Female Plug with 3-Pin Right Angle PL-3 Male Plug

In the demanding realm of commercial transportation, heavy-duty vehicles, and off-highway equipment, the integrity and reliability of lighting systems are paramount. Beyond mere functionality, these systems are critical for operational safety, regulatory compliance, and overall vehicle performance. The Buyers Products DOT Light Plug, featuring a 3-Wire AMP-Style Female Plug paired with a 3-Pin Right Angle PL-3 Male Plug, represents a meticulously engineered solution designed to meet and exceed these stringent requirements. This comprehensive technical overview delves into the intricate design, material science, performance characteristics, and practical advantages of this specialized electrical connector, positioning it as an indispensable component for robust DOT-compliant lighting installations.

The Criticality of DOT-Compliant Lighting and Connection Integrity

Department of Transportation (DOT) regulations, primarily encapsulated in Federal Motor Vehicle Safety Standard (FMVSS) 108, mandate specific performance and placement criteria for all lighting and reflective devices on motor vehicles and trailers. Non-compliance not only poses severe safety risks but can also lead to significant operational disruptions, fines, and legal liabilities. The effectiveness of any lighting system hinges directly on the reliability of its electrical connections. A compromised connection, whether due to environmental ingress, vibration, or material degradation, can result in intermittent operation, complete system failure, or even create hazardous electrical conditions. This is where high-quality, purpose-built connectors like the Buyers Products DOT Light Plug demonstrate their intrinsic value, acting as the crucial interface that ensures uninterrupted power delivery and signal transmission to essential lighting components.

Deep Dive into Termination 1: The 3-Wire AMP-Style Female Plug

The first termination point of this assembly is the 3-wire AMP-style female plug, a design synonymous with robustness, secure mating, and wide industry acceptance, particularly within automotive and heavy equipment applications. The "AMP-style" designation typically refers to connectors that employ a specific terminal architecture, often characterized by positive locking features and superior environmental sealing capabilities. While "AMP" is a brand (now part of TE Connectivity), the term has become a generic descriptor for a category of high-performance, weather-sealed electrical connectors.

Design and Construction:

• Housing Material: The female plug housing is typically constructed from high-grade thermoplastic polymers such as nylon (PA66) or PBT (Polybutylene Terephthalate). These materials are selected for their exceptional mechanical strength, resistance to thermal cycling, chemical inertness against automotive fluids (e.g., oils, fuels, brake fluid), and impressive dielectric properties. Furthermore, these housings are often UV-stabilized to prevent degradation when exposed to prolonged sunlight, ensuring long-term structural integrity in outdoor environments.
• Wire Configuration (3-Wire): The three-wire configuration is fundamental to many modern DOT lighting applications, allowing for multiple functions within a single light unit. Common assignments include:
  • Ground: Provides the common return path for electrical current, essential for circuit completion.
  • Power/Function 1: Often dedicated to a primary function such as marker lamp, clearance lamp, or low-intensity tail light.
  • Power/Function 2: Dedicated to a secondary, higher-intensity function like stop lamp, turn signal, or backup lamp.
  This multi-functionality reduces the number of connectors and wiring harnesses required, simplifying installation and reducing potential points of failure. The wires are typically insulated with high-temperature, abrasion-resistant materials like XLPE (Cross-Linked Polyethylene) or PVC, chosen for their flexibility and durability in harsh vehicle environments.
• Female Contact Design: The female contacts within the plug housing are precision-machined or stamped and formed from high-conductivity alloys, most commonly brass or phosphor bronze. These contacts are typically tin-plated to enhance corrosion resistance, improve conductivity, and ensure stable electrical performance over time. The female design inherently protects the live contact surfaces from accidental shorting and offers a degree of environmental protection when the plug is unmated, guarding against dust and moisture ingress.
• Sealing Mechanisms: A critical feature of AMP-style connectors is their robust sealing. This often involves individual wire seals (grommets or seals around each wire as it enters the connector) and a peripheral seal (a gasket or O-ring) between the male and female housing when mated. These multi-point sealing mechanisms achieve a high Ingress Protection (IP) rating, typically IP67 or IP68, rendering the connection impervious to dust and capable of withstanding immersion in water. This level of environmental protection is indispensable for vehicle applications exposed to rain, snow, road spray, and washdowns.
• Locking Mechanism: Secure mating is achieved through an integrated locking tab or latch system. This positive locking feature prevents accidental disconnection due to vibration, road shock, or minor pulling forces, which are ubiquitous in commercial vehicle operation. The tactile feedback provided by a properly engaged latch assures installers of a secure connection.

This 3-wire AMP-style female plug serves as the robust vehicle-side interface, ready to receive power and signal from the main harness, providing a reliable and sealed pathway to the lighting fixture.

Deep Dive into Termination 2: The 3-Pin Right Angle Male PL-3 Plug

The second termination of this assembly connects directly to the DOT light fixture and features a 3-pin right angle male PL-3 plug. The "PL-3" designation is an industry standard often associated with sealed lamp connections, particularly prevalent in trailer and truck lighting. "PL" historically refers to "Packard Lamp" connectors, a widely adopted design for heavy-duty applications, renowned for their ruggedness and reliability. The "right angle" orientation adds a significant dimension of practical utility to the design.

Design and Functionality:

• PL-3 Standard Compliance: The PL-3 standard ensures interoperability with a vast array of DOT-compliant lamps from various manufacturers. It typically utilizes a specific configuration of three male spade or bullet pins that are designed to mate with corresponding female sockets integrated into the lamp housing. This standardization simplifies light replacement and ensures compatibility across fleets and repair scenarios.
• 3-Pin Configuration: Mirroring the 3-wire female plug, the 3-pin male plug provides dedicated contacts for ground and two separate power/function circuits, enabling multi-functionality directly at the lamp interface. This streamlined design reduces wiring complexity at the light itself.
• Right Angle Advantage: The right-angle orientation is a critical ergonomic and functional feature. Instead of the wire exiting straight out from the back of the plug, it exits at a 90-degree angle to the mating axis. This offers several distinct advantages:
  • Space Optimization: In applications where mounting space for lights is constrained, a right-angle plug allows for closer positioning of the light against the vehicle body or frame, preventing the wiring from protruding excessively and potentially being damaged.
  • Strain Relief: The right-angle design often inherently provides superior strain relief for the cable, bending the wire immediately after the connection point. This reduces stress on the wire-to-terminal crimp joint and the insulation, extending the lifespan of the entire assembly by mitigating fatigue from vibration or pulling forces.
  • Neatness and Aesthetics: It enables cleaner, more organized cable routing, enhancing the overall professional appearance of the vehicle wiring and minimizing snag points.
  • Protection from Damage: By directing the cable parallel to the mounting surface, the wiring is less exposed to impacts from road debris, branches, or accidental contact during loading/unloading.
• Male Contact Design: The male pins are robustly constructed, typically from brass or copper alloys, often with tin or nickel plating for corrosion resistance and optimal electrical conduction. These pins are designed for secure mating with the internal sockets of the lamp, ensuring a low-resistance electrical pathway.
• Integrated Sealing: Similar to the AMP-style connector, the PL-3 plug incorporates environmental sealing features. This commonly includes an EPDM rubber or silicone grommet that compresses against the lamp housing when the plug is inserted, forming a watertight and dustproof seal. This integrated sealing mechanism is crucial for protecting the electrical contacts within the lamp from environmental contaminants, which are the leading cause of premature lighting failure in outdoor vehicle applications.

Together, these two distinct yet complementary termination styles form a complete, robust, and reliable connection solution for DOT lighting systems.

Advanced Material Science and Robust Construction

The longevity and performance of any electrical connector in harsh environments are fundamentally determined by the quality and appropriateness of its constituent materials. Buyers Products employs a rigorous material selection process to ensure the DOT Light Plug meets the arduous demands of heavy-duty applications.

Key Material Considerations:

• Housing Materials: As previously noted, high-performance thermoplastics such as reinforced nylon or PBT are utilized for their exceptional balance of mechanical, thermal, and chemical properties. These materials exhibit high tensile strength, impact resistance, and maintain dimensional stability across wide temperature fluctuations (e.g., -40°C to +125°C), crucial for environments ranging from arctic winters to scorching desert summers. Their resistance to UV radiation prevents embrittlement and discoloration over time.
• Contact Materials and Plating: The electrical contacts, typically crafted from brass (e.g., CDA 260) or phosphor bronze, are chosen for their excellent electrical conductivity and spring properties, ensuring consistent contact force over numerous mating cycles. A crucial enhancement is the application of tin plating, which significantly improves corrosion resistance, especially in saline environments (e.g., road salt), and lowers contact resistance, thereby minimizing heat generation and voltage drop.
• Wire Insulation: The wiring within the assembly features insulation designed for automotive and commercial vehicle use. Common materials include PVC (Polyvinyl Chloride) for general applications or XLPE (Cross-Linked Polyethylene) for enhanced heat resistance, abrasion resistance, and chemical stability. The wire gauge is carefully selected (e.g., 16 AWG or 18 AWG) to adequately handle the anticipated current draw of DOT lighting, minimizing voltage drop and preventing overheating under normal operating conditions.
• Sealing Elements: EPDM (Ethylene Propylene Diene Monomer) rubber or silicone elastomers are preferred for sealing grommets and O-rings. These materials offer superior resistance to ozone, UV radiation, extreme temperatures, and a wide array of automotive chemicals. Their inherent elasticity ensures a tight, durable seal that maintains its integrity over years of service.
• Overall Assembly Integrity: The entire assembly is designed to withstand continuous vibration and shock, preventing loosening of connections or structural fatigue. The materials and construction methods collectively contribute to a connector with a high mean time between failures (MTBF), reducing maintenance costs and improving operational uptime.

Performance Specifications and Electrical Integrity

Beyond material composition, the performance of the DOT Light Plug is quantified by specific electrical and environmental specifications, all rigorously tested to ensure optimal functionality under real-world conditions.

• Voltage Rating: Typically rated for 12V DC and 24V DC systems, making it universally compatible with standard commercial vehicle electrical architectures. The dielectric strength of the insulation and housing materials ensures no electrical breakdown under nominal operating voltages.
• Current Capacity: Engineered to safely handle the maximum current draw of typical DOT lighting systems, including incandescent bulbs and, increasingly, higher-efficiency LED arrays. The selection of appropriate wire gauge and contact materials prevents excessive heat buildup, ensuring efficient power transfer.
• Temperature Range: Designed to operate reliably across an expansive temperature range, often from -40°C to +105°C (and sometimes higher for peak transient conditions), accommodating diverse climatic conditions globally.
• Ingress Protection (IP) Rating: While specific ratings can vary, these types of connectors are generally designed to meet or exceed IP67 standards. This signifies complete protection against dust ingress and protection against the effects of temporary immersion in water (up to 1 meter for 30 minutes), safeguarding against moisture-induced corrosion and short circuits.
• Vibration and Shock Resistance: Subjected to rigorous testing to simulate real-world vehicle operation, ensuring connections remain secure and functional despite constant road vibration and occasional impacts.
• Dielectric Withstanding Voltage: The ability of the connector to withstand high voltage without electrical breakdown, providing an essential safety margin against transient voltage spikes.

These specifications collectively guarantee that the Buyers Products DOT Light Plug provides an electrically stable, safe, and robust connection for critical vehicle lighting.

Streamlined Installation and Field Maintainability

Recognizing the practical demands of vehicle maintenance and repair, the design of this DOT Light Plug prioritizes ease of installation and long-term serviceability.

• Ergonomic Design: Both the AMP-style female plug and the PL-3 male plug are designed for intuitive handling. The positive locking features provide clear tactile and audible feedback upon proper engagement, minimizing errors during installation.
• Secure Mating: The precise manufacturing tolerances ensure a snug, secure fit between mating components, preventing unintentional disconnection. The right-angle configuration of the PL-3 plug often allows for easier insertion and removal in tight spaces compared to straight plugs.
• Reduced Downtime: By offering a pre-assembled, standardized connection solution, installation time is significantly reduced compared to custom wiring or soldering. In the event of a lamp replacement or wiring repair, the plug-and-play nature of the connector minimizes vehicle downtime, directly impacting operational efficiency and cost-effectiveness.
• Vibration Resistance: Beyond material selection, the mechanical design incorporates features to resist vibration-induced fretting and loosening. This ensures that once installed, the connection remains stable and reliable, reducing the need for frequent inspections or re-tightening.

Applications and Industry Versatility

The robust design and standardized interfaces of the Buyers Products DOT Light Plug make it exceptionally versatile across a wide spectrum of applications where reliable DOT-compliant lighting is essential:

• Heavy-Duty Trucks: For marker lights, clearance lights, tail lights, stop lights, and turn signals on tractor units and straight trucks.
• Commercial Trailers: Essential for wiring connections on cargo trailers, flatbeds, dump trailers, refrigerated trailers, and other towable equipment, ensuring consistent lighting operation regardless of road conditions.
• Construction Equipment: Used on excavators, loaders, dozers, and other machinery that operates on public roads or requires robust lighting for site safety.
• Agricultural Machinery: For tractors, combines, and farm implements that frequently traverse public roads.
• Specialty Vehicles: Applications include emergency vehicles, utility trucks, municipal vehicles, and other specialized fleets requiring uncompromised lighting performance.

Its ability to reliably connect power and signals to multi-function lamps underscores its utility across these diverse sectors, contributing to enhanced safety and regulatory adherence.

The Buyers Products Advantage: Engineered for Excellence

Buyers Products is renowned for its commitment to quality, durability, and innovation in the commercial vehicle accessories market. This DOT Light Plug is a testament to that legacy, embodying rigorous engineering principles and adherence to industry-leading manufacturing standards. Each unit undergoes stringent quality control processes, including electrical continuity testing, dimensional verification, and environmental simulation, to ensure consistent performance and reliability. By choosing Buyers Products, customers are investing in components that are not only compliant with DOT regulations but are also built to withstand the harshest operating conditions, minimizing failures and maximizing uptime for critical vehicle systems.

Conclusion

The DOT Light Plug featuring a 3-Wire AMP-Style Female Plug with a 3-Pin Right Angle PL-3 Male Plug is more than just an electrical connector; it is a meticulously engineered solution fundamental to the safety, reliability, and regulatory compliance of modern commercial vehicle lighting systems. From its advanced material construction and robust sealing mechanisms to its optimized electrical performance and ergonomic design, every aspect of this product is designed to deliver superior functionality in the most demanding environments. By providing a secure, weather-resistant, and vibration-proof connection, this Buyers Products plug ensures that essential DOT lighting operates flawlessly, enhancing driver safety, protecting valuable assets, and maintaining operational continuity across a vast array of heavy-duty applications. It stands as a critical link in the chain of dependable vehicle performance, embodying precision engineering for the road ahead.
