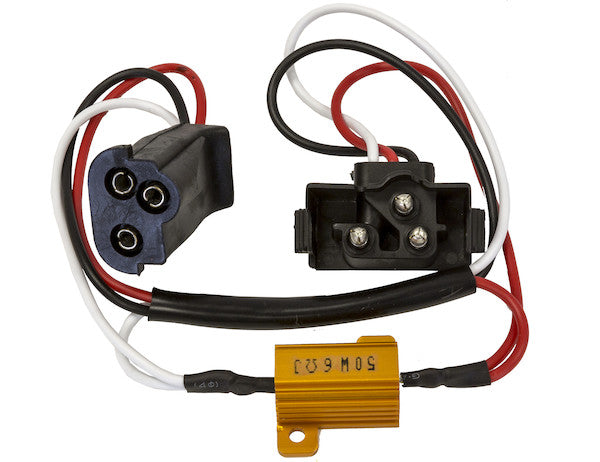

Buyers Products DOT Turn Signal Equalizer Plugs have a 50W rating and allow you to convert incandescent turn signal lights to LEDs, while maintaining proper flash rate. Plugs are available with a male PL-3 plug and your choice of blunt cut leads or a female PL-3 plug.
Specifications
| For Use With | DOT Lights |
|---|---|
| Number of Wires | 2 |
| Termination 1 | 3-Pin Right Angle Male Pl-3 Plug |
| Termination 2 | 3 Blunt Cut Ends |
The transition from traditional incandescent lighting systems to modern Light Emitting Diode (LED) technology in automotive and heavy-duty vehicle applications offers a multitude of advantages, including enhanced energy efficiency, superior durability, and significantly extended operational lifespan. However, this conversion, particularly for turn signal indicators, is not always a direct plug-and-play process. Modern vehicle electrical systems, especially those designed to monitor load characteristics for safety and operational feedback, can encounter inconsistencies when an incandescent bulb is replaced by an LED. This technical discrepancy manifests as a phenomenon commonly referred to as "hyper flash" or "rapid flash," where the turn signal blinks at an abnormally fast rate, misinterpreting the low current draw of the LED as a burnt-out bulb. To circumvent this issue and ensure proper signaling behavior, specialized solutions like the Buyers Products LED Turn Signal Equalizer DOT Light Plugs are indispensable. These precision-engineered devices are designed to seamlessly integrate LED turn signals into existing electrical architectures, maintaining the legally mandated and functionally critical proper flash rate.
At the core of understanding why an equalizer plug is necessary lies the fundamental difference in electrical characteristics between incandescent bulbs and LEDs. Incandescent bulbs operate by heating a filament to incandescence, a process that inherently draws a significant amount of electrical current, typically ranging from 1 to 2 amps at 12 volts, resulting in a power consumption of 15 to 25 watts per bulb. This substantial current draw translates to a specific electrical resistance, which is sensed by the vehicle's flasher relay or body control module (BCM). The flasher relay is designed to interrupt the current flow at a regulated interval (typically 60-120 flashes per minute), and its operation is often dependent on the total resistance (or load) presented by the connected bulbs. If one bulb burns out, the total circuit resistance changes, and many flasher relays are designed to detect this change, signaling a fault by initiating the rapid flash rate.
Conversely, LEDs operate on an entirely different principle, converting electrical energy into light through semiconductor junctions. This process is remarkably more efficient, requiring significantly less current. A typical automotive LED turn signal may draw only a fraction of an amp, often between 0.1 to 0.5 amps, equating to a power consumption of 1 to 6 watts. While this efficiency is highly desirable, it creates a compatibility challenge. When an LED replaces an incandescent bulb, the vehicle's flasher relay or BCM registers a drastic reduction in circuit load. Believing that a bulb has failed due to this reduced resistance, the system triggers the "hyper flash" warning mechanism. This not only creates an undesirable aesthetic and potentially distracting signal but can also lead to misinterpretation by other drivers, compromising safety.
The Buyers Products LED Turn Signal Equalizer acts as a sophisticated load resistor, meticulously calibrated to restore the electrical equilibrium of the turn signal circuit. With a robust 50W rating, this equalizer is specifically engineered to dissipate electrical power, effectively mimicking the load characteristics of a traditional incandescent bulb. When installed in parallel with the LED turn signal, it increases the total circuit resistance to a level that closely matches the original incandescent setup. This fools the vehicle's flasher relay or BCM into believing that the correct load is present, thereby allowing the turn signals to operate at their intended, standard flash rate. The 50W rating is a critical specification; it indicates the maximum power the resistor can safely dissipate without overheating or failing, ensuring long-term reliability even under continuous operation. For a 12V automotive system, a 50W resistor would present an equivalent resistance of approximately 2.88 Ohms (calculated using R = V²/P, where V=12V and P=50W), effectively emulating the low resistance of an incandescent bulb when operating. This precise load matching is paramount for seamless integration.
Beyond functional performance, compliance with Department of Transportation (DOT) standards is a non-negotiable aspect for all vehicle lighting components, especially turn signals which are critical safety indicators. The Buyers Products Equalizer Plugs are explicitly designed for use with DOT-compliant lights, ensuring that the entire turn signal system, once converted to LED and regulated by the equalizer, continues to meet stringent federal regulations for visibility, color, intensity, and flash rate. Maintaining a proper and consistent flash rate is not merely a matter of avoiding hyper flash; it is fundamental to road safety. Erratic or excessively fast turn signals can confuse other drivers, potentially leading to misjudgments of driver intent and increasing the risk of accidents. By guaranteeing the correct flash rate, these equalizer plugs contribute directly to enhancing vehicle safety and ensuring legal operation on public roadways. This attention to regulatory compliance underscores the professional-grade nature of the product and its suitability for both commercial and personal vehicle applications where safety and legality are paramount.

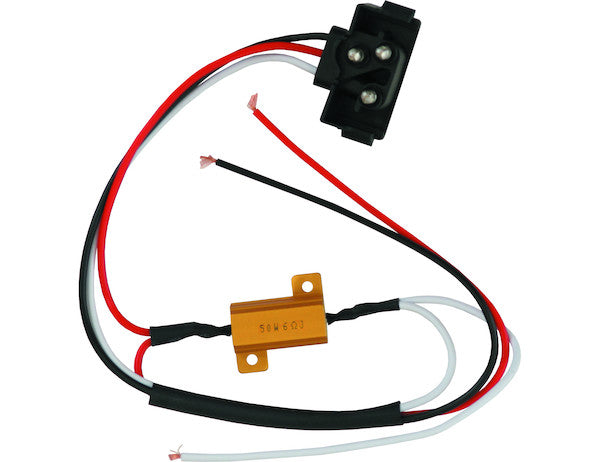

The versatility of installation is another key feature differentiating the Buyers Products LED Turn Signal Equalizer. This particular variant is supplied with a 3-Pin Right Angle Male PL-3 Plug on one end and 3 Blunt Cut Ends (stripped ends) on the other. The PL-3 connector is a widely recognized and robust standard in the heavy-duty trucking and commercial vehicle industry. Its three-pin configuration typically accommodates power, ground, and often a marker or auxiliary function, although for a two-wire turn signal equalizer application, only two of the pins will be actively utilized for load balancing. The right-angle design of the male PL-3 plug is beneficial in applications where space is constrained or where a low-profile connection is desired, minimizing protrusion and reducing the risk of accidental disconnection or damage. These connectors are known for their weather resistance and durability, critical attributes for components exposed to the harsh environmental conditions encountered in vehicle operation.
The inclusion of "stripped ends" (blunt cut leads) on the other side of the equalizer plug offers unparalleled flexibility for custom wiring applications. Unlike pre-terminated connectors, stripped ends allow installers to integrate the equalizer into virtually any electrical system, regardless of the specific connector type already present on the vehicle or the new LED light. This open-ended termination provides the freedom to solder connections for maximum reliability, crimp on proprietary terminals to match existing vehicle harnesses, or incorporate various types of quick-disconnect connectors based on installation requirements. This adaptability is particularly valuable for fleet maintenance, aftermarket upgrades, or specialized vehicle builds where standard connectors may not always suffice. The 2-wire configuration, explicitly stated in the specifications, denotes that the equalizer is designed for primary turn signal circuits, simplifying the wiring process while effectively addressing the load balancing requirement.
Proper installation of the LED Turn Signal Equalizer is crucial for both its functional performance and long-term durability. Due to their nature as load resistors, these devices dissipate energy in the form of heat. While the 50W rating indicates its capacity to handle this heat, appropriate mounting is essential to prevent thermal damage to the equalizer itself or surrounding components. It is strongly recommended to mount the equalizer to a metal surface, such as the vehicle's chassis or a robust metal frame component. This acts as a heat sink, allowing for efficient dissipation of the heat generated by the resistor and preventing potential overheating. Avoiding mounting on plastic surfaces or in enclosed, poorly ventilated areas is critical. Furthermore, ensuring secure electrical connections is paramount. For the stripped ends, professional-grade crimp connectors, heat-shrink tubing, or solder connections should be employed to prevent intermittent contact, corrosion, or short circuits, which can lead to system malfunctions or even electrical fires. Adhering to manufacturer guidelines for wiring polarity and ensuring all connections are insulated and protected from environmental factors will guarantee optimal performance and longevity.
The advantages of choosing Buyers Products LED Turn Signal Equalizer Plugs extend beyond mere technical compatibility. These units represent a professional-grade solution engineered for reliability and ease of integration. By preventing hyper flash, they ensure that the safety benefits of LED lighting – such as faster illumination and increased visibility – are fully realized without introducing unwanted complications. The durable construction, adherence to DOT standards, and the thoughtful design of the connector interfaces (PL-3 male plug and stripped ends) underscore a commitment to quality and functionality that professionals demand. Whether upgrading a commercial fleet to more efficient LED lighting or customizing a personal vehicle, these equalizer plugs offer a robust and effective method to achieve seamless functionality and maintain legal compliance. Investing in a properly designed equalizer avoids costly and time-consuming troubleshooting, ensuring that the conversion to LED lighting is a straightforward and successful endeavor.
In summary, the Buyers Products LED Turn Signal Equalizer DOT Light Plugs with their 50W rating, 3-Pin Right Angle Male PL-3 Plug, and versatile stripped ends, represent a critical component for any successful conversion of incandescent turn signal systems to LED technology. They directly address the fundamental electrical discrepancy between low-current LEDs and the load-sensing mechanisms of modern vehicle flashers, thereby eliminating the "hyper flash" phenomenon. Their design adheres to rigorous DOT standards, ensuring that the resulting turn signal operation remains safe, consistent, and legally compliant. The thoughtful combination of a standardized, durable PL-3 male plug with flexible stripped ends provides installers with the adaptability required for diverse applications, from heavy-duty commercial vehicles to custom automotive projects. By integrating this equalizer, users can fully leverage the benefits of LED lighting—superior longevity, enhanced efficiency, and improved visibility—without compromising the integrity or safety of their vehicle's signaling system. This product is not merely an accessory; it is an essential engineering solution that bridges the technological gap, ensuring seamless functionality and peace of mind for all LED turn signal conversions.
