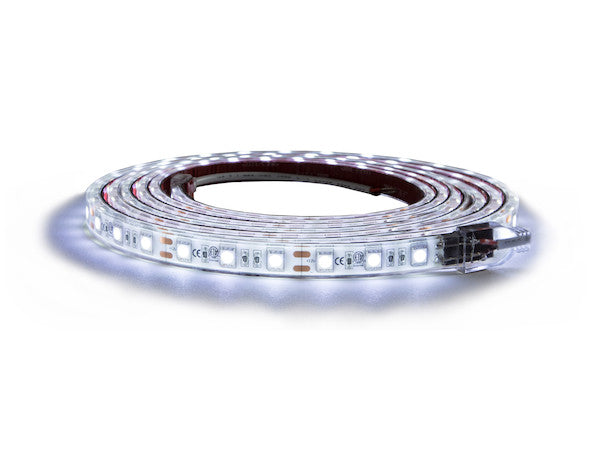

562109166 - 108 Inch 165-LED Strip Light with 3M??? Adhesive Back - Clear And Cool

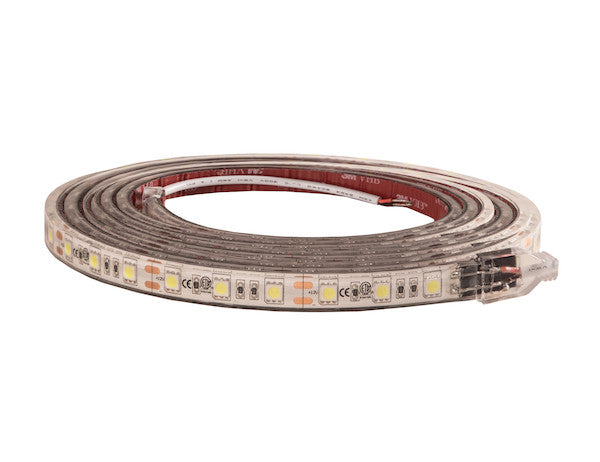

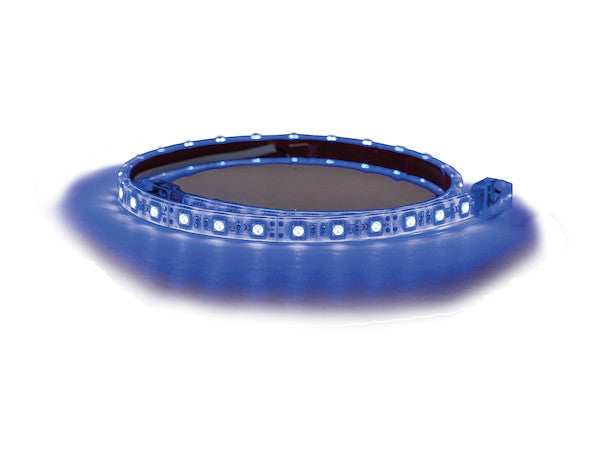

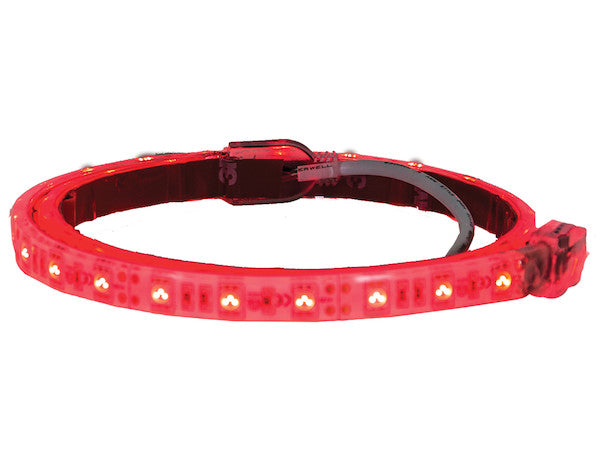

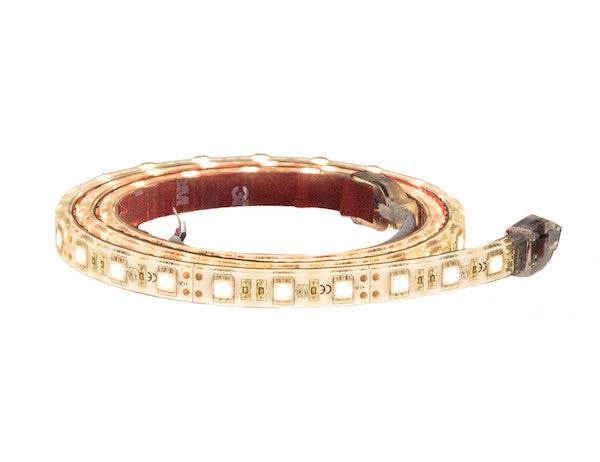

Buyers Products LED Strip Light with 3M??? Adhesive Back is available in various lengths and lens colors to fit a variety of applications. Each strip has a blunt cut connection on both ends and can be cut to length every three LEDs. The 12V light strip is IP67 rated for water and dust resistance and comes in lengths ranging from 18 in. to 132 in. End caps and mounting clips are included. Special lengths and wire connectors are available upon request. The LED strip lights are backed with a 5 year warranty.

Specifications

Advanced Technical Overview: 108 Inch 165-LED Strip Light with 3M™ Adhesive Back - Clear And Cool

The Buyers Products 108-inch LED Strip Light represents a pinnacle in versatile, durable, and high-performance auxiliary lighting solutions. Engineered with precision for a myriad of demanding applications, this lighting unit integrates advanced LED technology with robust construction and user-centric design principles. This particular model, featuring 165 individual LEDs, delivers a powerful 2400 lumens of cool white illumination at a color temperature of 6000 Kelvin, all within a compact and highly adaptable form factor.

Design and Construction Principles

Integrated LED Technology and Optical Performance

At the core of this lighting strip are 165 high-efficiency Light Emitting Diodes (LEDs), strategically spaced to ensure a uniform and consistent light output across the entire 108-inch (2.74-meter) length. The selection of LEDs that produce a 6000K color temperature results in a crisp, clear, and vibrant cool white light. This specific Kelvin rating is highly desirable for environments requiring enhanced visibility, detailed task performance, or a modern, clinical aesthetic. Typical applications include commercial vehicle cargo areas, equipment compartments, workshops, marine environments, and contemporary architectural lighting designs where visual acuity and alertness are prioritized. The LEDs themselves are solid-state devices, inherently more resistant to shock and vibration compared to traditional incandescent or fluorescent sources, contributing significantly to the product's extended operational lifespan and reliability in dynamic settings.

Robust Housing and Lens Material: PVC for Enduring Performance

The entire LED strip is encapsulated within a high-quality Polyvinyl Chloride (PVC) housing, which serves as both the structural backbone and the protective barrier. PVC is a preferred material for its excellent balance of flexibility, mechanical strength, and resistance to environmental degradation. It provides a degree of chemical inertness, making the strip suitable for exposure to various solvents, oils, and other common industrial compounds without compromising its integrity. The clear PVC lens is integrated seamlessly with the housing, offering optimal light transmission while protecting the LEDs from physical damage, moisture ingress, and dust accumulation. The rectangular lens shape further optimizes light distribution, minimizing hot spots and ensuring a broad, even spread of illumination. With an overall height and width of 0.500 inches, the strip maintains an exceptionally low profile, allowing for discreet installation in constrained spaces.

Superior Mounting Solutions: 3M™ Adhesive and Mechanical Fasteners

Installation flexibility and long-term adhesion are critical for auxiliary lighting, and this product excels in both. The primary mounting mechanism is a pre-applied, industrial-grade 3M™ adhesive backing. 3M adhesives are renowned for their high bond strength, resistance to temperature fluctuations (both hot and cold), and durability against vibration and shear forces. This robust adhesive ensures secure attachment to a wide range of properly prepared surfaces, including metal, painted surfaces, and various plastics, simplifying installation and reducing labor time. For applications demanding supplementary mechanical security or in environments subject to extreme stresses, the strip includes mounting clips. These clips provide an additional layer of physical retention, ensuring the light strip remains firmly in place even under severe operational conditions. End caps are also provided to protect the strip's terminations, maintaining its ingress protection rating.

Electrical and Performance Specifications Analysis

Optimized 12V DC Operation and Power Efficiency

Operating at a nominal 12 Volts DC, this LED strip is ideally suited for direct integration into most common vehicle electrical systems, marine applications, and low-voltage industrial power infrastructures. The 12V standard simplifies power supply requirements and enhances safety, especially in mobile or exposed environments. The strip draws a modest 3.00 Amperes at 12 Volts, translating to a total power consumption of 36.00 Watts (P = V * I). This power efficiency is a hallmark of LED technology, providing significant illumination (2400 lumens) for relatively low energy input, which reduces strain on electrical systems and conserves battery life in mobile applications. The ratio of lumens to watts (approximately 66.7 lumens per watt) indicates a high level of photometric efficacy, ensuring brilliant light output without excessive energy waste.

Lumen Output and Illumination Profile

With a total luminous flux of 2400 lumens, this 108-inch LED strip is capable of providing substantial illumination. To put this into perspective, 2400 lumens is comparable to the output of two standard 100-watt incandescent bulbs, but with dramatically lower power consumption and a far longer lifespan. This output makes the strip suitable for both primary task lighting in localized areas and supplemental ambient lighting across larger spaces. The even distribution of the 165 LEDs across the length ensures a consistent light pattern, eliminating dark spots and creating a visually comfortable environment. The 6000K color temperature, characteristic of cool white light, enhances contrast and renders colors accurately, which is crucial for detailed work or inspection tasks.

Environmental Resilience: IP67 Ingress Protection

A critical feature for professional-grade auxiliary lighting is its ability to withstand environmental challenges, and the IP67 rating of this LED strip underscores its exceptional durability. The Ingress Protection (IP) rating system, defined by IEC standard 60529, quantifies the degree of protection provided by electrical enclosures against the intrusion of solids (dust, dirt) and liquids (water).

• First Digit (6): This indicates the highest level of protection against solid objects, signifying that the enclosure is "dust-tight." No ingress of dust is permitted under specified test conditions, meaning fine particulates, common in industrial or off-road environments, cannot enter the housing and interfere with the electrical components or LEDs.
• Second Digit (7): This denotes protection against the effects of temporary immersion in water. Specifically, the device can withstand immersion in water up to 1 meter (approximately 3.3 feet) for a period of up to 30 minutes without harmful effects. This level of water resistance is crucial for applications exposed to heavy rain, splashes, pressure washing, or even accidental submersion in shallow water, making it ideal for marine, construction, agricultural, and utility vehicle installations.

The combination of dust-tightness and temporary immersion capability ensures that the LED strip remains fully functional and reliable in some of the most challenging environments imaginable, providing peace of mind regarding its long-term performance.

Modularity, Customization, and Installation Procedures

Precision Cutability for Tailored Fit

A significant advantage of this LED strip is its design for modularity. The strip can be precisely cut to length at intervals of every three LEDs. This feature is enabled by specific cut points along the strip's circuit board, marked for user convenience. This allows installers to achieve an exact fit for highly customized applications, minimizing waste and optimizing the lighting layout. After cutting, it is imperative to properly seal the exposed end with the included end caps or an appropriate silicone sealant to maintain the IP67 ingress protection rating and ensure long-term reliability. Failure to properly seal cut ends will compromise the strip's environmental resistance.

Blunt Cut Connections for Hardwiring Versatility

The LED strip comes with blunt cut connections on both ends, consisting of two stripped leads. This design provides maximum flexibility for hardwiring the unit into existing electrical systems. The stripped leads allow for direct connection to terminal blocks, splice connectors, or custom wiring harnesses, facilitating seamless integration with vehicle power sources, auxiliary battery systems, or low-voltage DC power supplies. The absence of a pre-installed plug means installers are not constrained by specific connector types, allowing for a tailored and secure electrical connection appropriate for the installation environment. This hardwired approach ensures a robust and reliable power interface, free from the vulnerabilities of common plug-and-play connectors in harsh conditions.

Detailed Installation Methodology

Successful installation hinges on proper surface preparation and adherence to best practices:

1. **Surface Preparation:** Ensure the mounting surface is clean, dry, and free of grease, oil, dust, or other contaminants. For optimal adhesion, cleaning with an isopropyl alcohol solution is recommended. The surface temperature should ideally be within the optimal range for the 3M adhesive (typically 65°F to 100°F or 18°C to 38°C) to allow for proper initial bond formation.
2. **Adhesive Application:** Carefully peel back the protective liner from the 3M adhesive backing, progressively pressing the LED strip firmly onto the prepared surface along its entire length. Apply consistent pressure to ensure full contact and eliminate air bubbles, allowing the adhesive to bond effectively.
3. **Mechanical Reinforcement:** For high-vibration applications or overhead installations, utilize the included mounting clips at regular intervals along the strip. These clips provide additional mechanical security, preventing sagging or detachment over time.
4. **Electrical Connection:** Connect the stripped leads to the 12V DC power source, observing correct polarity (typically red for positive, black for negative). Ensure all electrical connections are secure, insulated, and protected from environmental exposure to prevent short circuits or corrosion.
5. **Sealing Cut Ends:** If the strip has been cut to a custom length, securely apply the provided end caps or a marine-grade silicone sealant to the freshly cut ends. This step is critical to preserving the IP67 rating and preventing moisture or dust ingress into the internal circuitry.

Diverse Application Scenarios

The robust construction, high lumen output, and IP67 rating of the 108-inch LED strip light make it exceptionally versatile across a broad spectrum of commercial, industrial, and specialized applications:

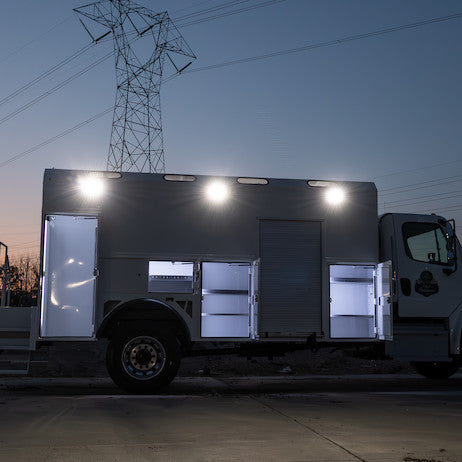

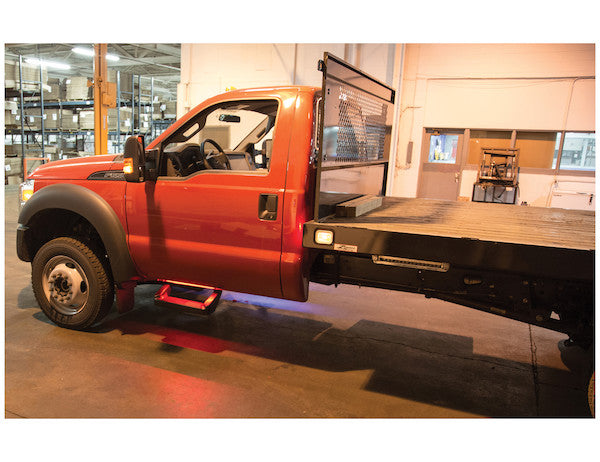

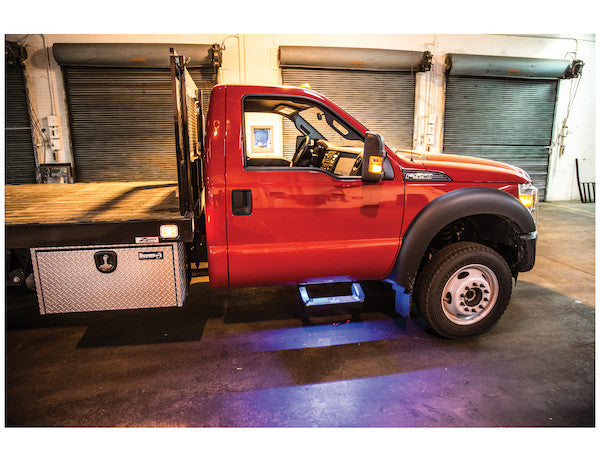

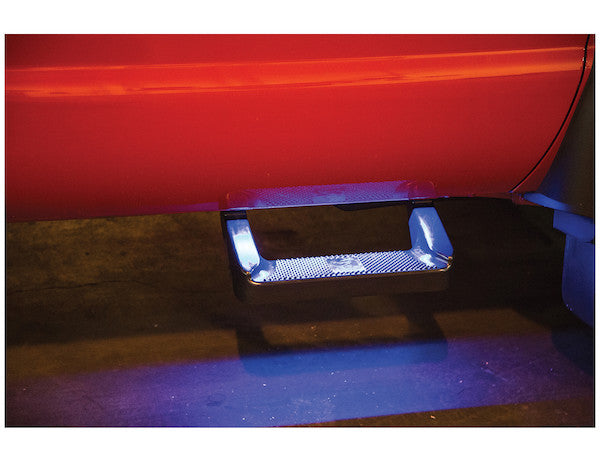

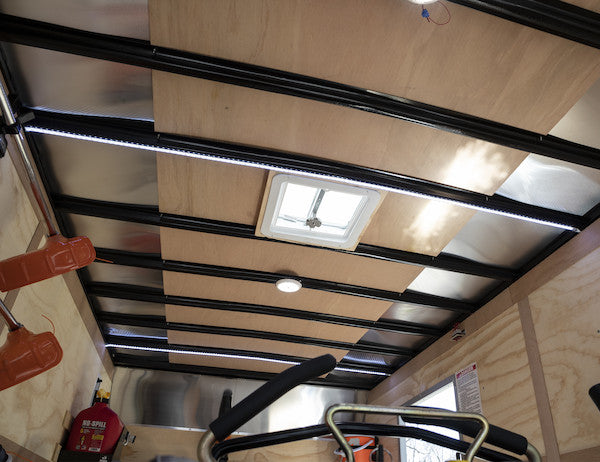

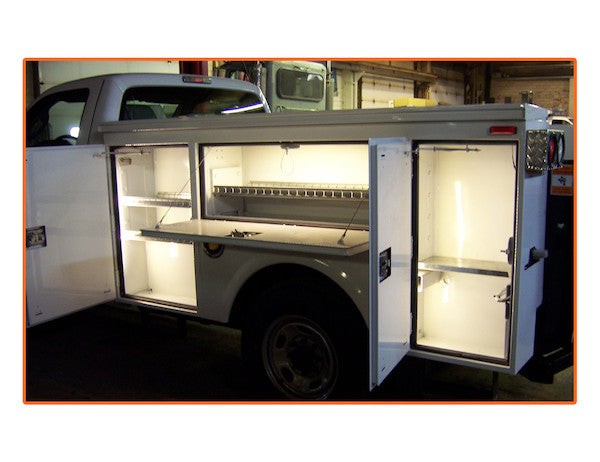

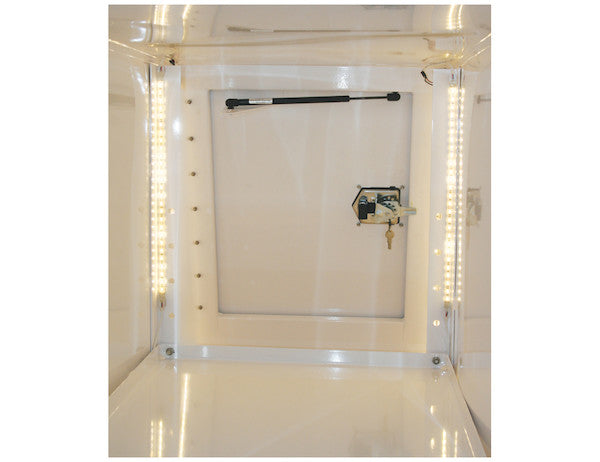

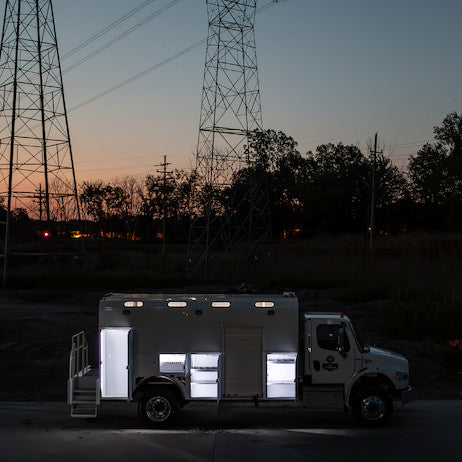

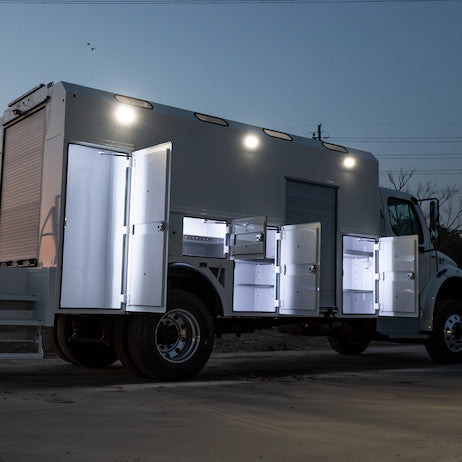

• **Commercial Vehicle Illumination:** Ideal for interior lighting in cargo vans, utility trucks, trailers, emergency vehicles, and service body compartments. Provides bright, uniform light for loading, unloading, and equipment organization.
• **Marine Environments:** Its IP67 rating makes it perfectly suited for boat cabins, engine compartments, deck lighting (sheltered areas), and fishing boat task lighting where exposure to water spray and humidity is common.
• **Industrial and Workshop Lighting:** Excellent for under-cabinet lighting above workbenches, inspection areas, equipment bay illumination, and accent lighting in fabrication shops, garages, and maintenance facilities.
• **Agricultural Equipment:** Can be used to illuminate storage areas, implement compartments, or as auxiliary lighting on farm machinery, providing durable light in dusty and wet conditions.
• **Recreational Vehicles (RVs) and Campers:** Enhances interior lighting in living areas, storage bays, and utility compartments, offering efficient and reliable illumination.
• **Architectural and Display Lighting:** Its unobtrusive design and bright cool white light make it suitable for accentuating architectural features, backlighting signage, or illuminating retail display cases and shelving, particularly in settings requiring a modern aesthetic.
• **Safety and Pathway Lighting:** Can be utilized for subtle, continuous pathway illumination in industrial walkways or around equipment, enhancing safety and visibility without creating glare.

Long-Term Value Proposition

Investing in the Buyers Products 108-inch LED Strip Light offers a compelling long-term value proposition. The inherent energy efficiency of LED technology ensures significantly reduced power consumption compared to conventional lighting, leading to lower operating costs over the product's lifespan. Furthermore, the exceptional longevity of the LEDs, typically tens of thousands of hours, drastically minimizes maintenance requirements and replacement frequency, translating into considerable savings on labor and material costs. The robust IP67 construction, utilizing high-quality PVC housing and lens, guarantees enduring performance in adverse conditions, mitigating the risk of premature failure due to environmental exposure. This commitment to durability and reliability is further solidified by a comprehensive 5-year warranty, providing customers with confidence in the product's quality and the manufacturer's backing.

Conclusion

The Buyers Products 108 Inch 165-LED Strip Light with 3M™ Adhesive Back in Clear And Cool (6000K) stands as a testament to engineering excellence in auxiliary lighting. Its meticulous design, encompassing high-output LEDs, durable PVC construction, versatile mounting options, and an impressive IP67 environmental rating, positions it as an unparalleled solution for demanding applications. From the precision of its cuttable segments to the robust blunt-cut wiring and the assurance of a 5-year warranty, every aspect of this product is crafted to deliver superior performance, ease of integration, and exceptional longevity. For professionals seeking a reliable, high-performance, and adaptable lighting solution that withstands the rigors of industrial, commercial, and marine environments, this LED strip light represents an optimal choice.
